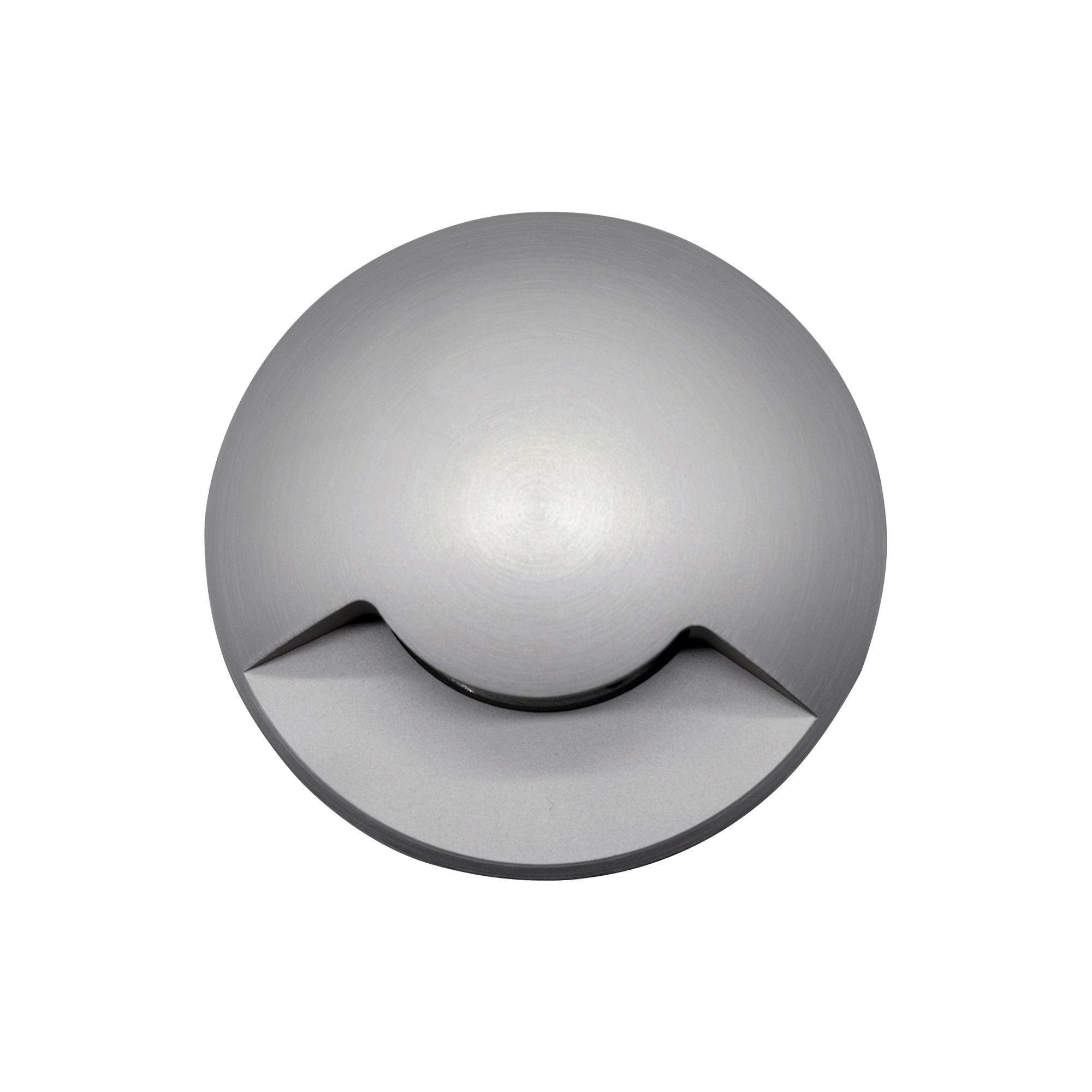

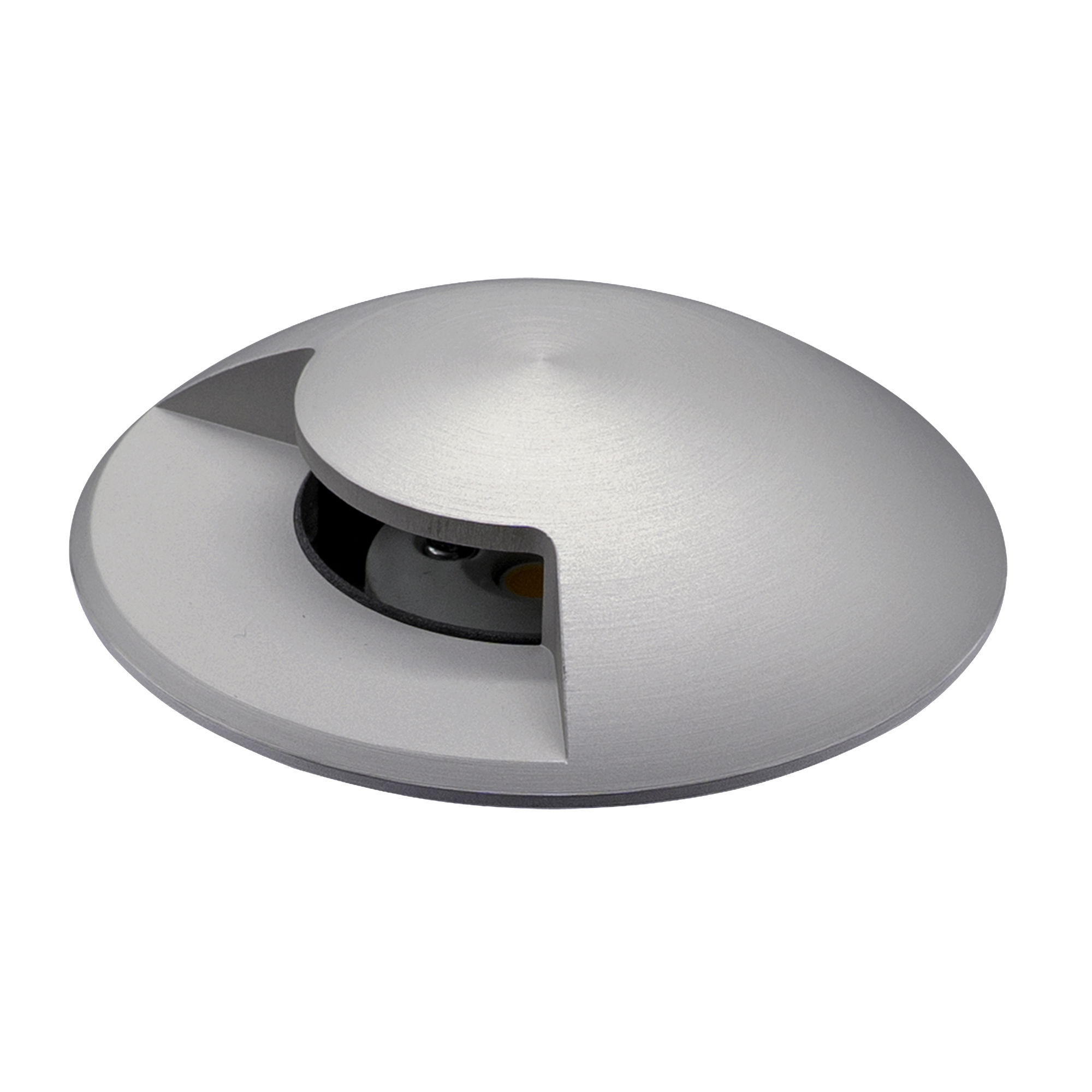

Battlestar LED Recessed Outdoor Uplight Wheel 240V 3W Aluminium 3000K Warm White

Description

The Battlestar LED Wheel 240V is a recessed uplight which is used in the floors. Tgs. With an IP67 waterproof rating, this durable recessed LED uplight is ideal for outdoor lighting applications, including driveways, decking, patios, and other wet or damp environments.

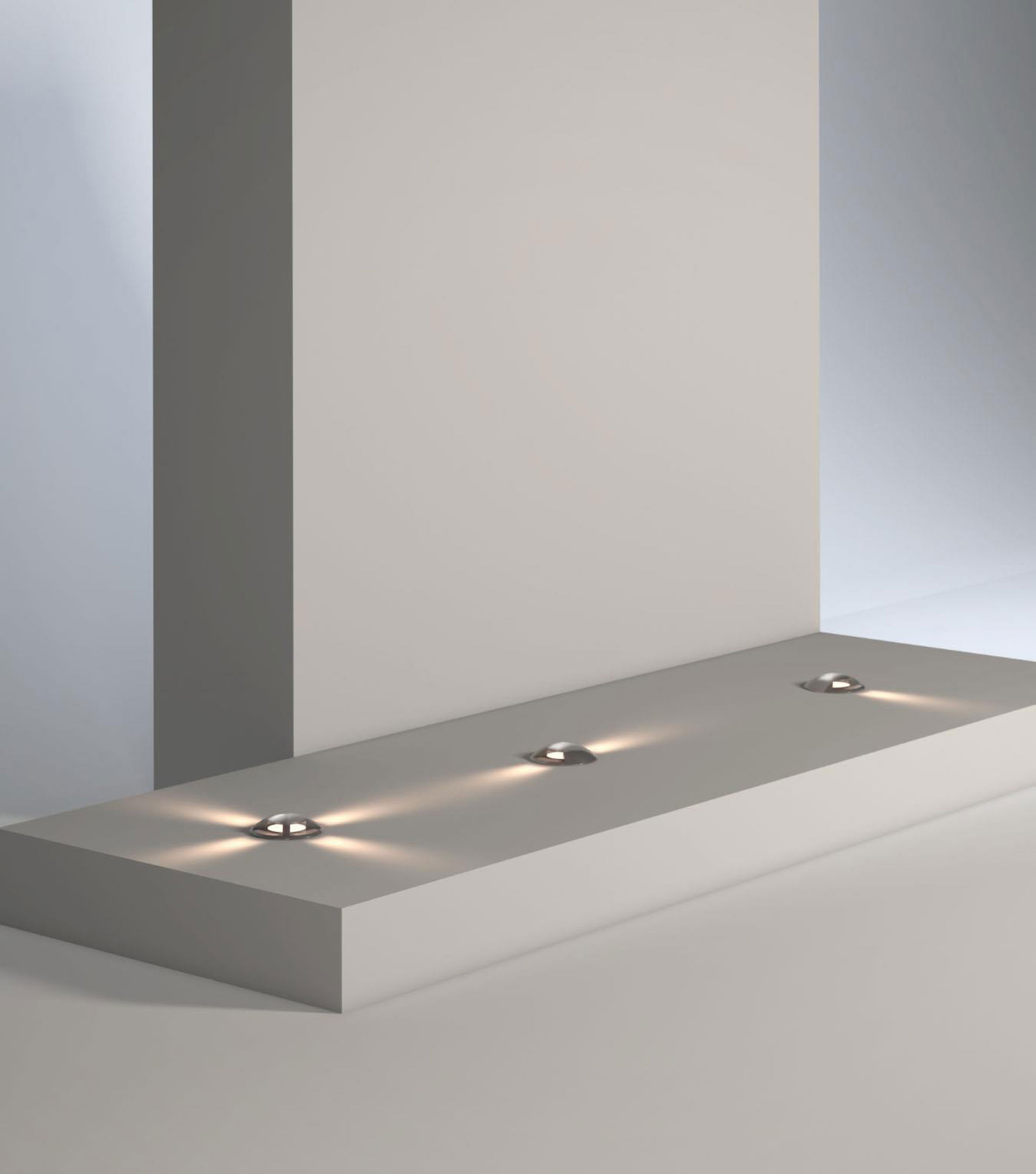

Crafted from premium aluminium for long-lasting durability, the Battlestar LED Wheel delivers a sleek, modern look while providing low-profile illumination that shines horizontally across the ground. Its integrated LED driver allows for easy installation—simply connect directly to a 240V mains power supply. Constructed and finished in aluminium.

For a step-by-step guide to install outdoor ground uplights in the earth, lawn, decking or patio, click here.

When installing recessed ground uplights, standard junction boxes usually won’t fit inside the tight cutout hole drilled into stone or concrete patios. If you are fitting them into timber decking, you will have plenty of void space underneath for easy wiring, but for tight patio installations, you must use a slim, waterproof gel-filled connector like Product Code: 5625/4151125

Specification

General
Colour	Aluminium
Construction	Aluminium
IK Rating	IK08
IP Rating	IP67


Drive-Over Limits	Walkover Only

Dimensions
Cable Length	200mm
Cut Out	75mm (Diameter)
Depth	125mm
Diameter	88mm

Electrical
Maximum Wattage	3W
Requires Driver	No
Voltage	240V

Light Characteristics
Beam Angle	90°
Colour Temperature	3000K Warm White
Lumens	340 lm
Lumens Per Watt	113 lm/W

Technical Drawings

Downloads

Catalogues

Architectural Outdoor Catalogue

Technical

How to Install Ground Uplights in to Soil & Turf

Specification Sheet

Battlestar LED Recessed Outdoor Uplight Wheel 240V 3W Aluminium 3000K Warm White

Battlestar LED Recessed Outdoor Uplight Wheel 240V 3W Aluminium 3000K Warm White (Unbranded)
