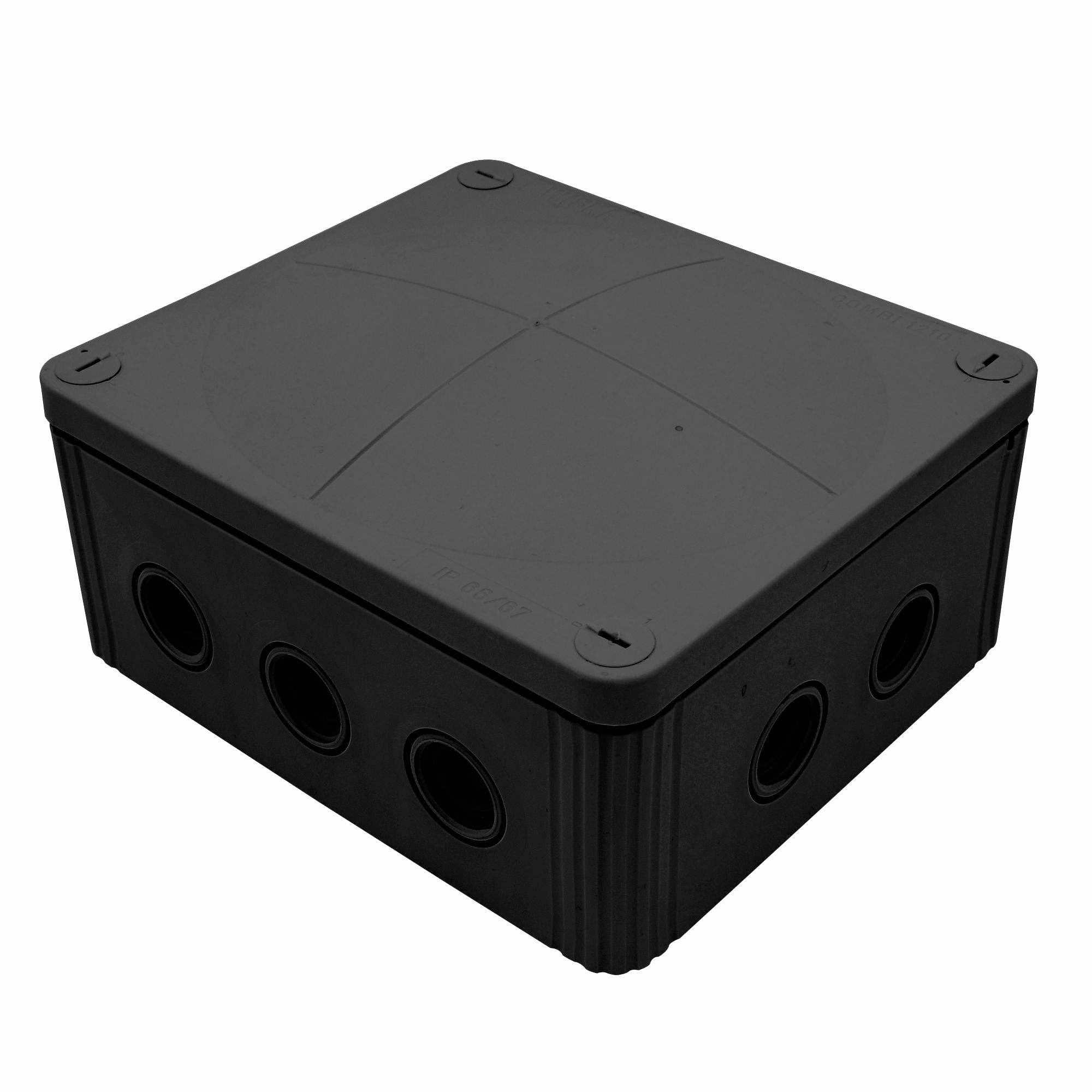

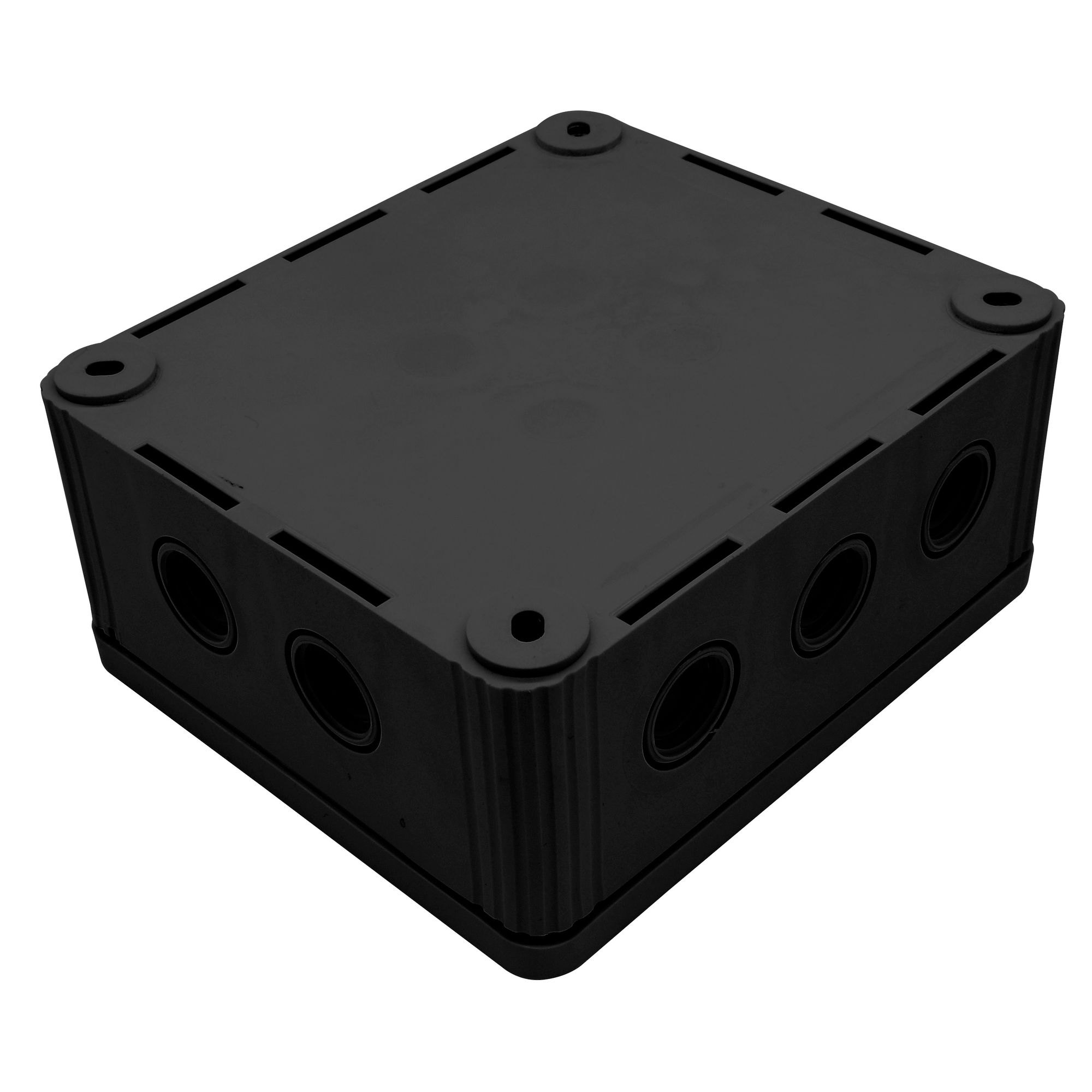

Waterproof Empty Junction Box M20 / M25 (160x140x81mm)

10 Ways Threaded Membrane & Knockouts Black

Quicklink Q407B

Product Code JB 10101460 BLK

£14.04EX VAT
£16.85INC VAT
24 in Stock

Description

The Waterproof Junction box COMBI 1210 multiple cable entries, 10 openings on the sides and four internal openings.

Features

Protection class: IP66: using the membrane entry / IP67: using the threaded entry together with ESKV cable gland
Glow wire test: 750 °C
Rated cross section: 10 mm²
Fixing and Mounting: 4 internal openings outside of the sealing area
Ø cable diameter min: 3 mm
Ø cable diameter max: 12 mm
External dimensions LxWxH: 160 x 140 x 81mm

Equipment:

10 M20 threaded membrane entries and M25 knockouts
4 membrane cable entries through rear
4 captive cover screws

Product Video

Specification

General
Colour	Black
IP Rating	IP66

Dimensions
Height	70mm
Length	160mm
Width	140mm

Downloads

Technical

Wiska COMBI Series

Specification Sheet

Waterproof Empty Junction Box M20 / M25 (160x140x81mm) 10 Ways Threaded Membrane & Knockouts Black

Waterproof Empty Junction Box M20 / M25 (160x140x81mm) 10 Ways Threaded Membrane & Knockouts Black (Unbranded)
