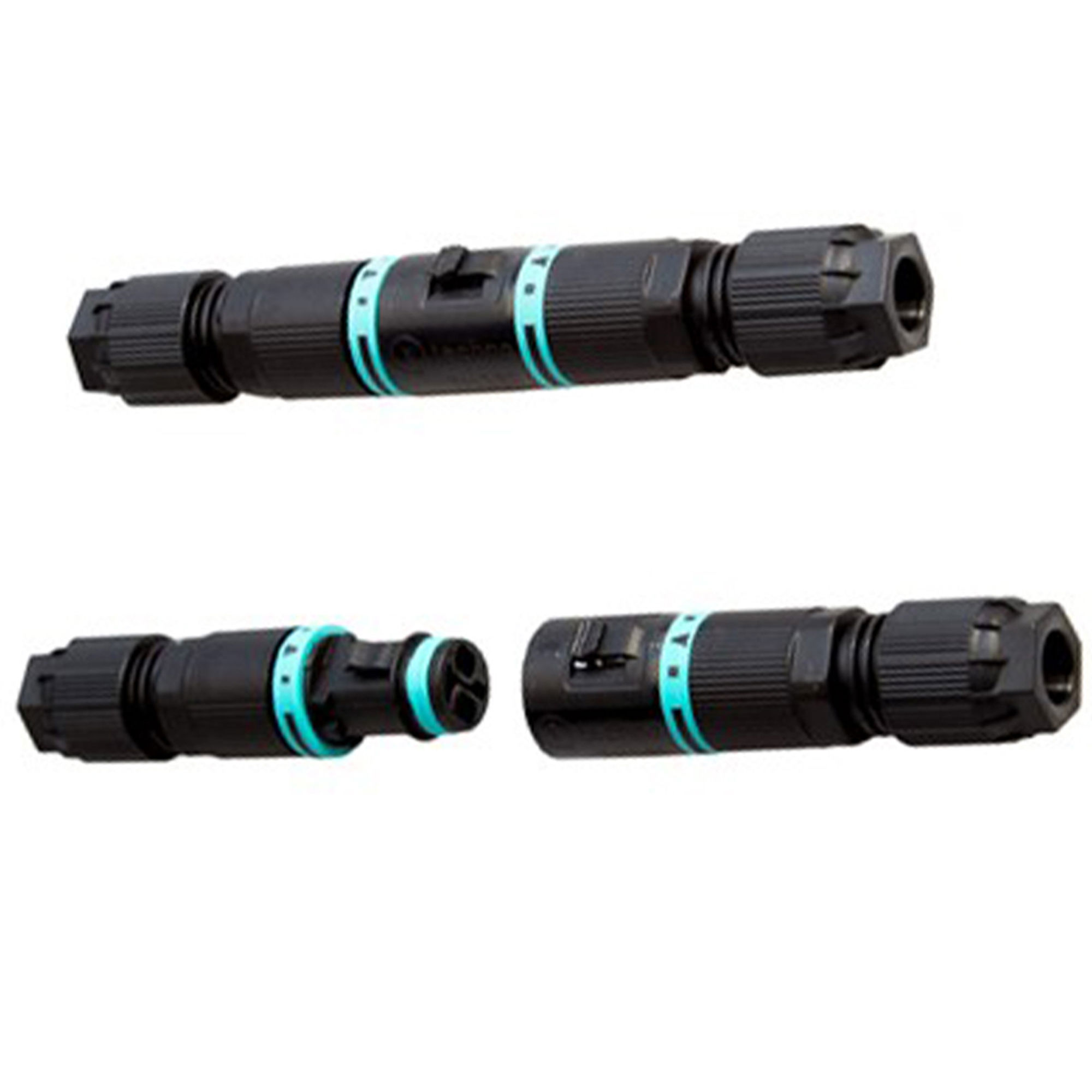

Waterproof 2-Pole Micro TeePlug & Socket 5.8-6.9mm Cable Connector

1mm² Conductor Black

Quicklink Q6F3F

Product Code THK.381.02

£10.00EX VAT
£12.00INC VAT
only 1 left

Description

This ultra-compact 2-pole micro screw terminal plug is the smallest waterproof connector on the market with a diameter of only 14mm, making it ideal for space-constrained architectural, street, LED, and underwater lighting applications. This single-cable-entry connector features a quick push-pull connection system that accommodates cable diameters from 5.8mm to 6.9mm and supports wire sizes up to 1.5mm². It is fully tested and approved for harsh environments, carrying an IP68 rating for submersion up to 30 meters for 1 hour, as well as an IP69K rating for high-pressure water resistance.

Specifications

Terminal Type Silver-plated brass (zinc-plated screws)
ncludes 1 x Male Plug and 1 x Female Socket for quick-disconnect cable runs
Cable Entries: 1
Max Current: 10A
Max Voltage: 500V
Number of Poles: 2
Minimum Cable Diameter: 5.8mm
Maximum Cable Diameter: 6.9mm
Body Material: PA66 GF UL94 V0
Suitable For Class 2 Applications (Double Insulated)

Specification

General
IP Rating	IP68

Electrical
Amperage	10A
Voltage	500V

Downloads

Specification Sheet
