Waterproof 3-Pole Inline TeePlug 7-12mm Cable Connector
4mm² Conductor Black
Quicklink
Q6F45
Product Code
THB384AB1A
- £18.18EX VAT
- £21.82INC VAT
- 61 in Stock

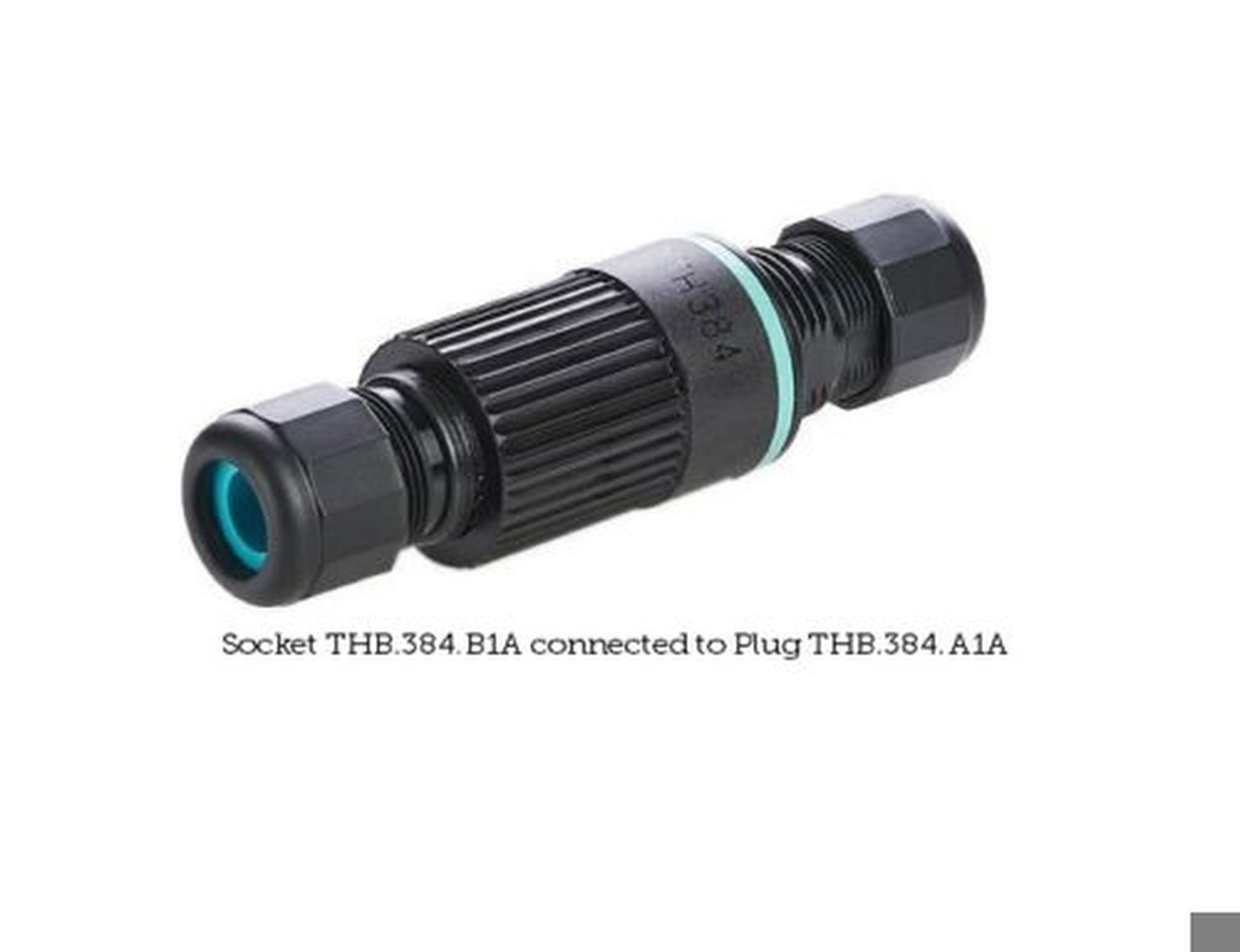

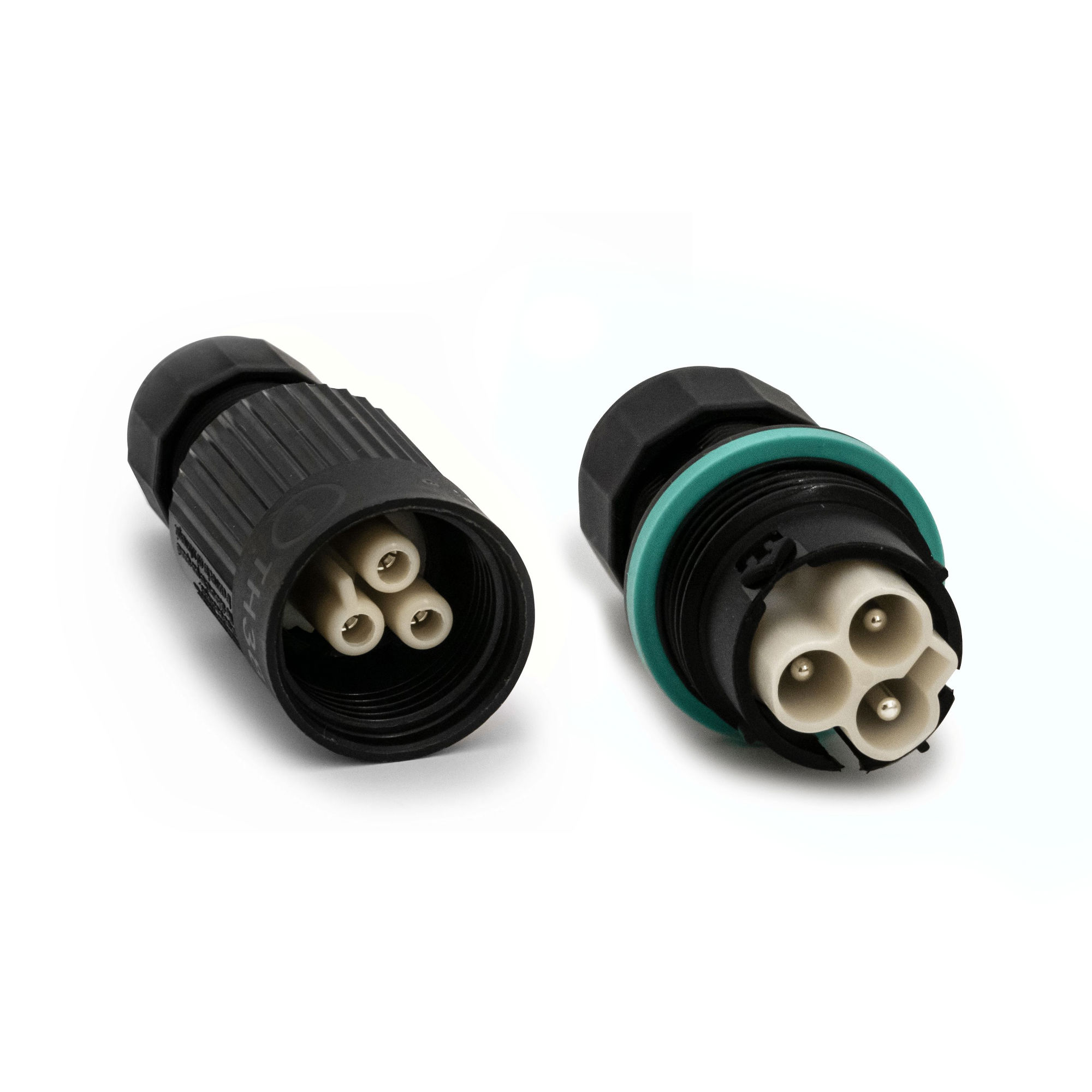

TeePlug 3 pole screw terminal 7mm to 12mm cable diameter, 4 mm max conductor size IP66-68 16A 400V 1 cable entry. This is a Kit with the Male and Female Connectors
Key Features
- Max Voltage: 400V
- Number of Poles: 3
- Minimum Cable Diameter: 7mm
- Maximum Cable Diameter: 12mm
- Cable Entries: 1
- Max Conductor Size: 4sq mm
- IP Rating: 66-68
- Min Temperature Rating °C: -40
- Max Temperature Rating °C: 125
- Temperature "T" Rating: T85
- Body Material: PA66
- Fixing System: Cable
- Terminal Type: Screw
| General | |
| Construction | Plastic |
| IP Rating | IP68 |
| Dimensions | |
| Diameter | 27mm |
| Length | 95mm |
| Electrical | |
| Amperage | 17A |
| Voltage | 400V |
