Waterproof Round Junction Box M20 with Terminal Block and 3 x WAGO 221-413 (Ø 87x57mm)

4 Way Threaded Membrane Entries Black

Quicklink Q6F41

Product Code JB 10110636 BLK

£5.60EX VAT
£6.72INC VAT
only 2 left

Description

With their unique round design and highest quality, they have met the most demanding installer requirements for years: The COMBI junction box series is an original in every aspect.

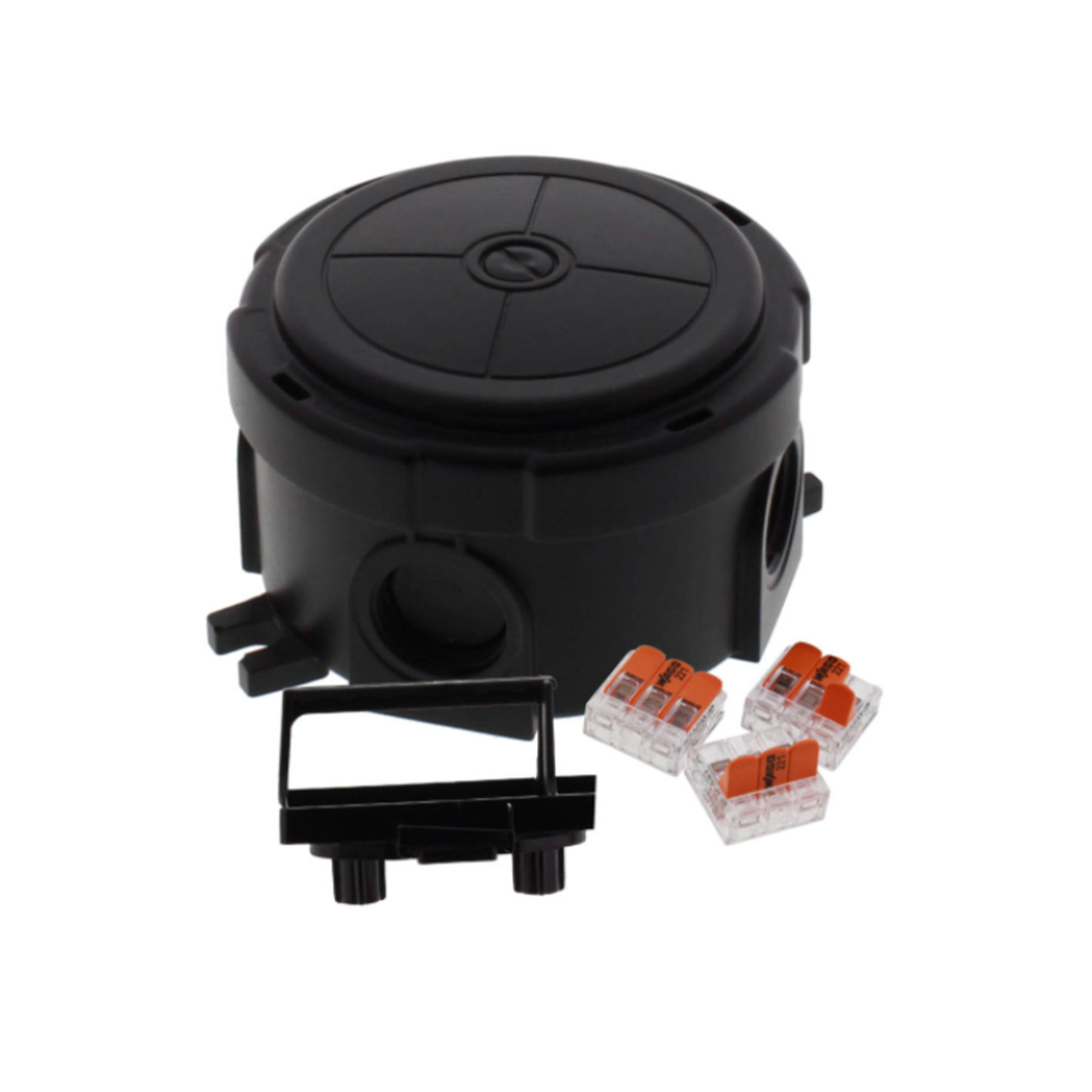

The Wiska 10110636 is a 304 / 3-221-413 junction box which comes complete with three WAGO 3-way lever terminals and includes a mounting clip and a terminal carrier on a quick mounting plate. This junction box has a voltage of 400V and comes with a black finish.

Specifications

Material: Polypropylene
Temp. range min: -30 °C
Temp. range max: 100 °C
IP66: using the membrane entry // IP67: using the threaded entry together with ESKV cable gland
Glow wire test: 750 °C
Rated cross section: 2,5 mm²
Terminals/poles: 4 mm²
Fixing: 2 external mounting feet
Ø cable diameter min: 3 mm
Ø cable diameter max: 12 mm
External dimensions: Ø 87 x 57mm
Type of cable gland: M 20 x 1,5
Includes terminal carrier on quick mounting plate mounted + 3x WAGO 221-413 enclosed loose

Product Video

Specification

General
Colour	Black

Technical Drawings

Downloads

Specification Sheet

Waterproof Round Junction Box M20 with Terminal Block and 3 x WAGO 221-413 (Ø 87x57mm) 4 Way Threaded Membrane Entries Black

Waterproof Round Junction Box M20 with Terminal Block and 3 x WAGO 221-413 (Ø 87x57mm) 4 Way Threaded Membrane Entries Black (Unbranded)
