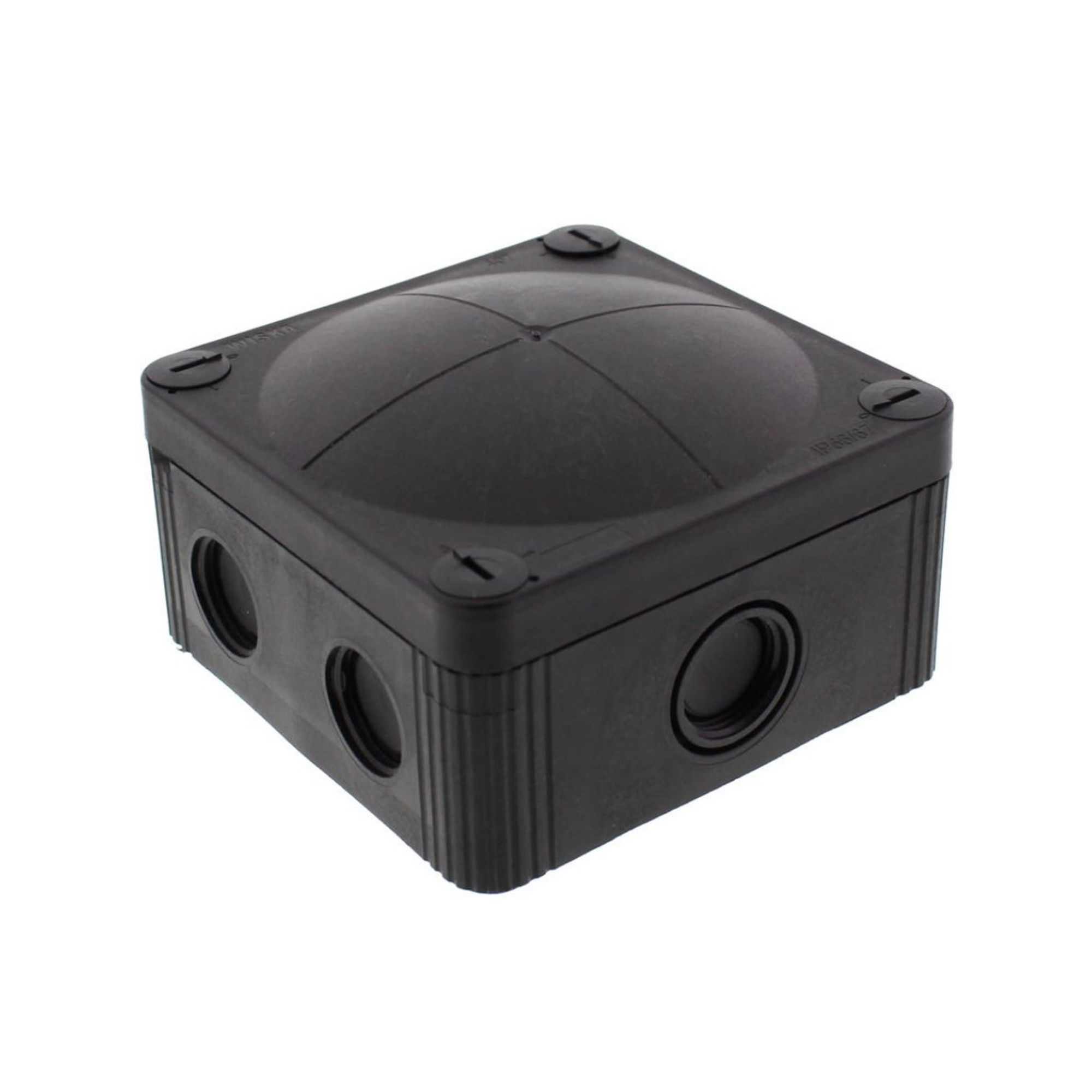

Waterproof Empty Junction Box M20 / M25 (95x95x60mm)

7 Ways Threaded Membrane & Knockouts Black

Quicklink Q6BCB

Product Code JB 10105601 BLK

£7.36EX VAT
£8.83INC VAT
31 in Stock

Description

The Waterproof Junction box COMBI 407 allows up to 7 different cables to be wired through it. The IP66/IP67 rating also allows it suitable for any situation outdoors. The weather proof box is resistant to ultraviolet

Features

Rated cross section: 4 mm²
Fixing and mounting: With mounting clip or 4 internal openings outside of the sealing area
Ø cable diameter min: 3 mm
Ø cable diameter max: 12 mm
External dimensions LxWxH: 95 x 95 x 60mm
Type of cable gland M20 x 1,5, M25 x 1,5
IP66: using the membrane entry / IP67: using the threaded entry together with ESKV cable gland

Equipment:

6x M20 threaded membrane entries and 1 middle M20 threaded membrane entry with knockout to M25
2 membrane cable entries through rear
4 captive cover screws
including mounting clip

Specification

General
Colour	Black
Construction	Plastic
IP Rating	IP67
RAL Colour Code	RAL 9005

Dimensions
Depth	60mm
Length	95mm
Width	95mm

Electrical
Voltage	690V

Downloads

Technical

WISKA 10105601 COMBI 407 BK

Wiska COMBI Series

Specification Sheet

Waterproof Empty Junction Box M20 / M25 (95x95x60mm) 7 Ways Threaded Membrane & Knockouts Black

Waterproof Empty Junction Box M20 / M25 (95x95x60mm) 7 Ways Threaded Membrane & Knockouts Black (Unbranded)
