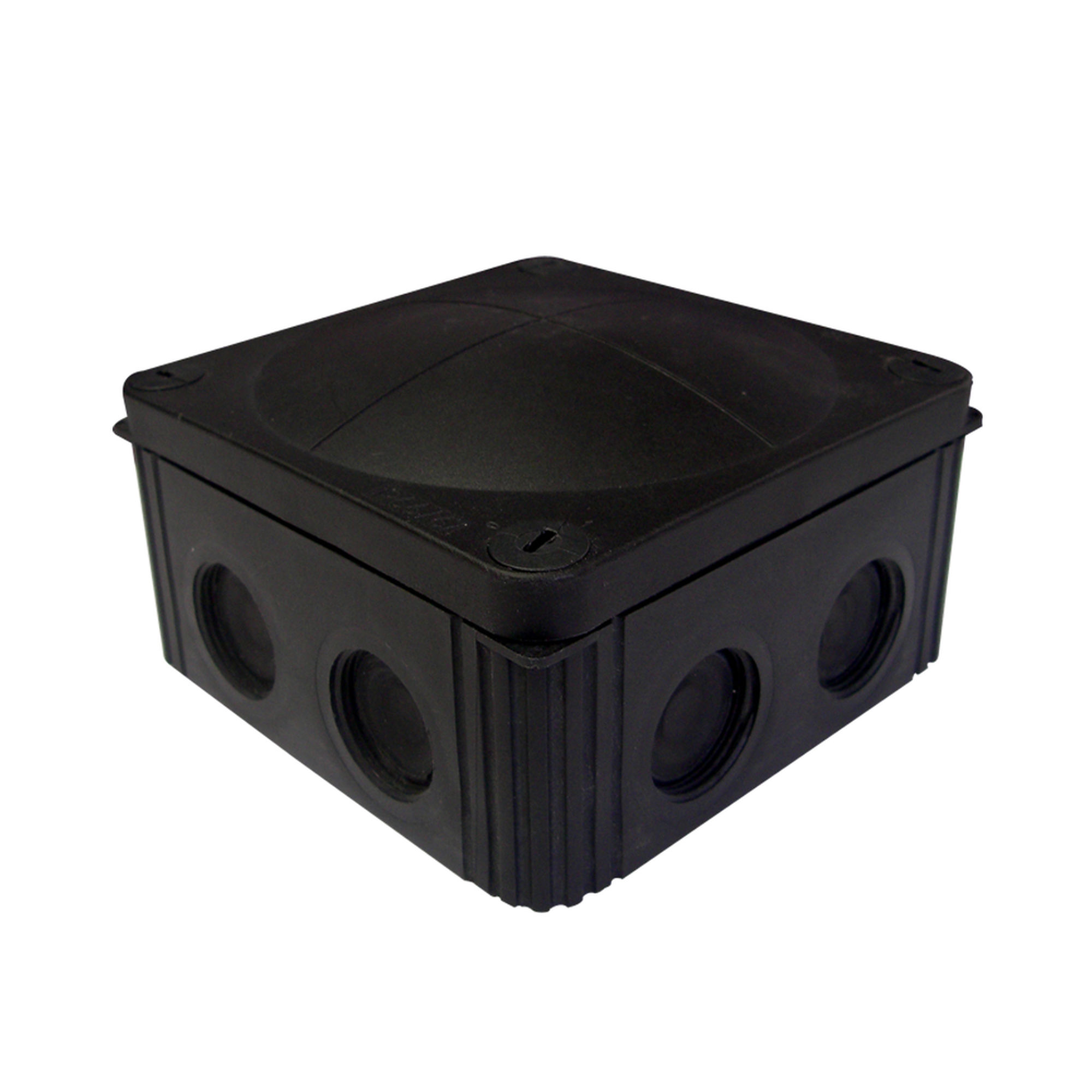

Waterproof Junction Box M25 5-Pole Connector Block (110x110x66 mm)

8 Ways Threaded Membrane Entries Black

Quicklink Q1A7B

Product Code JB 10061779 BLK

£12.34EX VAT
£14.81INC VAT
152 in Stock

Description

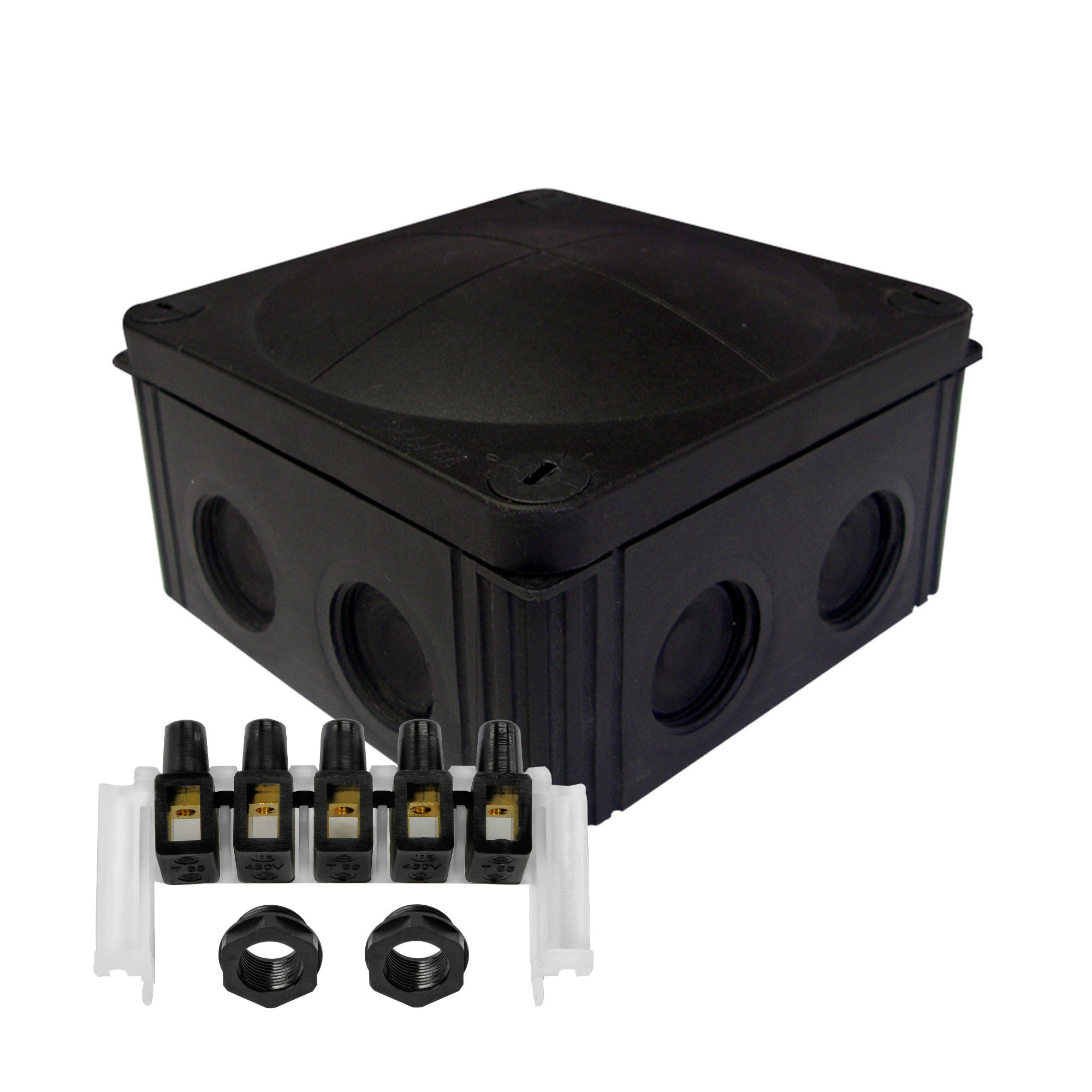

The Waterproof 110mm Junction box COMBI 607/5/2xKRM25/20 BK allows up to Seven different cables to be wired through it. The IP66 rating also allows it suitable for any situation outdoors. The weather proof box is resistant to ultraviolet.

IP66: using the membrane entry
Ø cable: 5,2 - 17 mm

IP67: using the threaded entry together with ESKV cable gland
Ø cable: 9,0 - 17 mm

Equipment and Features

7 elastic, self-sealing puncture-membranes for cable entry on the side and 3 on the bottom

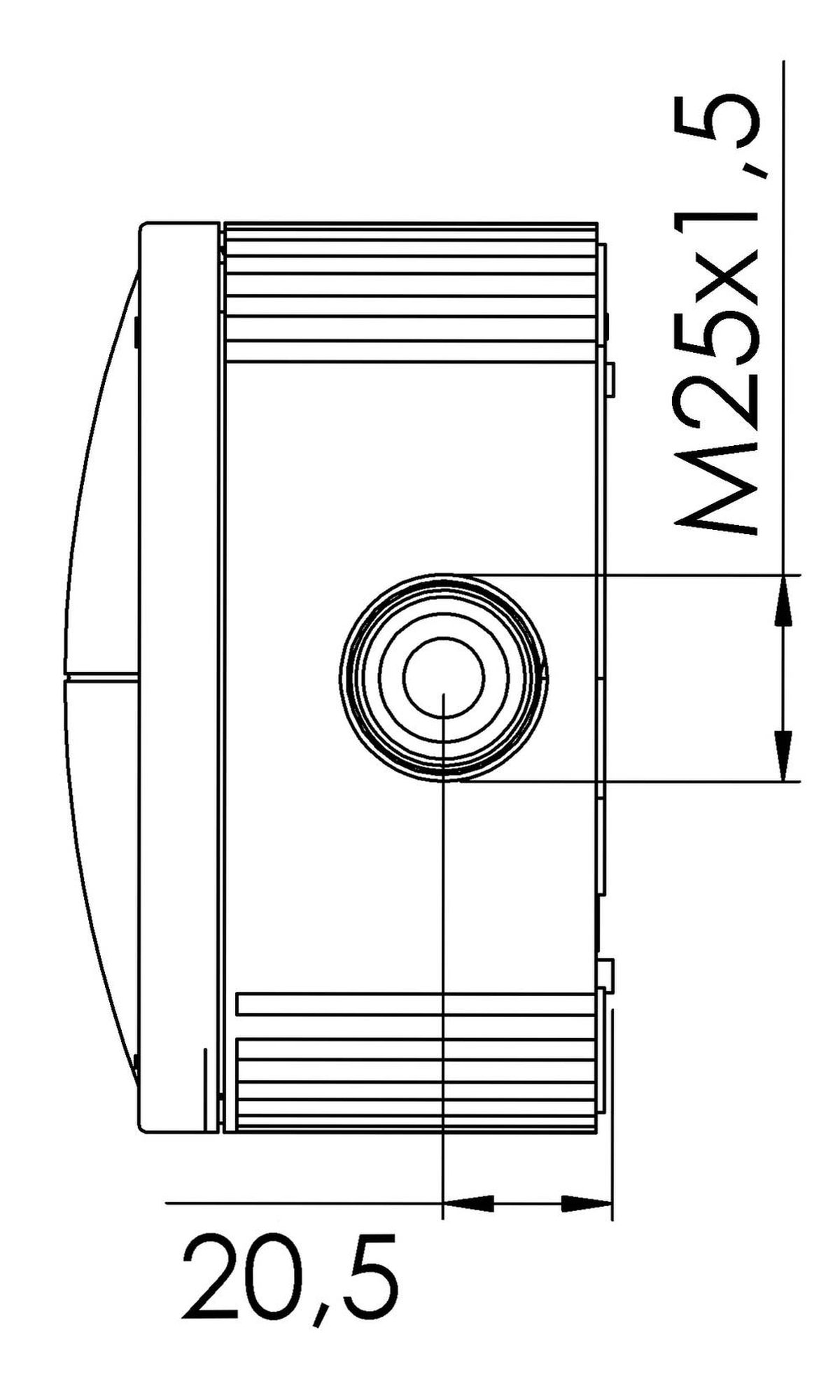

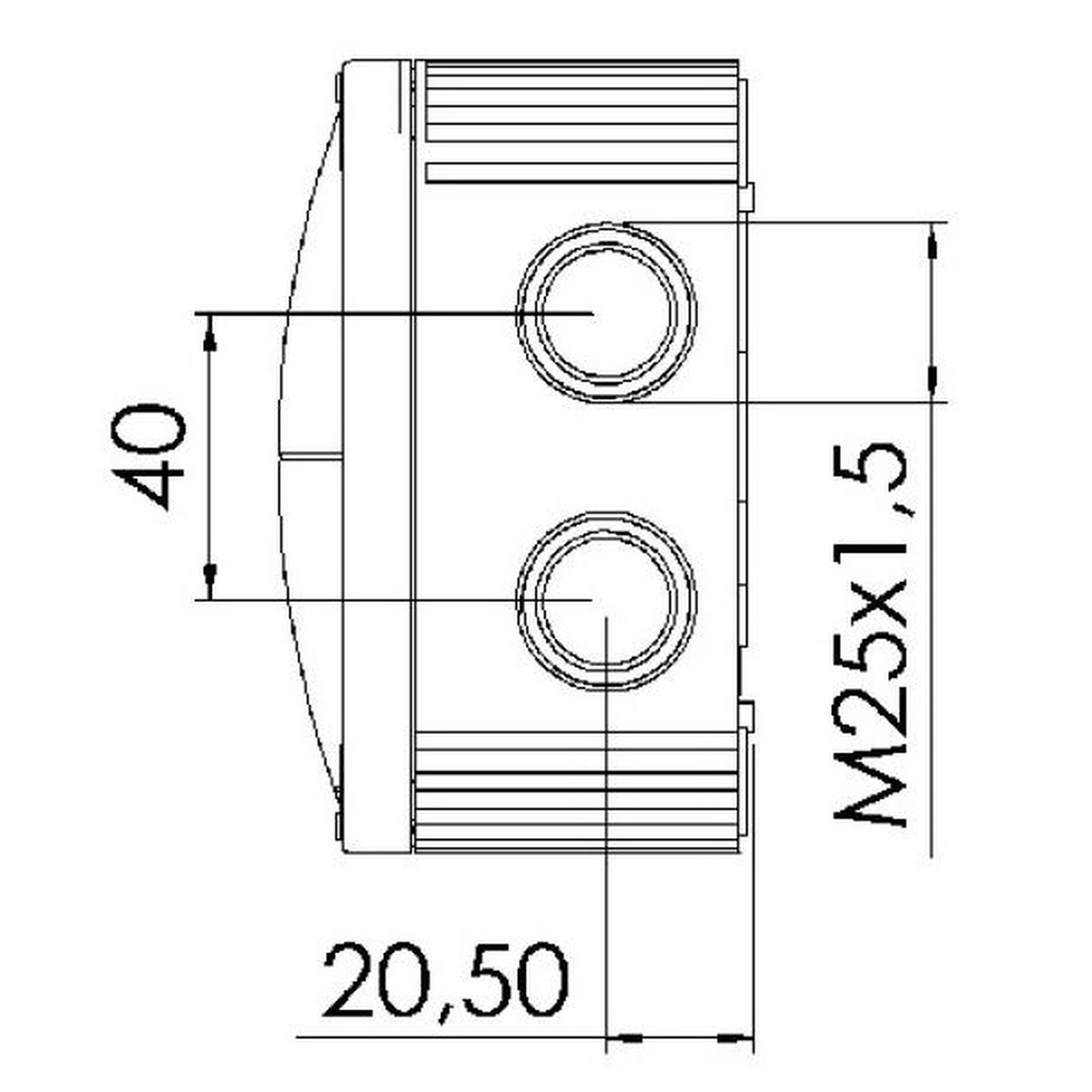

7 integrated M25 thread for mounting without lock nut

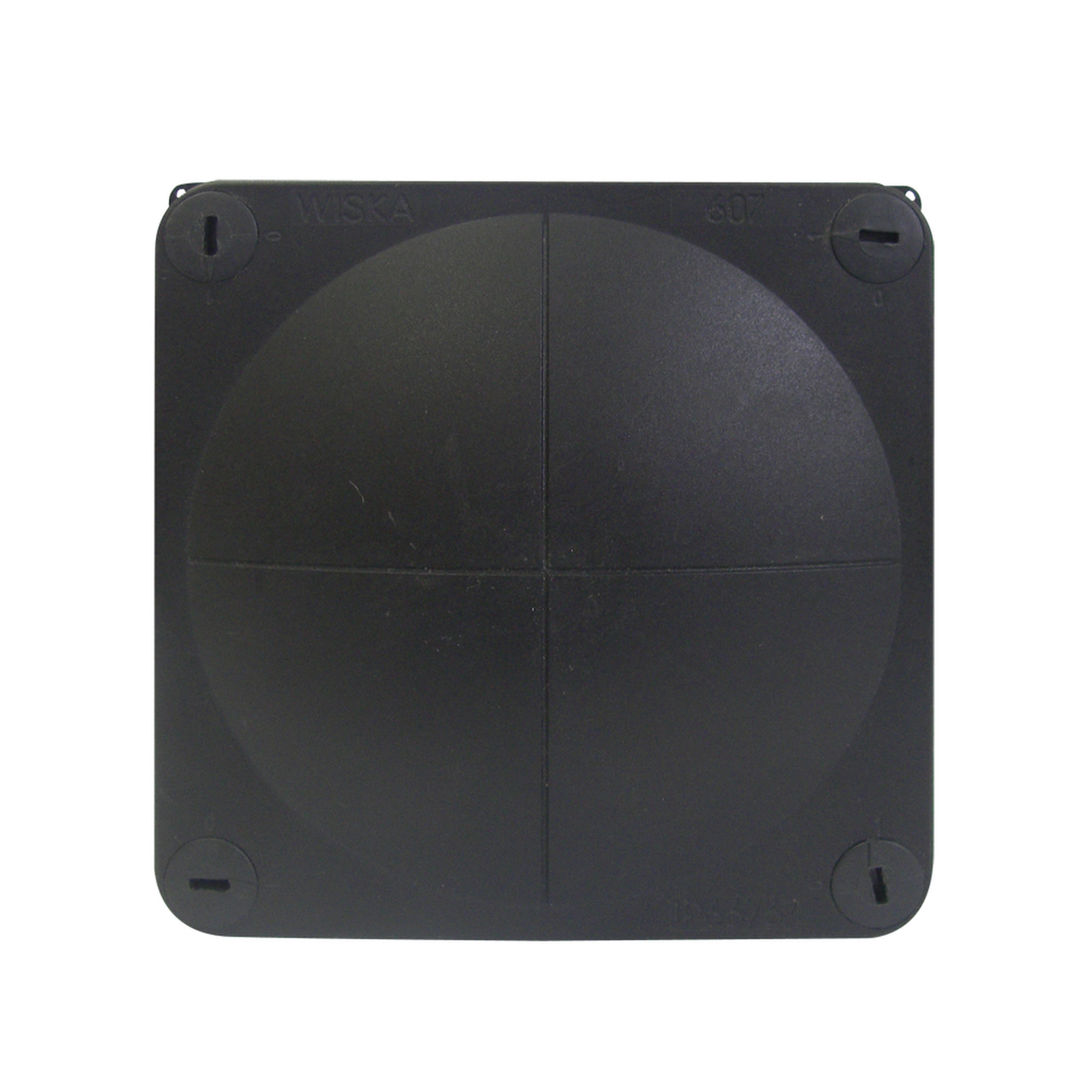

4 captive cover screws

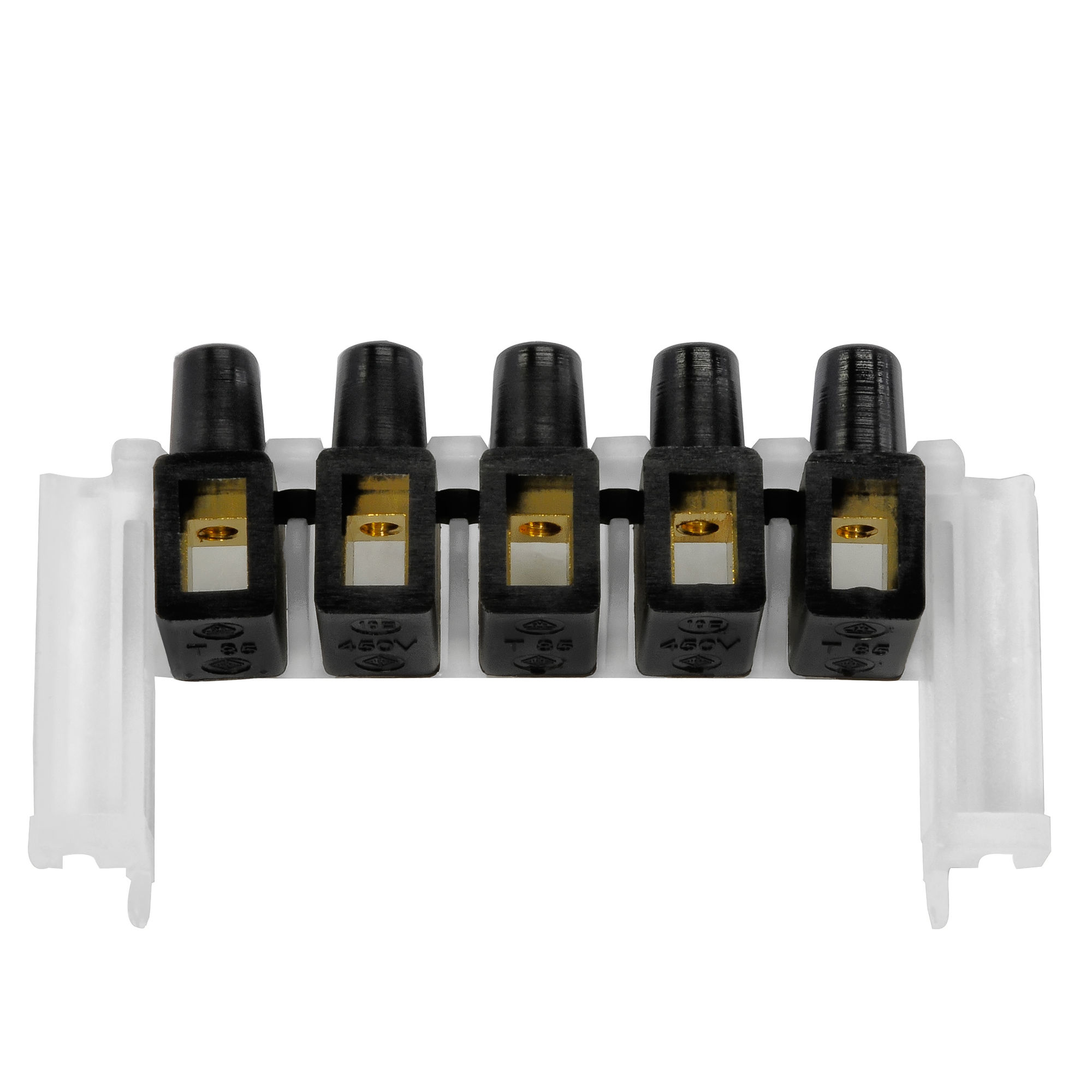

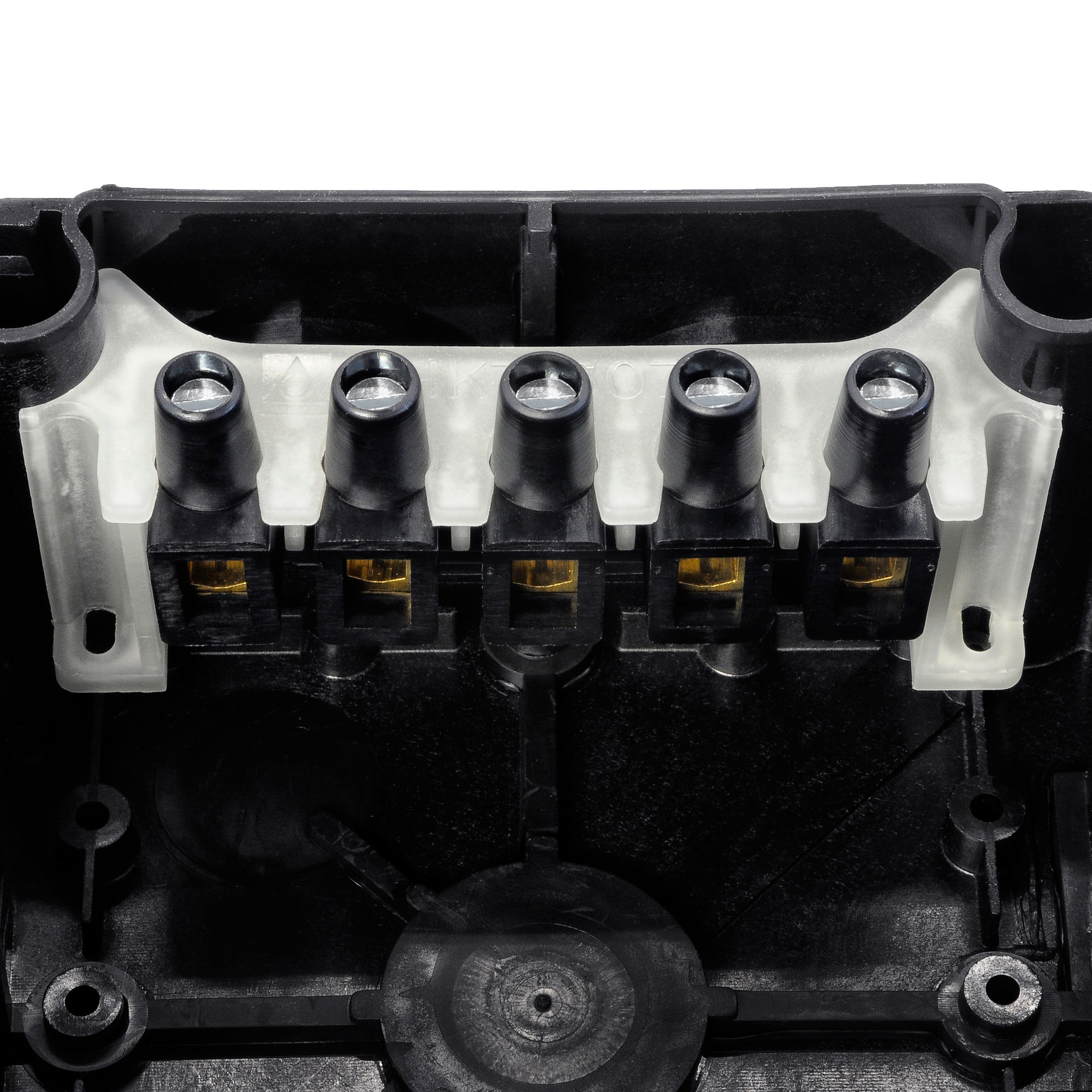

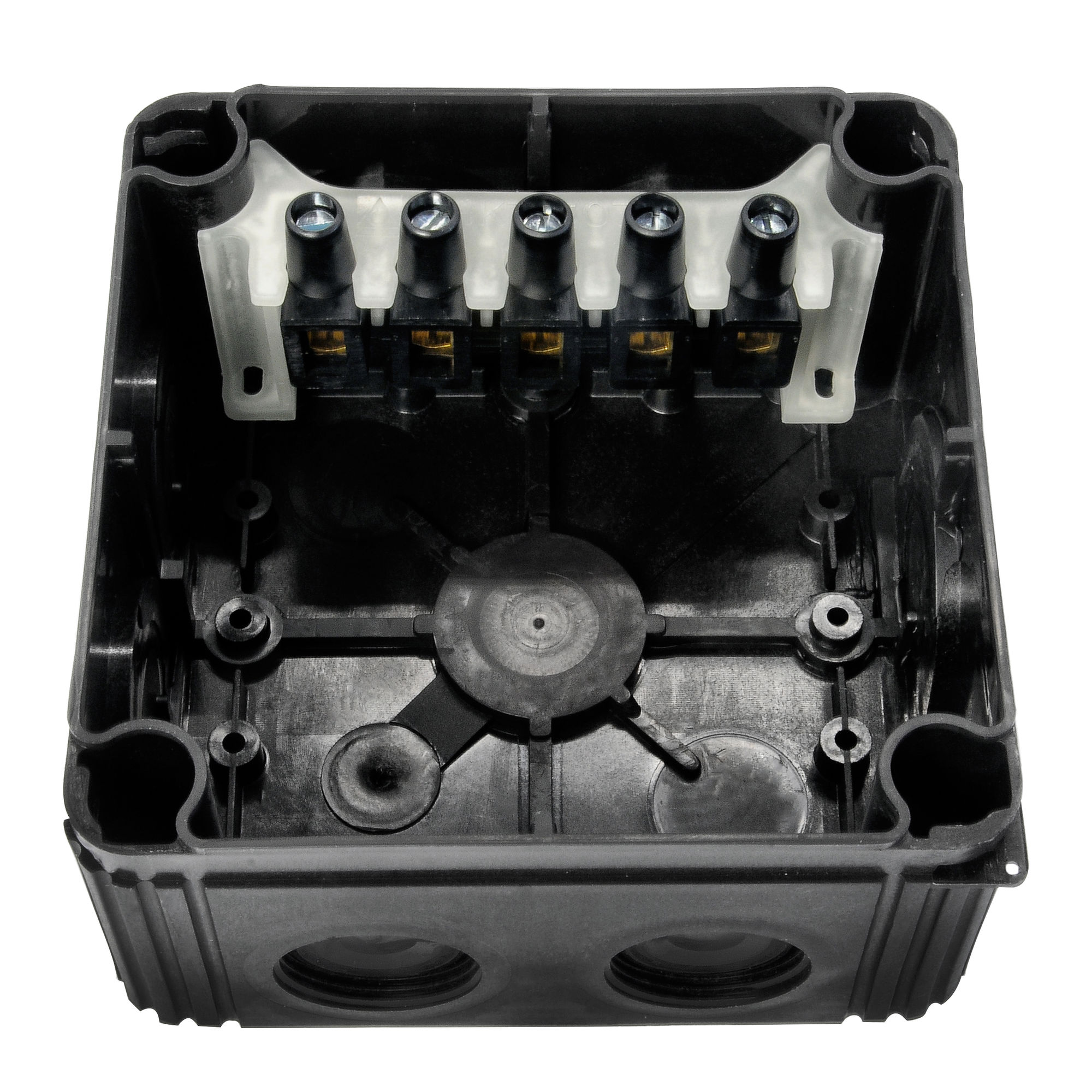

Terminal block 5-pole, 6mm²

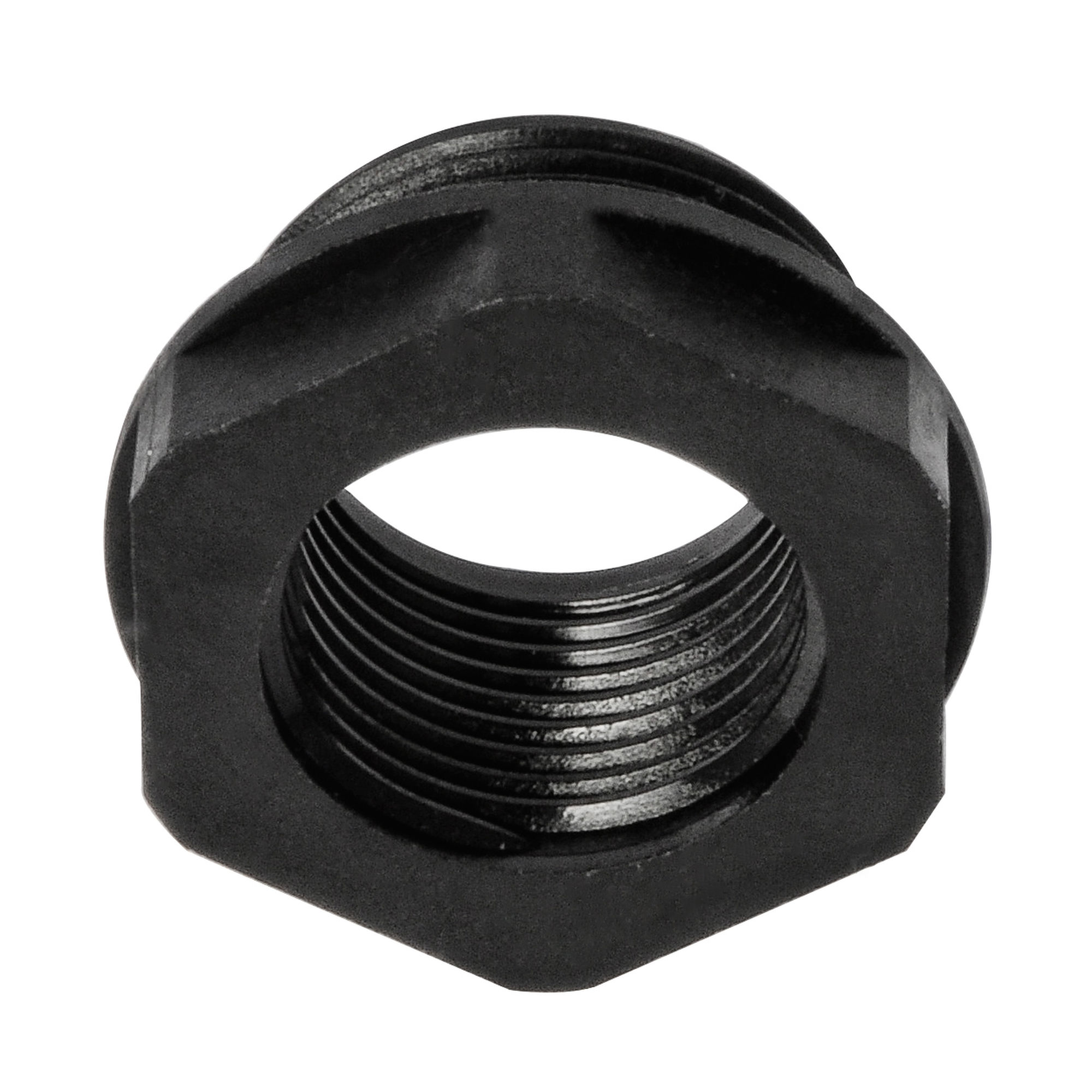

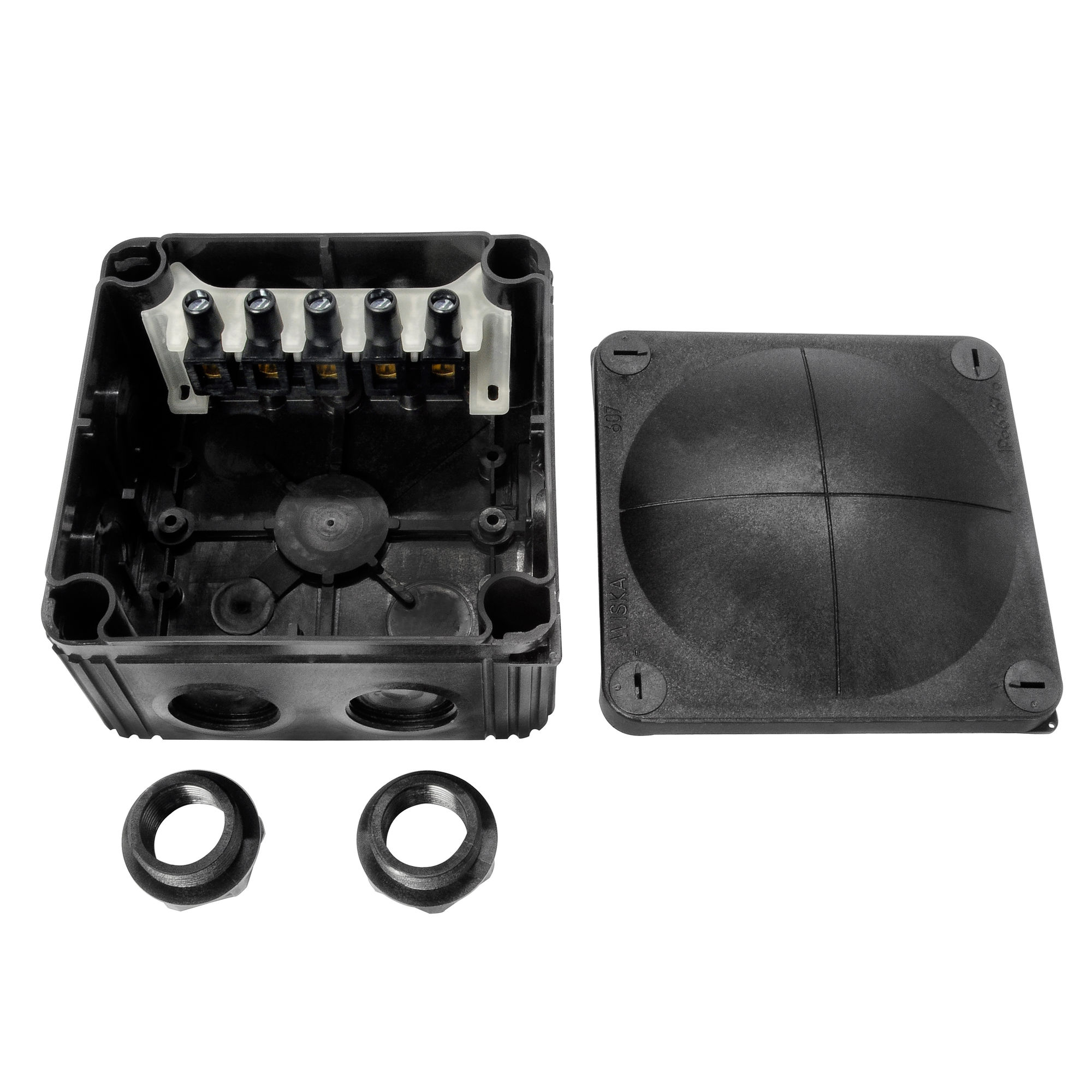

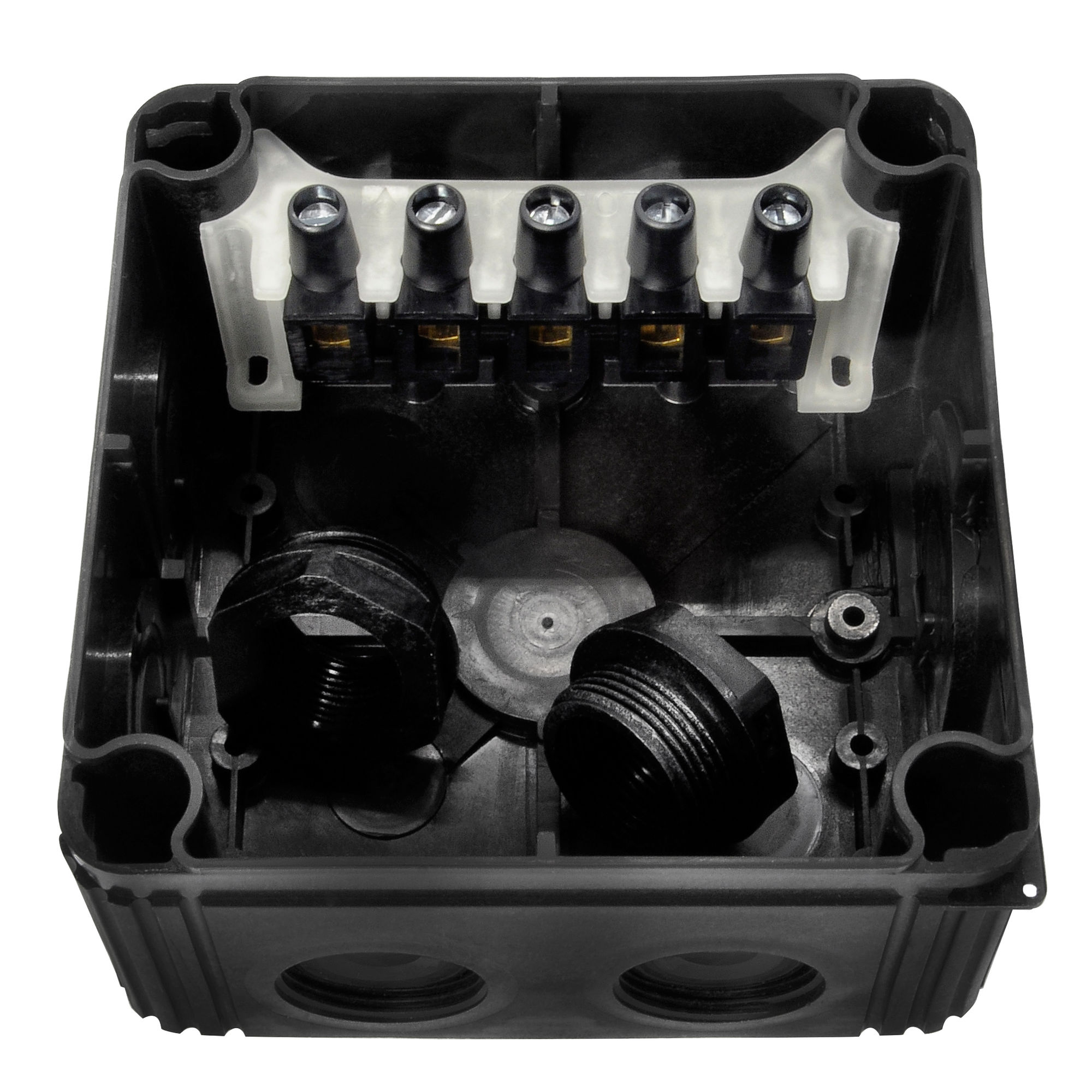

2 reduction adaptors KRM 25/20

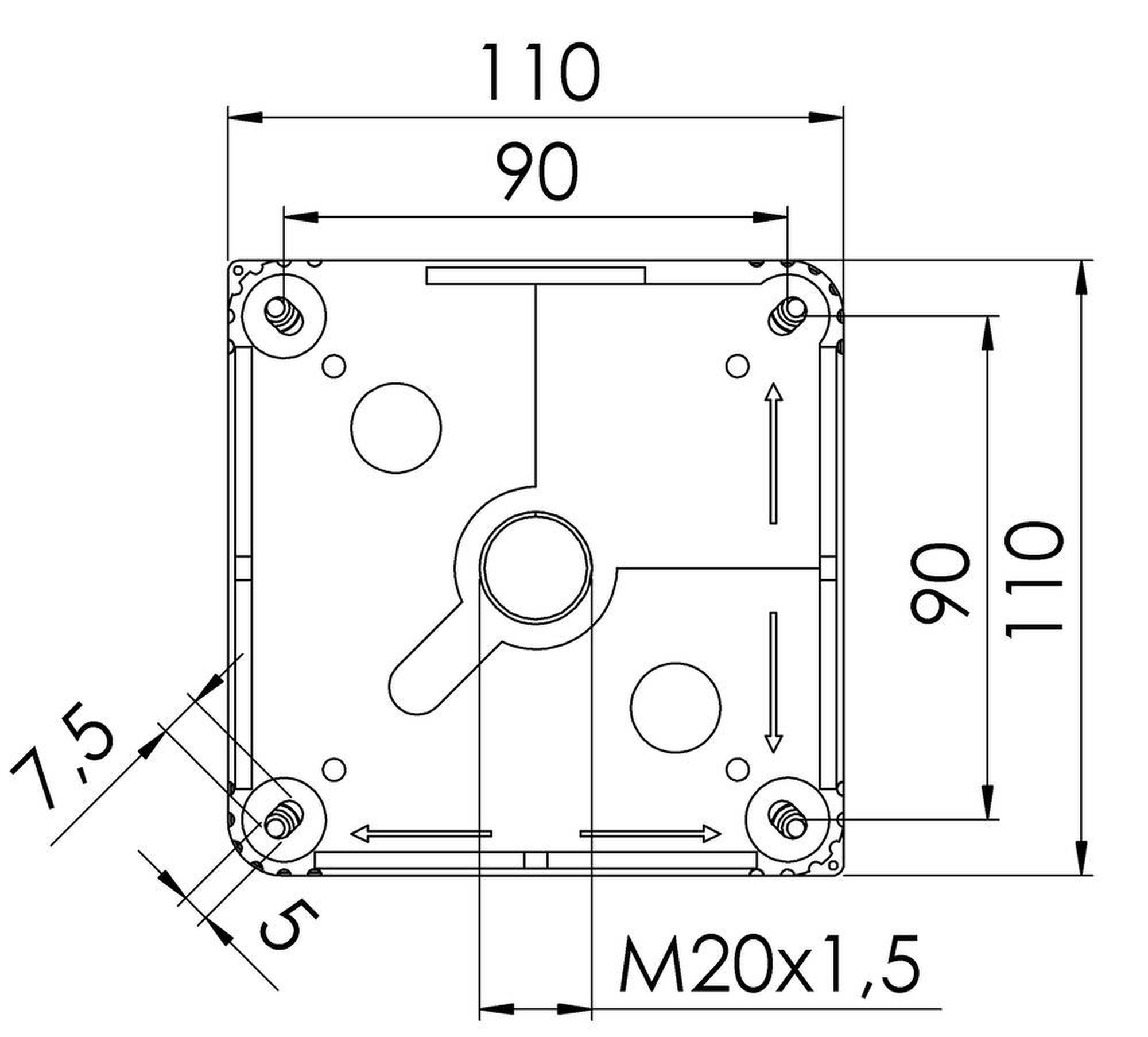

Mounting: - 4 internal openings outside of the sealing area

Product Video

Specification

General
Colour	Black
Construction	Plastic
IP Rating	IP66

Dimensions
Height	66mm
Length	110mm
Width	110mm

Electrical
Voltage	690V

Downloads

Technical

Wiska COMBI Series

Specification Sheet
