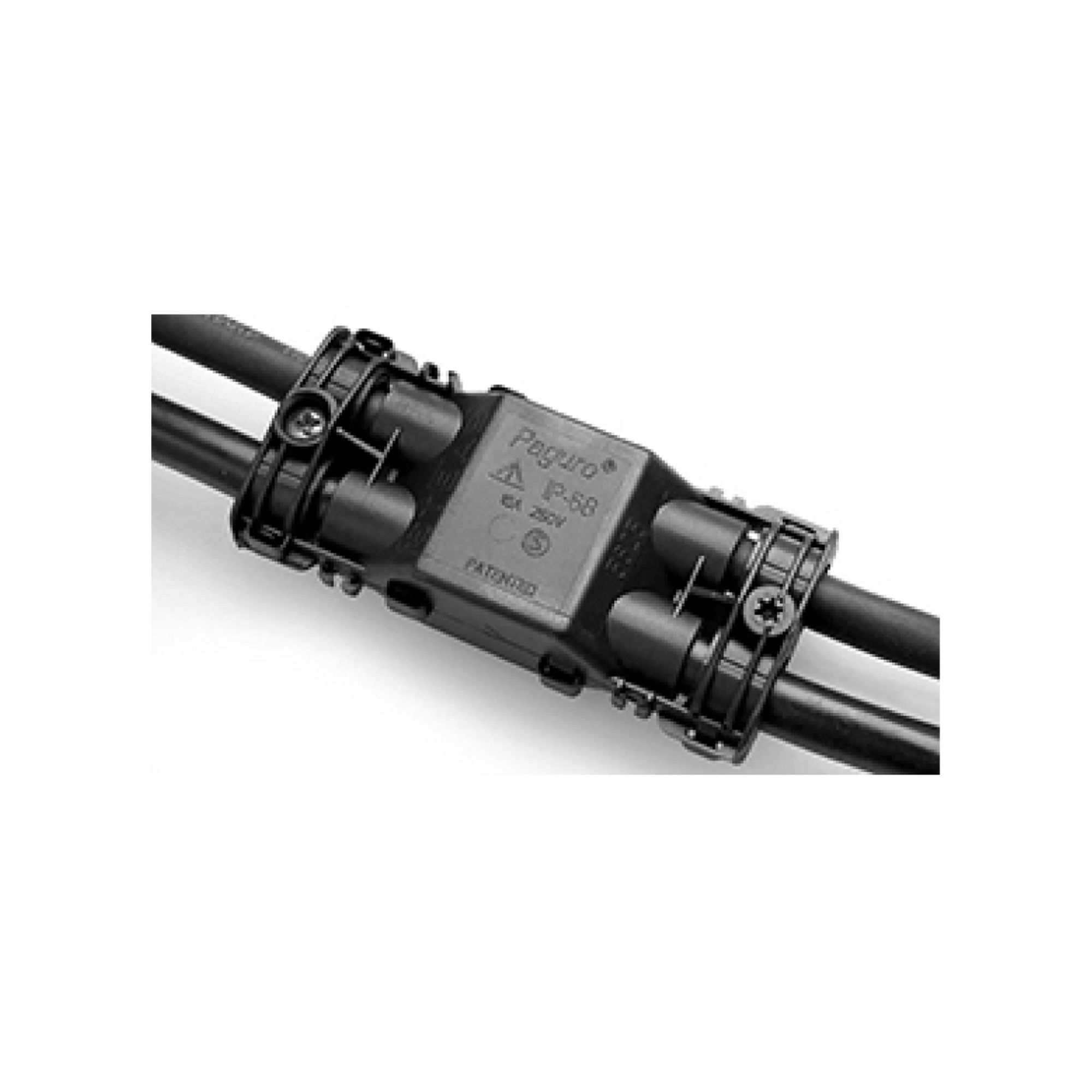

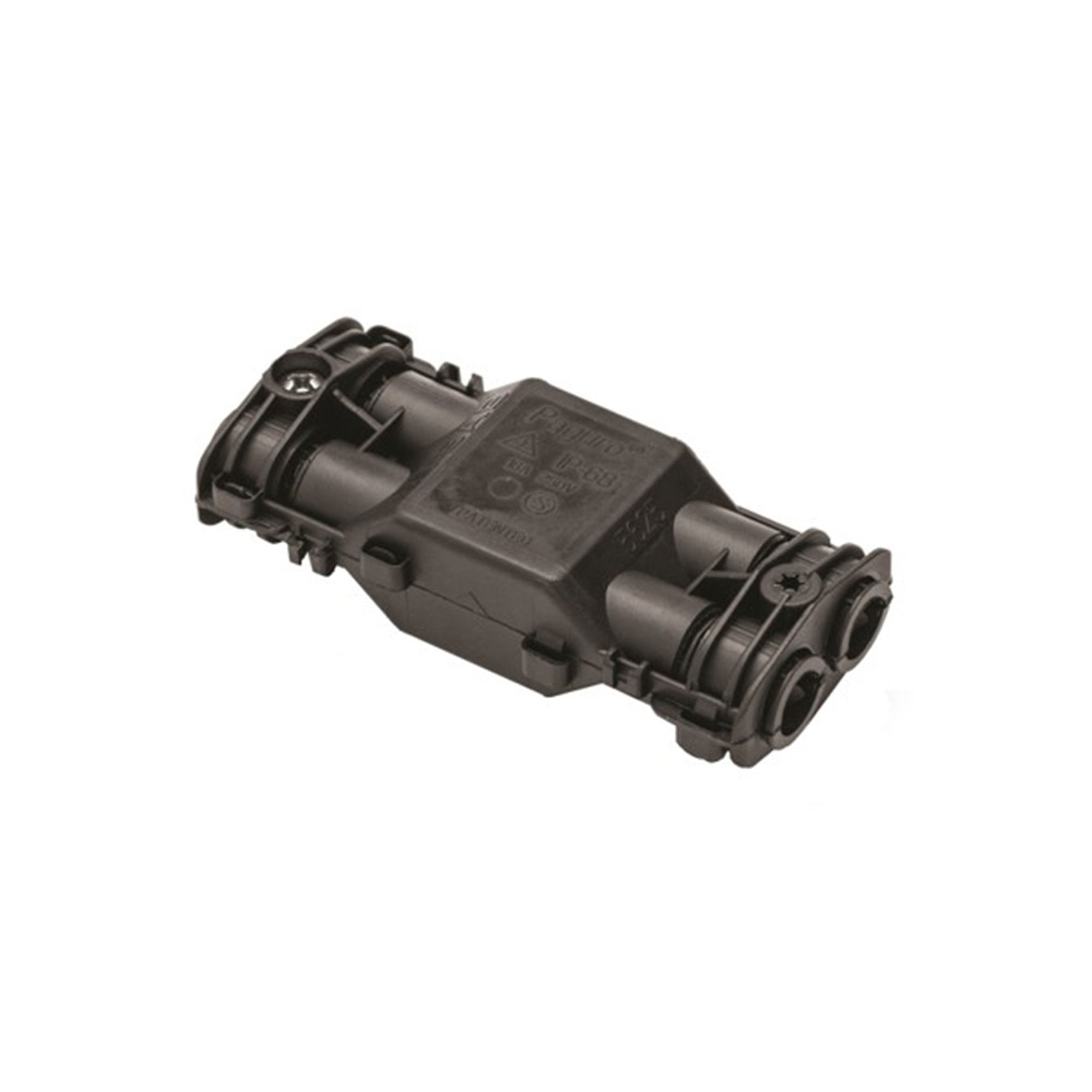

Waterproof 4-Pole Gel-Filled 6.5-12mm Cable Junction Box

1.5mm² Conductor Black

Quicklink Q3160

Product Code 5625/4151125

£16.70EX VAT
£20.04INC VAT
available to order

Description

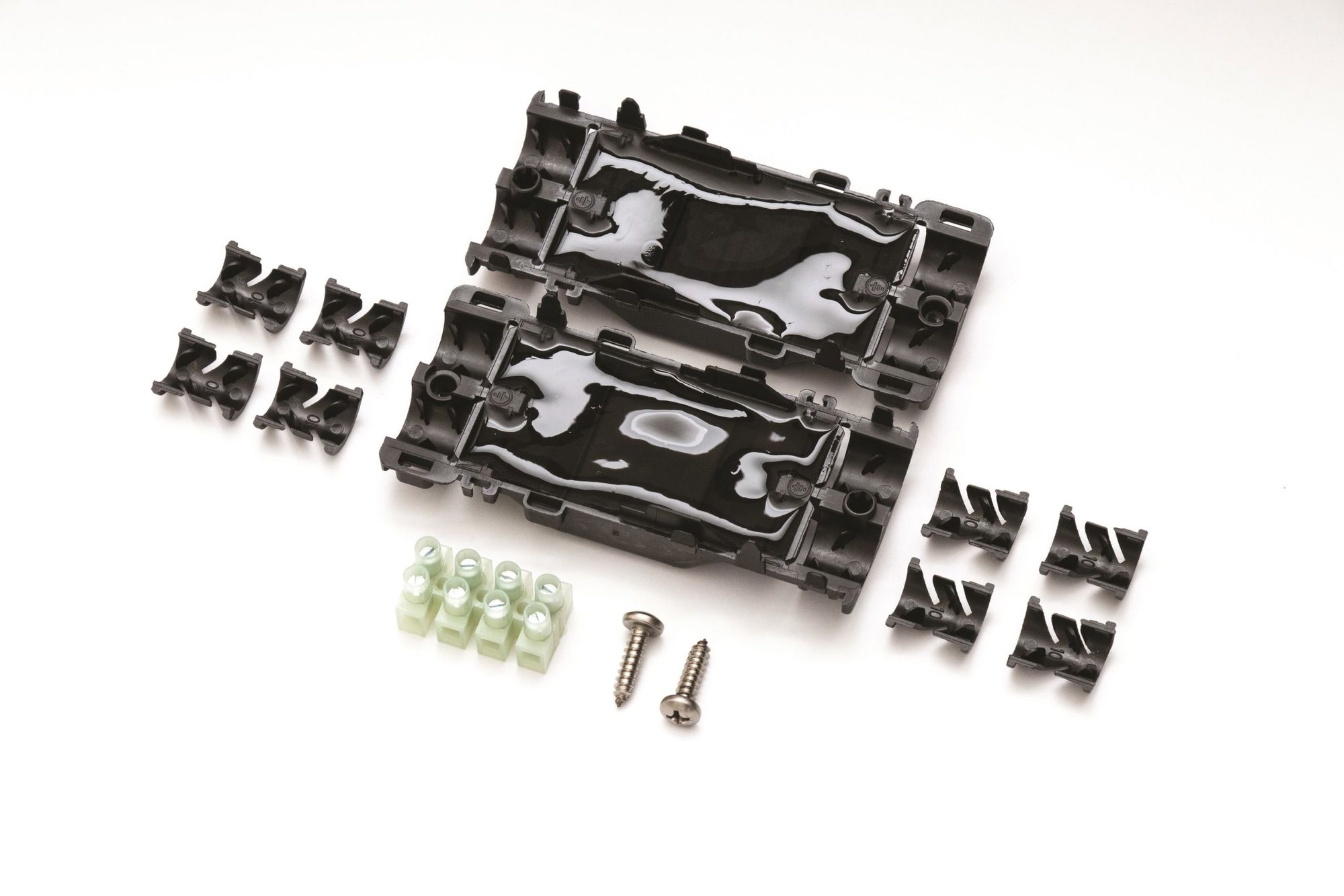

The IP68 Gel Connector is used to join cables together and give them a waterproof rating and protection in continual immersion. The use of silicone gel ensures high insulation capacity. Join your external cable runs with confidence.

Specifications

Cable Entries: 4
Max Current: 16A
Max Voltage: 250V
Number of Pole: 4
Max Conductor Size (Sq mm): 1.5
Minimum Cable Diameter (mm): 6.5
Maximum Cable Diameter (mm): 12
IP68
Min Temperature Rating °C: -30
Max Temperature Rating °C: 130

Specification

General
Colour	Black
Construction	Nylon PA66-RV V1
IP Rating	IP68


Cable Core	2.5mm²

Dimensions
Cable Diameter	6.5-8mm
Height	24mm
Length	105mm
Width	44mm

Technical Drawings

Downloads

Technical

5625/415/8 Technical

Specification Sheet

Waterproof 4-Pole Gel-Filled 6.5-12mm Cable Junction Box 1.5mm² Conductor Black

Waterproof 4-Pole Gel-Filled 6.5-12mm Cable Junction Box 1.5mm² Conductor Black (Unbranded)
