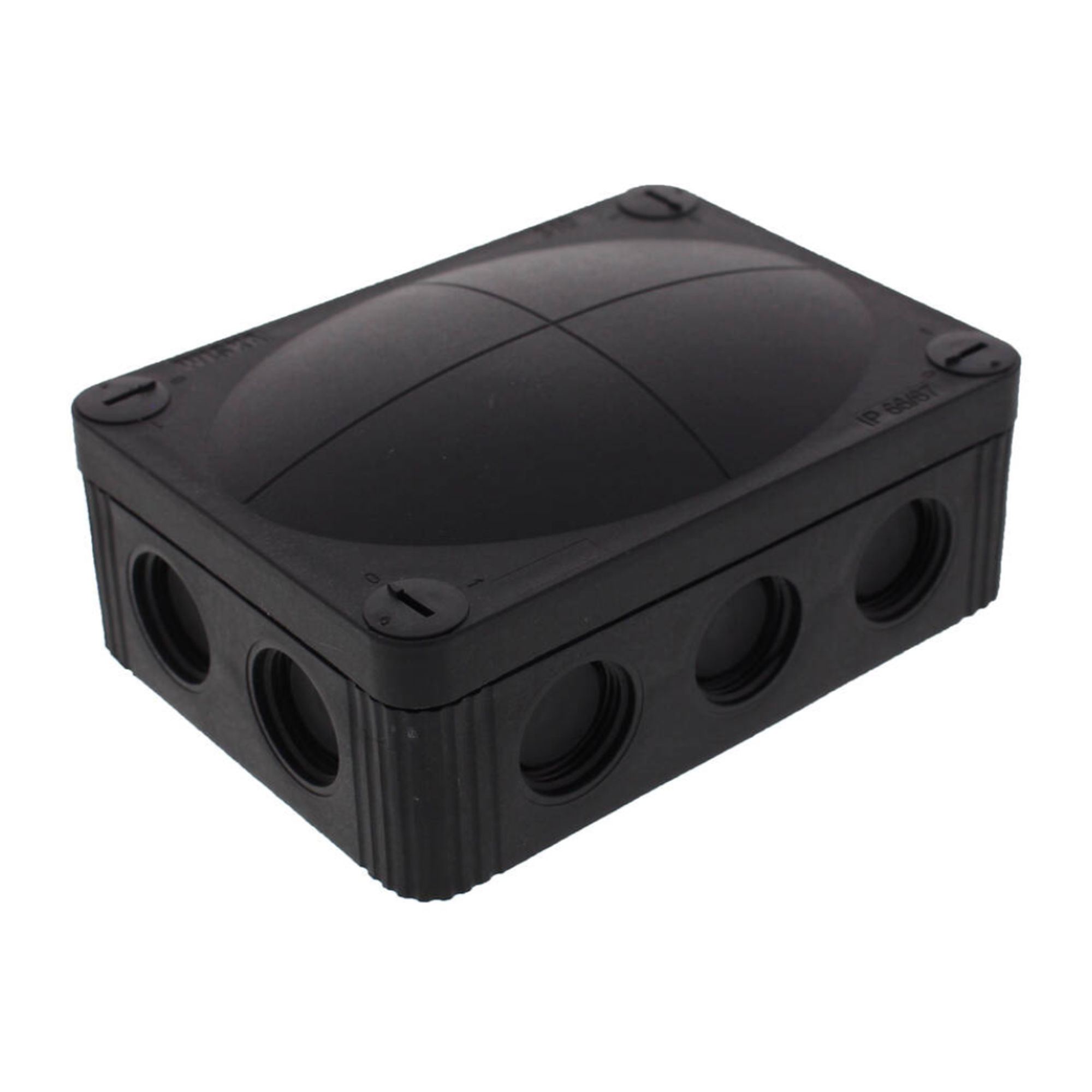

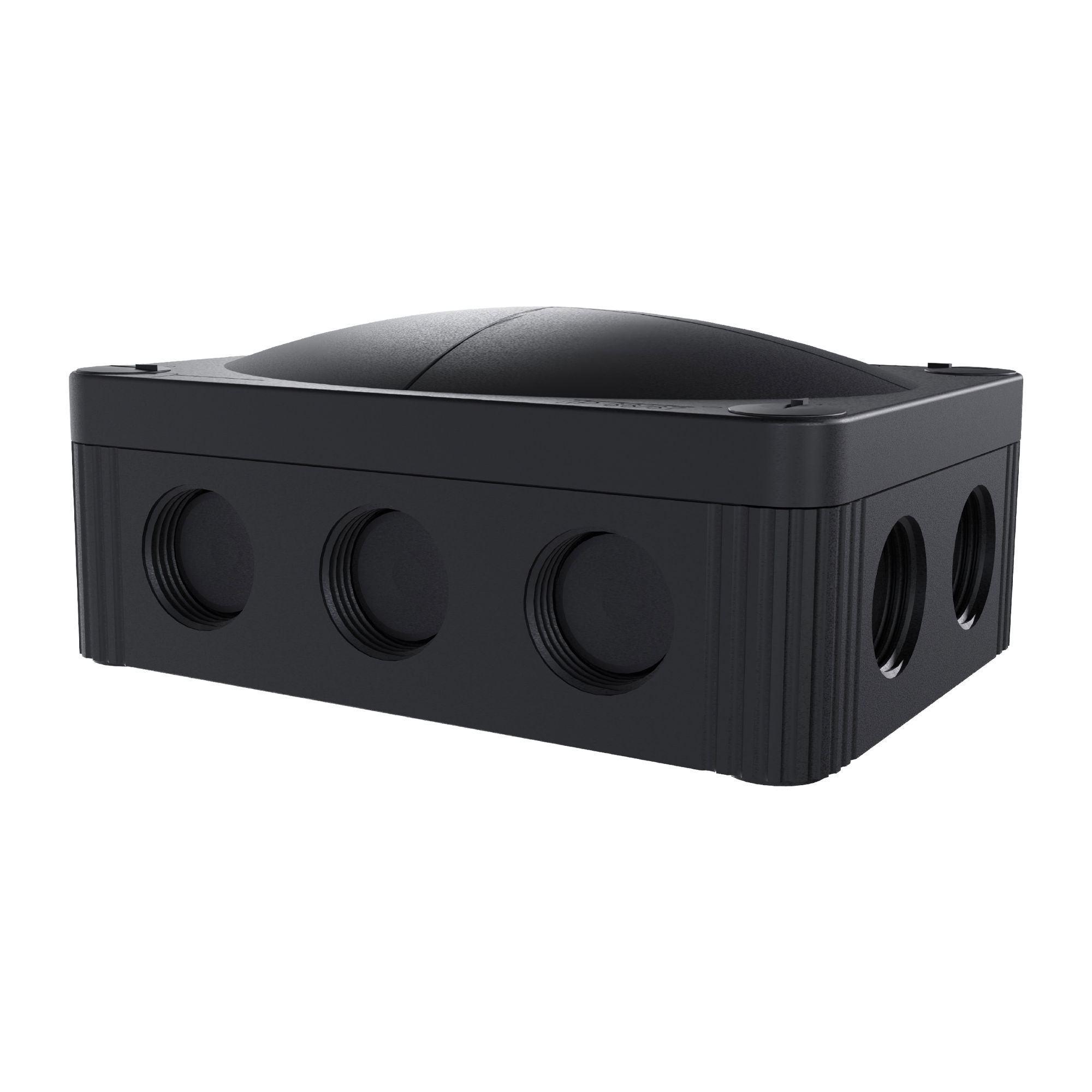

Waterproof Empty Junction Box M20 (117x85x51mm)

10 Way Threaded Membrane Entries Black

Quicklink Q6F43

Product Code JB 10113408 BLK

£100.00EX VAT
£120.00INC VAT
only 5 left

Description

The WISKA COMBI® 310 is more than just a junction box — it’s the perfect harmony of form, function, and feedback. Every curve, every feature, and every entry point has been carefully considered to meet the needs of modern installers while upholding the proud heritage of the WISKA and COMBI® Junction Box name. It is the culmination of decades of design expertise, rigorous testing, and an unwavering commitment to quality.

Measuring just 117 × 85 × 51 mm, the COMBI 310 provides 10% more internal space than similar enclosures. Rated IP66/67, it offers superior dust and water protection with 10 × M20 threaded membrane entries plus 4 rear entries for flexible cable access.

Specifications

Material: Polypropylene
Temp. range min: -30 °C
Temp. range max: 100 °C
Temperatures during install.: -5 °C - 60 °C
Protection class: IP66 / IP67 - IP66: using the membrane entry / IP67: using the threaded entry together with ESKV cable gland
Glow wire test: 750 °C
Voltage: 400 V
Rated cross section: 4 mm²
Fixing: 4 internal openings
Ø cable diameter min: 3 mm
Ø cable diameter max: 12 mm
External dimensions: 117 x 85 x 51mm (LxWxH )
Type of cable gland: M20 x 1,5

Equipment: 10 M20 threaded membrane entries / 4 captive cover screws
Fixing: 4 internal openings outside of the sealing area

Product Video

Specification

General
Colour	Black
Construction	Plastic
IP Rating	IP67
RAL Colour Code	RAL 9005

Dimensions
Height	51mm
Length	117mm
Width	87mm

Technical Drawings

Downloads

Technical

Combi 310 Booklet

Specification Sheet
