Armoured Gland Pack of 2 IP44

Quicklink Q1727

Product Code GLAND BW20S

£2.52EX VAT
£3.02INC VAT
55 in Stock

Description

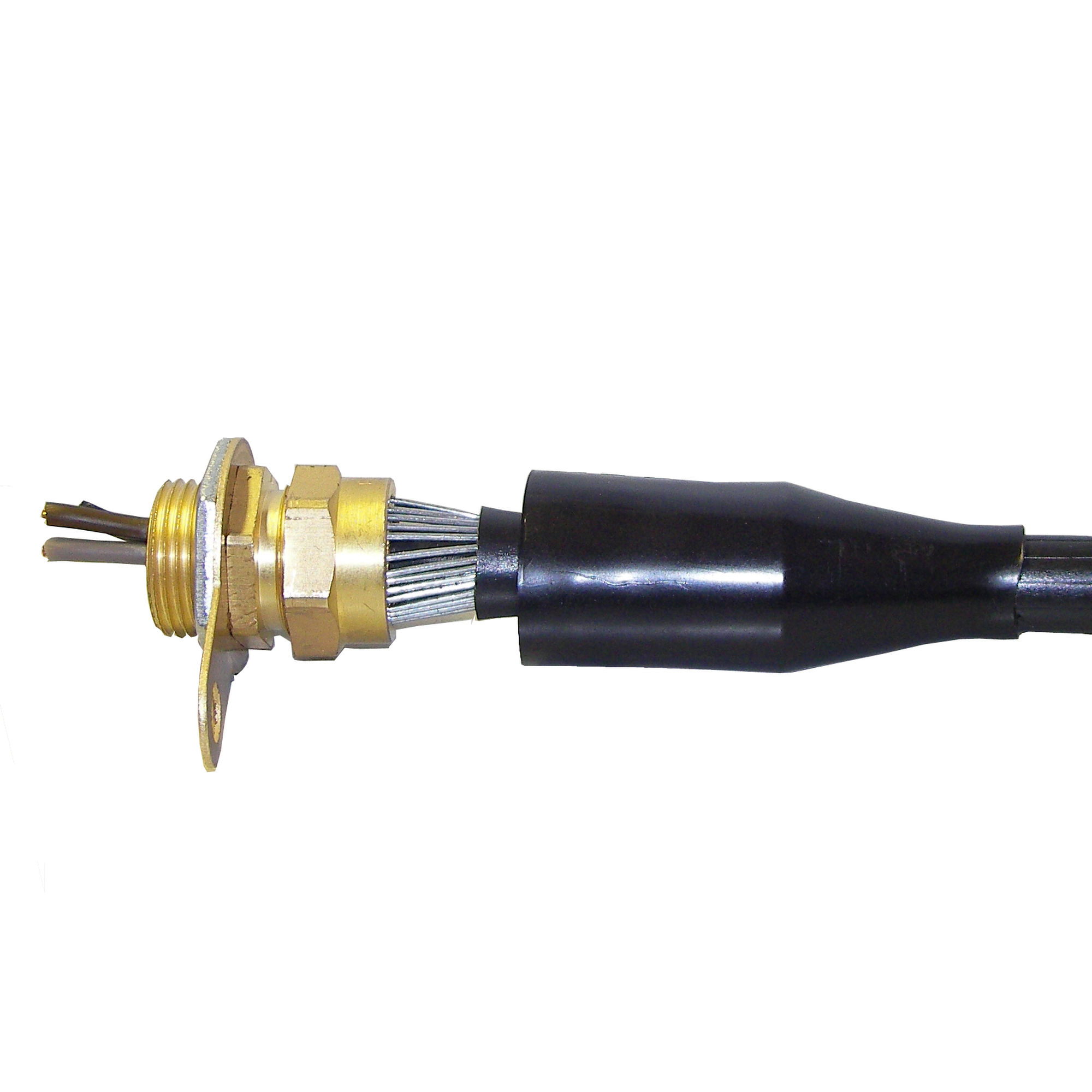

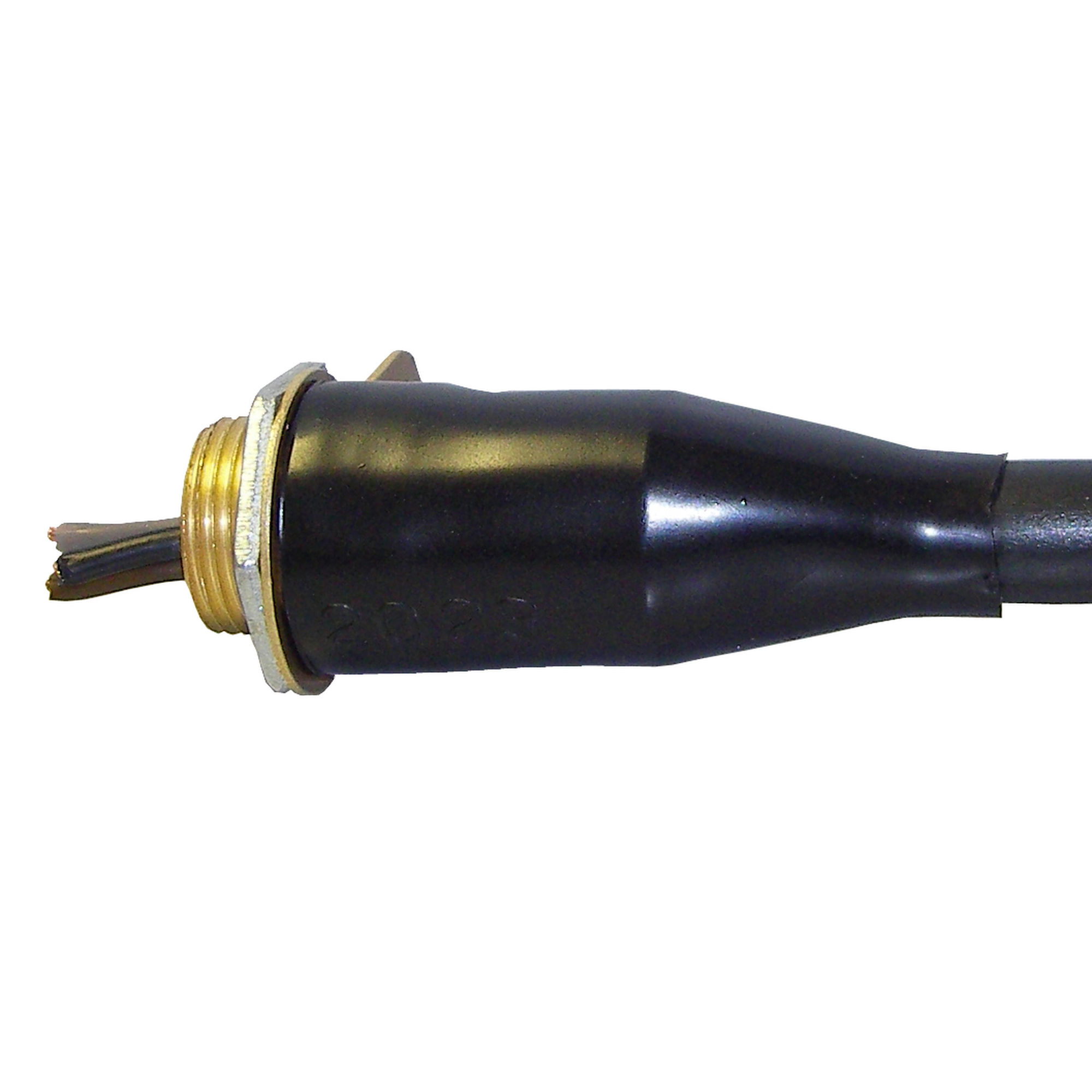

The SWA Cable Gland Pack is for connection of your Armoured Cable to either a junction box or other system. This pack is for indoor use.

The 20mm gland pack consists of 2 three part glands, 2 shrouds, 2 locknuts and 2 earth tags.

Material: Brass
Material shrouds: PVC
Temp. range: mi -80 °C
Temp. range: max 300 °C
Protection class: IP20
Thread type: M
Connection thread: D 20
Lead: 1.5
Length screw-in thread: L 10 mm
Cable diameter max: 15.5 mm
Key width SW: 21 mm
Collar diameter (E): 23 mm
Total length TL: 29 mm
Surface: Bright
Order no. bright 50101693
Type BW 20S Pack
Packing unit: 2

Specification

General
Construction	Metal / Plastic
IP Rating	IP44

Downloads

Specification Sheet
