Conduit Gland Non-Metallic M20

Quicklink Q6F42

Product Code BRACE 10106867

£1.42EX VAT
£1.70INC VAT
only 1 left

Description

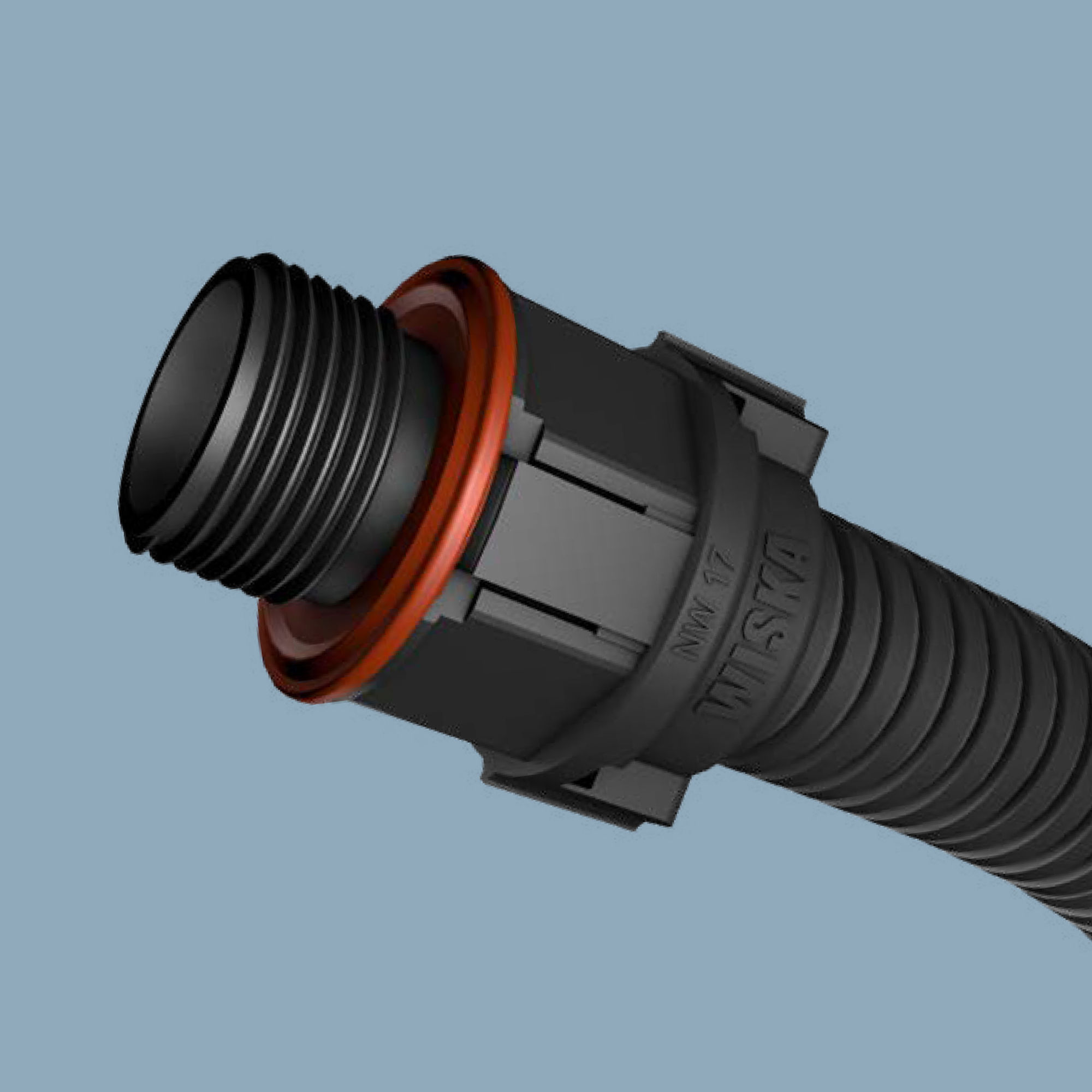

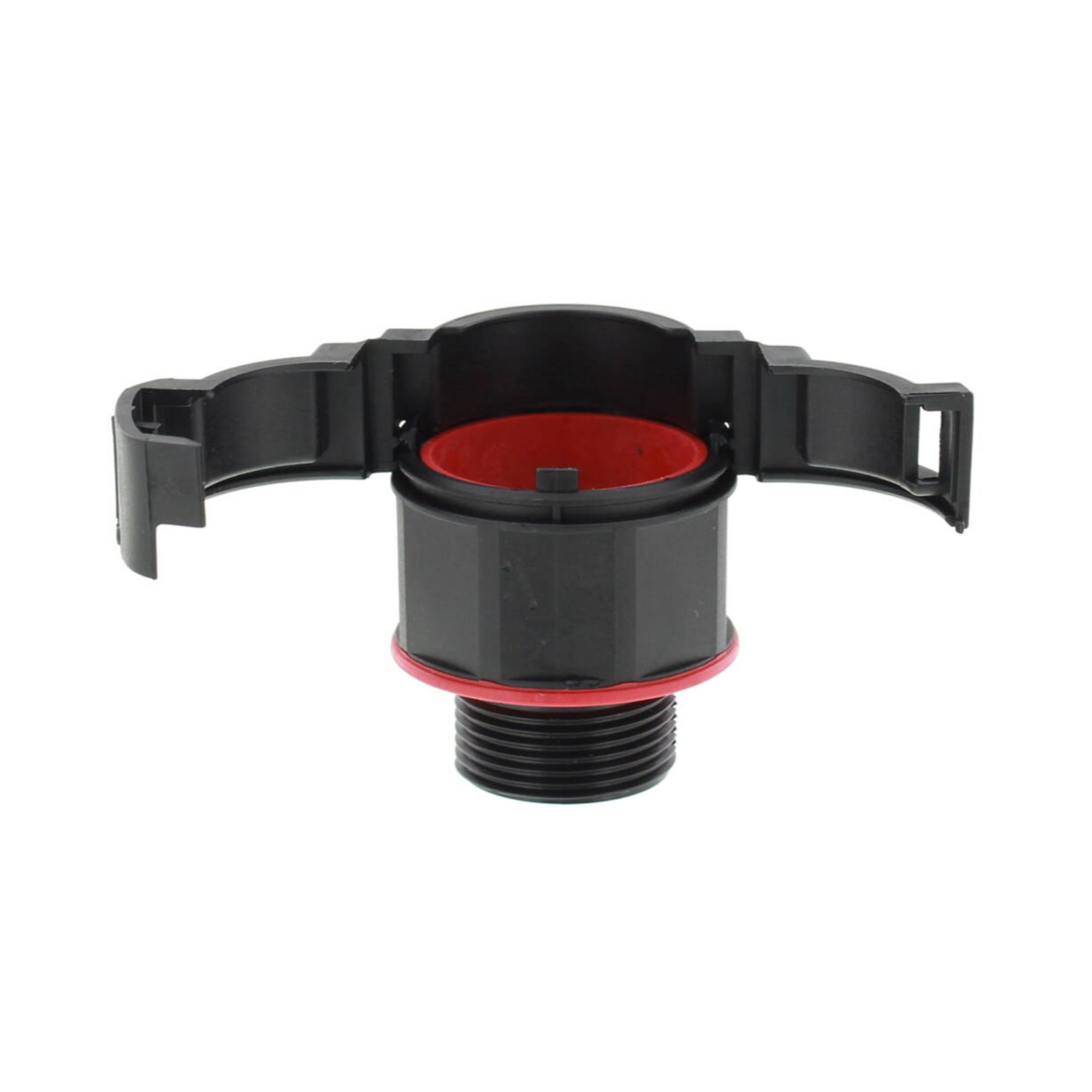

The Wiska EBFS-17-20-BK is a straight, non-metallic conduit fitting designed for the BraceFITTING system, a unique clasping system for fast opening and closing with one simple tool. Finished in black (RAL 9005), it is sized for NW 17 conduit with an M20 connection.

Specifications

Material Conduit: polyamide UL94-V0
Protection class: IP68
Temp. range min: -40 °C
Temp. range max: 100 °C
Conduit Side: NW 17
Thread Type: M20
Lead: 1,5
Length screw-in thread: 12 mm
Ø inside: 14,8 mm
Total length TL: 41,5 mm
Type of conduit fitting: Straight

Product Video

Specification

General
Construction	Plastic
IP Rating	IP68

Technical Drawings

Downloads

Specification Sheet
