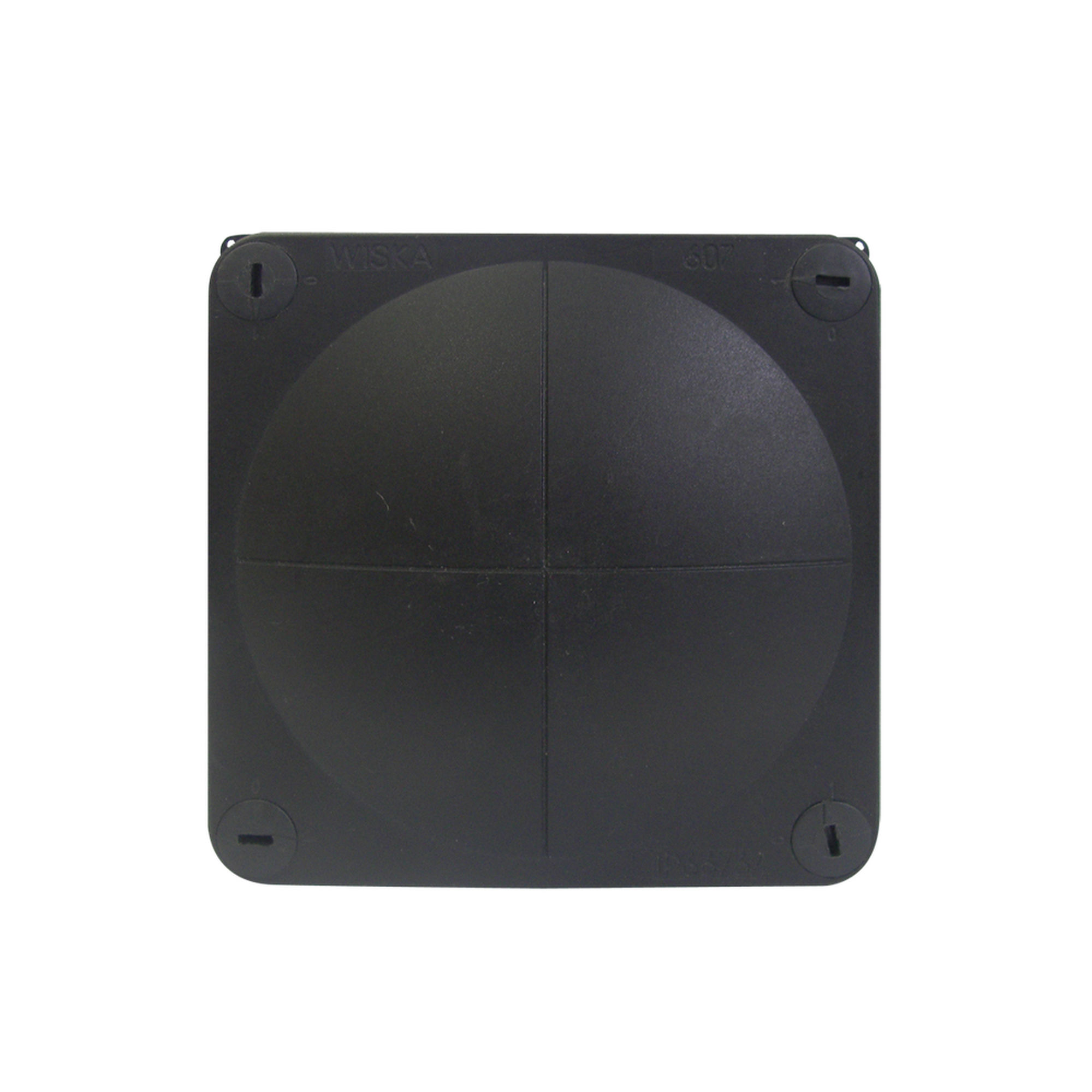

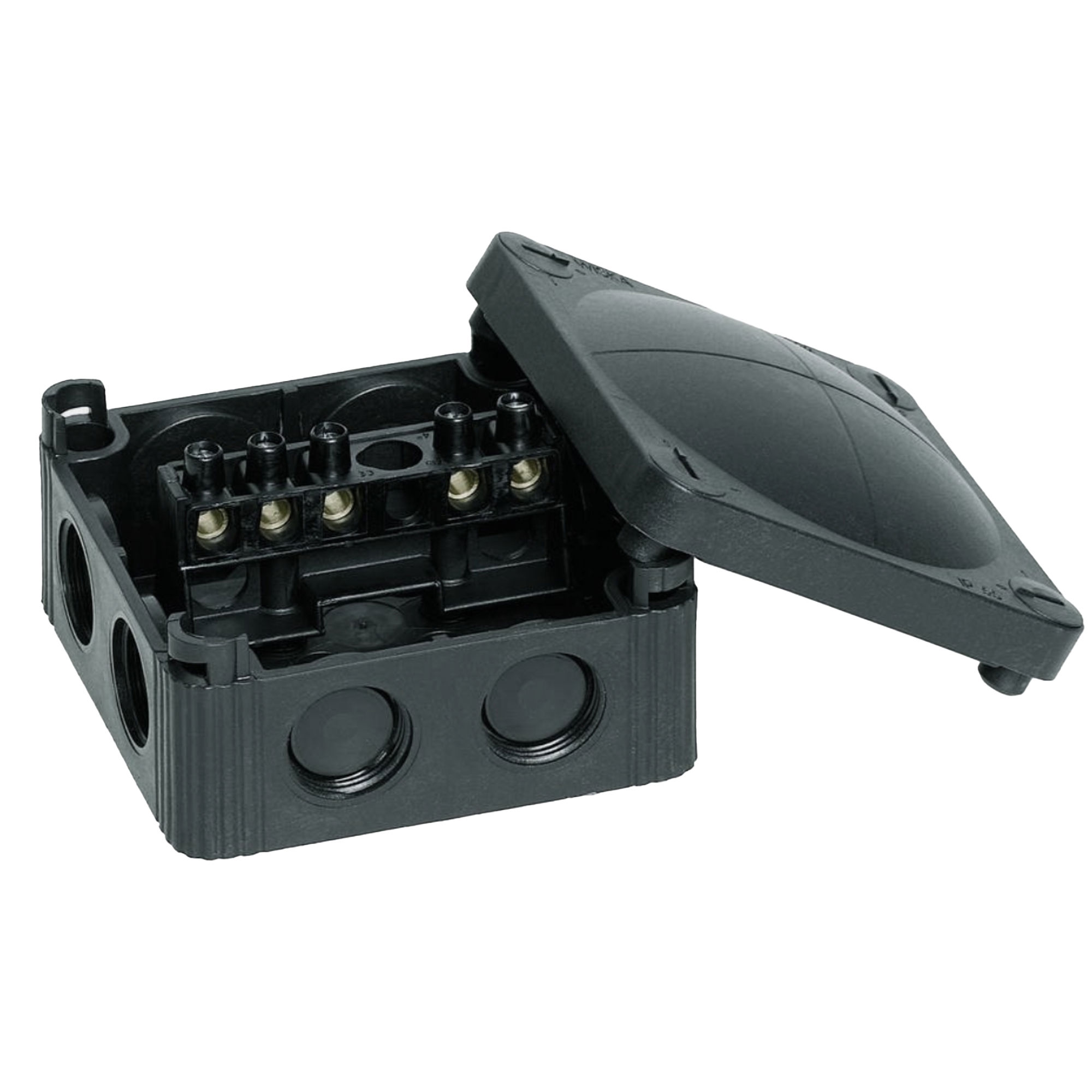

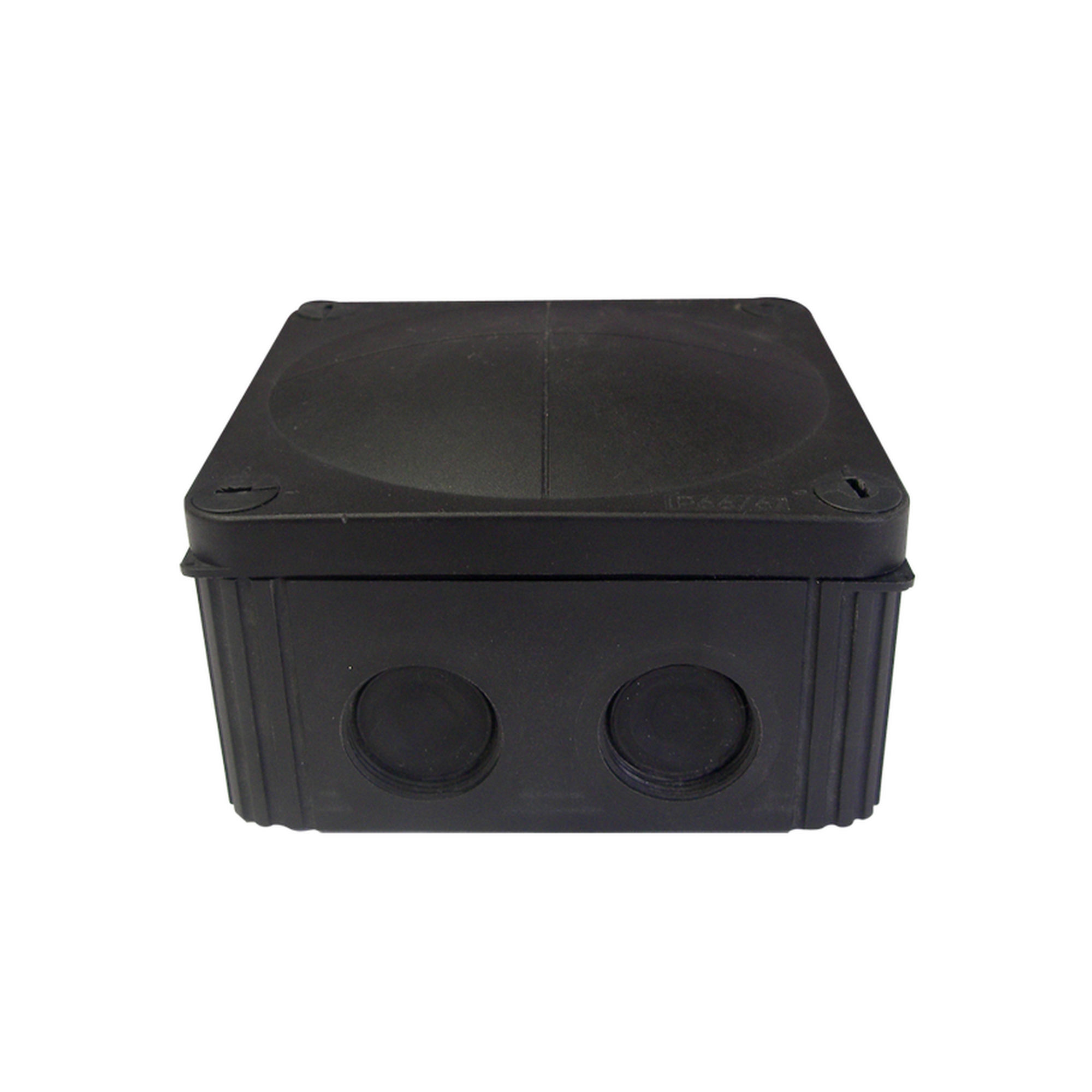

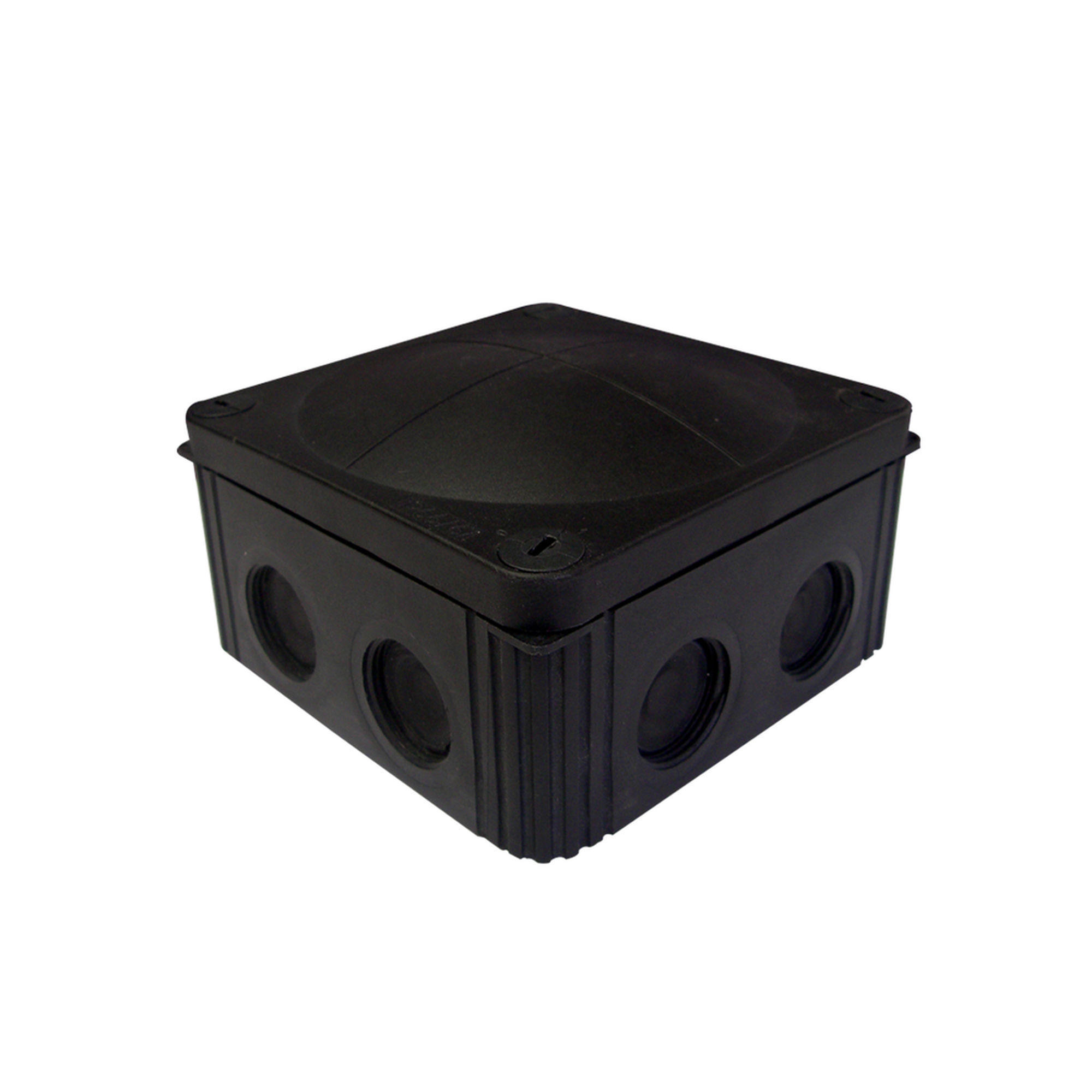

Waterproof Junction Box M20 with 5-Pole Terminals Block (85x85x51mm)

8 Way Threaded Membrane Entries Black

Quicklink Q1A7D

Product Code JB 10060580 BLK

£6.95EX VAT
£8.34INC VAT
138 in Stock

Description

The Waterproof 85mm Junction box COMBI 308/5 allows up to Eight different cables to be wired through it. The IP66 rating also allows it suitable for any situation outdoors.

Features

Rated cross section: 4 mm²
Terminals/poles: 5-pole, 4,0 mm²
Fixing: With mounting clip or 4 internal openings outside of the sealing area
Ø cable diameter min: 3 mm
Ø cable diameter max: 12 mm
External dimensions LxWxH: 85 x 85 x 51mm
Type of cable gland: M20 x 1,5

IP66: using the membrane entry IP67: using the threaded entry together with ESKV cable gland

Product Video

Specification

General
Colour	Black
Construction	Plastic
IP Rating	IP66

Dimensions
Height	51mm
Length	85mm
Width	85mm

Downloads

Technical

Wiska COMBI Series

Specification Sheet

Waterproof Junction Box M20 with 5-Pole Terminals Block (85x85x51mm) 8 Way Threaded Membrane Entries Black

Waterproof Junction Box M20 with 5-Pole Terminals Block (85x85x51mm) 8 Way Threaded Membrane Entries Black (Unbranded)
