ShieldGLAND Standard M20L IP68

The ShieldGland Standard M20L is a robust and reliable cable gland designed for demanding environments. Made of high-quality metal, this gland ensures durability and long-lasting performance. It features an IP68 waterproof rating, providing superior protection against dust and water ingress, making it ideal for both indoor and outdoor applications. Perfect to use on your outdoors settings.

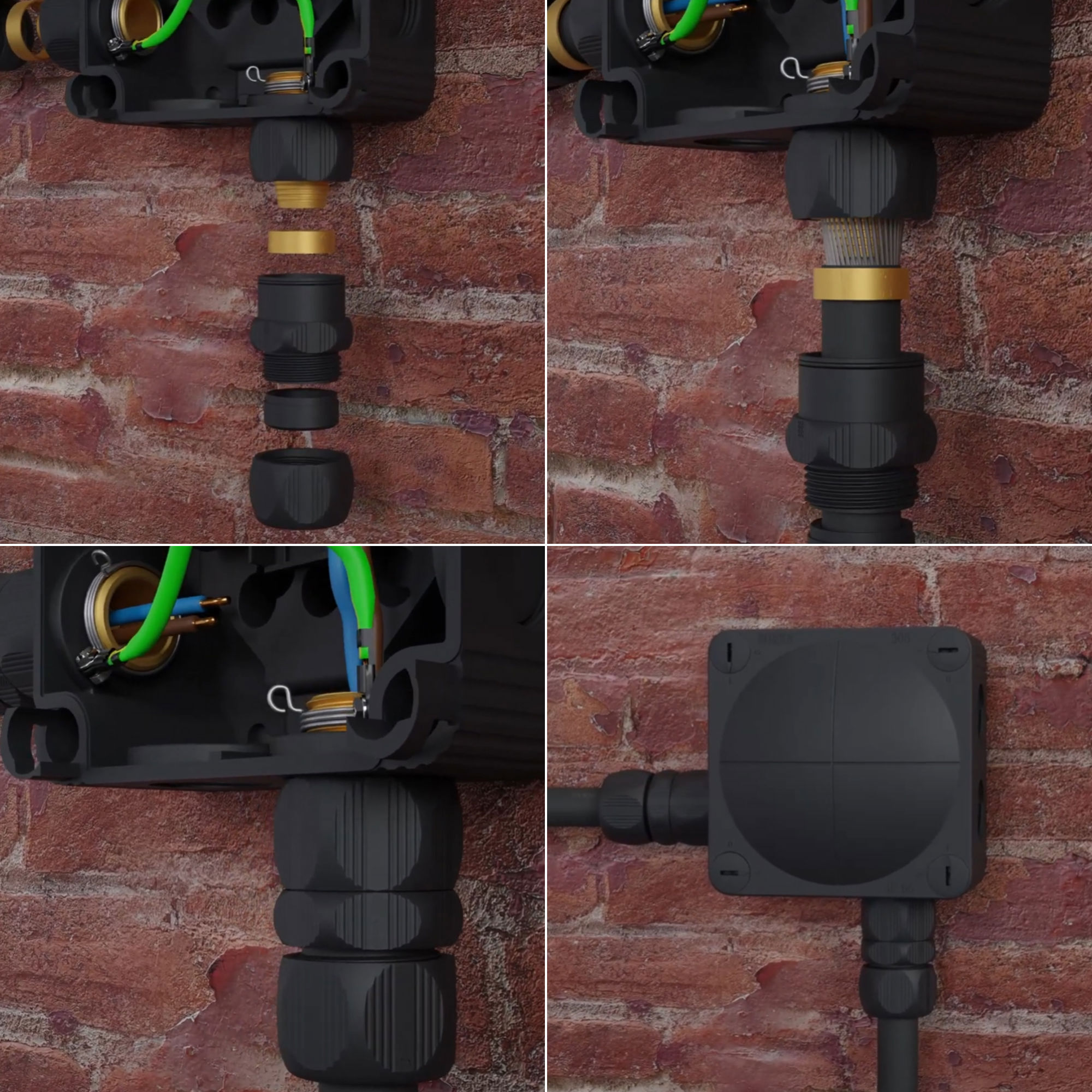

The ShieldGLAND®’s unique adaptable insert allows a wider range of cable acceptance due to its two part sealing gasket. Simply leave as is or remove inner sealing insert depending on your cable requirement.

Faster and easier to fit than ever when compared to an old conventional armoured cable gland.

Features anti-rotational technology which prevents damage caused by rotation during installation or cable pulling.

Complete with Brass locknut and earth tag

Suitable for armoured and non armoued cables including CY AND SY braided cables.

Pack of 2

Ø cable diameter min. 12mm

Ø cable diameter max. 21mm

Ø connection thread 20 mm

Temp. range -40°C 120°C

Ø cable below cable shield max 12mm - 17mm
