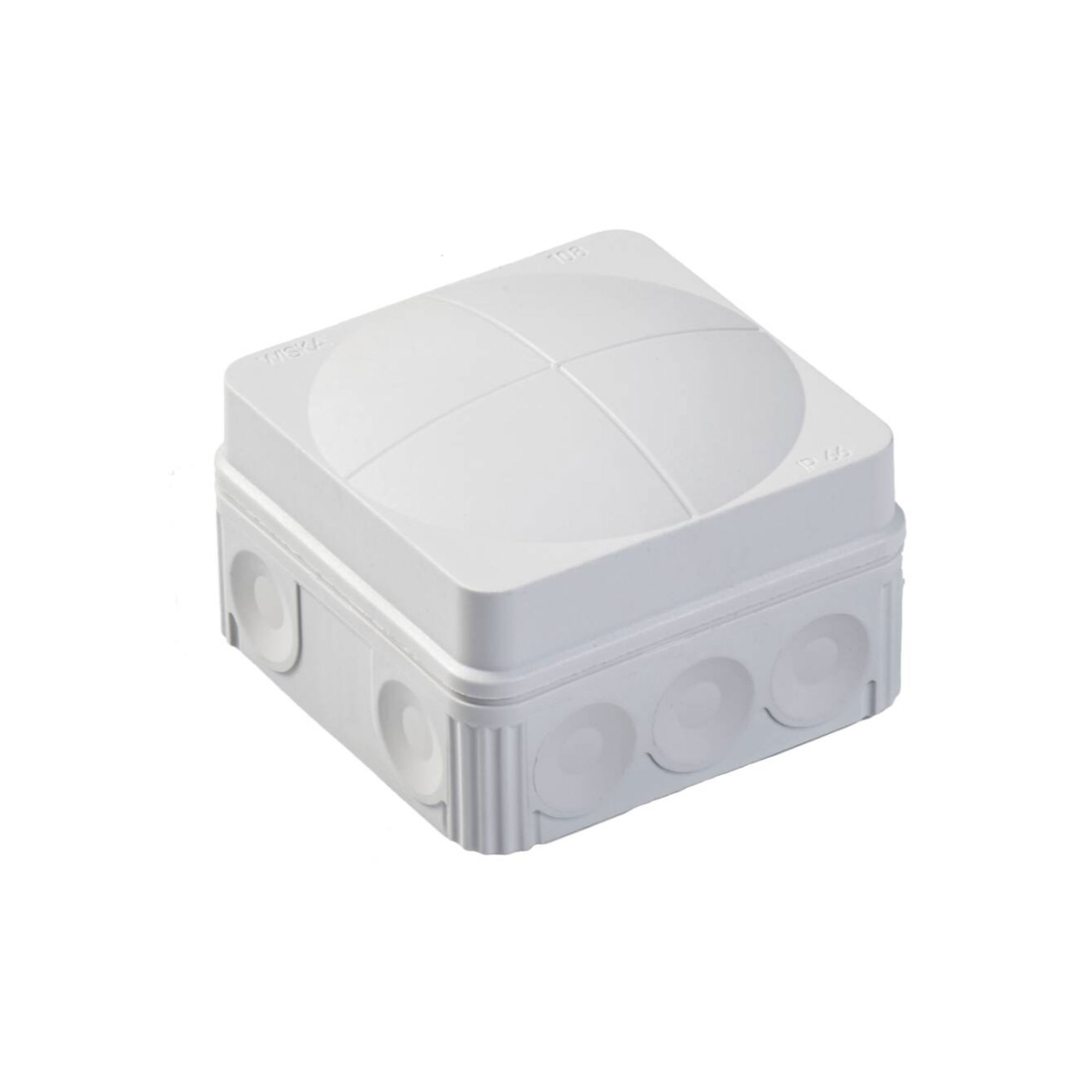

Waterproof Junction Box M20 with 5-Pole Terminal Block (76x76x51mm)

10 Way Membrane Entries Grey

Quicklink Q1A7A

Product Code JB 10060523 GREY

£4.19EX VAT
£5.03INC VAT
60 in Stock

Description

The Waterproof 76mm Junction box COMBI 108/5 allows up to Ten different cables to be wired through it. The IP66 rating also allows it suitable for any situation outdoors.

Features

Rated cross section: 2,5 mm²

Terminals/poles: 5-pole, 2,5mm²

Fixing: 2 internal openings

Ø cable diameter min: 3 mm

Ø cable diameter max: 14 mm

External dimensions LxWxH: 76 x 76 x 51mm

10 elastic self-sealing puncture-membranes for cable entry on the side and 2 in the bottom
inclusive terminal block 5-poles, 2,5mm²
Fixing: By two internal openings outside of the sealing area

Product Video

Specification

General
Colour	Grey
Construction	Plastic
IP Rating	IP66

Dimensions
Height	51mm
Length	76mm
Width	76mm

Downloads

Technical

Wiska COMBI Series

Specification Sheet

Waterproof Junction Box M20 with 5-Pole Terminal Block (76x76x51mm) 10 Way Membrane Entries Grey

Waterproof Junction Box M20 with 5-Pole Terminal Block (76x76x51mm) 10 Way Membrane Entries Grey (Unbranded)
