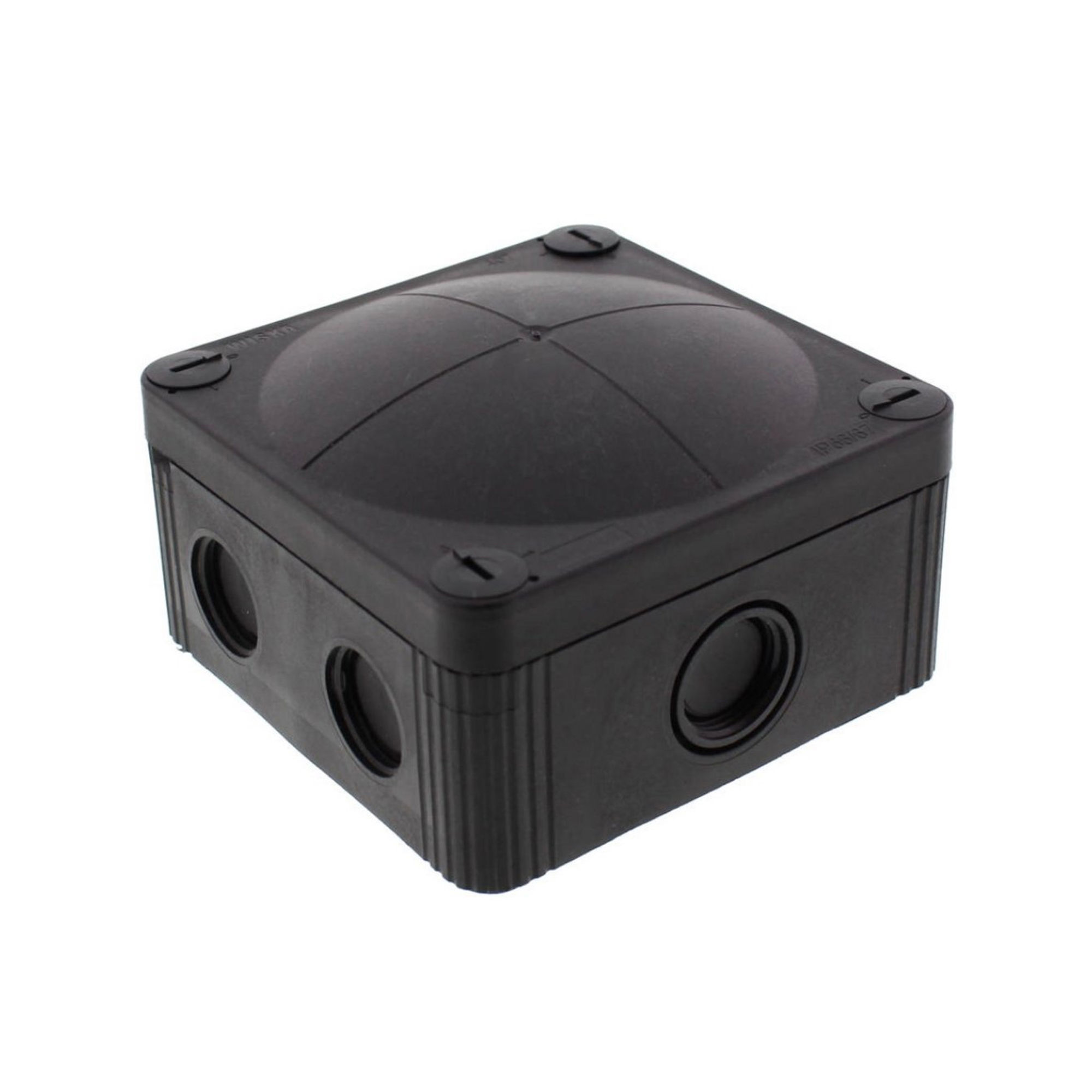

Waterproof Junction Box M20/M25 with 5-Pole Terminal Block (95x95x60mm)

7 Way Threaded Membrane and Knockouts Black

Quicklink Q4F80

Product Code JB 10105602 BLK

£8.00EX VAT
£9.60INC VAT
10 in Stock

Description

The Waterproof Junction box COMBI 407/5 allows up to Seven different cables to be wired through it. The IP66 rating also allows it suitable for any situation outdoors. The weather proof box is resistant to ultraviolet.

IP66: using the membrane entry IP67: using the threaded entry together with ESKV cable gland

Equipment and Features

6x M20 threaded membrane entries and 1 middle M20 threaded membrane entry with knockout to M25
2 membrane cable entries through rear
4 captive cover screws
including mounting clip
with terminal block 5-poles, 4mm²
Øcable diameter min: 3 mm
Øcable diameter max: 12 mm
External dimensions LxWxH: 95 x 95 x 60mm
Type of cable gland M20 x 1,5, M25 x 1,5
Fixing: with mounting clip or 4 internal openings outside of the sealing area

Product Video

Specification

General
Colour	Black
Construction	Plastic
IP Rating	IP67
RAL Colour Code	RAL 9005

Dimensions
Depth	60mm
Length	95mm
Width	95mm

Electrical
Voltage	690V

Downloads

Technical

WISKA 10105602 COMBI 407/5 BK

Wiska COMBI Series

Specification Sheet

Waterproof Junction Box M20/M25 with 5-Pole Terminal Block (95x95x60mm) 7 Way Threaded Membrane and Knockouts Black

Waterproof Junction Box M20/M25 with 5-Pole Terminal Block (95x95x60mm) 7 Way Threaded Membrane and Knockouts Black (Unbranded)
