DALI Dimmable LED Interface RGBW 4 Channels (Constant Voltage)

    240-720W 12-36V

    Quicklink
    Product Code SR-2303/B
    • £61.38EX VAT
    • £73.66INC VAT
    • 49 due in on 04/06/2025
    Free Delivery

    Free Delivery over £100 ex. VAT

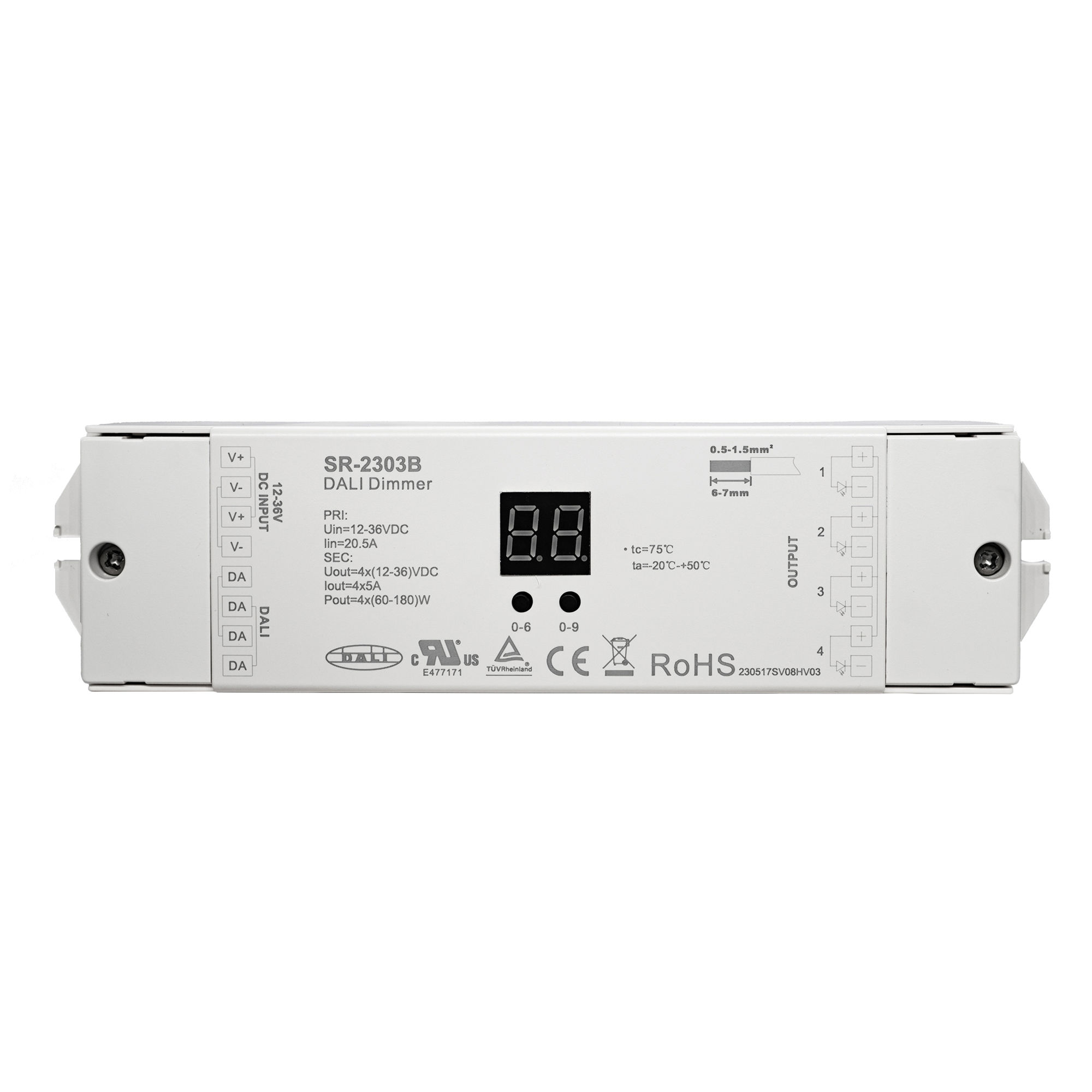

    The DALI Dimmer SR-2303B is a Constant Voltage LED dimming controller with 4 channel 5A per output, which complies with standard DALI protocol with 4 DALI addresses to control 4 channel separately. The DALI address can be manually assigned and shown on the numeric digital display or automatically assigned by master controllers. 4 DALI addresses are available for 4 channel to work separately. 0%-100% smooth dimming can be achieved by the DALI dimmer via logarithmic dimming, which is perfect for human's vision.

    Key Features

    • Match all DALI system in the market
    • Manual /automatically DALI address setting: DALI address can be manually assigned and shown in numeric digital display or automatic assigned by master controller
    • Constant Voltage DALI LED dimmer with 4 channel, 5A per channel output available in 12VDC, 24VDC and 36VDC output
    • 4 DALI addresses, 4 channels works separately.
    • 0%-100% dimming range via logarithm characteristic, perfect for human's vision
    • To work with power repeater to expand output power unlimitedly.
    • Waterproof grade:IP20

    Safety & Warnings:

    • DO NOT install with power applied to device
    • DO NOT expose the device to moisture
    General
    Colour White
    Construction Plastic
    Dimmable Yes
    IP Rating IP20
    Operating Temperature -20°C +50°C
    Dimensions
    Height 22mm
    Length 178mm
    Width 46mm
    Electrical
    Amperage 20A
    Maximum Wattage 720W (4 x 180W)
    Voltage 12-36V DC
    Price per item
    £69.90 excl. VAT £83.88 incl. VAT

    6 in Stock
