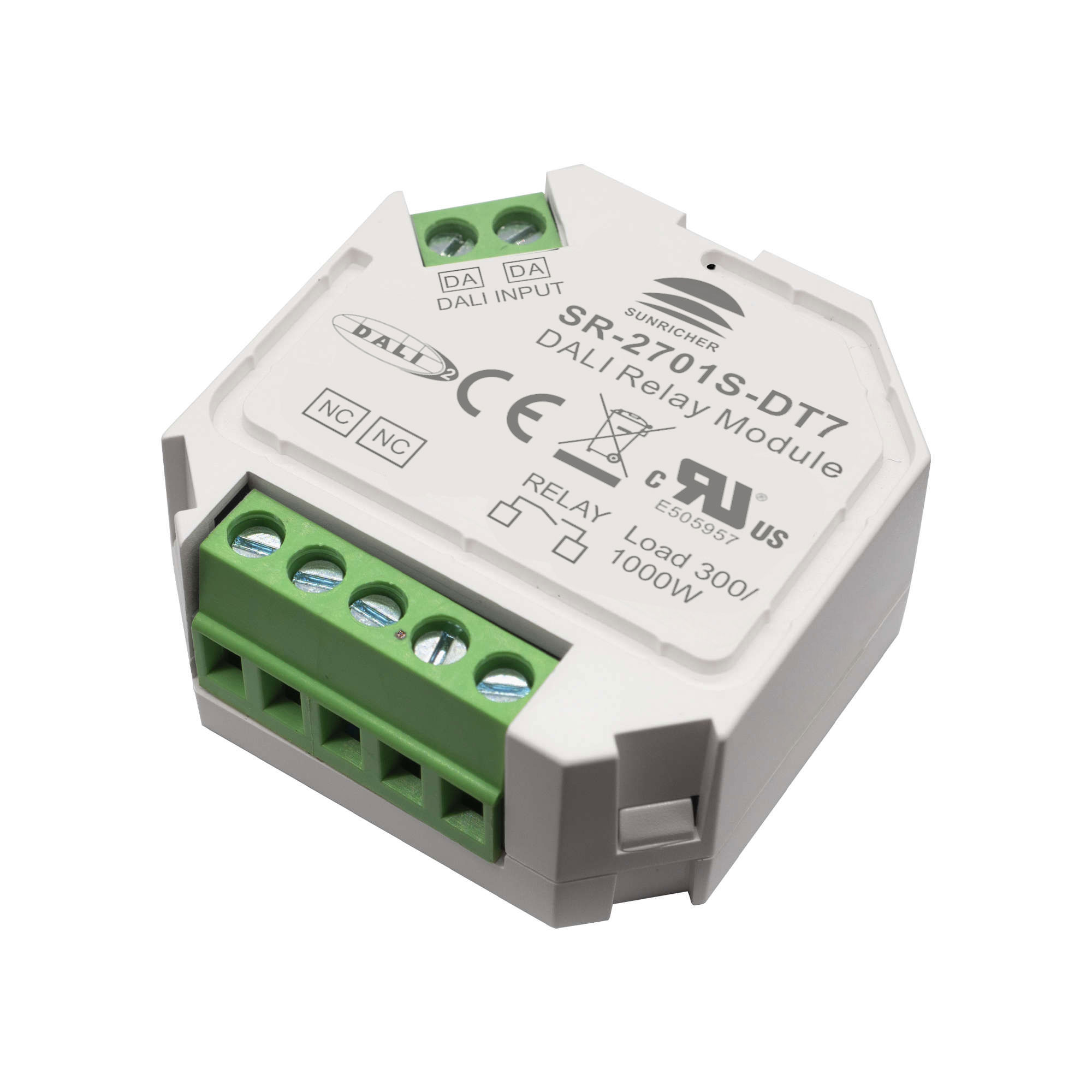

DALI 2 Relay Module

    300W

    Quicklink
    Product Code HTI SR2701S-DT7
    • £44.66EX VAT
    • £53.59INC VAT
    • 266 in Stock
    Priority Delivery

    Want Next Day Delivery (Monday)?
    Order in the next

    Free Delivery

    Free Delivery over £100 ex. VAT

    Description
    The DALI 2 Relay Module enables the control of standard consumers via a DALI channel. Typical application scenarios are the integration of non-DALI luminaires or other loads like fans in toilets or washrooms and motors for partition walls or screens in DALI lighting applications.

    It supports a wide voltage range of 120 - 347 V AC and up to 30 V DC. Zero cross switching technology is used to be able to handle the large in-rush currents typically found in lighting applications.

    The DALI 2 relay module controller is Volt free output which enables a contactor (12/24 VDC or 230VAC) to be controlled so that different loads can be switched ON/OFF via DALI commands.

    Specification
    General
    Colour White
    Construction Plastic
    Dimmable No
    IP Rating IP20
    Dimensions
    Height 20.3mm
    Length 45.5mm
    Width 45mm
    Electrical
    Maximum Wattage 300W
    Technical Drawings
    Downloads
    Complementary Products
    Dali Relay Module + Dali to 0/1-10 Converter 300-1000W
    Dali Relay Module + Dali to 0/1-10 Converter 300-1000W
    HTI SR2701S-N
    Price per item
    £48.00 excl. VAT £57.60 incl. VAT

    233 in Stock

    DALI 2 + Push AC Phase Cut Dimmer 200W
    DALI 2 + Push AC Phase Cut Dimmer 200W
    HTI SR2303SAC-HP
    Price per item
    £42.00 excl. VAT £50.40 incl. VAT

    855 in Stock

    Compare with similar products
    This item
    DALI 2 Relay Module 300W

    DALI 2 Relay Module 300W

    Q5471 HTI SR2701S-DT7
    £44.66 excl. VAT £53.59 incl. VAT

    266 in Stock

    Add

    Optotronic Oti Dali Dimmable Interface (Constant Voltage) 50W / 120W 10V / 24V

    Optotronic Oti Dali Dimmable Interface (Constant Voltage) 50W / 120W 10V / 24V

    Q342F DC OTIDALI 10-24
    £96.25 excl. VAT £115.50 incl. VAT

    only 1 left

    Add

    DALI Dimmable LED Interface RGBW 4 Channels (Constant Voltage) 240-720W 12-36V

    DALI Dimmable LED Interface RGBW 4 Channels (Constant Voltage) 240-720W 12-36V

    Q6339 SR-2303/B
    £61.38 excl. VAT £73.66 incl. VAT

    11 in Stock

    Add

    Dali Relay Module + Dali to 0/1-10 Converter 300-1000W

    Dali Relay Module + Dali to 0/1-10 Converter 300-1000W

    Q62DF HTI SR2701S-N
    £48.00 excl. VAT £57.60 incl. VAT

    233 in Stock

    Add

    LED Dimmable Interface 4 In 1 Dali + Push + Phase Cut + 0-10V Inputs 240-960W 12-48V

    LED Dimmable Interface 4 In 1 Dali + Push + Phase Cut + 0-10V Inputs 240-960W 12-48V

    Q6A65 WISE INTER DALI
    £45.52 excl. VAT £54.62 incl. VAT

    available to order

    Add

    Dali-CV LED Interface Dimmable Driver (Constant Voltage) 96W / 192W 12V / 24V

    Dali-CV LED Interface Dimmable Driver (Constant Voltage) 96W / 192W 12V / 24V

    Q454C DALI 801-8A
    £39.95 excl. VAT £47.94 incl. VAT

    9 in Stock

    Add

    DALI 2 + Push AC Phase Cut Dimmer 200W

    DALI 2 + Push AC Phase Cut Dimmer 200W

    Q4D8C HTI SR2303SAC-HP
    £42.00 excl. VAT £50.40 incl. VAT

    855 in Stock

    Add
    Height 20.3mm 20mm 22mm 45mm 28mm 20mm 20.3mm
    Width 45mm 170mm 46mm 20.3mm 53.4mm 37mm 45mm
    Maximum Wattage 300W 120W 720W (4 x 180W) 1000W 960W 192W 200W
    Dimmable No Yes Yes Yes Yes Yes Yes
