Elegant Fixed Downlight Clear IP54 Baffle LED Reality GU10 Warm White (3000K)

7W (=75W) 45°

Quicklink Q3BBC

Product Code FMR3025 WCL/R45D3K

Colour (White)

Fire Rated

Colour Temperature

2700K Warm White 3000K Warm White

£47.95EX VAT
£57.54INC VAT
only 2 left

Description

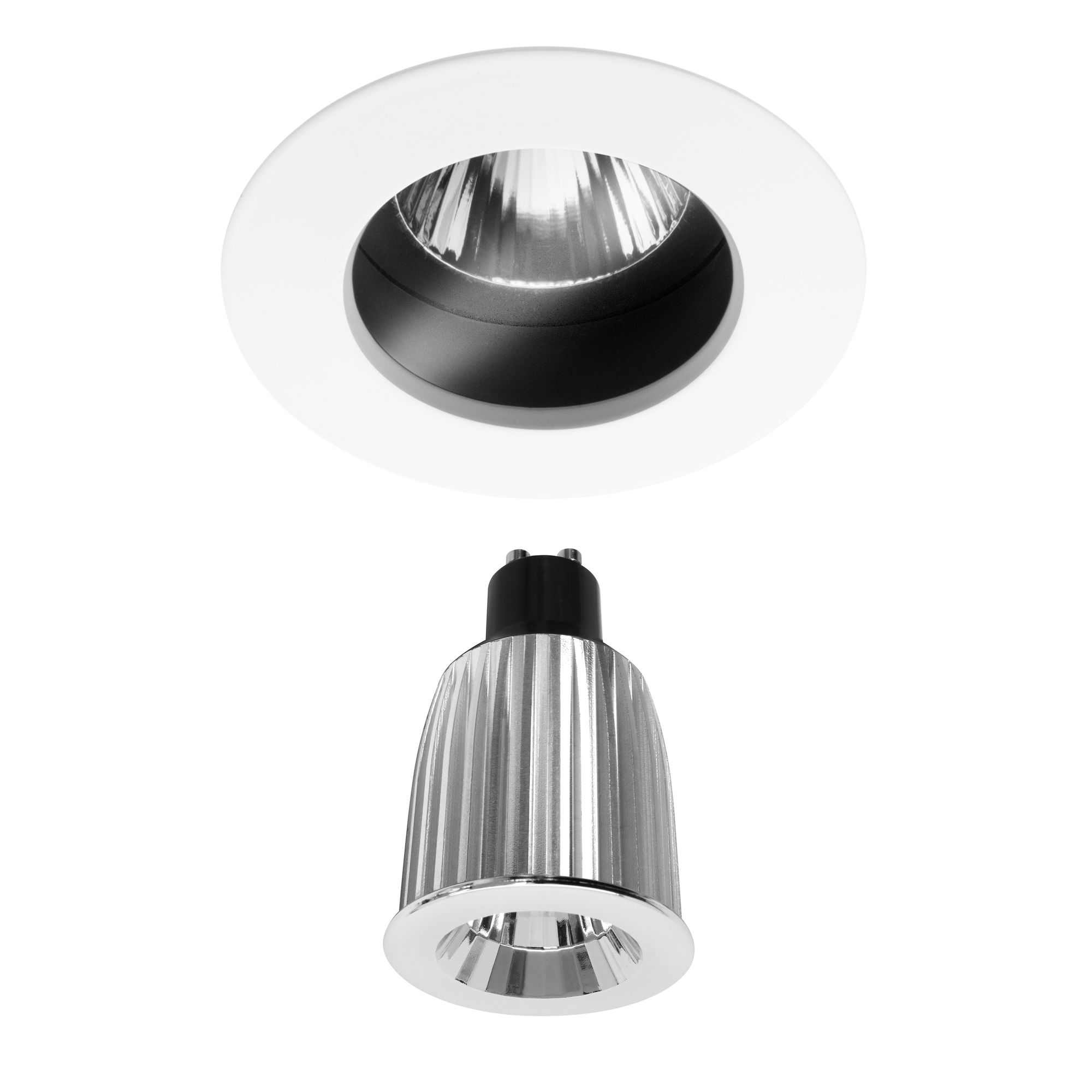

The 50mm Fixed Downlighter holds a 50mm lamp. The downlighter uses a spring retention system for easy installation and lamp changing.

This fitting is rated IP54 and can, therefore, be used in a bathroom.

Please note: the ceiling depth for this downlight depends on the lamp choice. For a standard halogen GU10 lamp, the depth is 85mm. For an LED GU10 lamp a ceiling depth of 115mm should be allowed. This is a Fire-Rated Downlight.

The Reality GU10 LED 7W Lamp is equivalent to a 75W GU10 halogen lamp and, like a halogen lamp, is dimmable.

Key Features

Complies with October 2010 Part L regulations
Fully dimmable with leading edge dimmers
Fire-Rated Downlight
Lifetime of 25,000 hrs

Specification

General
Cap	GU10
Colour	White
Construction	Die-Cast Aluminium
Dimmable	Yes
IP Rating	IP54


Dimmable	Yes

Dimensions
Cut Out	62mm (Diameter)
Diameter	70mm
Minimum Ceiling Depth	120mm

Electrical
Energy Efficiency Rating	A
Maximum Wattage	7W
Power Factor	0.95
Voltage	240V

Light Characteristics
Beam Angle	45°
Colour Rendering Index	80
Colour Temperature	3000K Warm White
Halogen Equivalent Wattage	75W
Lumens	630 lm
Lumens Per Watt	90 lm/W

Technical Drawings

Downloads

Specification Sheet

Elegant Fixed Downlight Clear IP54 Baffle LED Reality GU10 Warm White (3000K) 7W (=75W) 45°

Elegant Fixed Downlight Clear IP54 Baffle LED Reality GU10 Warm White (3000K) 7W (=75W) 45° (Unbranded)
