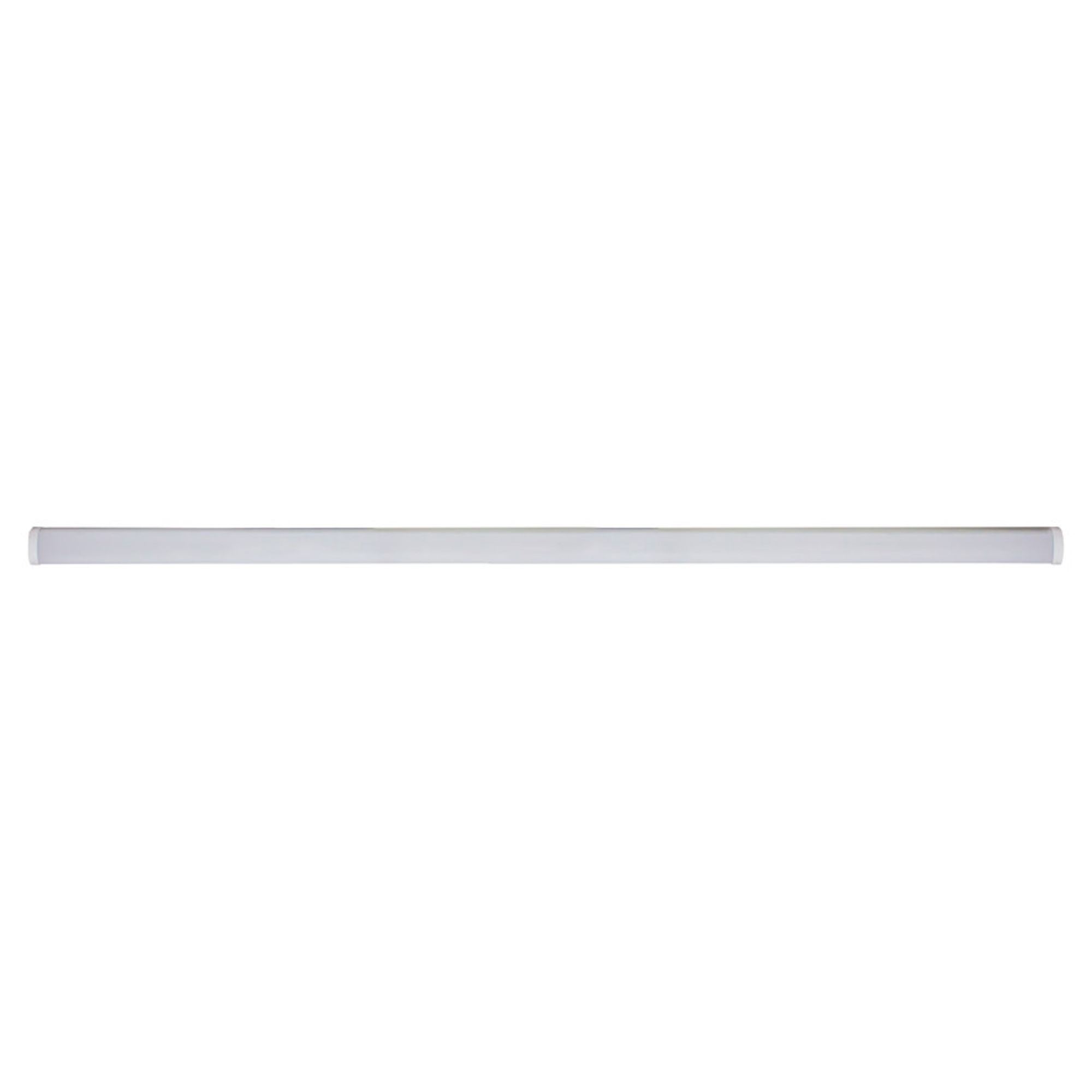

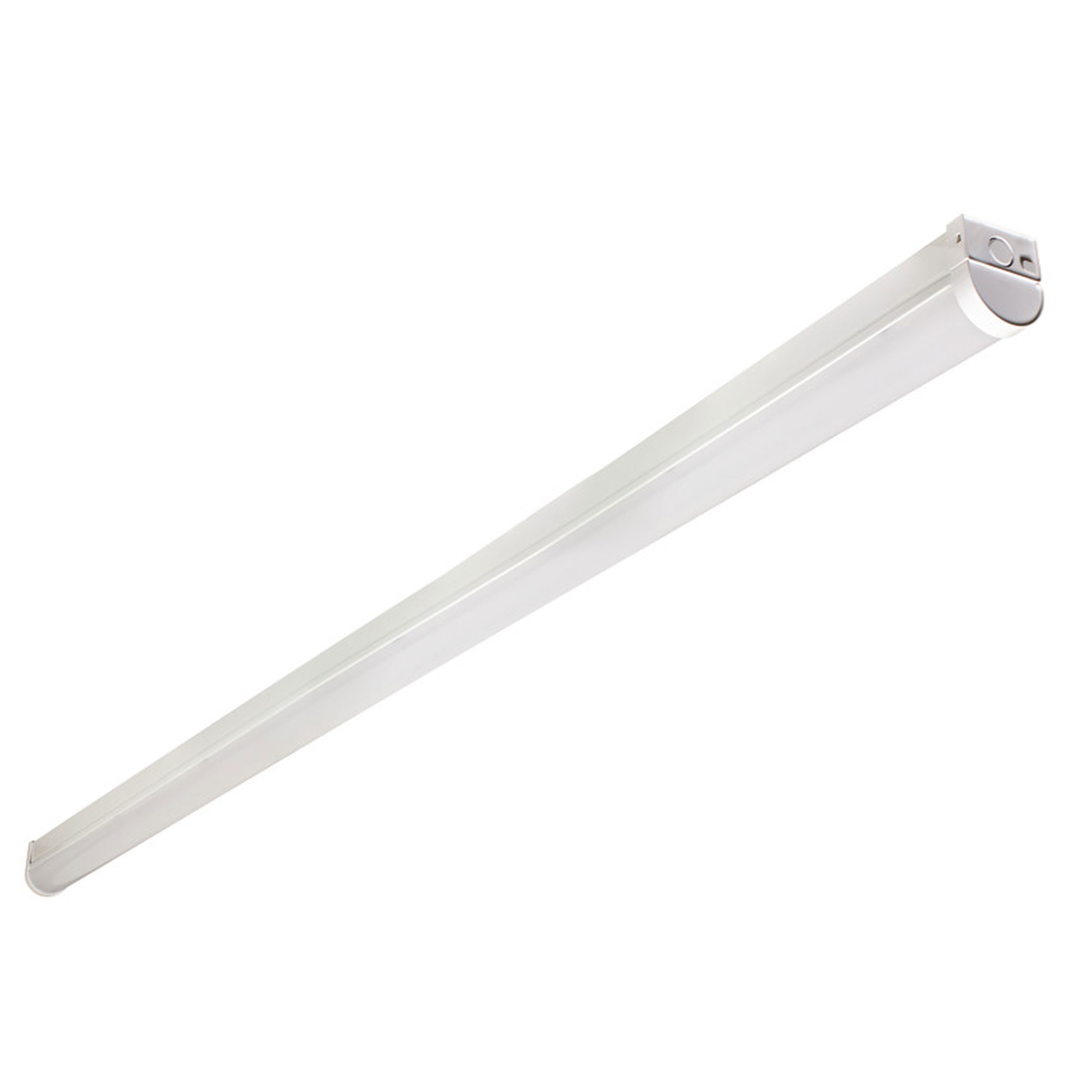

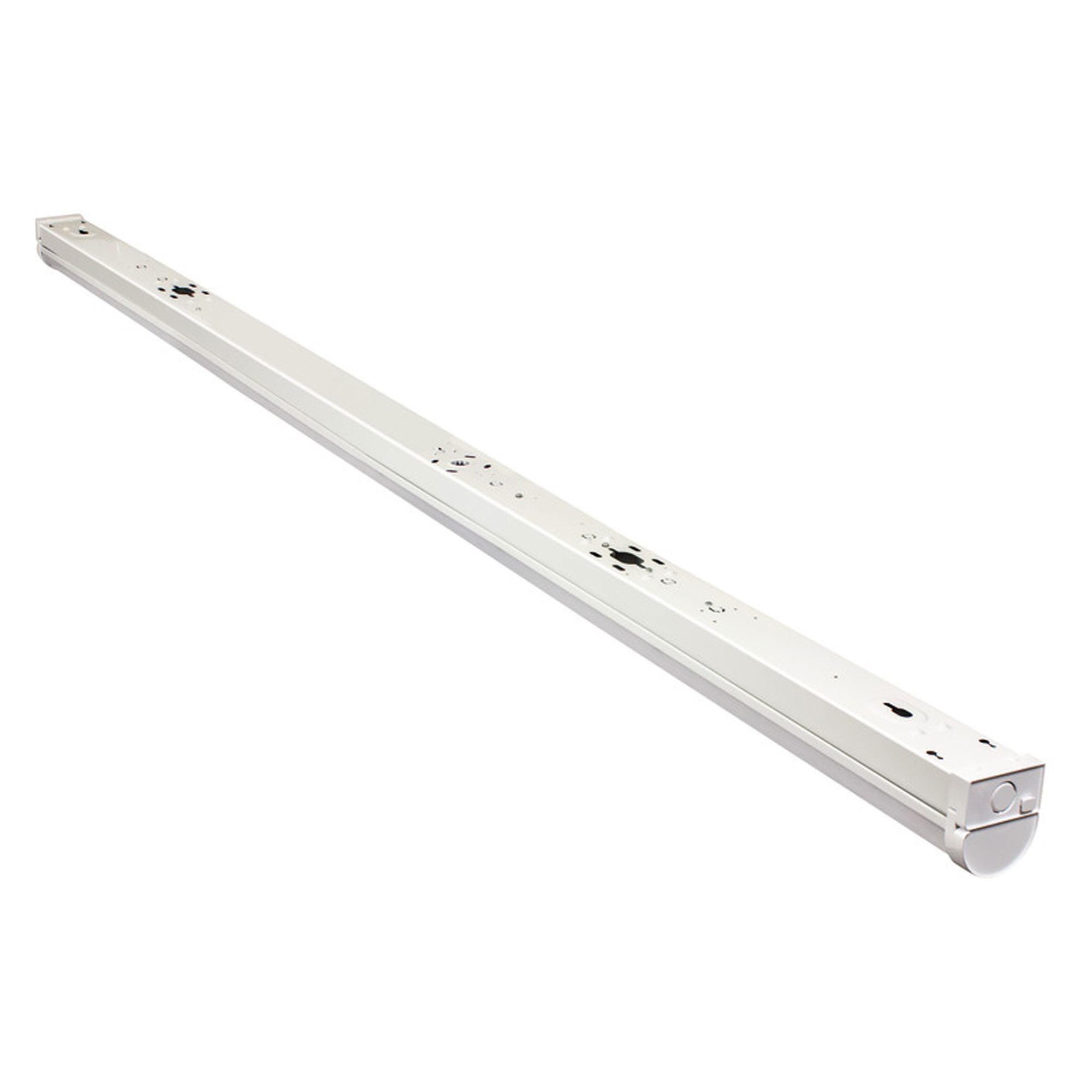

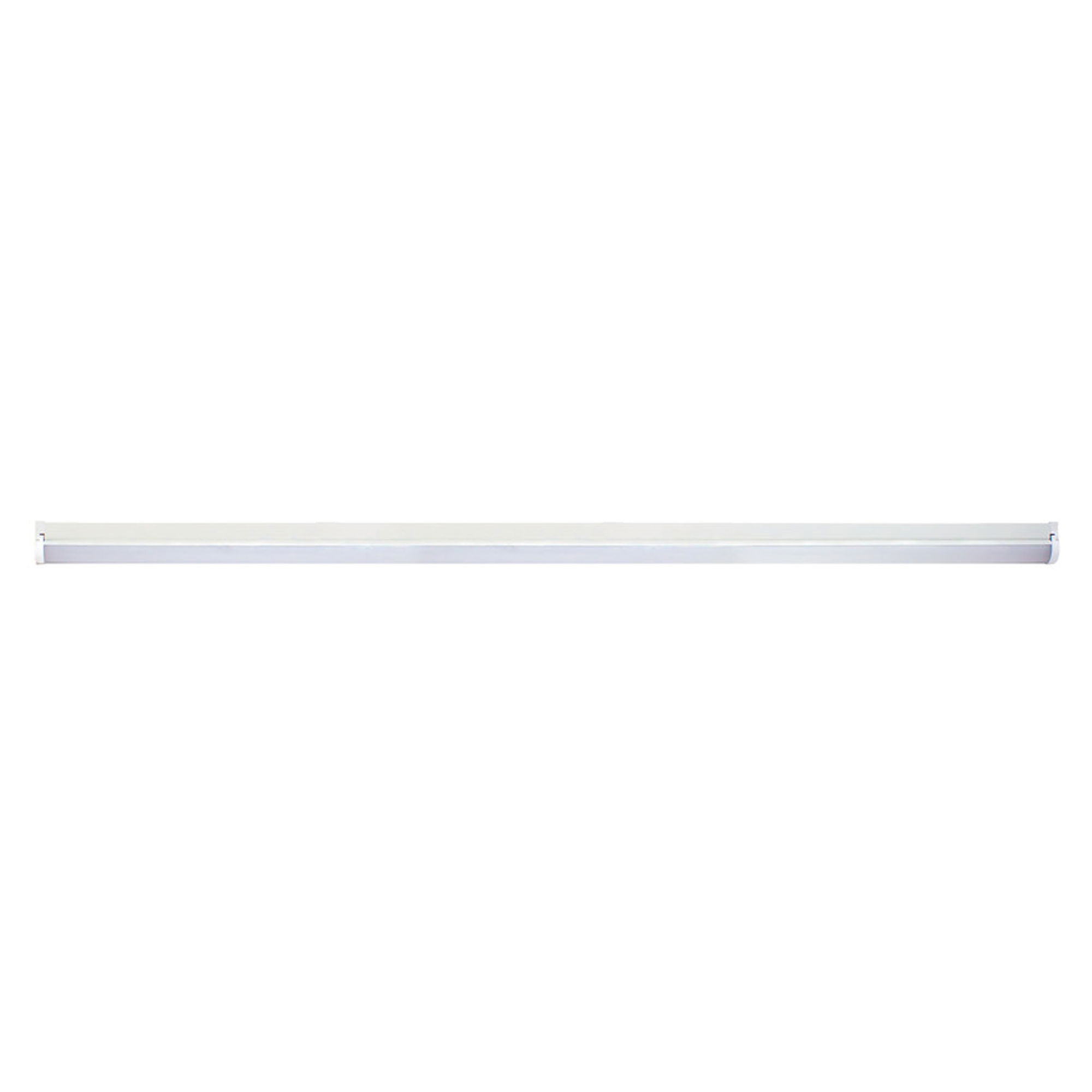

Lightspan LED 1734mm (6ft) Single T8 Batten 5200lm Surface Mounted or Suspended

White 40W

Quicklink Q6D53

Product Code ILBTC115

Length

£33.54EX VAT
£40.25INC VAT
only 5 left

Description

Upgrade your lighting with the Lightspan T8 LED Batten 4ft Single Standard, a high-performance solution designed for energy-efficient illumination in commercial and residential spaces. Delivering 5200 lumens at just 40W, this LED batten offers exceptional brightness with a 130lm/W efficacy, helping reduce energy costs without compromising light quality.

Ideal for offices, workshops, garages, and corridors, the 4000K cool white output ensures clear, neutral lighting, while the wide 120° beam angle provides uniform coverage. Its slim 1734mm design and linkable feature make installation flexible and seamless. Built to last and backed by a 3-year warranty, this non-dimmable batten is a reliable choice for modern lighting upgrades.

Key Technical Specifications:

Length: 1734mm (6ft)
Luminous Flux: 5200lm
Power Consumption: 40W
Efficacy: 130lm/W
Colour Temperature: 4000K (Cool White)
Beam Angle: 120°
Finish: Matt White
Mounting: Surface-mounted, linkable and Suspended
Dimmable: No

Specification

General
Colour	White
Construction	Aluminium
Dimmable	No
IP Rating	IP20
Weight	2.4kg

Dimensions
Height	70mm
Length	1734mm
Width	60mm

Electrical
Energy Efficiency Rating	E
Maximum Wattage	40W
Voltage	240V

Light Characteristics
Beam Angle	120°
Colour Rendering Index	80
Colour Temperature	4000K Cool White
Lumens	5200 lm
Lumens Per Watt	130 lm/W

Downloads

Technical

Lightspan LED Batten Installation Guide

Specification Sheet

Lightspan LED 1734mm (6ft) Single T8 Batten 5200lm Surface Mounted or Suspended White 40W

Lightspan LED 1734mm (6ft) Single T8 Batten 5200lm Surface Mounted or Suspended White 40W (Unbranded)
