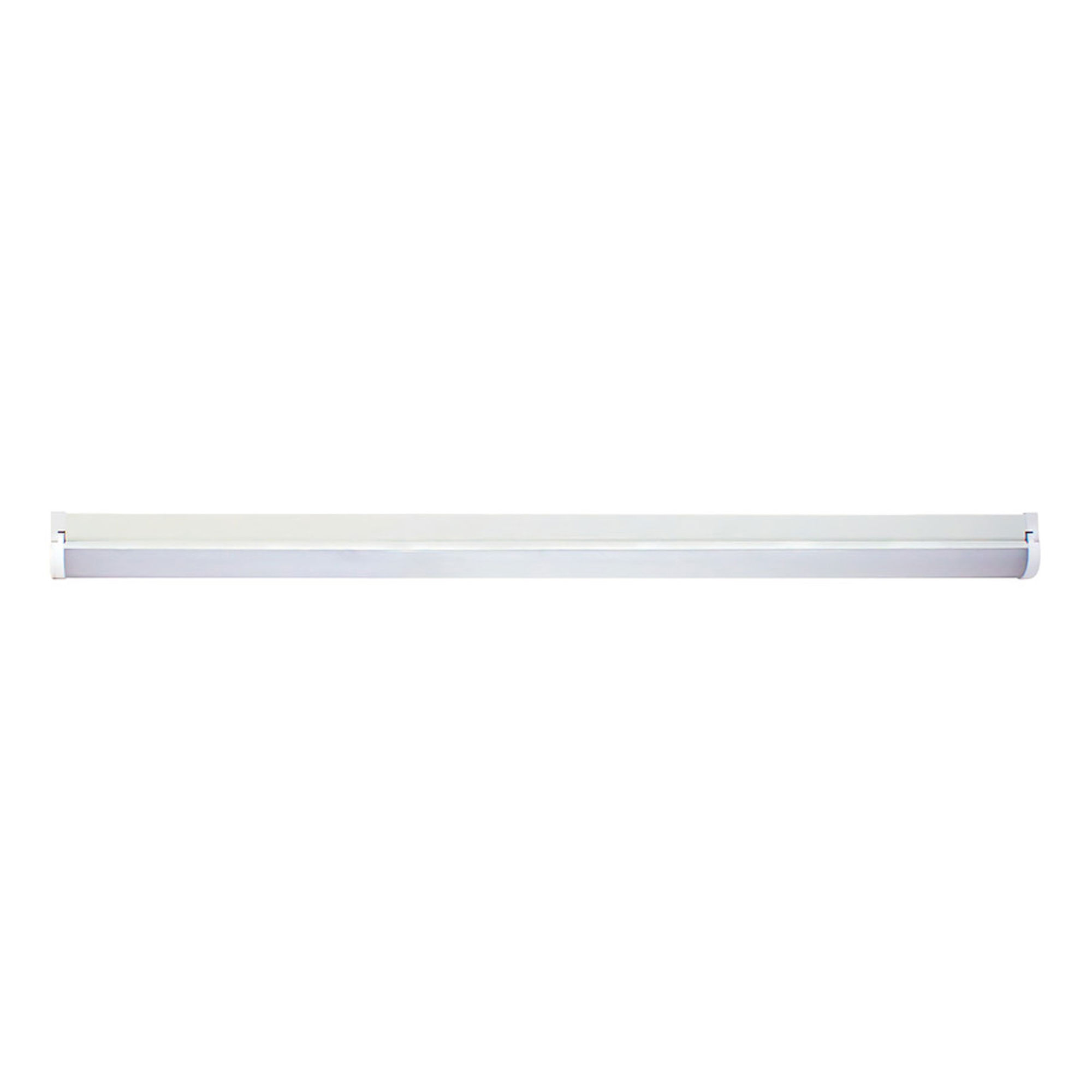

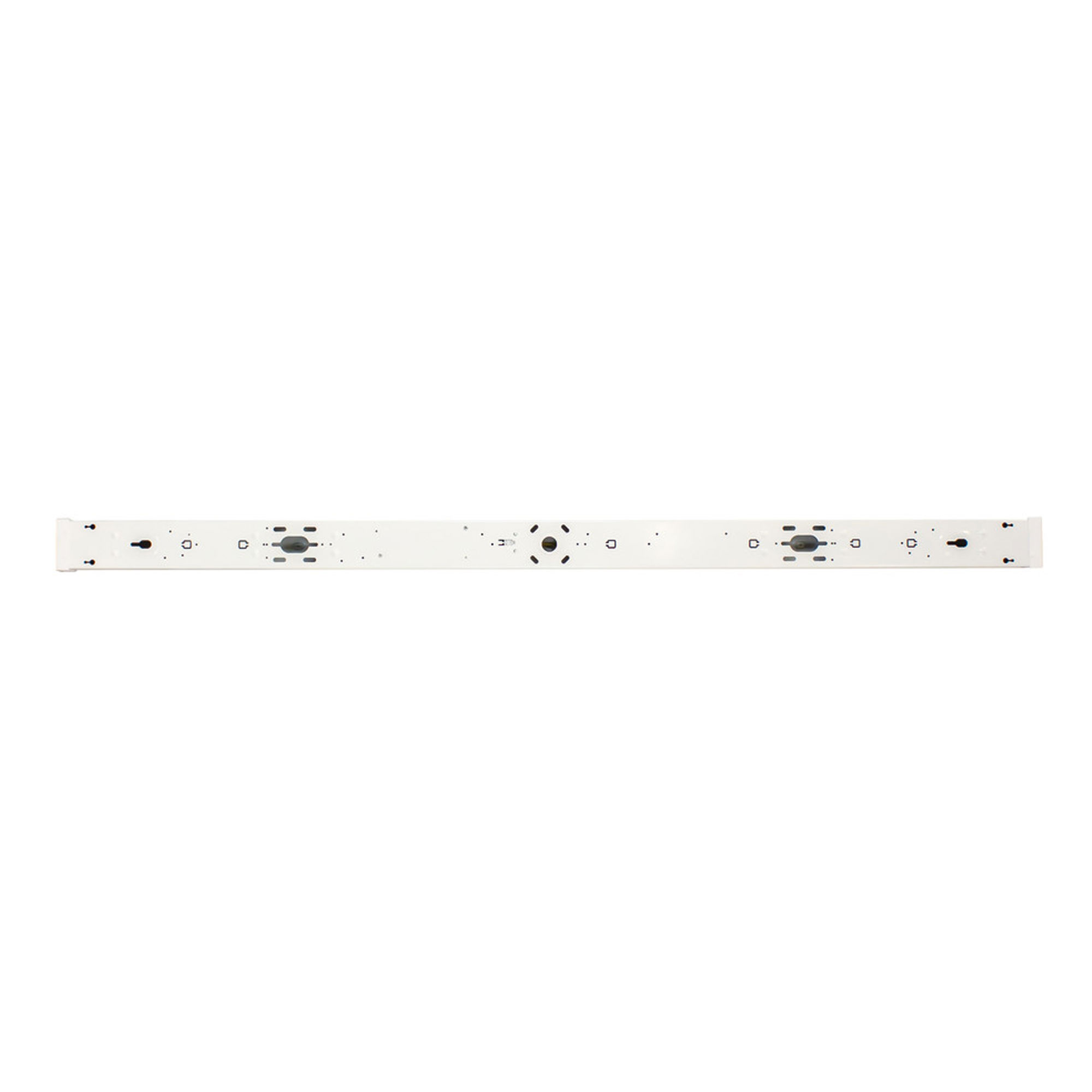

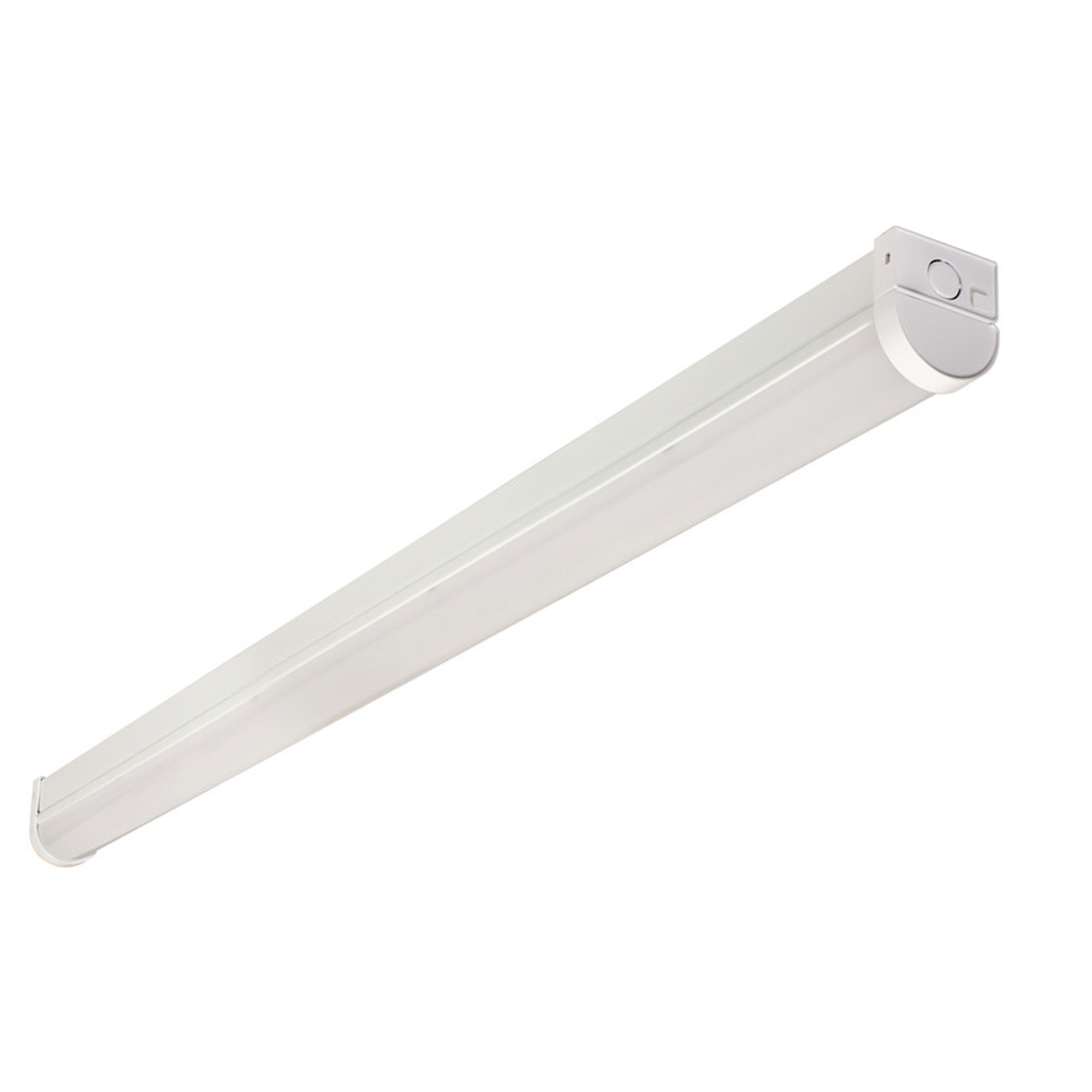

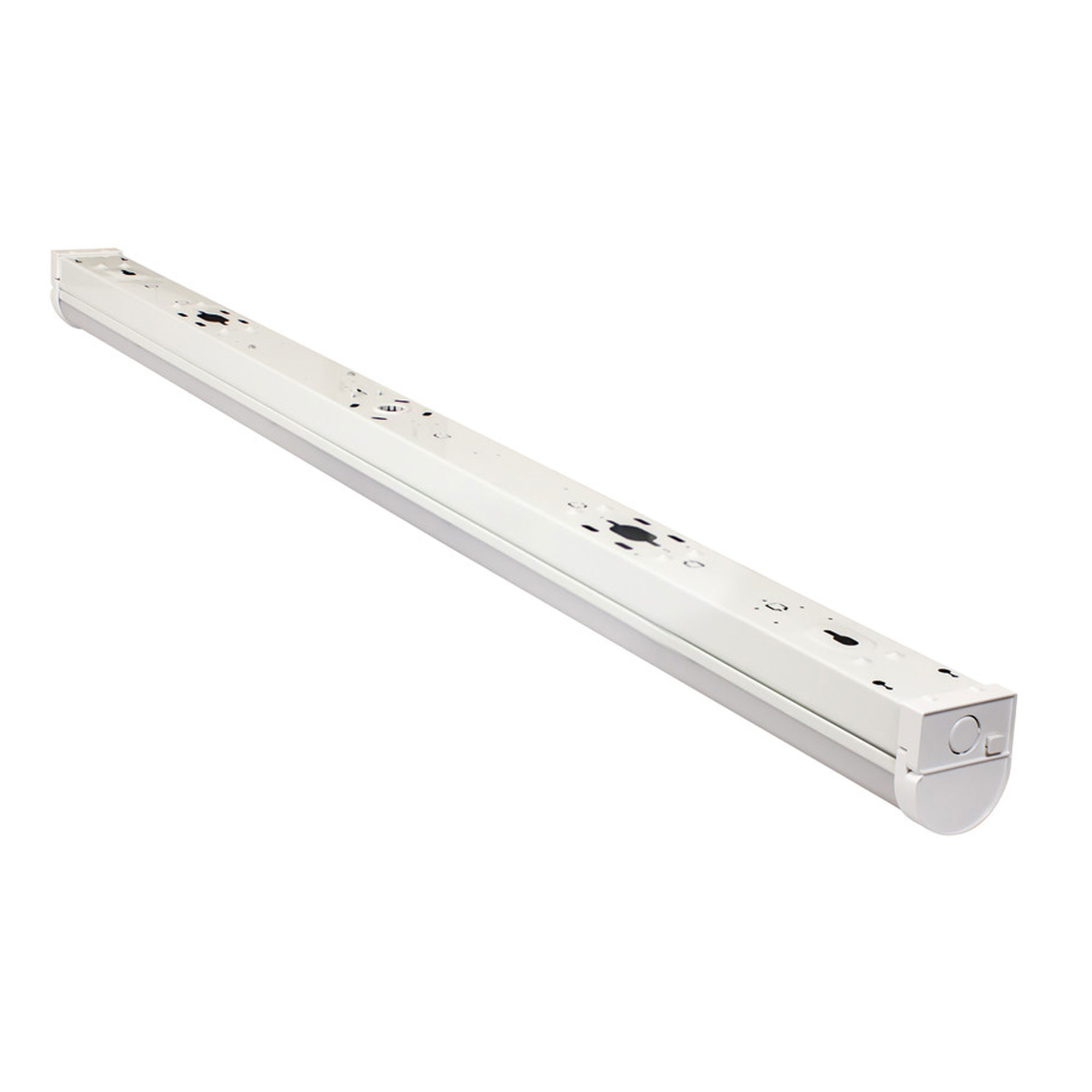

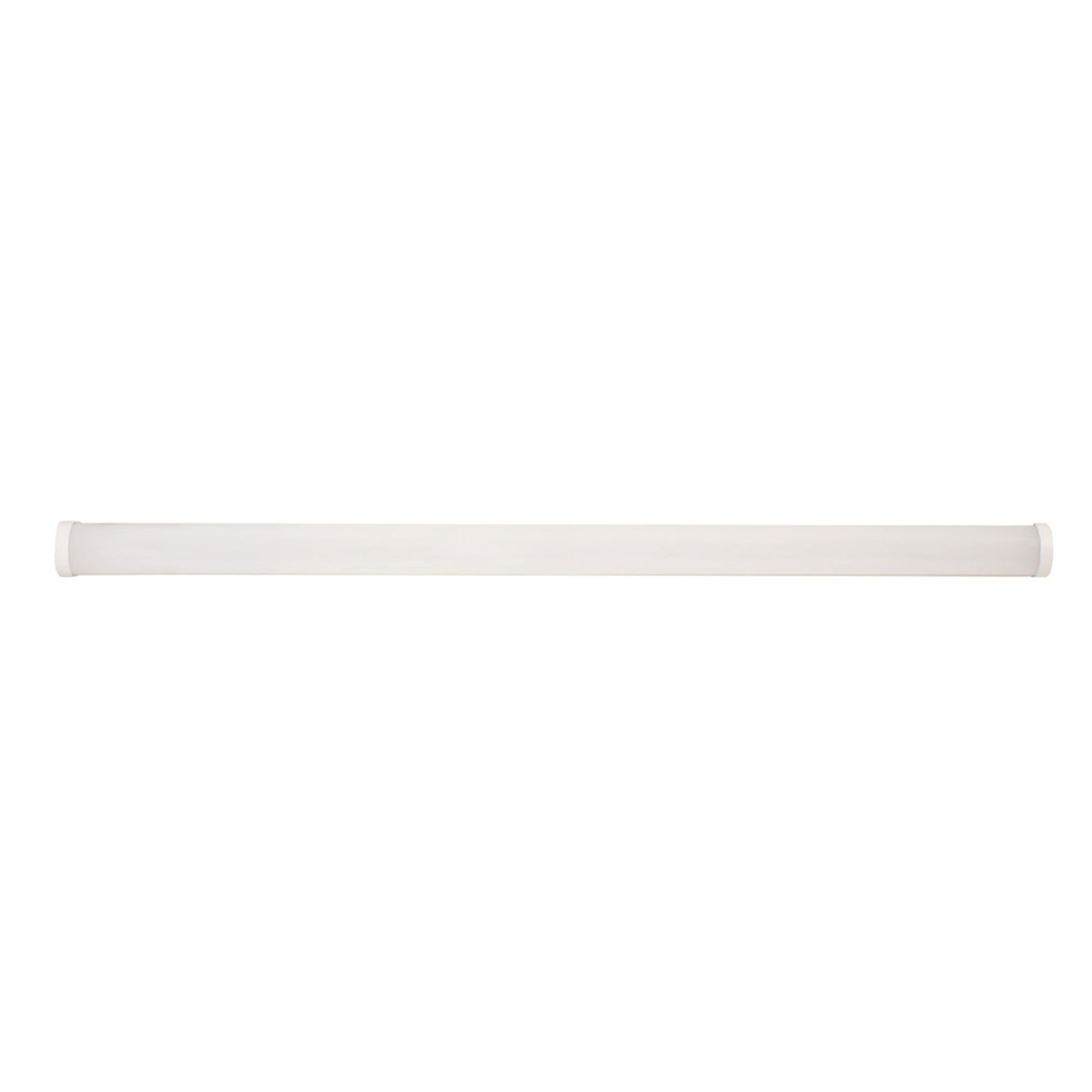

Lightspan LED 1170mm (4ft) Single T8 Batten 2800lm Surface Mounted or Suspended

White 22W

Quicklink Q6D51

Product Code ILBTC111

Length

£23.54EX VAT
£28.25INC VAT
only 5 left

Description

Upgrade your lighting with the Lightspan T8 LED Batten 4ft Single Standard, a high-performance solution designed for energy-efficient illumination in commercial and residential spaces. Delivering 2800 lumens at just 22W, this LED batten offers exceptional brightness with a 130lm/W efficacy, helping reduce energy costs without compromising light quality.

Ideal for offices, workshops, garages, and corridors, the 4000K cool white output ensures clear, neutral lighting, while the wide 120° beam angle provides uniform coverage. Its slim 1170mm design and linkable feature make installation flexible and seamless. Built to last and backed by a 3-year warranty, this non-dimmable batten is a reliable choice for modern lighting upgrades.

Key Technical Specifications:

Length: 1170mm (4ft)
Luminous Flux: 2800lm
Power Consumption: 22W
Efficacy: 130lm/W
Colour Temperature: 4000K (Cool White)
Beam Angle: 120°
Finish: Matt White
Mounting: Surface-mounted, linkable and Suspended
Dimmable: No

Specification

General
Colour	White
Construction	Aluminium
Dimmable	No
IP Rating	IP20
Weight	1.7kg

Dimensions
Height	70mm
Length	1170mm
Width	60mm

Electrical
Energy Efficiency Rating	E
Maximum Wattage	22W
Voltage	240V

Light Characteristics
Beam Angle	120°
Colour Rendering Index	80
Colour Temperature	4000K Cool White
Lumens	2600 lm
Lumens Per Watt	118 lm/W

Downloads

Technical

Lightspan LED Batten Installation Guide

Specification Sheet
