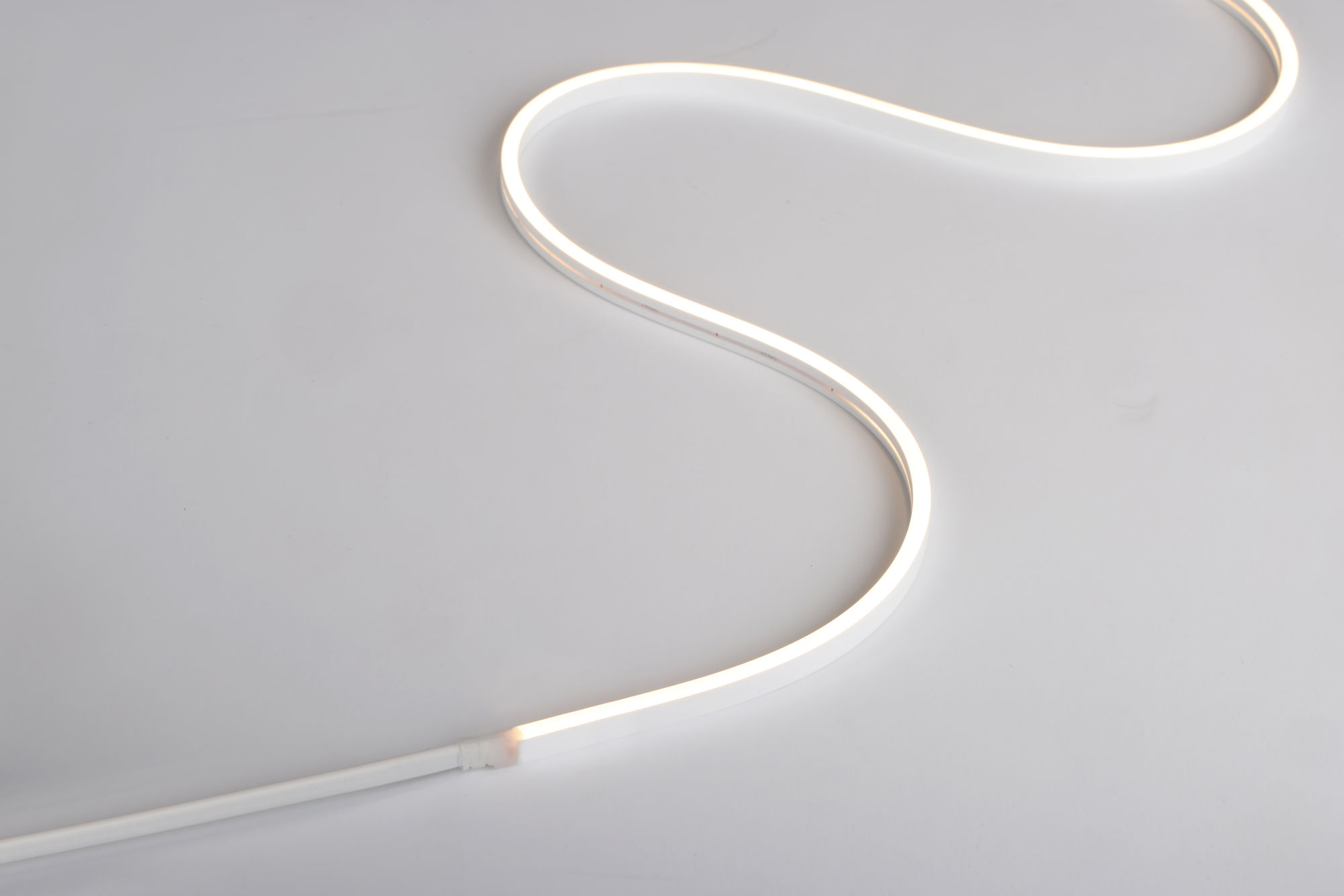

FLXible Neon Narrow 1 24V 3M - Horizontal Bend (4mm)

    23.1W (1m=7.7W) 3000K Warm White

    Quicklink
    Product Code FNN1-3M-30K-24V
    Length
    Colour Temperature
    • £67.84EX VAT
    • £81.41INC VAT
    • 19 due in
    Free Delivery

    Free Delivery over £100 ex. VAT

    Description
    FLXible Narrow Neon , is super slim flexible LED with spot-free output for indoor and outdoor application for displays, cabinets, furniture and coves. Neon Narrow 1 bends horizontally while Neon 2 bends vertically; both are dimmable, have 7.7W/M., 24V DC.

    • Seamless Diode Free Illumination
    • UV-resistant Silicon material
    • Field Cut 33.4mm
    • Side Bend type - 30mm(1.18″) Diameter
    • Control with 0-10V, Forward Phase, DALI, DMX, Zigbee
    • IP Rating: IP67 with Factory Termination (the product is sealed by the manufacturer) / IP65 with Field Termination (customizing the reel length and attaching the endcap lowers the rating to IP65)
    • Please note: this reel comes with only one power cord. If you cut the reel, the remaining segment will not have a plug and can only be used by soldering

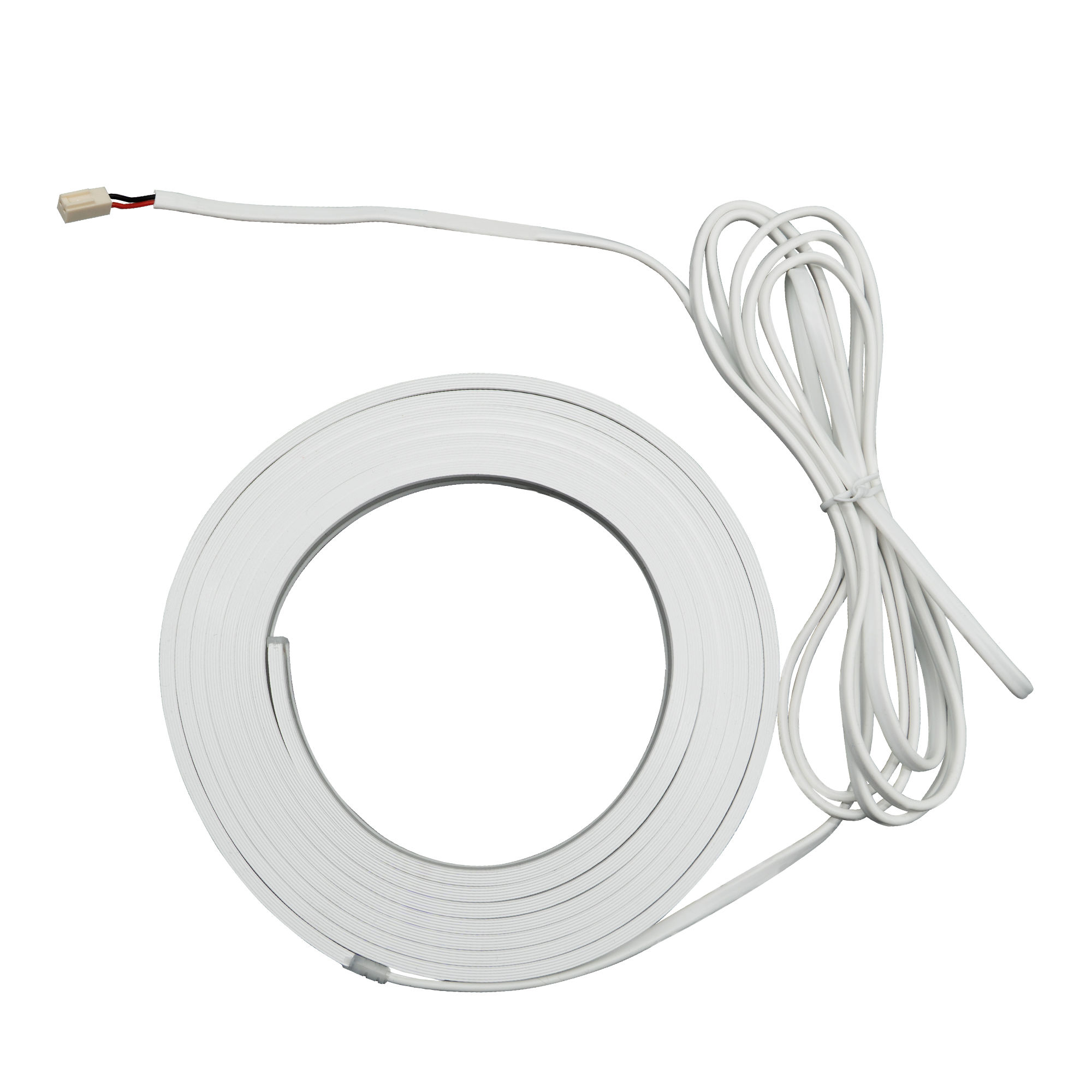

  • This Kit Includes: 3 metre reel with one power cord, 12 mounting brackets + Screws, and end cap

    • Specification
    General
    Construction Silicone
    Dimmable Yes
    IP Rating IP67
    Dimensions
    Cut Length 33.4mm
    Height 7mm
    Length 3m
    Width 4mm
    Electrical
    Maximum Wattage 23.1W (3 x 7.7W)
    Voltage 24V
    Light Characteristics
    Beam Angle 130°
    Colour Rendering Index 90
    Colour Temperature 3000K Warm White
    Lumens 1270.2 lm
    Lumens Per Watt 55 lm/W
    Technical Drawings
    Downloads
