FLXible Neon Narrow 1 24V 5M - Horizontal Bend (4mm)

38.5W (1m=7.7W) 3000K Warm White

Quicklink Q69D0

Product Code FNN1-5M-30K-24V

Length

3m 5m

Colour Temperature

2200K Warm White 2700K Warm White 3000K Warm White 4000K Cool White

£119.04EX VAT
£142.85INC VAT
15 in Stock

Description

FLXible Narrow Neon , is super slim flexible LED with spot-free output for indoor and outdoor application for displays, cabinets, furniture and coves. Neon Narrow 1 bends horizontally while Neon 2 bends vertically; both are dimmable, have 7.7W/M., 24V DC

Seamless Diode Free Illumination
UV-resistant Silicon material
Field Cut 33.4mm
Side Bend type - 30mm(1.18″) Diameter
Control with 0-10V, Forward Phase, DALI, DMX, Zigbee
IP Rating: IP67 with Factory Termination (the product is sealed by the manufacturer) / IP65 with Field Termination (customizing the reel length and attaching the endcap lowers the rating to IP65)

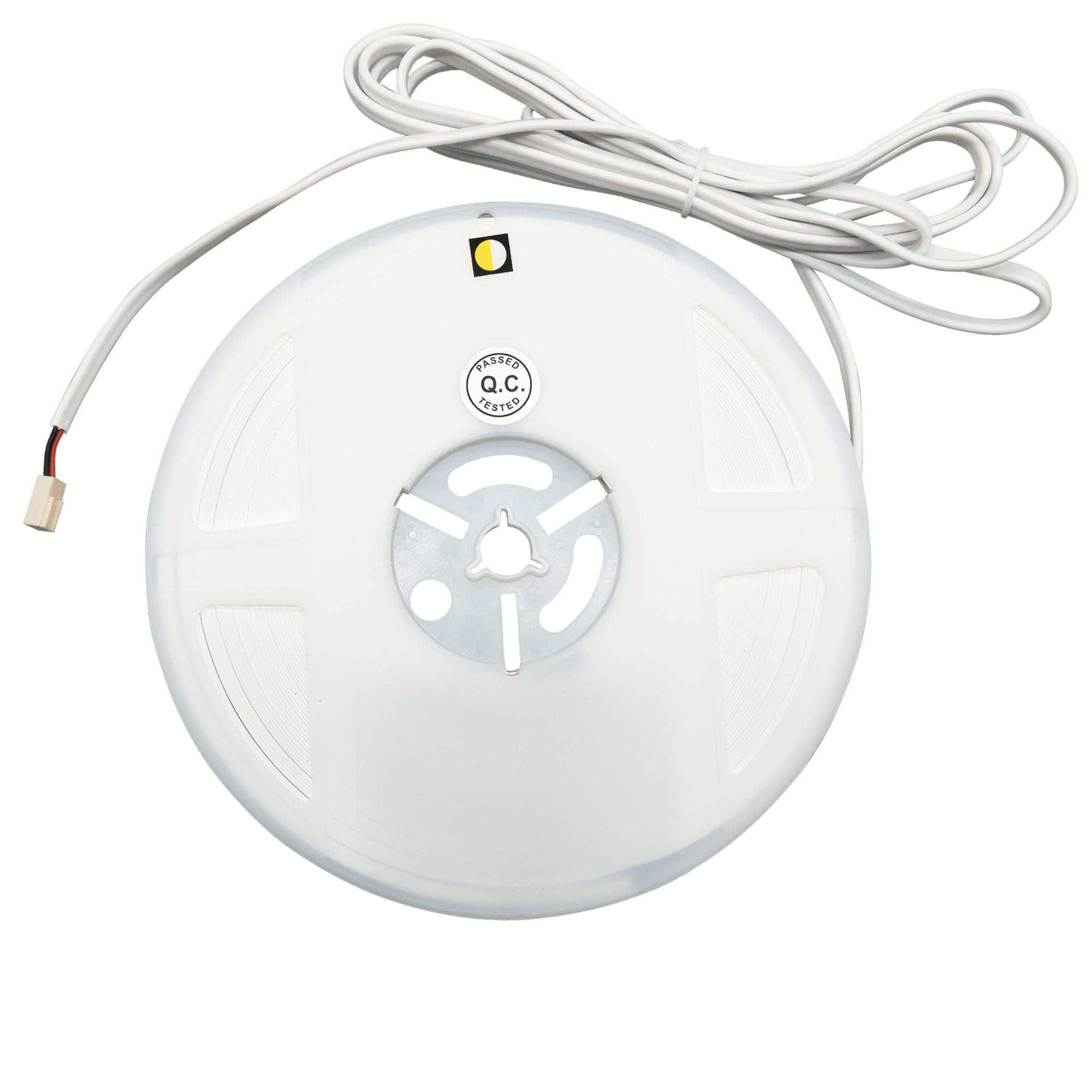

This Kit Includes: 5 metre reel with 2.5 metre power cord, brackets, Screws, and end cap (2pc)

Specification

General
Construction	Silicone
Dimmable	Yes
IP Rating	IP67

Dimensions
Cut Length	33.4mm
Height	7mm
Length	5m
Width	4mm

Electrical
Maximum Wattage	38.5W (5 x 7.7W)
Voltage	24V

Light Characteristics
Beam Angle	130°
Colour Rendering Index	90
Colour Temperature	3000K Warm White
Lumens	2117 lm
Lumens Per Watt	55 lm/W

Technical Drawings

Downloads

Technical

FLXble Neon Narrow 1

Specification Sheet

FLXible Neon Narrow 1 24V 5M - Horizontal Bend (4mm) 38.5W (1m=7.7W) 3000K Warm White

FLXible Neon Narrow 1 24V 5M - Horizontal Bend (4mm) 38.5W (1m=7.7W) 3000K Warm White (Unbranded)

Compare with similar products

	This item FLXible Neon Narrow 1 24V 5M - Horizontal Bend (4mm) 38.5W (1m=7.7W) 3000K Warm White Q69D0 FNN1-5M-30K-24V £119.04 excl. VAT £142.85 incl. VAT 15 in Stock Add	FLXible Neon Narrow 1 24V 5M - Horizontal Bend (4mm) 38.5W (1m=7.7W) 2200K Warm White Q69CB FNN1-5M-22K-24V £119.04 excl. VAT £142.85 incl. VAT available to order Add	FLXible Neon Narrow 1 24V 5M - Horizontal Bend (4mm) 38.5W (1m=7.7W) 2700K Warm White Q69CF FNN1-5M-27K-24V £119.04 excl. VAT £142.85 incl. VAT 12 in Stock Add	FLXible Neon Narrow 1 24V 5M - Horizontal Bend (4mm) 38.5W (1m=7.7W) 4000K Cool White Q69D1 FNN1-5M-40K-24V £119.04 excl. VAT £142.85 incl. VAT available to order Add	FLXible Neon Narrow 1 24V 3M - Horizontal Bend (4mm) 23.1W (1m=7.7W) 2200K Warm White Q6C3E FNN1-3M-22K-24V £67.84 excl. VAT £81.41 incl. VAT 10 in Stock Add	FLXible Neon Narrow 1 24V 3M - Horizontal Bend (4mm) 23.1W (1m=7.7W) 2700K Warm White Q6C3F FNN1-3M-27K-24V £67.84 excl. VAT £81.41 incl. VAT only 2 left Add	FLXible Neon Narrow 1 24V 3M - Horizontal Bend (4mm) 23.1W (1m=7.7W) 3000K Warm White Q6C40 FNN1-3M-30K-24V £67.84 excl. VAT £81.41 incl. VAT 15 in Stock Add
Length	5m	5m	5m	5m	3m	3m	3m
Maximum Wattage	38.5W (5 x 7.7W)	38.5W (5 x 7.7W)	38.5W (5 x 7.7W)	38.5W (5 x 7.7W)	23.1W (3 x 7.7W)	23.1W (3 x 7.7W)	23.1W (3 x 7.7W)
Colour Temperature	3000K Warm White	2200K Warm White	2700K Warm White	4000K Cool White	2200K Warm White	2700K Warm White	3000K Warm White
Lumens	2117 lm	1648 lm	1860 lm	1879.5 lm	988.8 lm	1116 lm	1270.2 lm
Lumens Per Watt	55 lm/W	43 lm/W	48 lm/W	49 lm/W	43 lm/W	48 lm/W	55 lm/W
