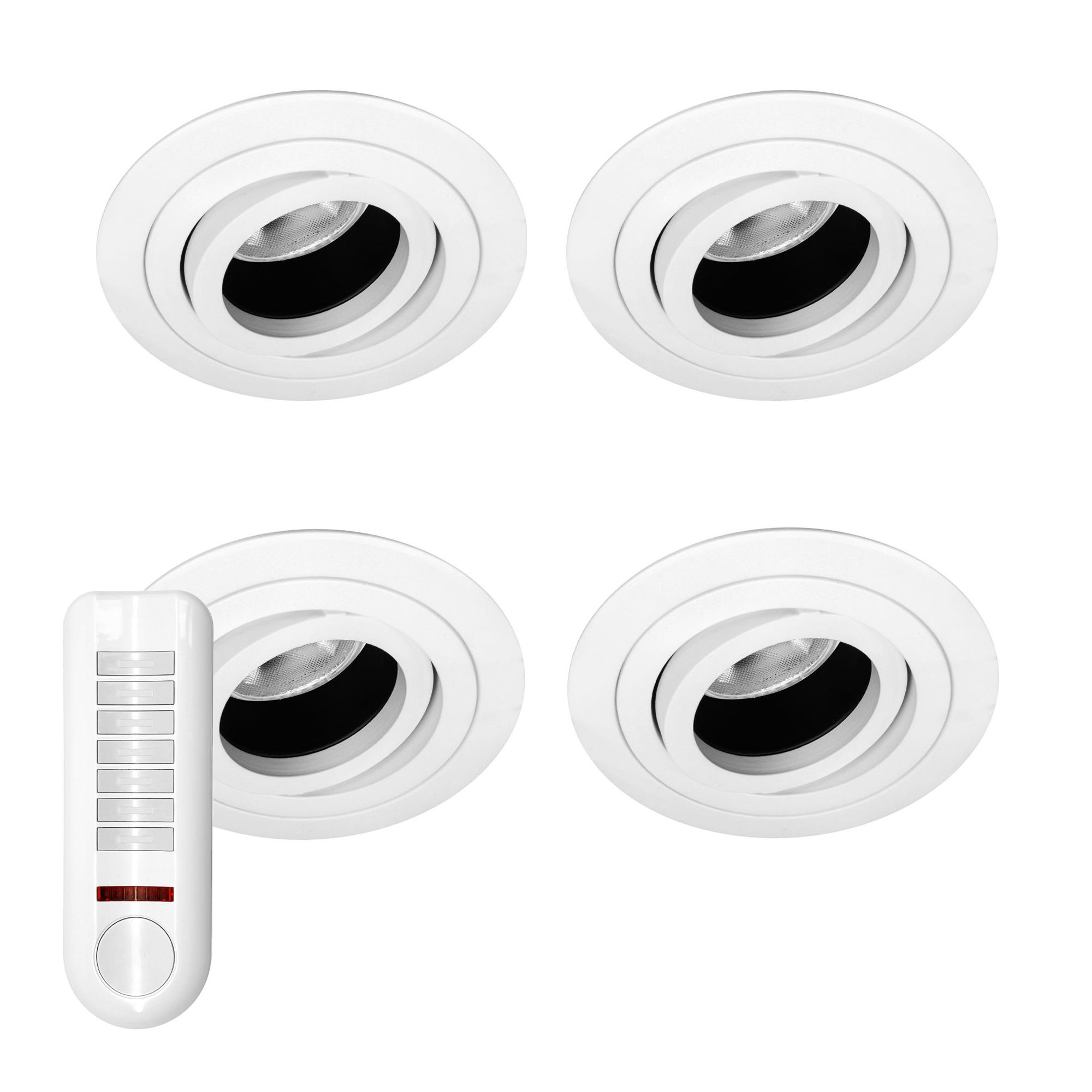

Rock 'n' Roll Adjustable Downlight RGB LED Module Kit White 36W RGB

Description

The Rock 'n' Roll adjustable downlight has an integrated black baffle that recesses the light source to eliminate glare. Its inner and middle ring tilt through 30° and rotate through 350° respectively. A combination that allows you full control over the direction of the light source.

The RGB LED Module is a dimmable colour changing LED lamp that fits most 50mm downlights. The RGB LED Module is a 700mA plug and play LED colour changing module with a total output of 9 watts that is available with a 45° lens.

It has its own dedicated plug and play power cords, end cap and couplers for easy installation and wiring.

Wireless Switches and Remotes

A 7 button wireless wall switch or remote is needed to control the LEDs. Using either the wall switch or remote allows the user to: Select one of the 8 preset colours (Red, Green, Blue, Orange, Cyan, Magenta, Yellow Start a smooth colour cycle Reverse the colour cycle Choose between 3 different colour cycle speeds Pause on one of the 1000 different shades of colours available Re-program the 8 preset colours with 8 colours of your own choice

Specification

General
Colour	White
Construction	Die-Cast Aluminium
IP Rating	IP20

Dimensions
Cut Out	80mm (Diameter)
Horizontal Rotation	360°
Minimum Ceiling Depth	85mm
Vertical Rotation	35°

Electrical
Amperage	700mA
Maximum Wattage	36W (4 x 9W)

Light Characteristics
Beam Angle	45°

Downloads

Technical

Rock 'n' Roll RGB Wiring Diagram

Specification Sheet
