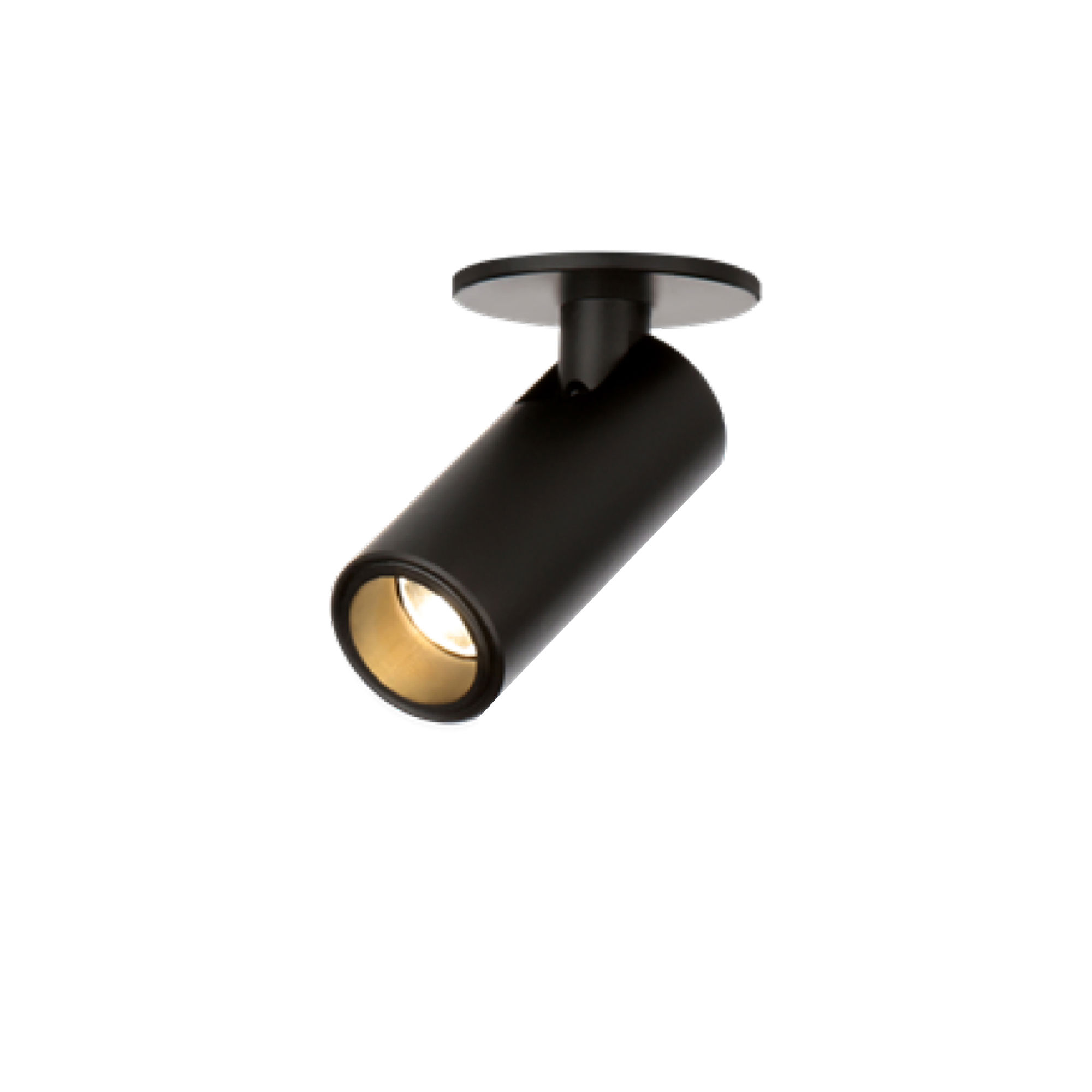

FLX Micro Spot MCR 15° Beam Angle 24V 1.2W 3000K Warm White Black

Description

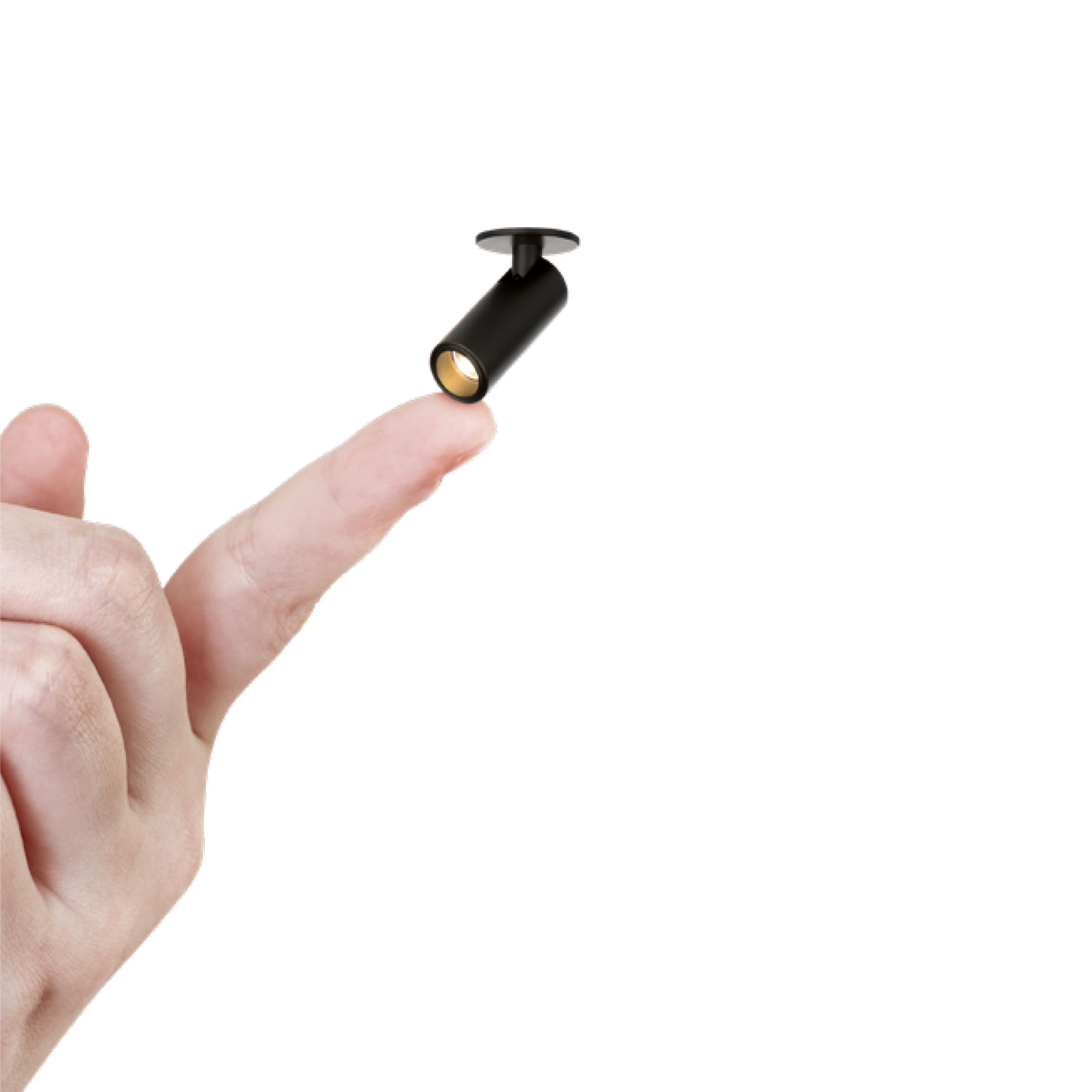

The FLX Micro MCR range of miniature lighting designed for furniture, showcases, and museums. Our super-slim, rotatable head fixtures are meticulously crafted to enhance your display with precision and elegance. Operating on a constant voltage DC 24V driver, these lights ensure consistent and reliable performance.

Available in sleek black, our lighting solutions blend seamlessly with diverse interior designs. The versatility of our fixtures extends to various beam angles allowing you to create the perfect ambiance for your space.

Incorporating the latest technology, our lights are dimmable, providing you with control over the intensity of illumination. Elevate your displays and showcase your collections with our sophisticated and functional miniature lighting.

Key Features

Lamp life: 50,000hr / 70%

Operating Temperature Ranges: 0-45°C (32-113°F)

Dimming with Feelux interface PWM/0-10V/DALI/PHASE/DMX512/WIRELESS

Specification

General
Colour	Black
Construction	Aluminium
Dimmable	Yes

Dimensions
Cut Out	19mm (Diameter)
Diameter	12.5mm
Horizontal Rotation	360°
Length	31.5mm
Vertical Rotation	90°

Electrical
Maximum Wattage	1.2W
Voltage	24V DC

Light Characteristics
Beam Angle	15°
Colour Rendering Index	90
Colour Temperature	3000K Warm White
Lumens	78 lm
Lumens Per Watt	65 lm/W

Technical Drawings

Downloads

Technical

FLX Micro Spot

Specification Sheet

FLX Micro Spot MCR 15° Beam Angle 24V 1.2W 3000K Warm White Black

FLX Micro Spot MCR 15° Beam Angle 24V 1.2W 3000K Warm White Black (Unbranded)

Compare with similar products

	This item FLX Micro Spot MCR 15° Beam Angle 24V 1.2W 3000K Warm White Black Q6694 MCRPT1-30K15BLK £43.90 excl. VAT £52.68 incl. VAT 10 due in Add	FLX Micro Downlight MCR 30° Beam Angle 24V 1.2W 3000K Warm White Black Q669D MCRSP1-30K30BLK £20.88 excl. VAT £25.06 incl. VAT available to order Add	FLX Micro Downlight MCR 15° Beam Angle 24V 1.2W 3000K Warm White Black Q669E MCRSP1-30K15BLK £20.88 excl. VAT £25.06 incl. VAT available to order Add	FLX Micro Downlight MCR 30° Beam Angle 24V 1.2W 2700K Warm White Black Q669F MCRSP1-27K30BLK £20.88 excl. VAT £25.06 incl. VAT available to order Add	FLX Micro Downlight MCR 15° Beam Angle 24V 1.2W 2700K Warm White Black Q66A0 MCRSP1-27K15BLK £20.88 excl. VAT £25.06 incl. VAT available to order Add	FLX Micro Spot MCR 30° Beam Angle 24V 1.2W 3000K Warm White Black Q6693 MCRPT1-30K30BLK £43.90 excl. VAT £52.68 incl. VAT 50 due in Add	FLX Micro Spot MCR 30° Beam Angle 24V 1.2W 2700K Warm White Black Q6695 MCRPT1-27K30BLK £43.90 excl. VAT £52.68 incl. VAT available to order Add	FLX Micro Spot MCR 15° Beam Angle 24V 1.2W 2700K Warm White Black Q6698 MCRPT1-27K15BLK £43.90 excl. VAT £52.68 incl. VAT 10 due in Add	FLX Micro Spot Pole MCR 30° Beam Angle 24V 1.2W 2700K Warm White Black Q669B MCRPL1-27K30BLK £49.45 excl. VAT £59.34 incl. VAT available to order Add	FLX Micro Spot Pole MCR 15° Beam Angle 24V 1.2W 2700K Warm White Black Q669C MCRPL1-27K15BLK £49.45 excl. VAT £59.34 incl. VAT available to order Add	FLX Micro Spot Pole MCR 30° Beam Angle 24V 1.2W 3000K Warm White Black Q6699 MCRPL1-30K32BLK £49.45 excl. VAT £59.34 incl. VAT available to order Add	FLX Micro Spot Pole MCR 15° Beam Angle 24V 1.2W 3000K Warm White Black Q669A MCRPL1-30K18BLK £49.45 excl. VAT £59.34 incl. VAT available to order Add
Cut Out	19mm (Diameter)	14mm (Diameter)	14mm (Diameter)	14mm (Diameter)	14mm (Diameter)	19mm (Diameter)	19mm (Diameter)	19mm (Diameter)	11mm (Diameter)	11mm (Diameter)	11mm (Diameter)	11mm (Diameter)
Diameter	12.5mm	17mm	17mm	17mm	17mm	12.5mm	12.5mm	12.5mm	12.5mm	12.5mm	12.5mm	12.5mm
Beam Angle	15°	30°	15°	30°	15°	30°	30°	15°	30°	15°	32°	18°
Colour Temperature	3000K Warm White	3000K Warm White	3000K Warm White	2700K Warm White	2700K Warm White	3000K Warm White	2700K Warm White	2700K Warm White	2700K Warm White	2700K Warm White	3000K Warm White	3000K Warm White
