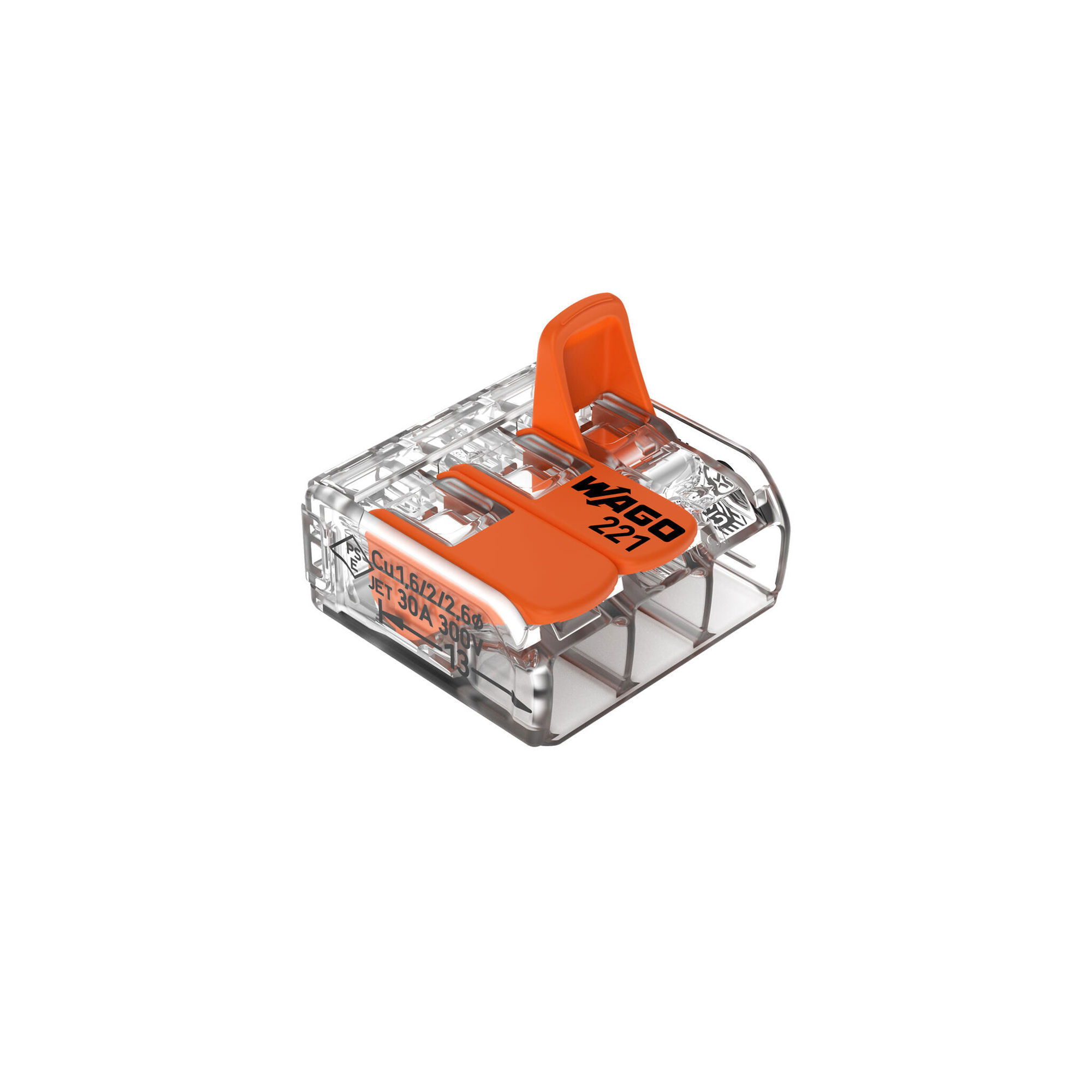

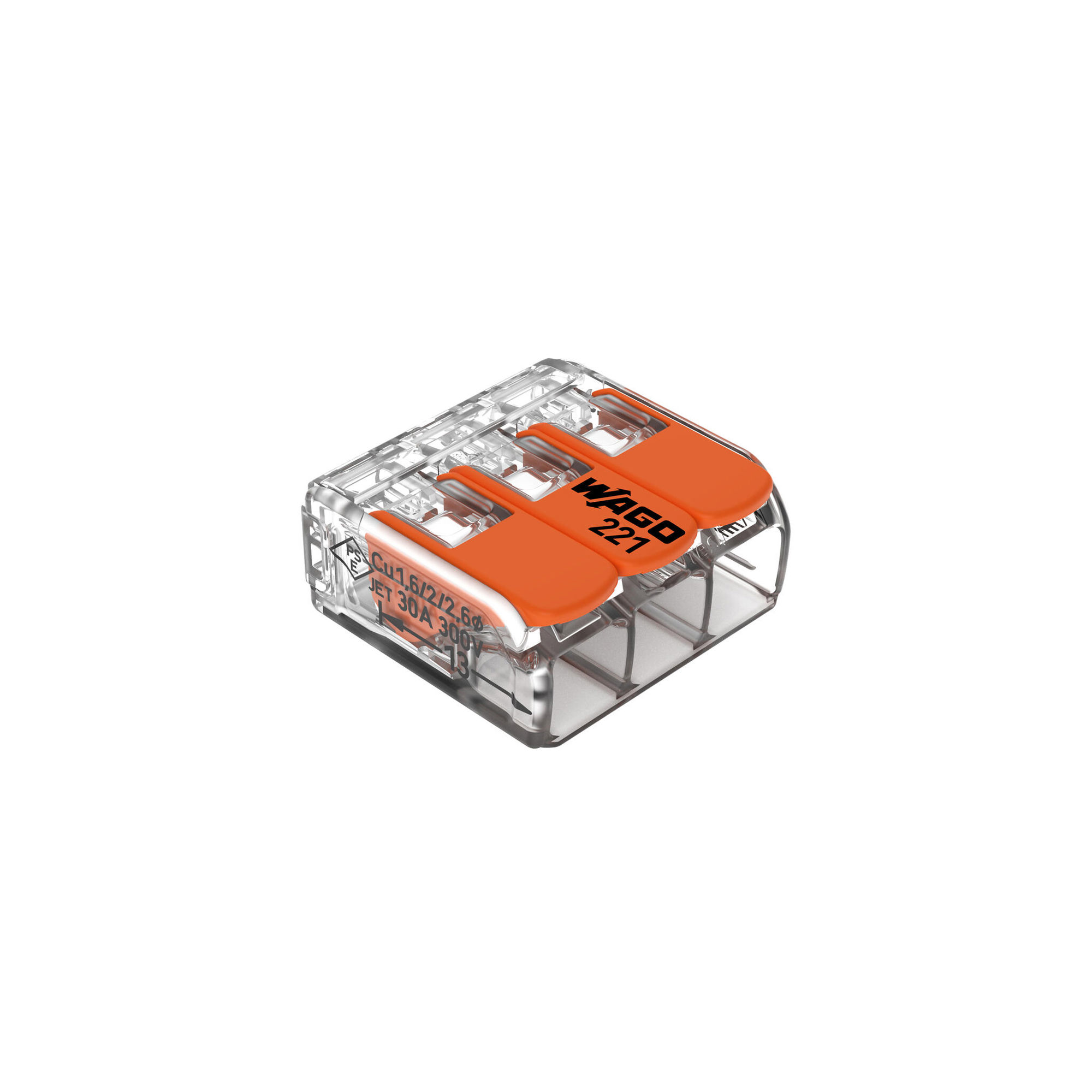

WAGO 3-Way Compact Lever Splicing Terminal Connector (0.5-6 mm²)
Clear
Quicklink
Q5462
Product Code
WAGO 221-613
- £0.71EX VAT
- £0.85INC VAT
- 105 in Stock
The Wago Connectors with CAGE CLAMP® are compact connectors with a continuous service temperature of 85°c.

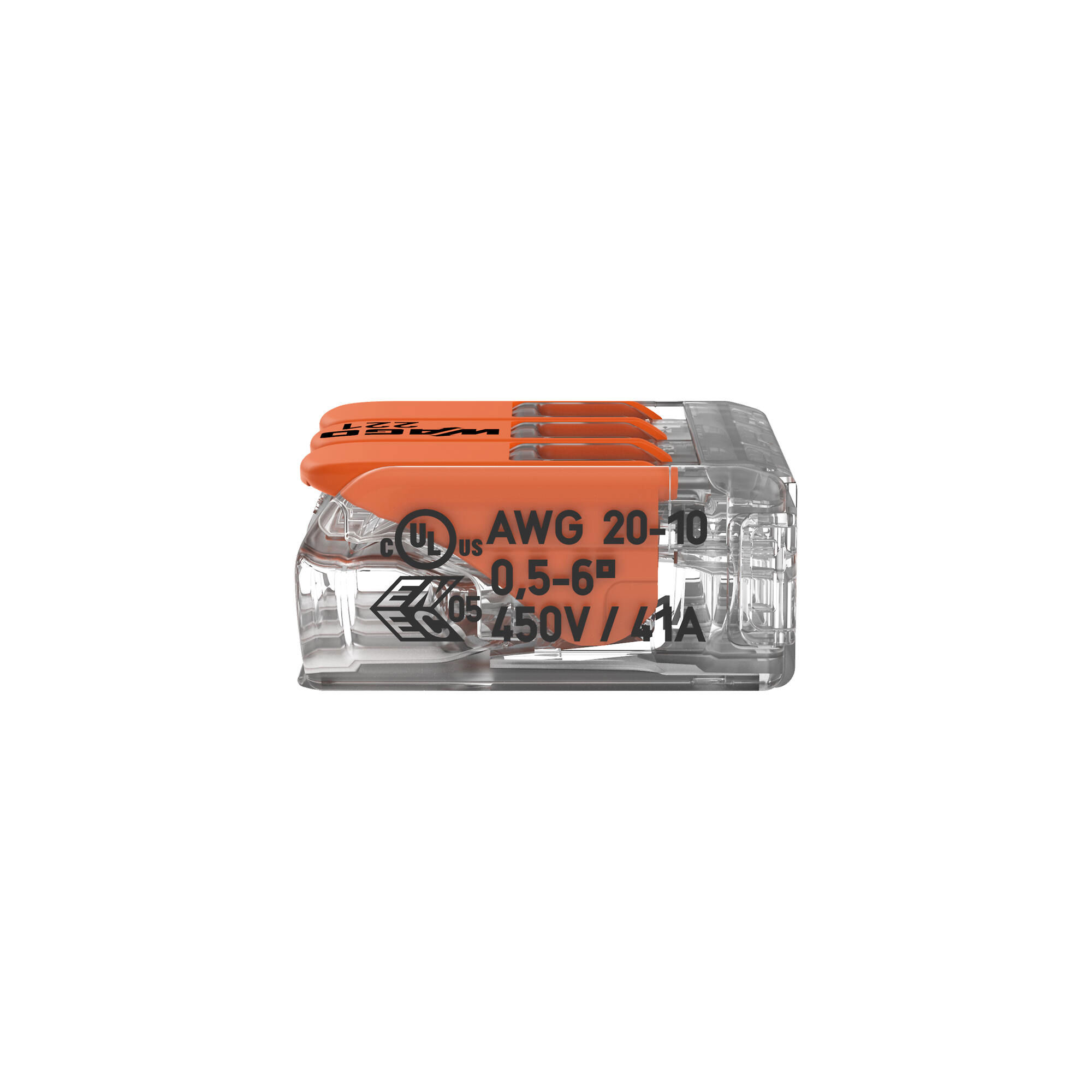

WAGOs splicing connector is rated for 450 V and is designed to handle a rated current of up to 41 A. As such, it is suitable for high-load applications. Featuring conductor terminals along with CAGE CLAMP®, this product is highly versatile. Our CAGE CLAMP® connection provides a safe and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. Depending on the type of conductor, splicing connector with levers is suitable for conductor cross sections ranging from 0.5 mm² to 6 mm².
| General | |
| Colour | Clear |
| Construction | Plastic |

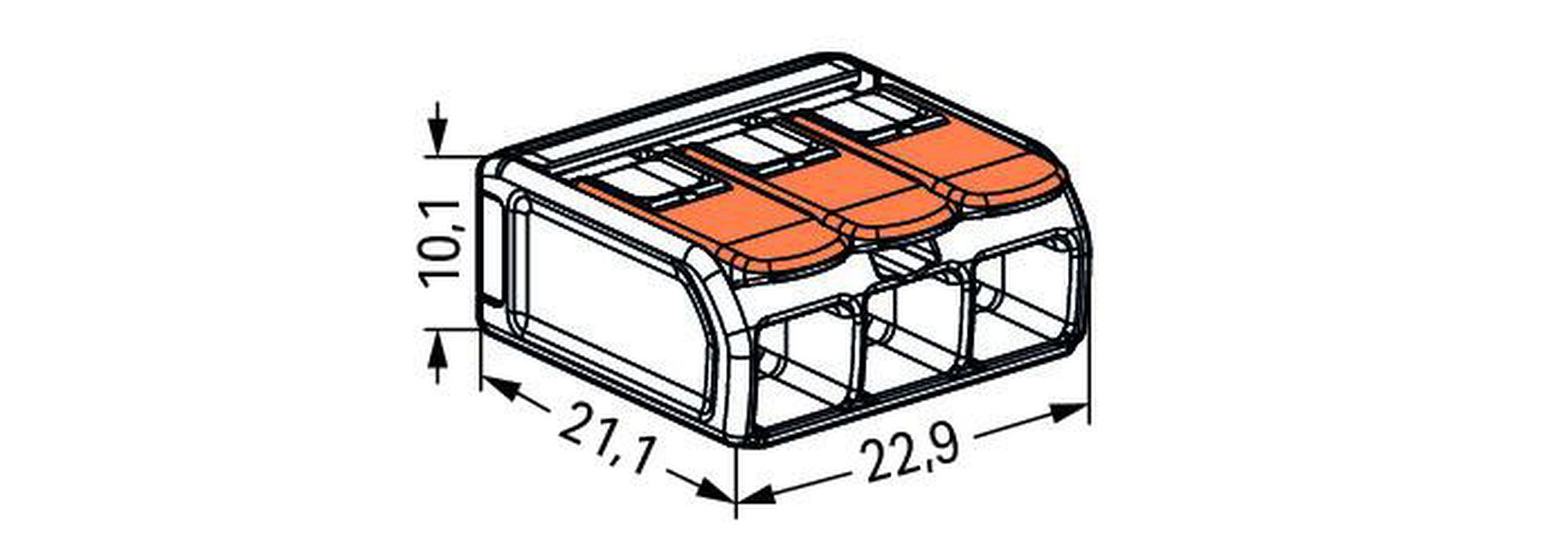

| Dimensions | |
| Depth | 21.1mm |
| Height | 10.1mm |
| Width | 22.9mm |
| Electrical | |
| Amperage | 41A |
