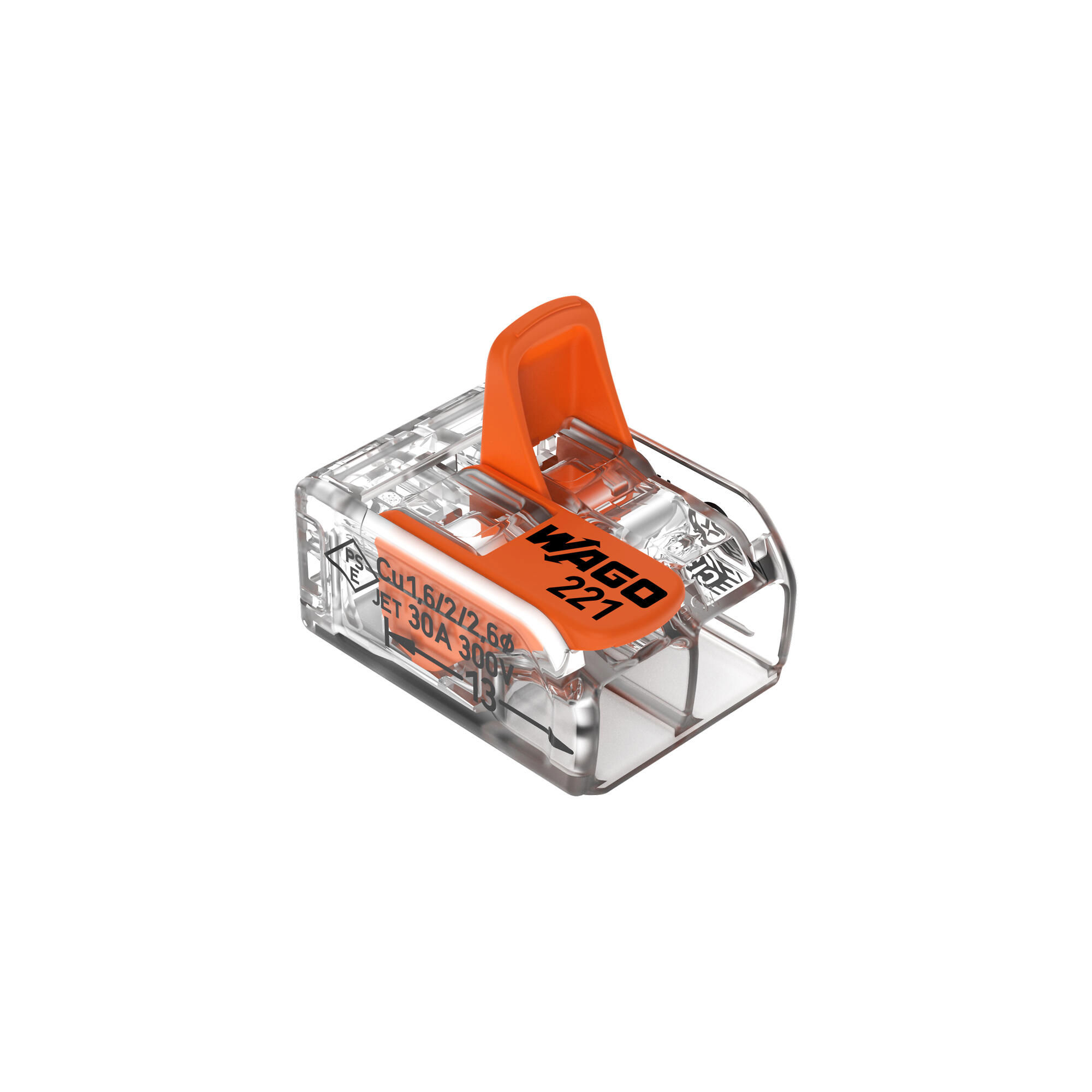

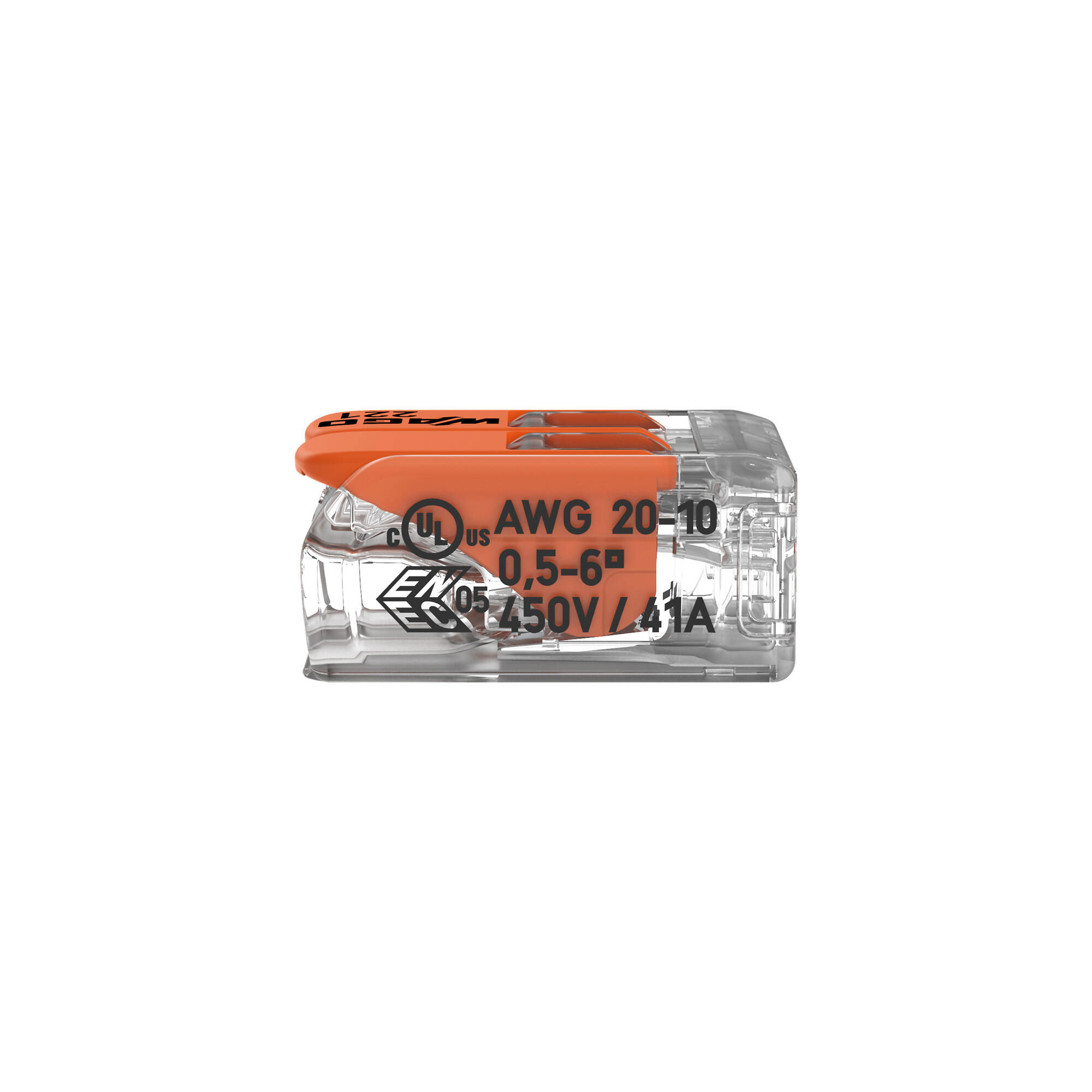

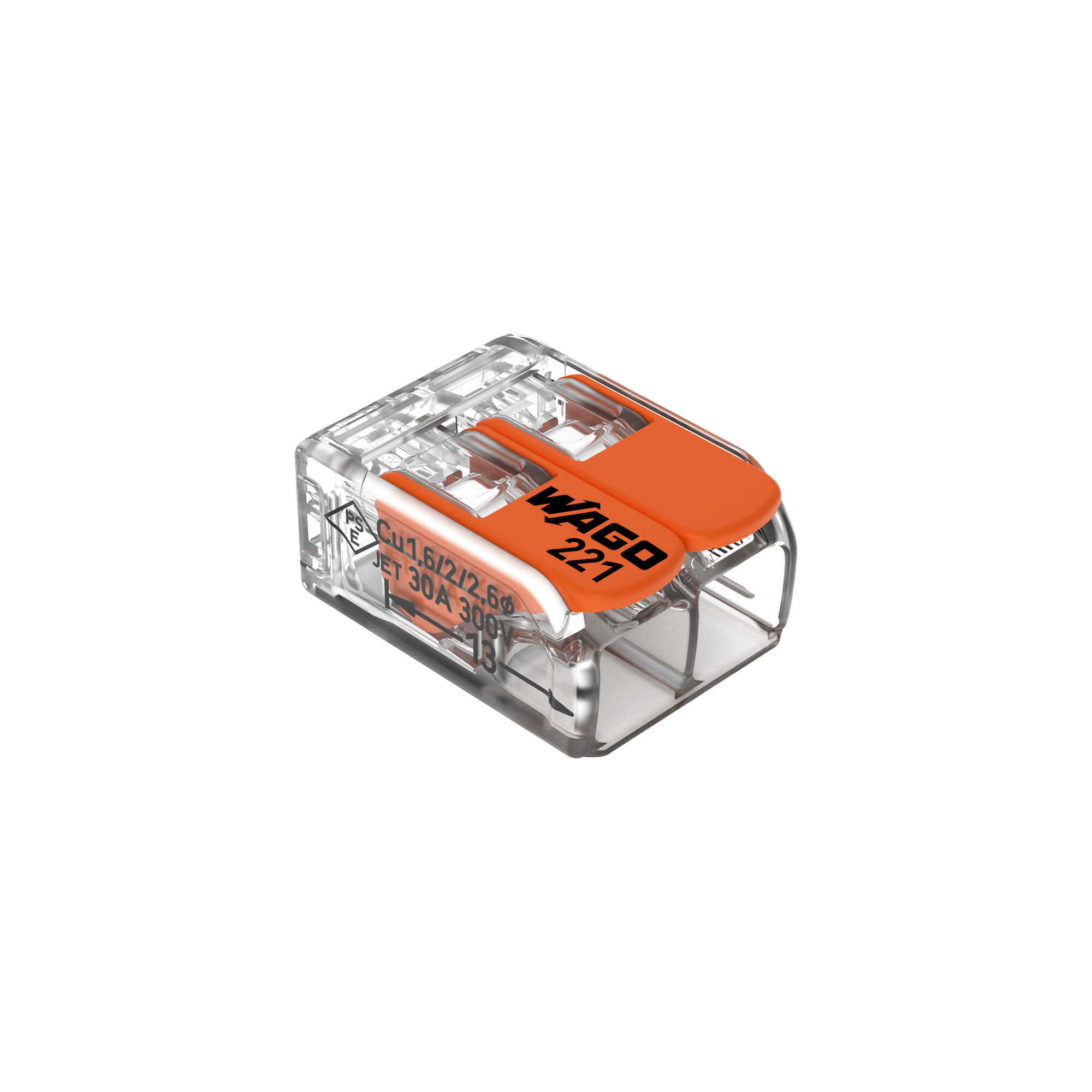

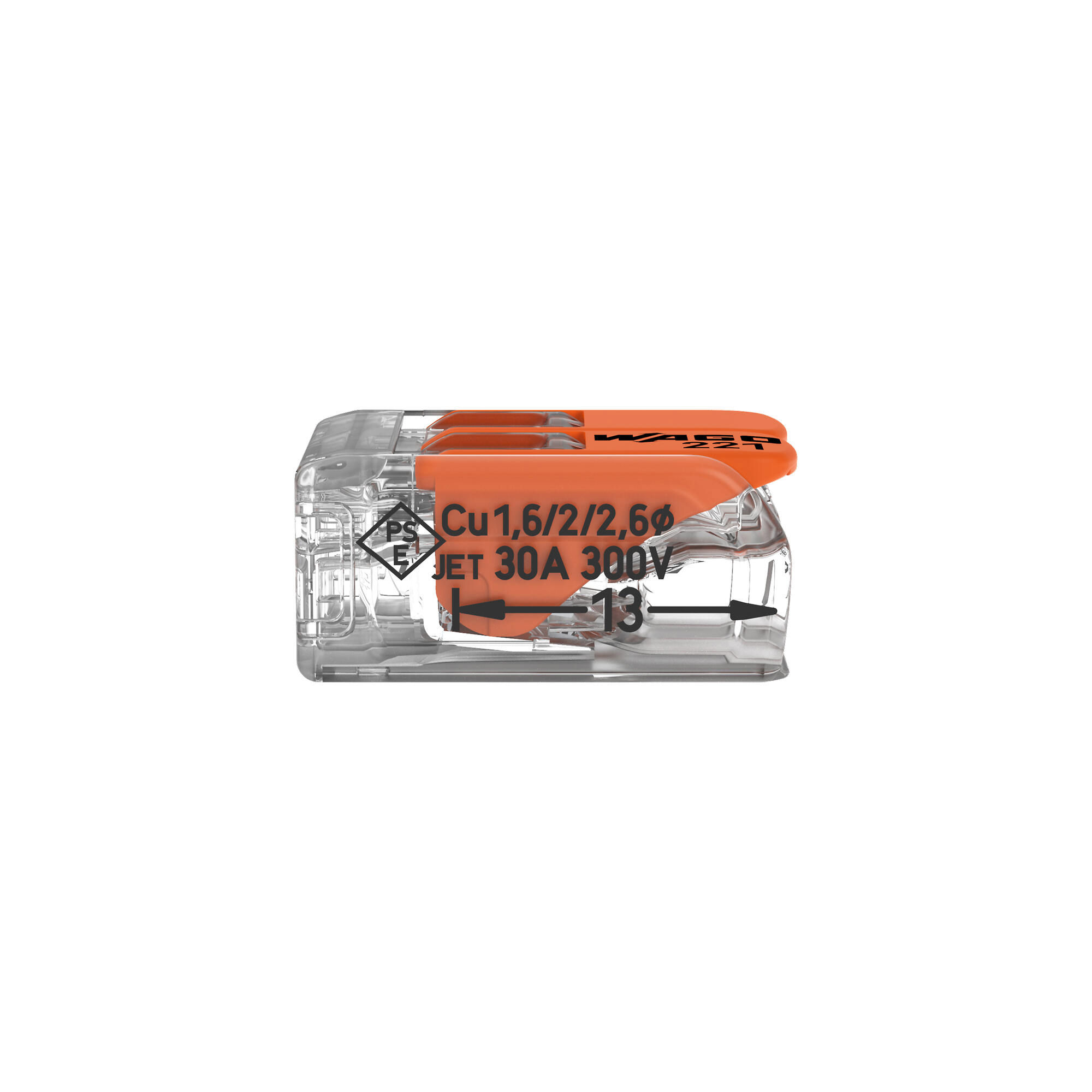

WAGO 2-Way Compact Lever Splicing Terminal Connector (0.5-6 mm²)
Clear
Quicklink
Q5461
Product Code
WAGO 221-612
- £0.61EX VAT
- £0.73INC VAT
- 100 in Stock
The Wago Connectors with CAGE CLAMP® are compact connectors with a continuous service temperature of 85°c.

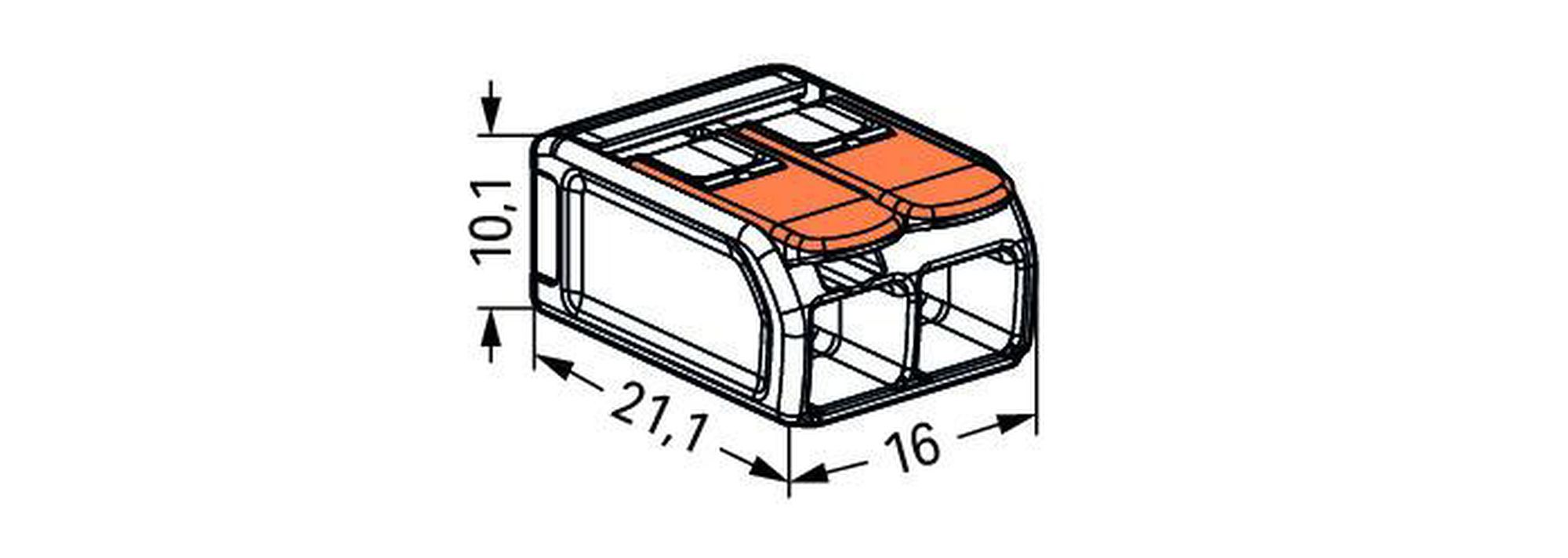

WAGOs splicing connector is rated for 450 V and is designed to handle a rated current of up to 41 A. As such, it is suitable for high-load applications. Featuring conductor terminals along with CAGE CLAMP®, this product is highly versatile. Our CAGE CLAMP® connection provides a safe and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. The item's dimensions are (16 x 10.1 x 21.1) mm (width x height x depth). Depending on the type of conductor, splicing connector with levers is suitable for conductor cross sections ranging from 0.5 mm² to 6 mm².
| General | |
| Colour | Clear |
| Construction | Plastic |
| Dimensions | |
| Depth | 21.1mm |
| Height | 10.1mm |
| Width | 16mm |
| Electrical | |
| Amperage | 41A |
Price per item
£0.35 excl. VAT
£0.42 incl. VAT
60 in Stock
Price per item
£0.55 excl. VAT
£0.66 incl. VAT
39 in Stock
