Petit Round Small Recessed Low Level Wall Light 350mA

Satin Nickel 1W

Quicklink Q4C69

Product Code AL2117 RD SS WW

Colour (Nickel)

Shape

Size

£31.80EX VAT
£38.16INC VAT
£31.80EX VAT
£38.16INC VAT
35 in Stock

Description

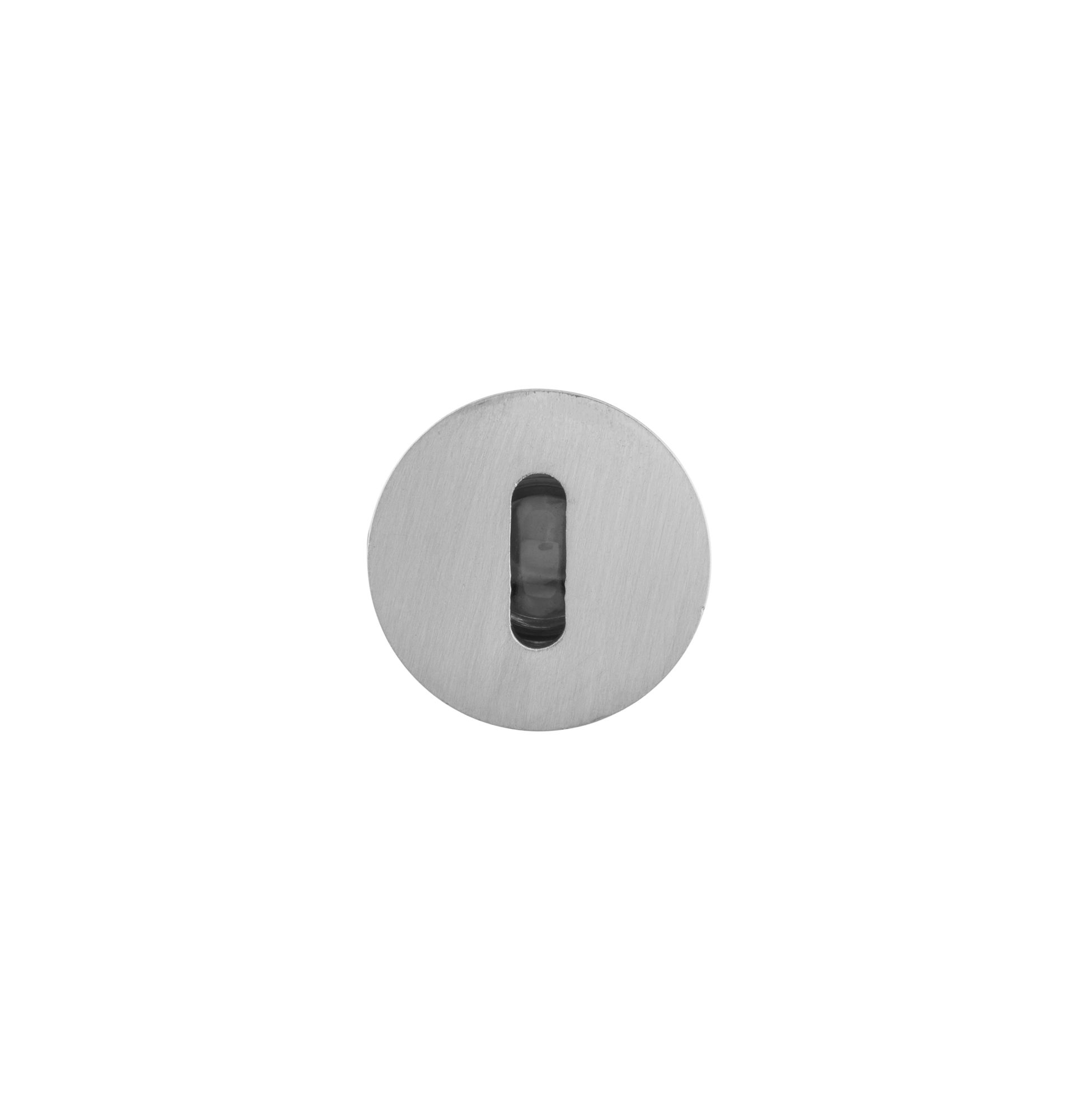

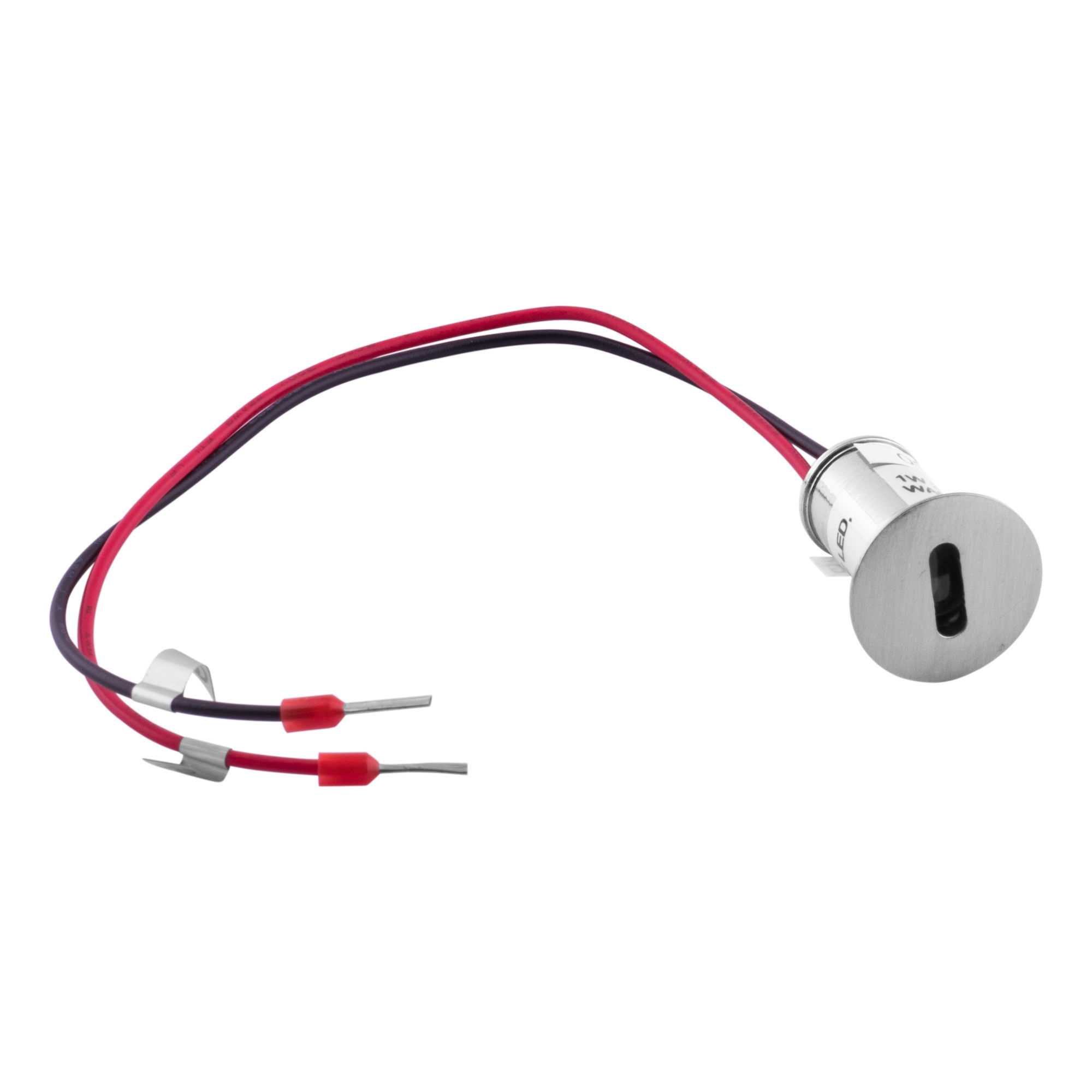

The Petit Round is a miniature recessed low level wash light utilising a 1W LED super-bright light in a warm white colour temperature.

Manufactured from steel the Petit displays a 5 degree beam of light giving a subtle low-level lighting effect in walkways, in circulation areas and as a feature maker.

Please note: The cutout diameter will depend on what fixing clip you are using with this product.

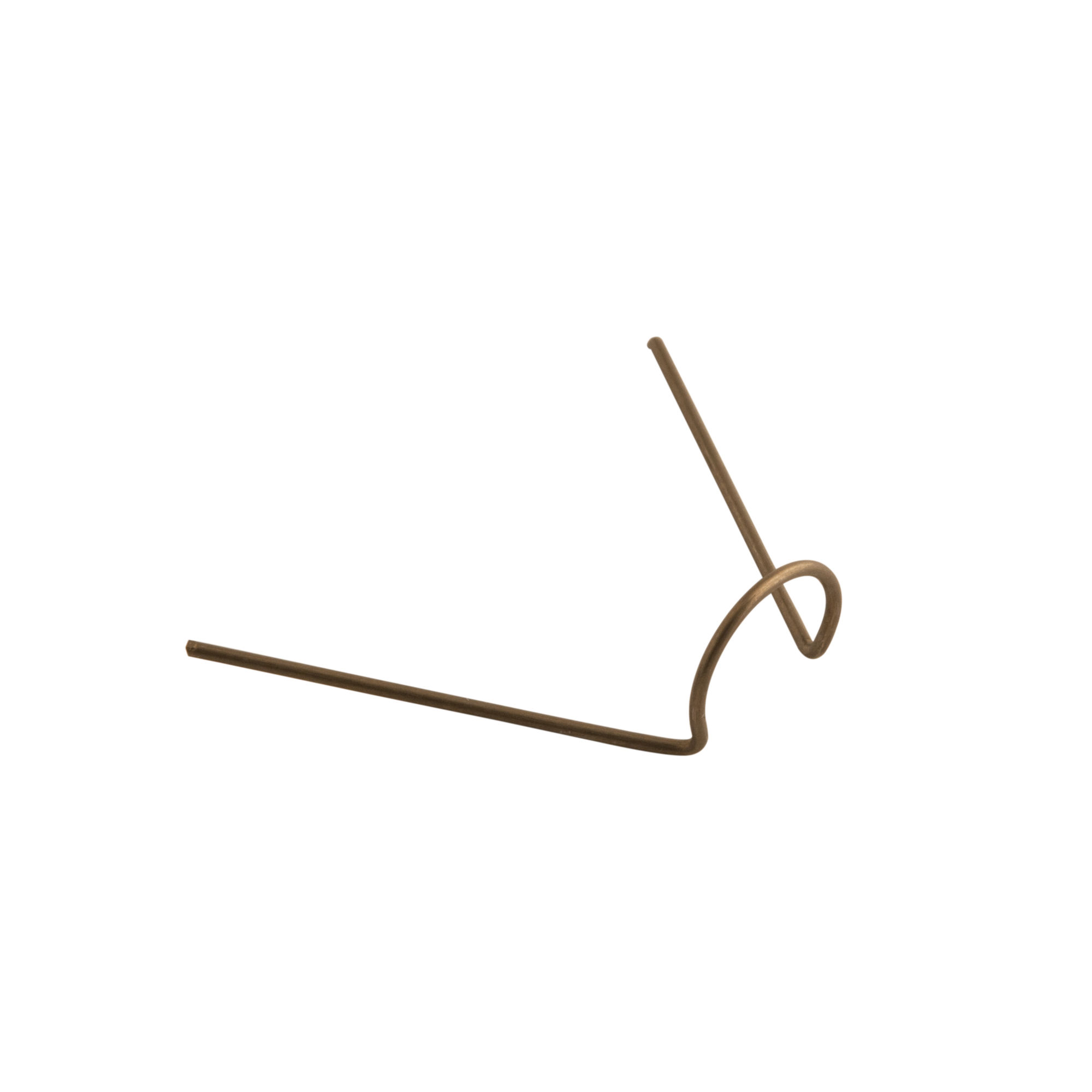

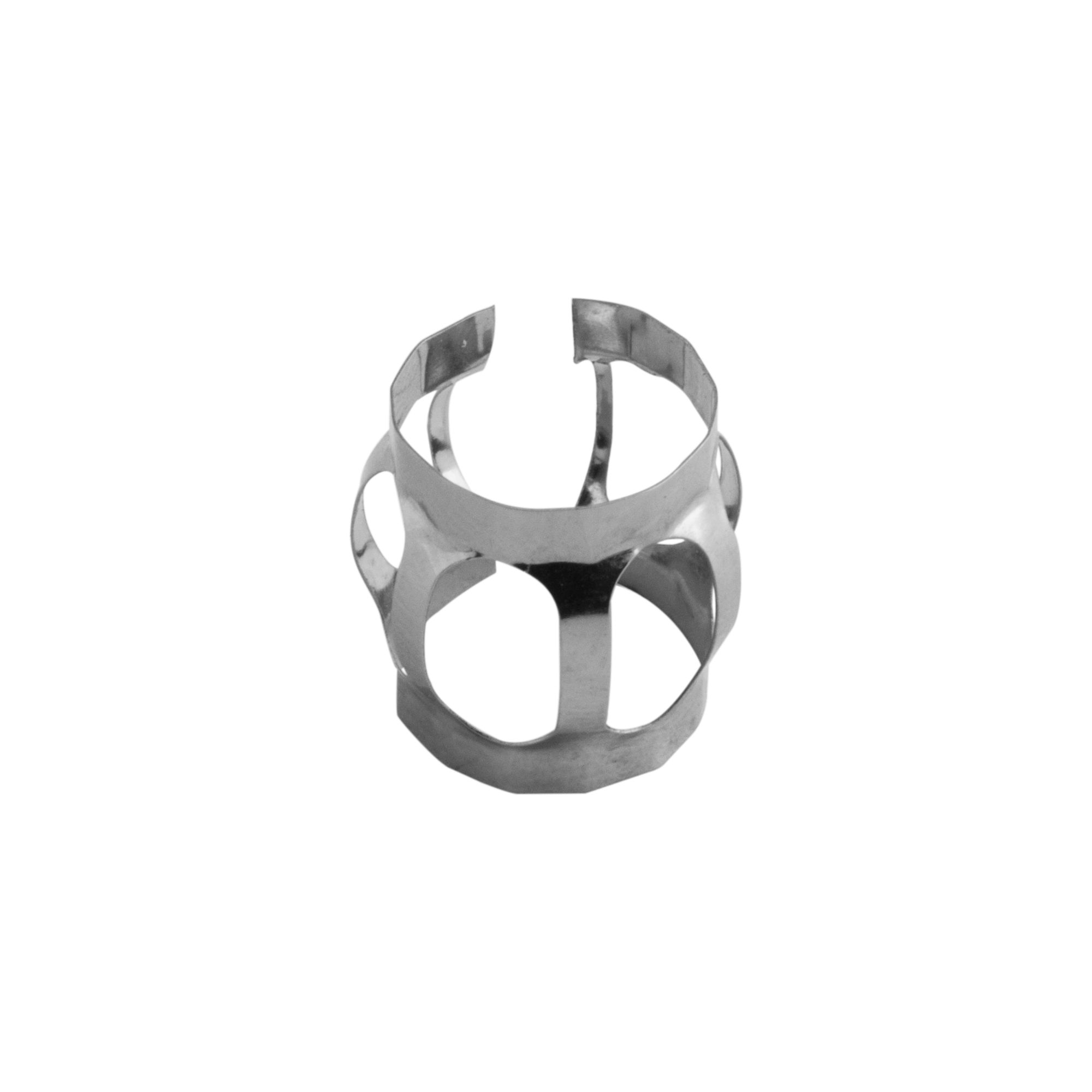

Spring clips are included for plaster board installation, a burial tube is available separately for wall installation.

LED Driver Options

Switching - Use this driver for on/off control. Cannot be used for dimming.
Dimming - Normal - Use this driver for dimming control. Some dimmers may require a resistive dummy load to meet the minimum load requirements.
Dimming - 1-10V - Use this driver with a 1-10V dimmer modules or control systems. This type of dimming does not have a minimum load.

Specification

General
Colour	Nickel
Construction	Steel
IP Rating	IP44


Dimmable	Yes

Dimensions
Cable Length	150mm
Cut Out	15mm (Diameter)
Depth	23mm
Diameter	20mm
Plate Depth	1mm

Electrical
Amperage	350mA
Maximum Wattage	1W

Light Characteristics
Colour Temperature	3000K Warm White
Lumens	80 lm
Lumens Per Watt	80 lm/W

Technical Drawings

Downloads

Technical

Specification Sheet

Petit Round Small Recessed Low Level Wall Light 350mA Satin Nickel 1W

Petit Round Small Recessed Low Level Wall Light 350mA Satin Nickel 1W (Unbranded)
