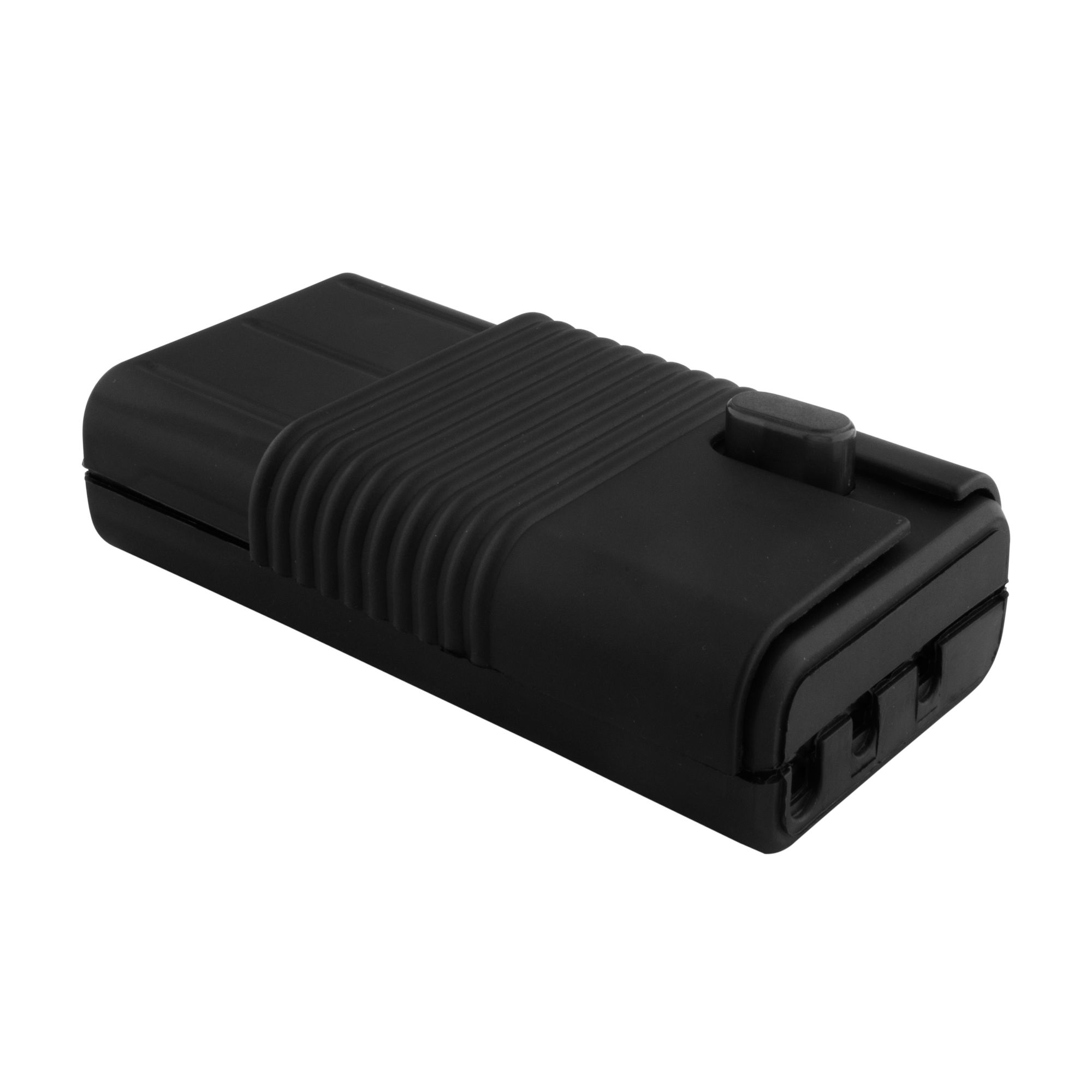

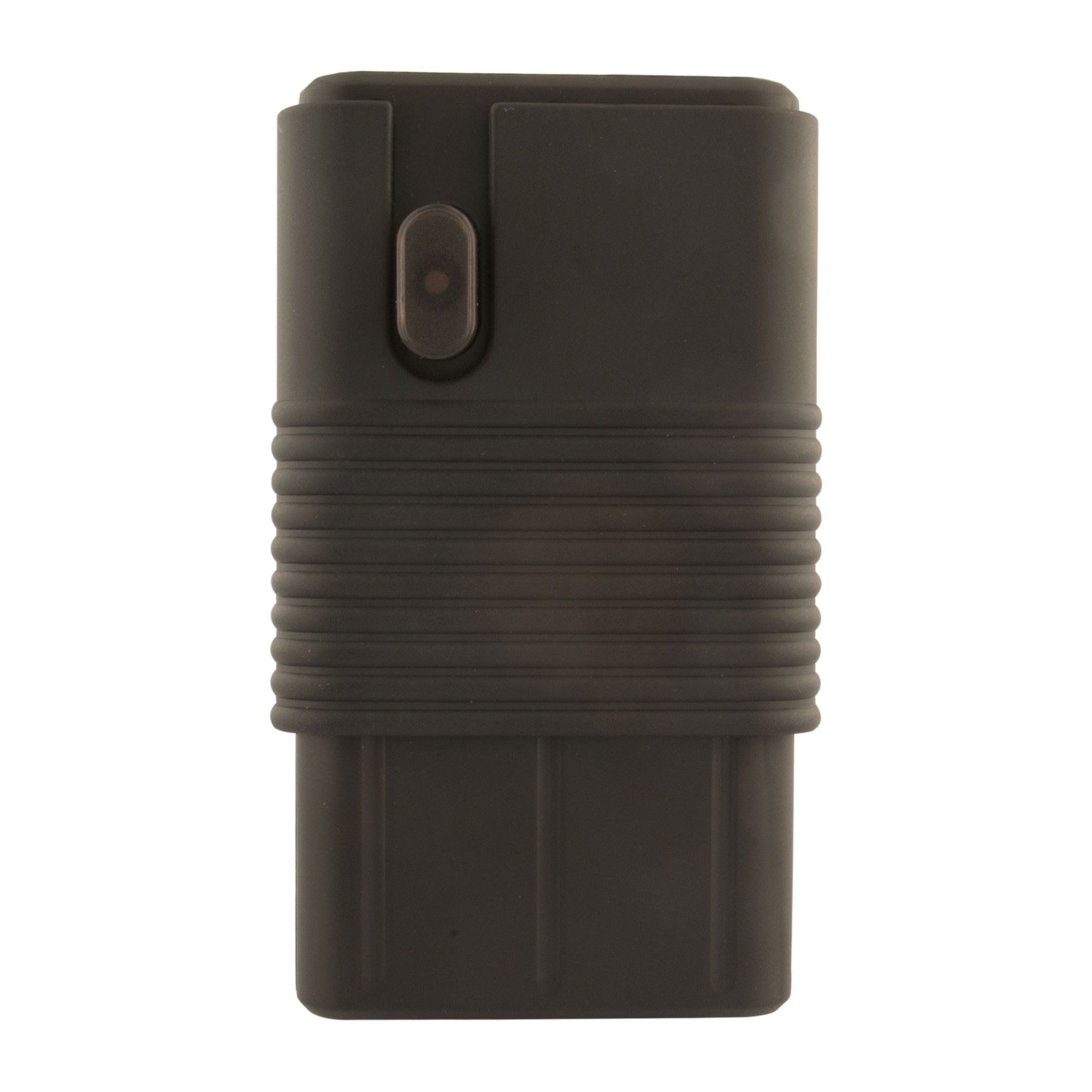

Floor/Table Light Dimmer 12V

The 12V Floor or Table light dimmer has an electronic transformer incorporated. It has a 240V mains input and a 12V 160W output. This means you are able to use low voltage halogen lamps.

General Characteristics

Amperometric protection

Protection against transitory surge voltages

Self-resetting protection against short circuit and overload

Soft-Start mechanism

Radio frequency interference fitter conforming to EN55015 AM1

Installation Instruction

Use electronic converter exclusively with resistive loads and class 2 and 3 lighting appliances

Observe plate values shown

Place electronic converter away from heat sources

Tighten terminal screw accurately

Maximum length of connecting cable not more than 2m

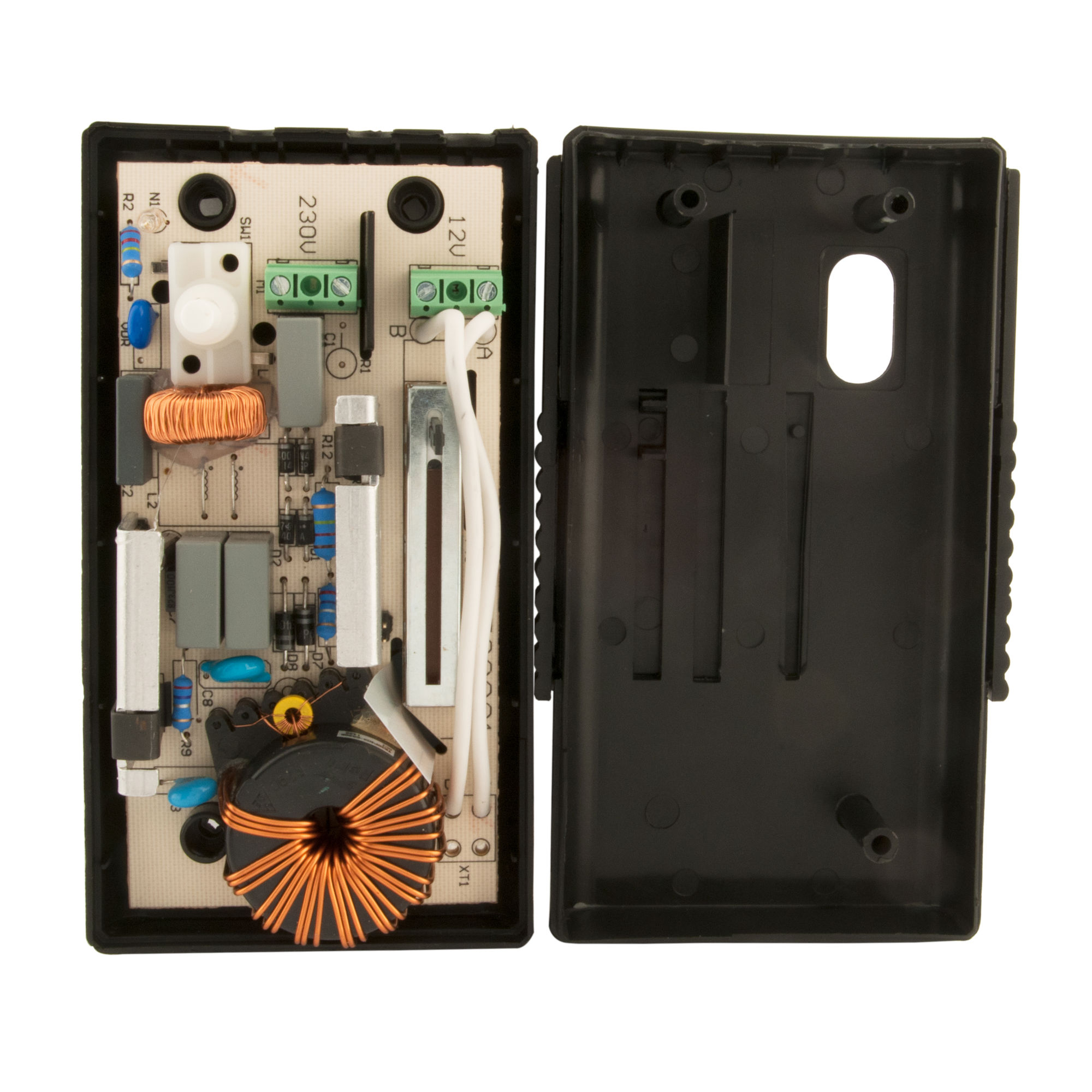

Remove upper plastic cover

Cable model. use cable type H03VV-F or H03VV-H2F.

Block cable with cable clamps

Push spindle of potentiometer to limit stop, replace upper plastic cover after having pushed slider also to limit stop

Close plastic cover with screws

Please note: On the 240V input side the live and neutral cables can be wired to either terminal. On the 12V output side the positive and negative can also be wired to either terminal.
