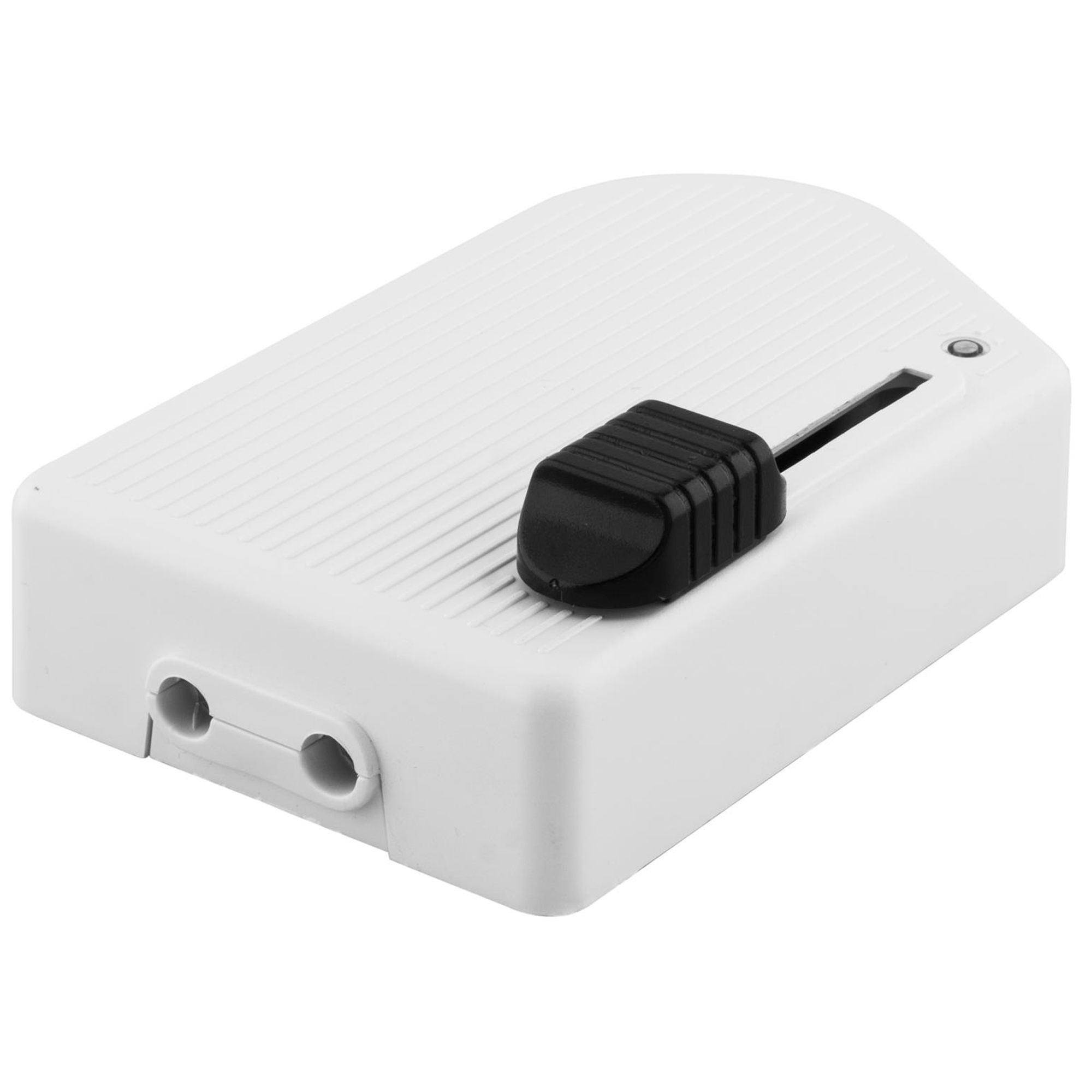

The RT81 is an in-line slide dimmer which can be used in conjunction with your incandescent or halogen floor/table lamps and LEDs may be used also . The dimmer can be controlled by either hand or foot.
This dimmer is compatible with halogen up to 250W
This dimmer is compatible with LED up to 100W
1: Connect dimmer to cable supplied with lamp.
2: Wire cable ensuring you use cable type H03VV-F 3x0,75(cable diameter 6,8 max) respecting safety norms earth wire must be at least 8mm longer than the other wires).
3: Tighten cable clamps, close terminal cover and tighten screws accurately and place rubber pads on bottom part of dimmer.
4: Keep dimmer away from direct sources of heat. Room temperature should be 35 degrees Celsius, every further 5 degrees reduces power by 20%.

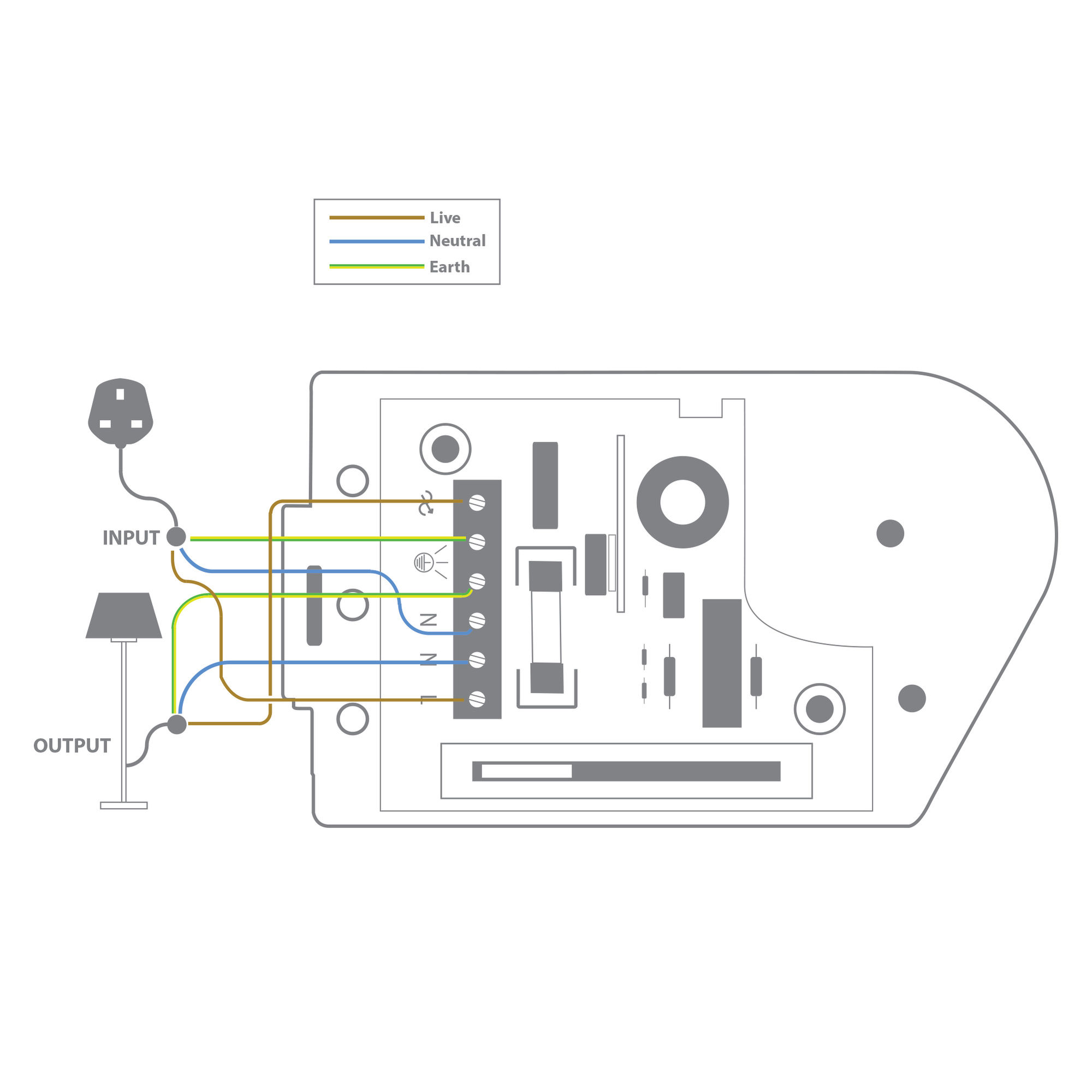

5: Respect C.E.I. norms for installation,following connection diagrams carefully and using cable of adequate size.
6: Tighten dimmer screws on terminal block.
General | |
Colour | White |
Construction | Plastic |
Electrical | |
Maximum Wattage | 250W |
Minimum Wattage | 4W |
Voltage | 240V |
This item
3 Core In-Line Slide Dimmer 240V White 4-250W
Q4D9F
RT81/LEDSLIDE WH
£22.70 excl. VAT
£27.24 incl. VAT
8 in Stock |
2 Core Slide Dimmer/Switch 240V Black 4-100W
Q270C
RL5600/LED BLK
£50.00 excl. VAT
£60.00 incl. VAT
only 3 left |
3 Core In-Line Slide Dimmer 240V Black 4-250W
Q4D9D
RT81/LEDSLIDE BL
£22.70 excl. VAT
£27.24 incl. VAT
available to order |
3 Core In-Line Slide Dimmer and Push Button Switch 240V White 4-250W
Q4B79
RT81/LED RND WHT
£38.72 excl. VAT
£46.46 incl. VAT
only 1 left |
3 Core In-Line Slide Dimmer and Push Button Switch 240V Black 4-250W
Q4B7A
RT81/LED RND BLK
£38.72 excl. VAT
£46.46 incl. VAT
30 in Stock |
|
---|---|---|---|---|---|
Maximum Wattage | 250W | 100W | 250W | 205W | 250W |
Colour | White | Black | Black | White | Black |
