    LED Surfaced Panel Light Box Kit 24V 600 x 600mm

    Colour Temp Adjustable 2500K-7000K 30W

    Quicklink
    Product Code LEDPANEL SM 30W CCT
    • archived / unavailable to order
    Description

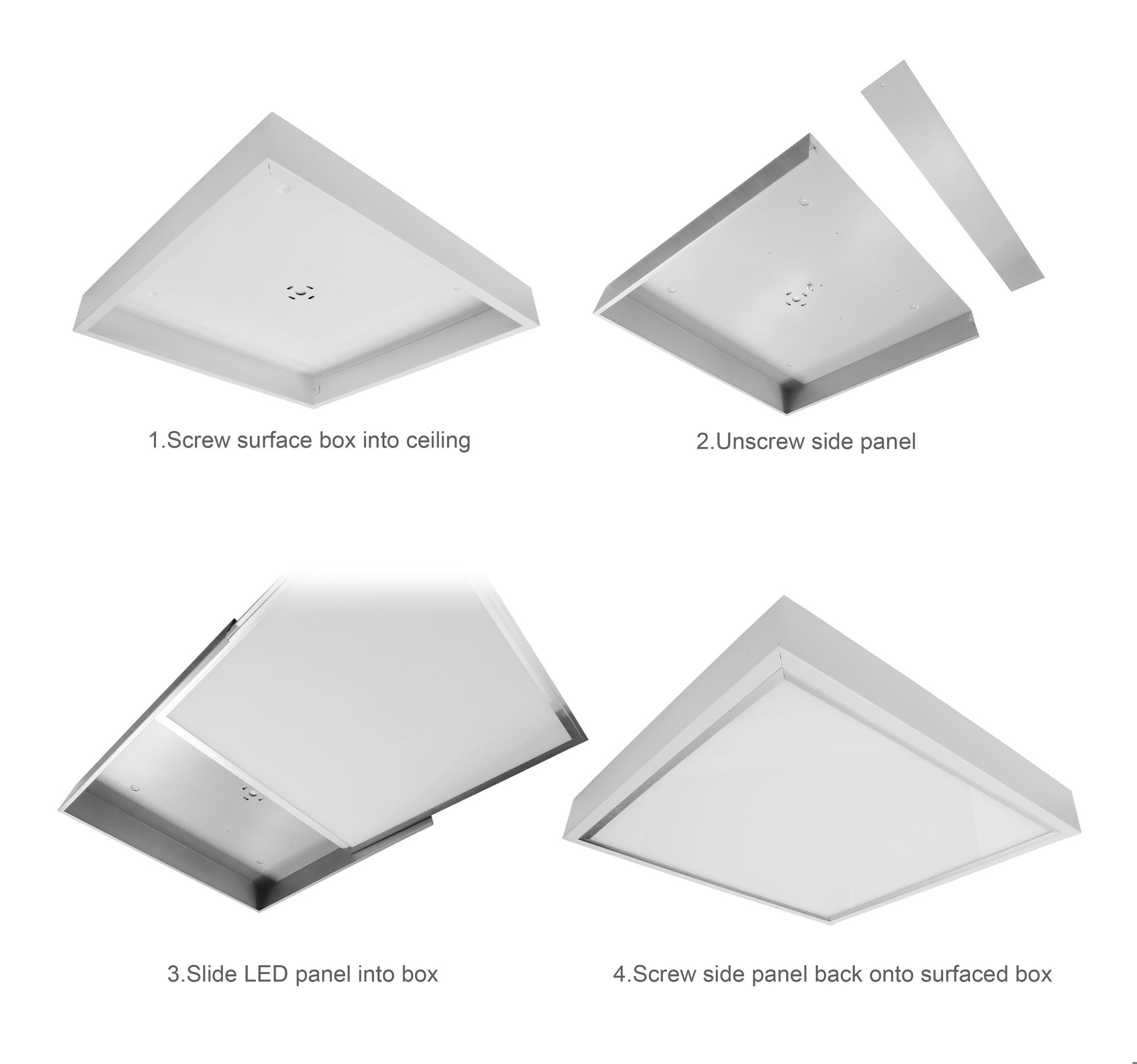

    The LED Surfaced Panel Light Box range features the latest in LED technology. The panels are suitable for commercial and domestic applications, included with the LED Panel is a surfaced mounting box for ceilings in which panels can't be recessed into the ceiling. These panels are ideally suited for office lighting and for meeting rooms and corridors.

    This kit includes a 24V driver and a CCT adjustable touch panel controller, dimmable drivers are available as additional option.

    Key Features

    • Energy savings up to 70%-80% compared to fluorescent equivalent
    • Instant start, no flickering or humming
    • Complies with October 2010 Part L regulations
    • Fully dimmable with leading edge dimmers
    • Made with constant current LED tape that can work under unstable voltage.
    • Compatible with RF, Dali, DMX512, 0-10V Dimmers
    • No electric wave
    • Excellent thermal management and refined aluminium
    • Mercury free
    • No RF interference
    • Compatible with 2.4G controller
    Specification
    General
    Colour White
    Construction Aluminium
    Dimmable Yes
    Dimmable Yes
    LED Type SMD3528
    Number of LED's 384
    Operating Temperature -20°C - +40°C
    Dimensions
    Depth 80mm
    Length 600mm
    Width 600mm
    Electrical
    Maximum Wattage 30W
    Voltage 24V
    Light Characteristics
    Beam Angle 150°
    Colour Rendering Index 90
    Lumens 2400 lm
    Lumens Per Watt 80 lm/W
