Rigel Trimless Range

    Compact downlights
    that disappear into the ceiling.

    Rigel Trimless LED downlights—fire-rated, trimless plaster-in fittings in Round 40, Square 40 and Round 50. Modular range with fixed, adjustable and wall-washer beam options.

    Rigel downlights illuminating a contemporary living space with brown leather seating and floor-to-ceiling windows
    UGR < 19 Anti-Glare
    Engineered visual comfort
    Up to 1082 Lumens
    From a 42mm fitting
    Fire-Rated 60 Min
    IP54 trimless plaster-in
    CRI 90+
    True colour rendering
    Specifier Support
    Free advice from our team
    The Range

    Named for one of the brightest stars in the galaxy.

    The Rigel Series delivers powerful illumination from a fitting compact enough to be held between two fingers. Trimless, fire-rated, and engineered with a unique 36° cut-off optic, each fixture blends seamlessly into the ceiling while providing the soft, comfortable light specifiers expect at the upper end of the residential and commercial market.

    Three apertures — Round 40, Square 40 and Round 50 — each available with fixed, adjustable or wall-washer optics, and 7W or 9W modules. Sixteen complete fittings to choose from, all sharing the same plaster-in frame and 90+ CRI light source.

    The four Rigel 40 fittings — square fixed, square wall washer, round fixed, round wall washer — on dark marble
    The Rigel 40 family — square & round, fixed & wall washer
    Why Rigel

    Designed for projects, built to disappear

    Visual comfort first

    A 36° cut-off angle on the fixed optic, 41° on the adjustable. UGR < 19 across the range, suitable for environments where glare ratings matter — offices, retail, and hospitality.

    High output, small aperture

    Up to 1082 lumens from a 42mm fitting at 9W — with a 7W variant for shallower ceiling voids, allowing a consistent visible aperture across rooms with different structural depths.

    Plaster-in trimless install

    The pierced petal flange is designed to plaster directly into the ceiling, leaving no visible trim. The aperture sits flush in the plasterwork — clean, architectural, no compromise.

    Fire-rated, certified

    60-minute fire rating, IP54 protection on fixed inserts and IP44 on adjustable, with CRI 90+ across every module. Meets Part B and Part L expectations on residential refurbishments.

    Three apertures, one stock line

    Round 40, Square 40, Round 50 — all share the same LED engine, lens, and driver components. One light source family, three architectural languages.

    In stock, dispatched same day

    All 16 complete downlight variants and replacement components held in UK stock. Orders placed before 3pm dispatch the same day from our Wandsworth warehouse.

    See It Apart

    Engineered for the ceiling

    Exploded assembly · Frame, module, lens and insert

    Compact enough to hold between two fingers.

    Despite their small size, Rigel downlights deliver high lumen output — up to 1082lm from a 42mm aperture. The compact light engine and shallow ceiling depth requirement make them suitable for refurbishment projects where ceiling void is at a premium.

    For the customer: one clean aperture, one fitting. For the installer: serviceable parts that swap without disturbing the ceiling finish.

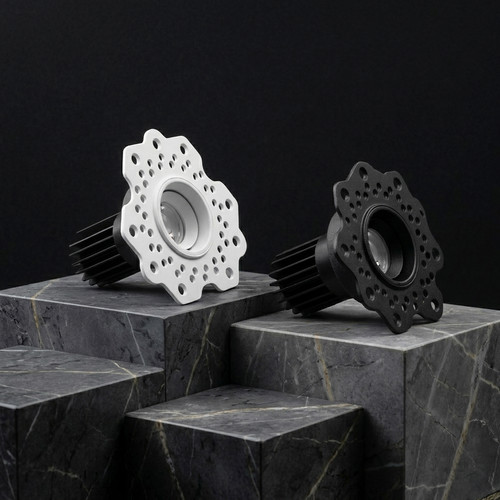

    The four Rigel 40 fittings — square fixed, square wall washer, round fixed, round wall washer — on dark marble
    The Rigel 50 family — round,adjustable, white or black

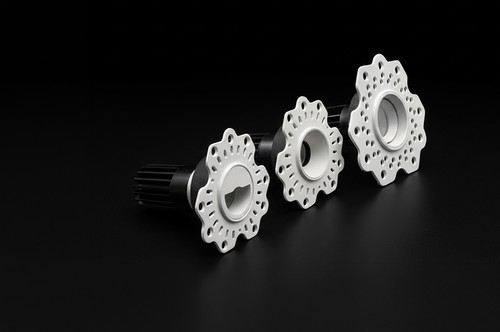

    Three Rigel frames showing different optic types
    Three optics, one stock line

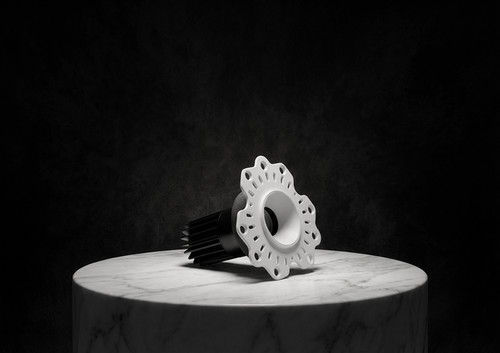

    Rigel 40 Adjustable on dark marble
    Rigel 40 Round Adjustable
    Configurator

    Configure your Rigel downlight

    Pick your base, then build it step by step. We'll match your selection to a pre-built kit if one exists — or list the components you need to add to your basket for a custom build.

    1 Insert
    2 Wattage
    3 Colour temp
    4 Beam
    5 Driver
    Step 1 of 5

    Which insert?

    Three optic options with different IP ratings. Wall Washer ships with a built-in asymmetric optic — no separate lens needed.

    Live specification
    Rigel 40 Round
    Aperture
    Cut-out
    Insert / optic
    IP rating
    Module
    Lumens
    Colour temp
    Beam angle
    Cut-off
    Module depth
    Driver
    FinishWhite
    Total quantity1
    The Three Bases

    Three apertures, sixteen complete fittings

    Each base is offered with multiple optic and wattage combinations, all sharing the same plaster-in frame and 90+ CRI light source.

    Rigel 40 Round fitting
    6 variants

    Rigel 40 Round

    Trimless miniature round downlight, fire-rated, 42mm aperture. Six complete variants across fixed, adjustable and wall washer optics.

    • ApertureØ46mm
    • Cut-out54mm
    • Variants6 fittings
    Browse all Rigel 40 Round fittings →
    Variant Wattage Lumens CCT Cut-off View product
    Adjustable · 7W 7W 883lm 3000K 41°
    Adjustable · 9W 9W 1082lm 3000K 41°
    Fixed · 7W 7W 883lm 3000K 36°
    Fixed · 9W 9W 1082lm 3000K 36°
    Wall Washer · 7W 7W 883lm 3000K
    Wall Washer · 9W 9W 1082lm 3000K
    Rigel 40 Square fitting
    6 variants

    Rigel 40 Square

    The square-aperture sibling. Same module and lens system, orthogonal aperture for projects that call for clean geometric apertures.

    • Aperture50 × 50mm
    • Cut-out50 × 50mm
    • Variants6 fittings
    Browse all Rigel 40 Square fittings →
    Variant Wattage Lumens CCT Cut-off View product
    Adjustable · 7W 7W 883lm 3000K 41°
    Adjustable · 9W 9W 1082lm 3000K 41°
    Fixed · 7W 7W 883lm 3000K 36°
    Fixed · 9W 9W 1082lm 3000K 36°
    Wall Washer · 7W 7W 883lm 3000K
    Wall Washer · 9W 9W 1082lm 3000K
    Rigel 50 Round fitting
    4 variants

    Rigel 50 Round

    The larger 50mm aperture with full 355° azimuth rotation and 30° tilt. Available in white or black trimless finish.

    • ApertureØ56mm
    • Cut-out60mm
    • Variants4 fittings
    Browse all Rigel 50 Round fittings →
    Variant Wattage Lumens CCT Cut-off Finish View product
    Adjustable · 7W · White 7W 883lm 3000K 25° White
    Adjustable · 9W · White 9W 1082lm 3000K 25° White
    Adjustable · 7W · Black 7W 883lm 3000K 25° Black
    Adjustable · 9W · Black 9W 1082lm 3000K 25° Black
    Components & Spares

    Build your own, or replace a part

    Every Rigel fitting is assembled from interchangeable components — modules, lenses, frames, inserts and drivers — all available individually.

    A Rigel downlight is built from five swappable parts: a frame, an LED module, a lens, an insert (the visible aperture), and a driver. Buy them as a complete kit, or piece by piece for service and customisation.

    LED Modules

    Light engines available in 7W or 9W, 2700K or 3000K. CRI 90+, 25,000-hour rated.

    Lenses

    Click-fit interchangeable lenses for fixed and adjustable inserts. Four beam angles available.

    Frames & Inserts

    The structural fire-rated housing plus the visible aperture insert. Replaceable from below the ceiling without re-plastering.

    Drivers & Removal Tools

    10W constant-current drivers in Triac and DALI variants, plus the removal tools that ship with every order.

    In Situ

    Specified by architects and lighting designers across the UK.

    From hospitality and retail to high-end residential refurbishments, Rigel disappears into the ceiling, leaving only the light. Below, a few projects that show what it looks like in real spaces.

    Rigel downlights in a contemporary living room
    Residential — London
    Rigel downlights illuminating a hotel reception area
    Hospitality — Edinburgh
    Technical Support

    The numbers, the standards, the documents.

    Everything our engineers and your specifiers need — datasheets, photometric files, installation guides, and certification.

    • Fire rating — 60 minutes, BS EN 1365-2:2014
    • IP rating — IP54 (Fixed), IP44 (Adjustable), IP20 (Wall Washer)
    • CRI — > 90, suitable for retail and gallery applications
    • UGR — < 19 across all fixed and adjustable inserts
    • Photometric files — IES and LDT available on each product page
    • Compliance — Part B (fire), Part L (energy efficiency), CE / UKCA marked
    View/Download catalogue (PDF) →
    Image of rigel downlight range on marble surface
    Documentation

    The full Rigel Trimless catalogue.

    16 fittings, all components, dimensional drawings, specification sheets, photometric data and installation guidance. Designed to be specified from.

    Talk to a specifier, not a sales line.
