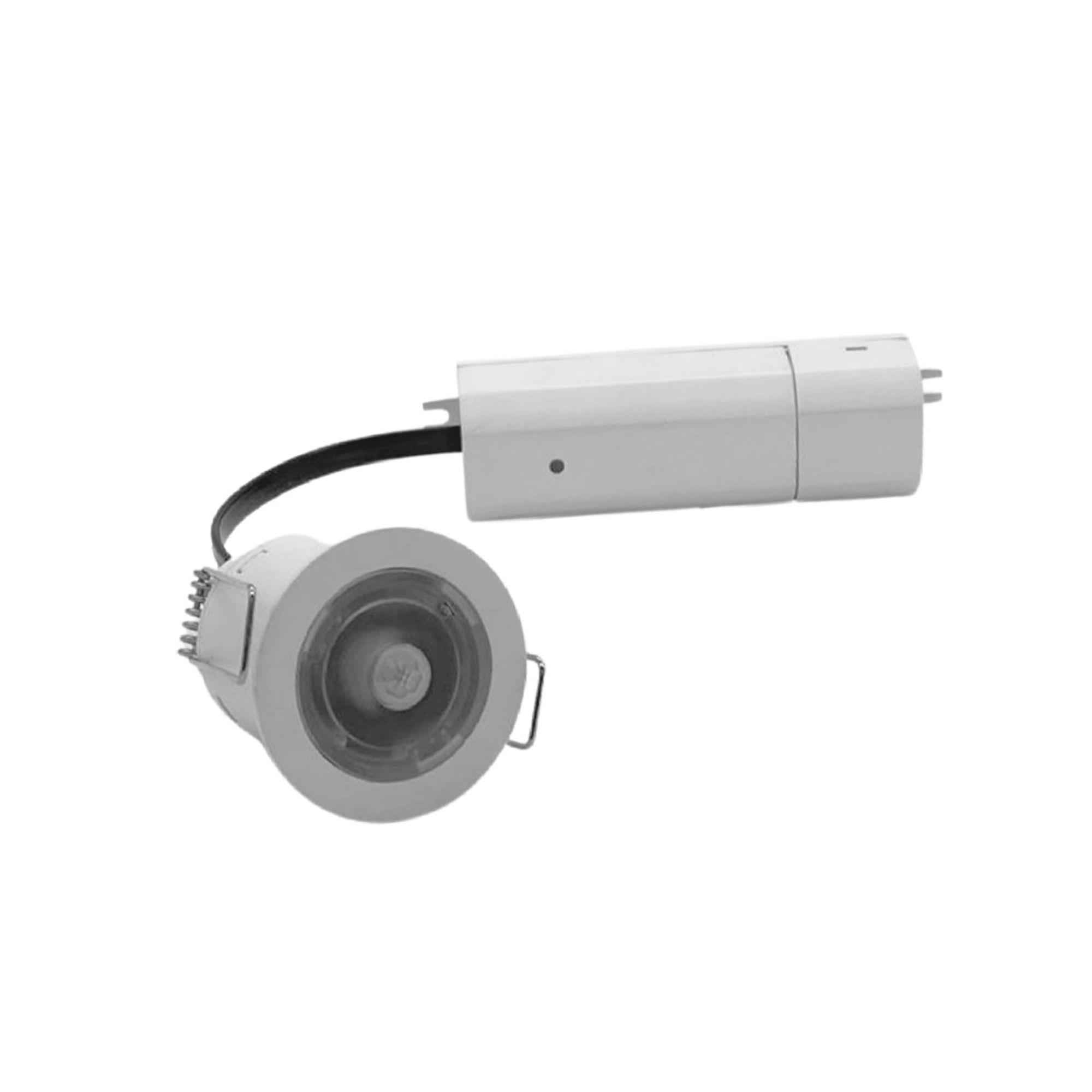

PIR Mini Smart Ceiling Flush Mount Occupancy Detector

Switching

Quicklink Q6F21

Product Code ISI MNPIR5MSW

£69.91EX VAT
£83.89INC VAT
only 1 left

Description

This flush mounted ISI-MNPIR5MSW is suitable for easy mounting through a 38/40mm diameter hole into a ceiling void which is at least 60mm deep. Configurable for any room occupancy style, via the free to download DANLERS ISI APP on Google Play or Apple APP Store. These products include a person detector and an adjustable photocell override. Designed for mounting through suspended or plasterboard ceilings or for fitting into luminaires. Includes power pack with connector.

Detection Zone: 360°
Max. Detection Area: Up to 7mdiameter at 2.4m mounting height
Max. Mounting Height: 5m
Photocell range: 5-2000 lux and inactive
Time lag range: 10 seconds to 3 hours
Dimensions: Detector head 61.7mm x 46.5mm diameter. Fits into a 38-40mm diameter cut-out. Power pack 118.2 x32.5 x 32.5 mm
Up to 2A (450W) LED, Mi load 2W resistive
Please note this sensor is only compatible to work with DANLERS ISI enabled app

Specification

General
Colour	White
Dimmable	Yes
IP Rating	IP40
Weight	102g

Dimensions
Cut Out	40mm (Diameter)
Diameter	46.5mm
Minimum Ceiling Depth	60mm

Electrical
Amperage	2A
Maximum Wattage	450W
Voltage	240V

Technical Drawings

Downloads

Technical

ISI-MNPIR5MSW Installation Guide

Specification Sheet

PIR Mini Smart Ceiling Flush Mount Occupancy Detector Switching

PIR Mini Smart Ceiling Flush Mount Occupancy Detector Switching (Unbranded)
