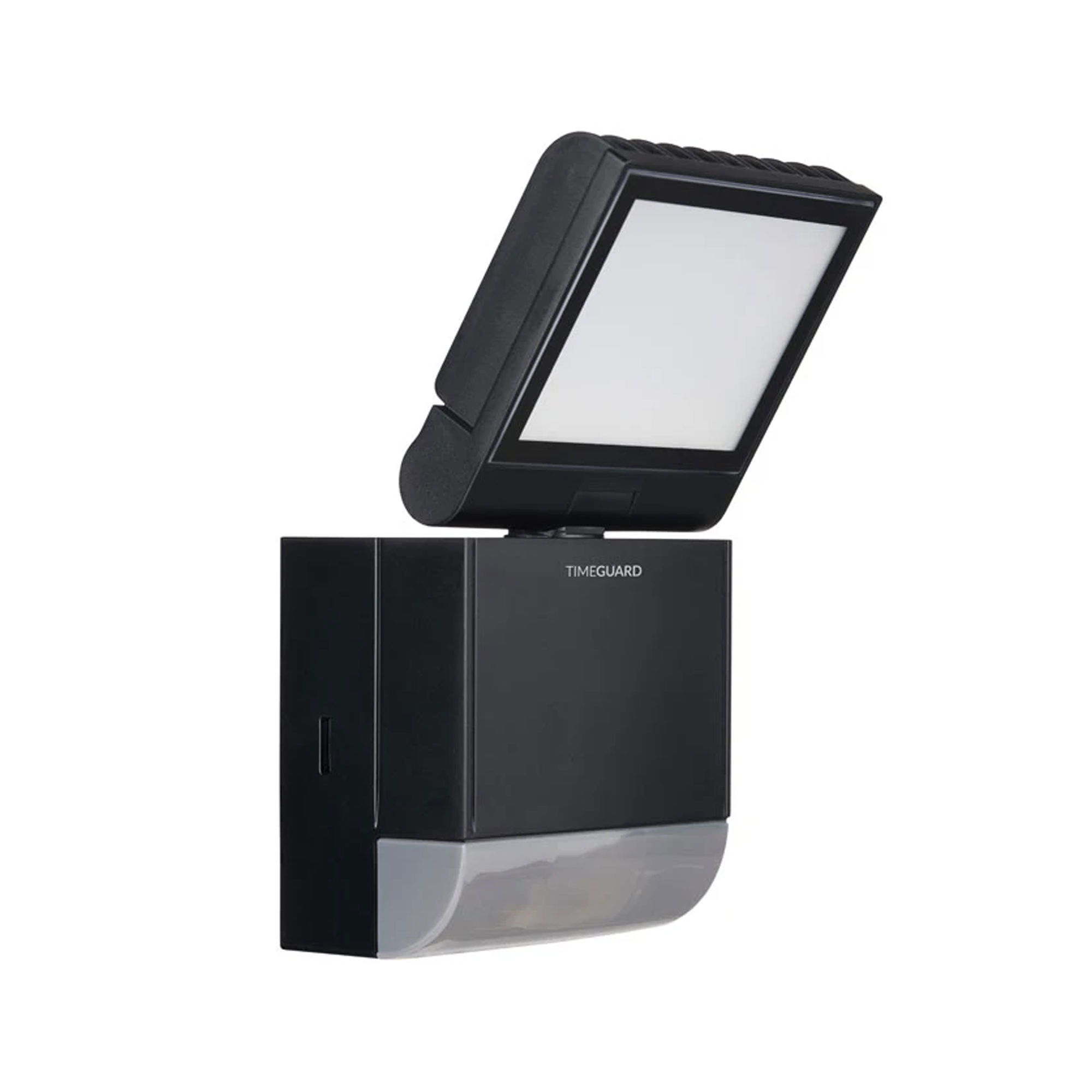

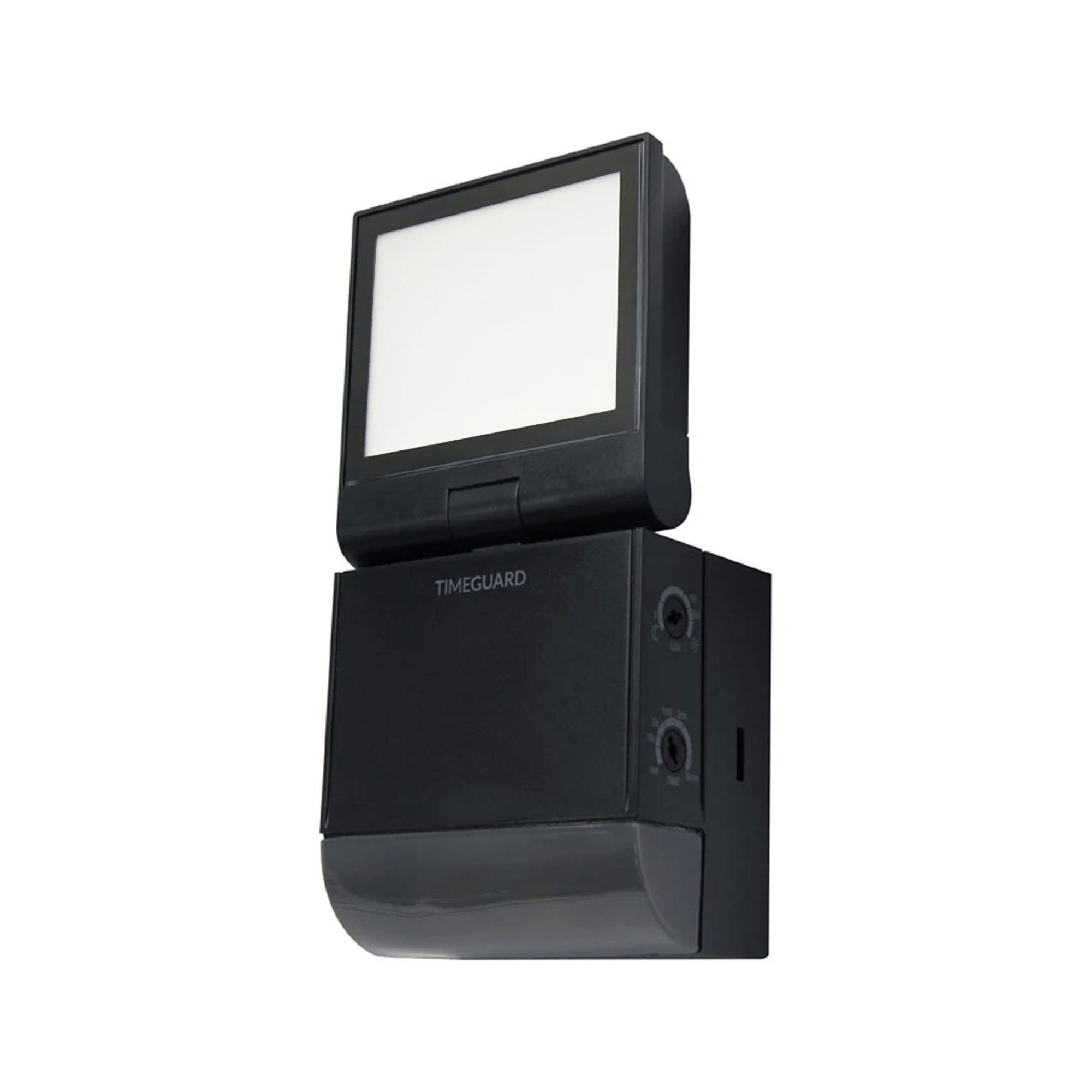

LED Compact Outdoor Garden PIR Floodlight IP55

Enhance your home security with the Timeguard 8.5W LED PIR Floodlight (LED100PIRBP), delivering 1000 lumens of bright 4000K light with a wide 98° beam and 180° PIR motion detection up to 10m. Its durable IP55 weatherproof polycarbonate housing, pan‑and‑tilt adjustment, and opal diffuser ensure reliable, even illumination for entrances, gardens, and driveways/

Key Features

• Powerful single head LED compact floodight with PIR suitable for domestic applications. Rotating and swivelling head
• 8.5W, 1000 Lm, 4000K (Cool White)
• PIR with manual override
• IP55
• Extreme wide beam >80°
• Opal diffuser for a even light distribution
• New integrated Samsung SMD chipsets for added reliability and efficient heat dissipation

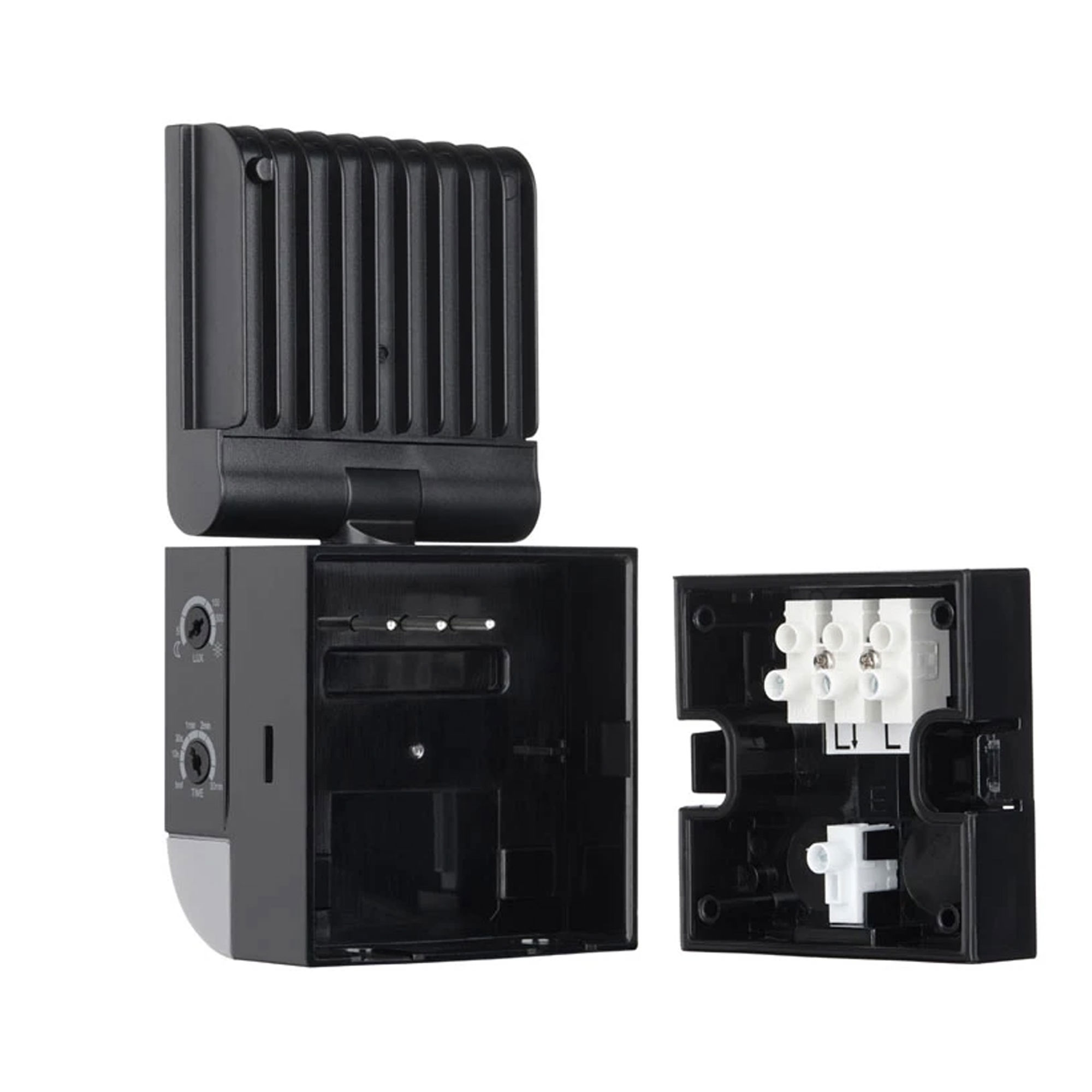

• Terminal housing has rear & bottom cable entries
• Lighting fitting suitable for surface mounting or on to a back box with 603mm fixing centre

Technical Specification

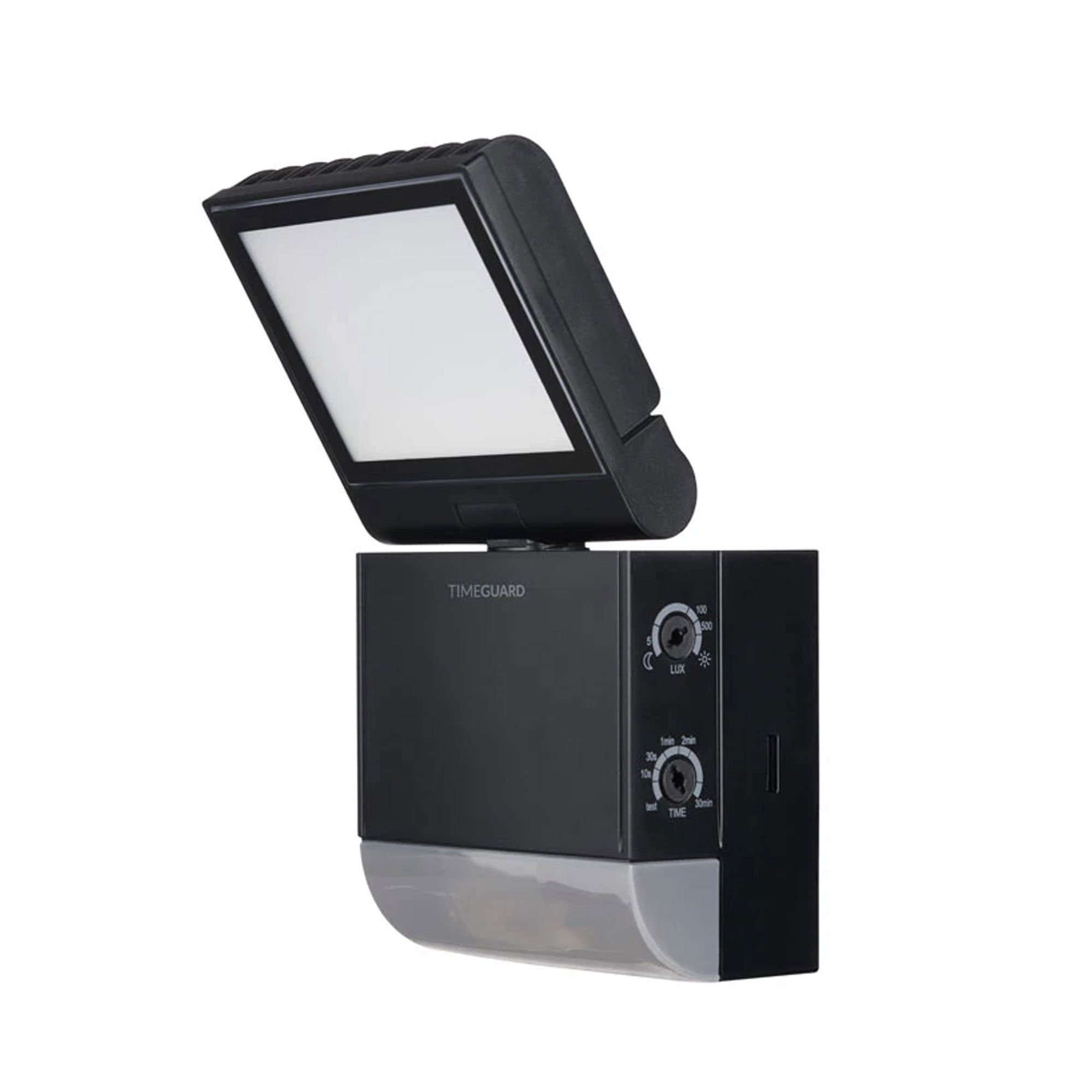

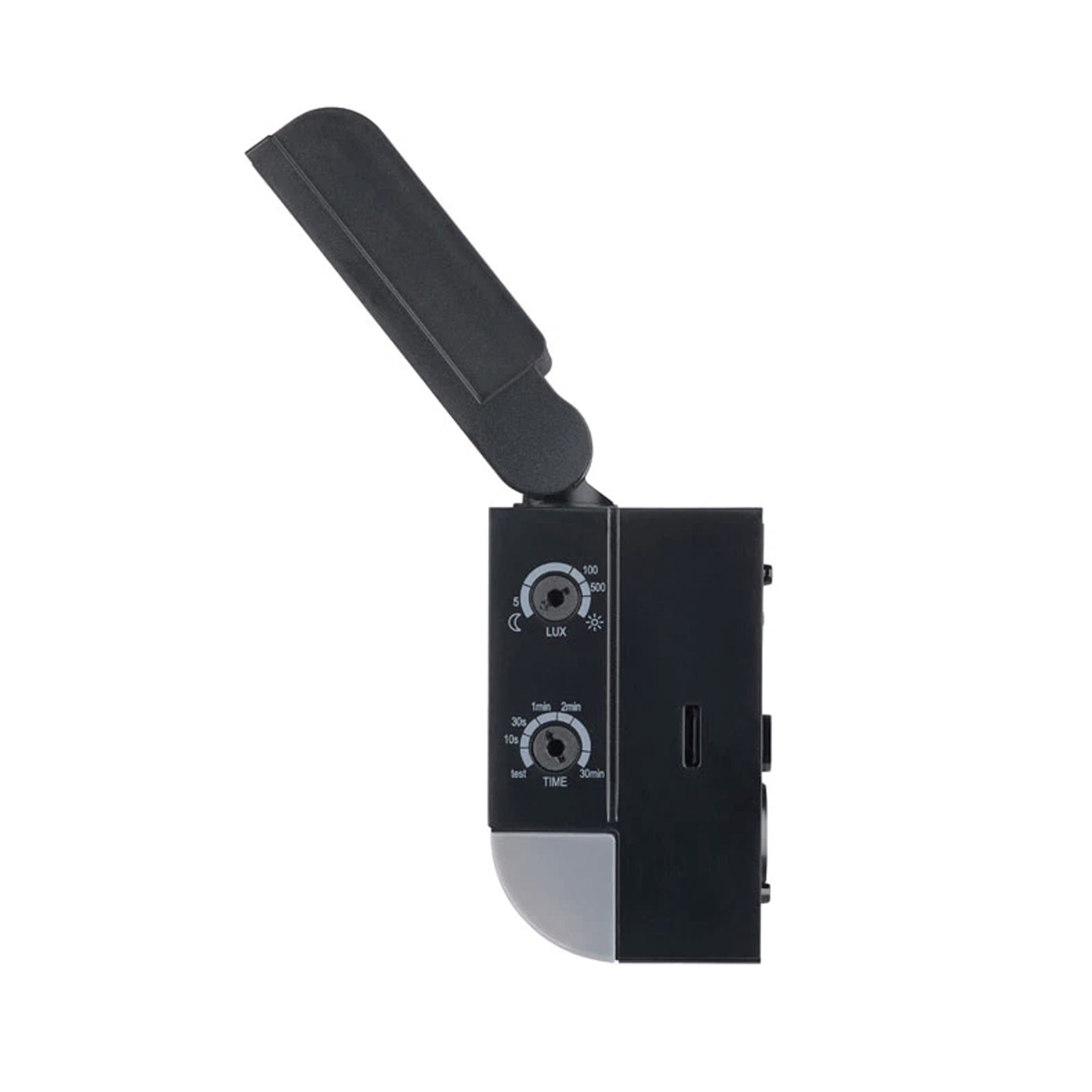

• Setting Type: Dial
• Approved Mounting Height: 2.5m
• Presence Detection: 5m
• Motion Detection: 10m
• Switch Rating: 100W LED (8W > LED max 100W, 2W < LED max 20W, 2W >, 8W < LED max 80W)
• ON Time Adjustment: 10 seconds to 30 minutes (2s, 20s, 2m, 5m, 10m, 15m, 30m
• Lux Level: 5 to 500, user adjustable
• Permanent ON Facility: Yes (Pulse Manual Override)
• Dusk Till Dawn: No
• Fully rewireable with standard and a slave link terminal, allowing for series linking floodlights
• Multiple Unit Support: Bottom Entry (Knockouts), Back Entry
