Screwless Lever-Lid Pull Connector

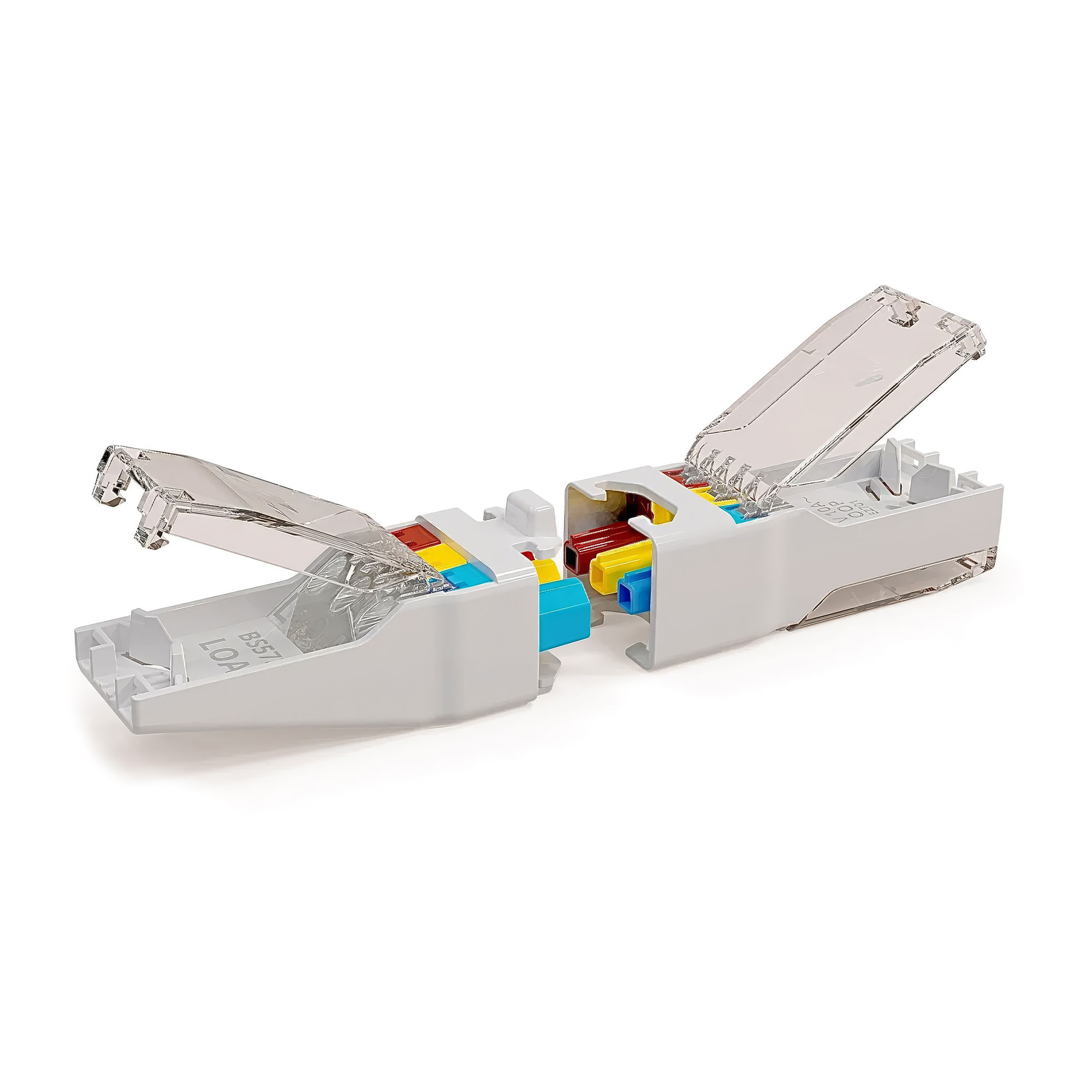

The Screwless Lever‑Lid Lighting Connector is a compact, plug‑and‑play solution designed for quick and reliable wiring of 230V lighting circuits. It features colour‑coded terminals and a clear body for easy inspection, ensuring fast, safe and hassle‑free connections. The screwless lever‑lid mechanism allows electricians to secure cables without tools, reducing installation time while maintaining a secure and compliant connection. Includes male and female connector parts for simple inline or loop‑in/loop‑out lighting setups.

Key Features

• Screwless Lever‑Lid Design – Fast, tool‑free installation

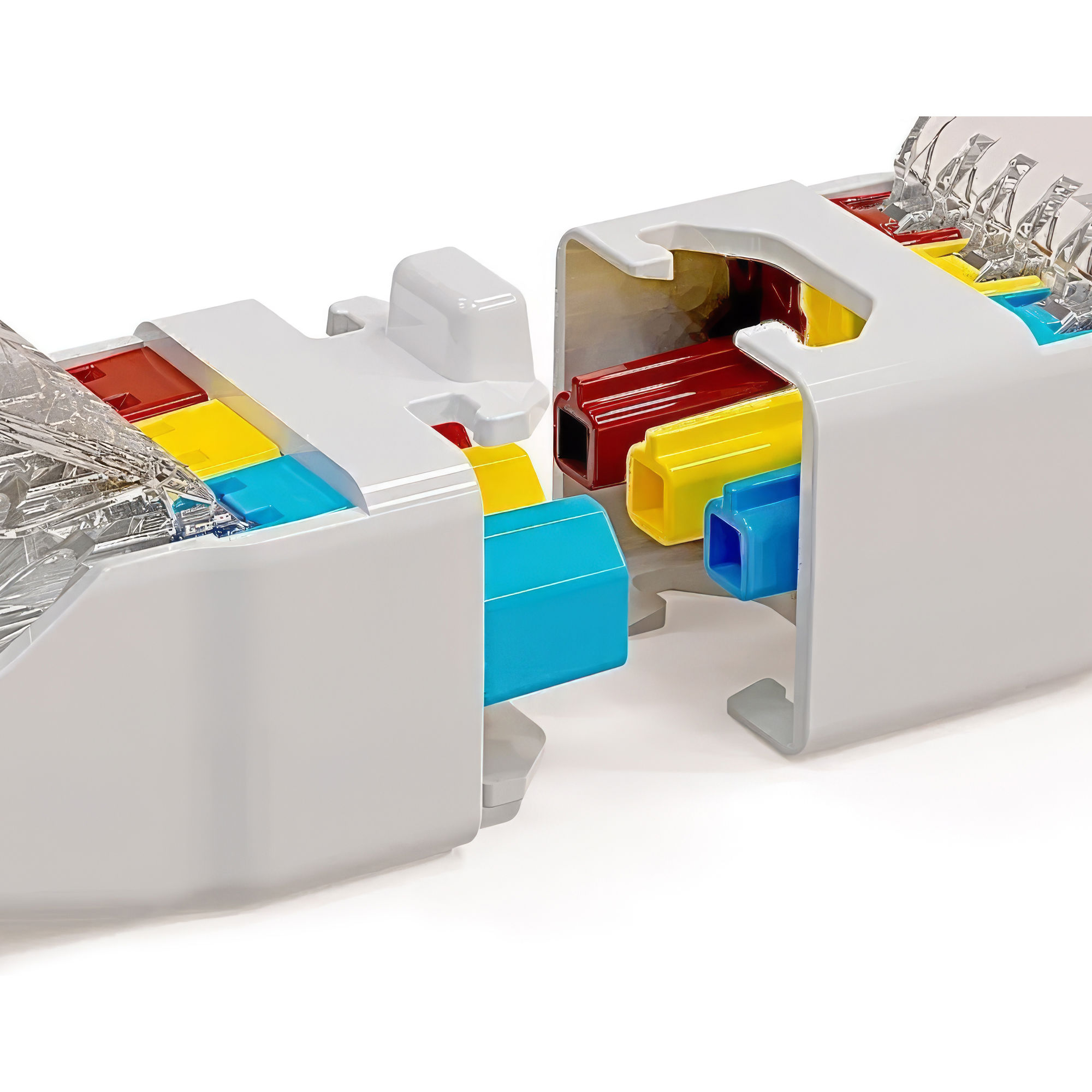

• Plug‑and‑Play Male & Female Connectors – Ideal for quick lighting fixture swaps
• Female Connector: 2 inputs for loop‑in / loop‑out wiring.
• Male Connector: 1 output for load connection.
• Three Flex V‑Grips: Simple push‑in cable grips for secure hold
• Colour‑Coded Terminals – Simplifies wiring and reduces installation errors.
• Clear Casing – Allows visual inspection and easy fault‑finding.

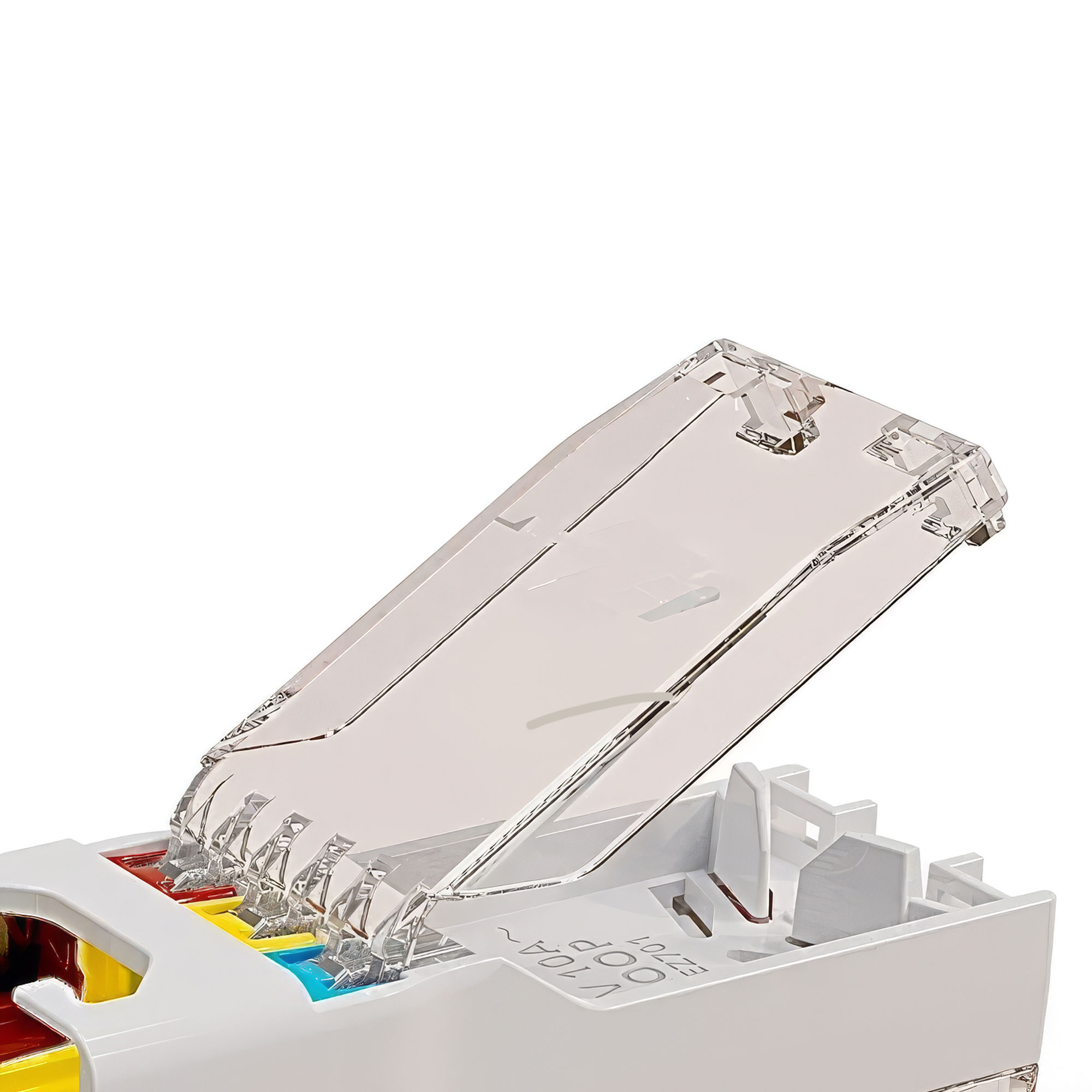

• Lock‑Down Lever‑Lid with Safety Catch: Ensures a reliable and secure closure
• Suitable for 230V Lighting Circuits – Up to 10A max load.
• Accepts Multiple Cable Types – Compatible with 2‑ or 3‑core flex and twin & earth (0.5–1.5mm²)
• Loop‑In / Loop‑Out Compatible – Supports 2 feeds + 1 load configuration
• IP50 Rated – No enclosure required for most indoor lighting applications

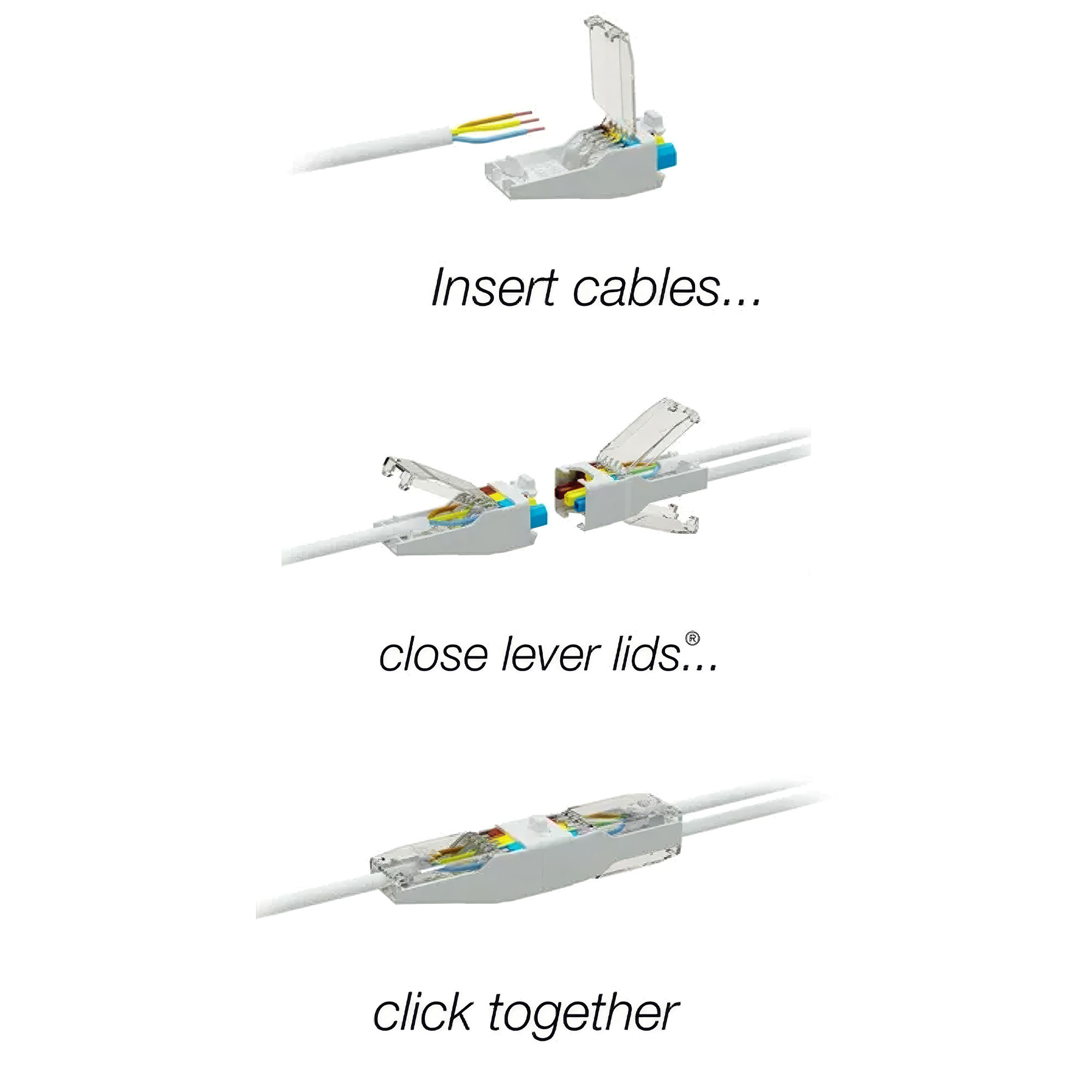

How to Use

• Open the lever‑lid: Lift the connector’s lid to reveal the colour‑coded terminals. No tools needed.
• Prepare the cables: Strip the conductors and ensure they are within the supported 0.5–1.5mm² size range

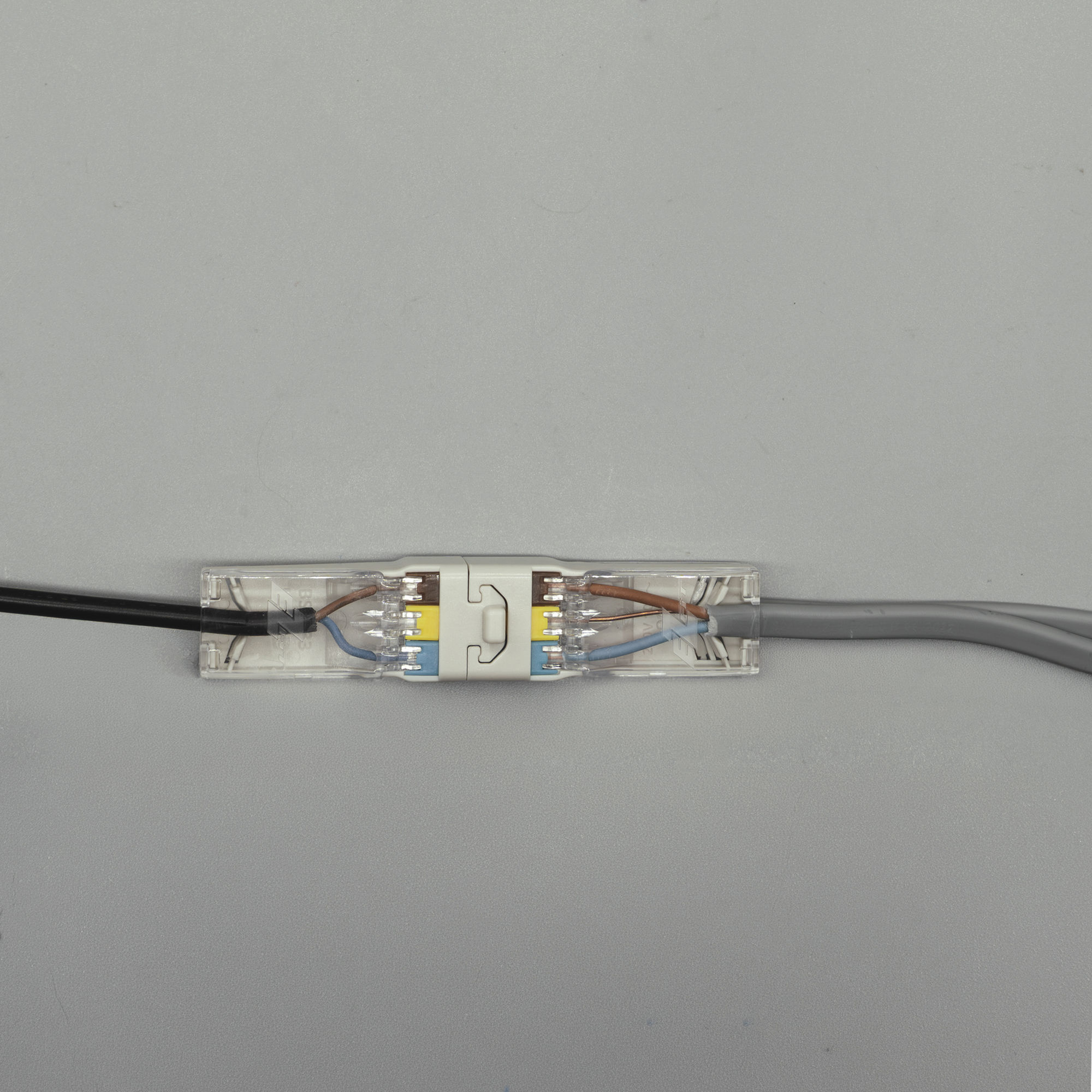

• Insert the wires: Push each conductor into the matching colour‑coded terminal using the built‑in V‑grips. Supports loop‑in/loop‑out (female) and load (male).
• Close and lock the lid: Press down the lever‑lid until the safety catch clicks into place for a secure connection

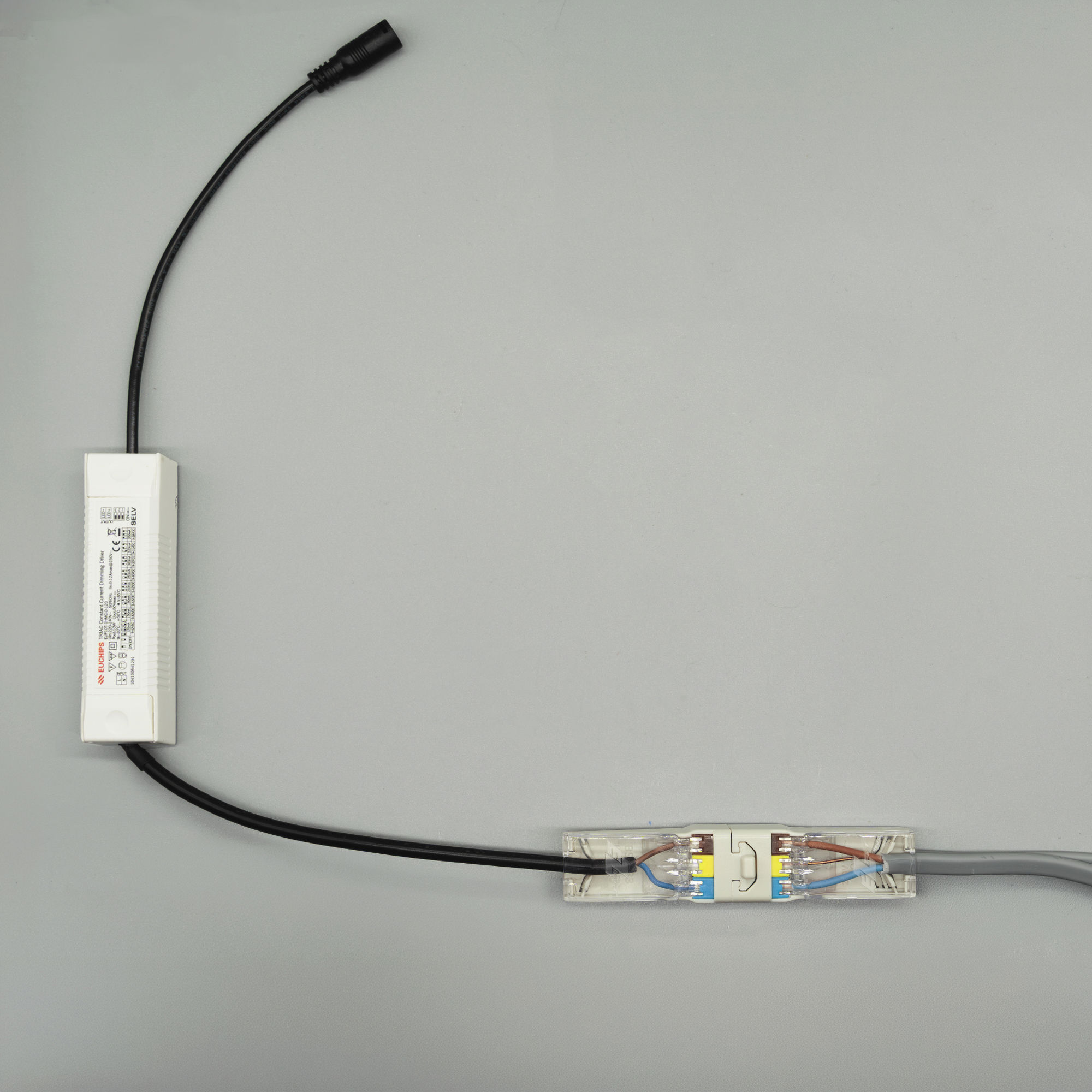

• Connect male & female units: Plug together to complete the circuit—ideal for modular lighting setups
