LDI3/18 Non - Maintained Emergency LED Wide Beam Module Light Pod

The LDI3/18 is a compact, discreet LED light pod designed for efficient performance and easy installation. Its body is constructed from injection-moulded, thermally conductive plastic, which serves as an effective heat sink. The unit features an integrated 18mm threaded mount with a lock nut, allowing for quick and secure installation.

The LDI3/18/W light pod offers 105 degree wide angle lens configuration ideal for illumination of open areas with mounting heights below 3.5m.

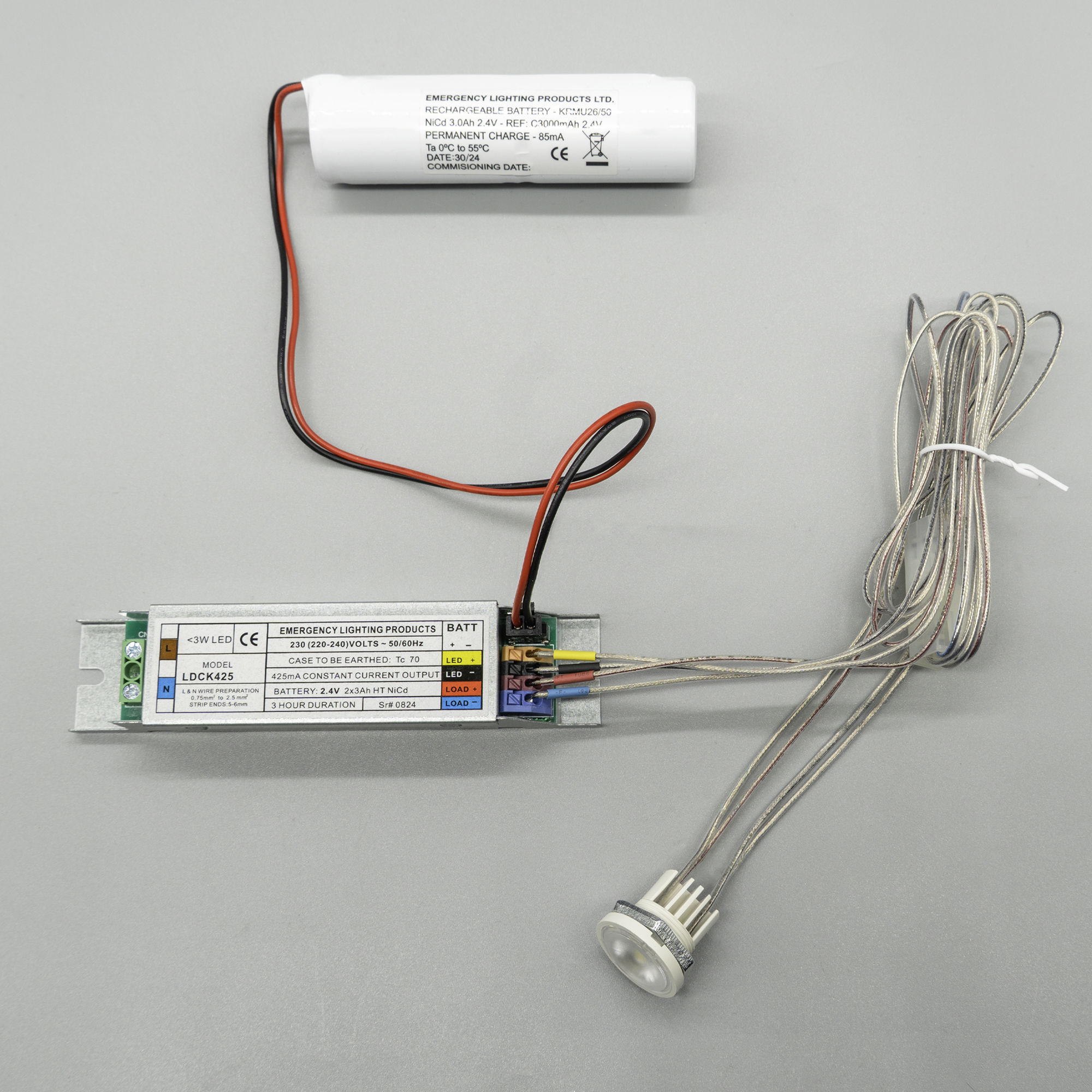

The LDI3/18 series is compatible with the LDCK425 non-maintained emergency conversion kit, enabling combined emergency lighting functionality. The battery connects via a PCB-mounted plug for easy integration.

• Mains Supply Active - Normal Operation Green Indicator is ON
• Power Outage - Emergency Mode LED Light ON & Green Indicator OFF, powered by the connected emergency battery pack to provide emergency lighting.

Emergency Lighting Types: Maintained & Non-Maintained

A maintained emergency light is designed to stay on continuously, even when mains power is available. It uses mains electricity during normal operation and switches to battery power during a power failure, ensuring the light remains on at all times.

A non-maintained emergency light remains off during normal conditions and only activates when there is a mains power failure.

Product Video

These emergency lighting modules are designed to be installed into compatible light fittings, converting them into fully functional emergency lights. Please enquire for more information to ensure compatibility and determine which fittings are suitable for these modules.
