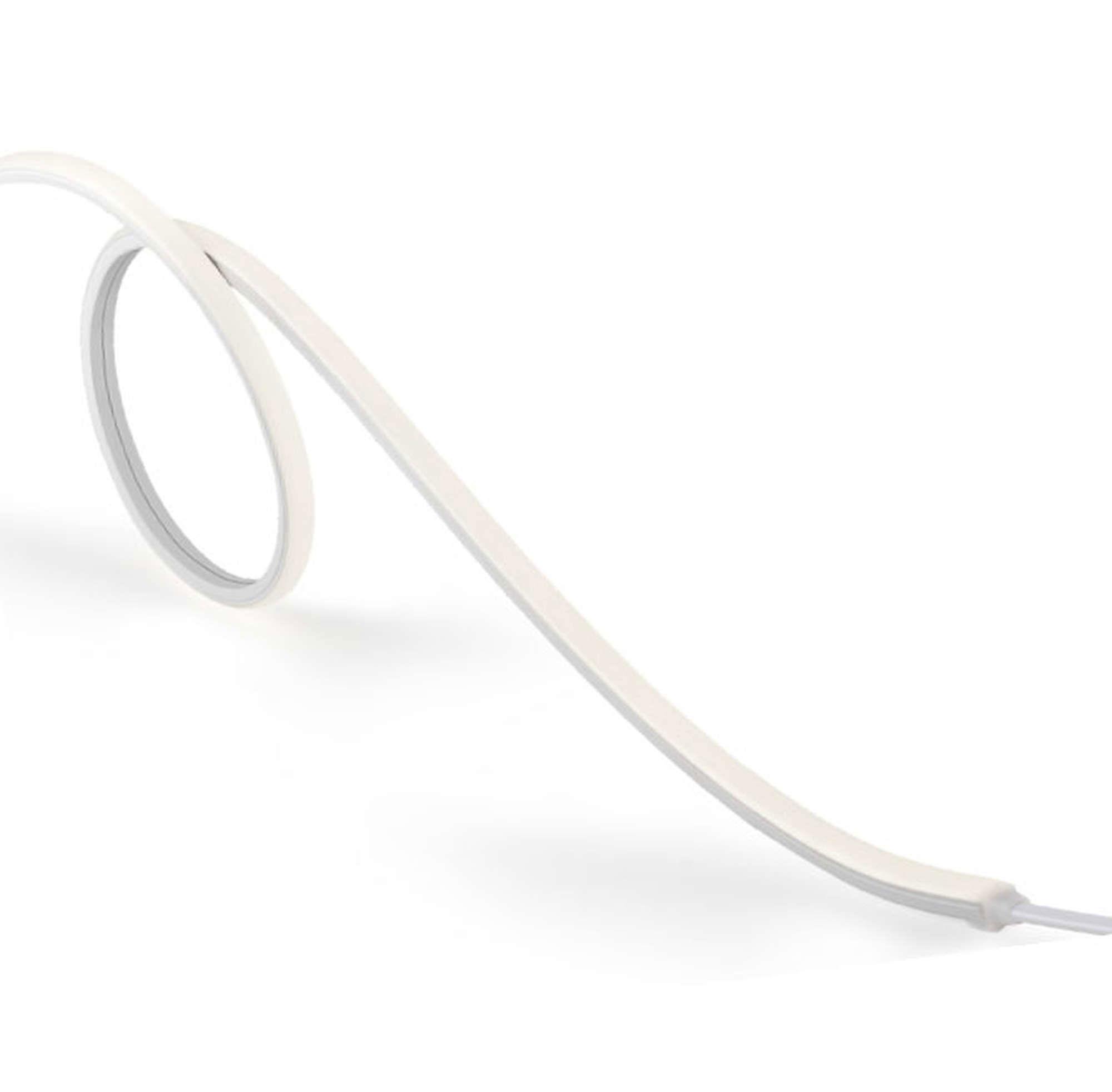

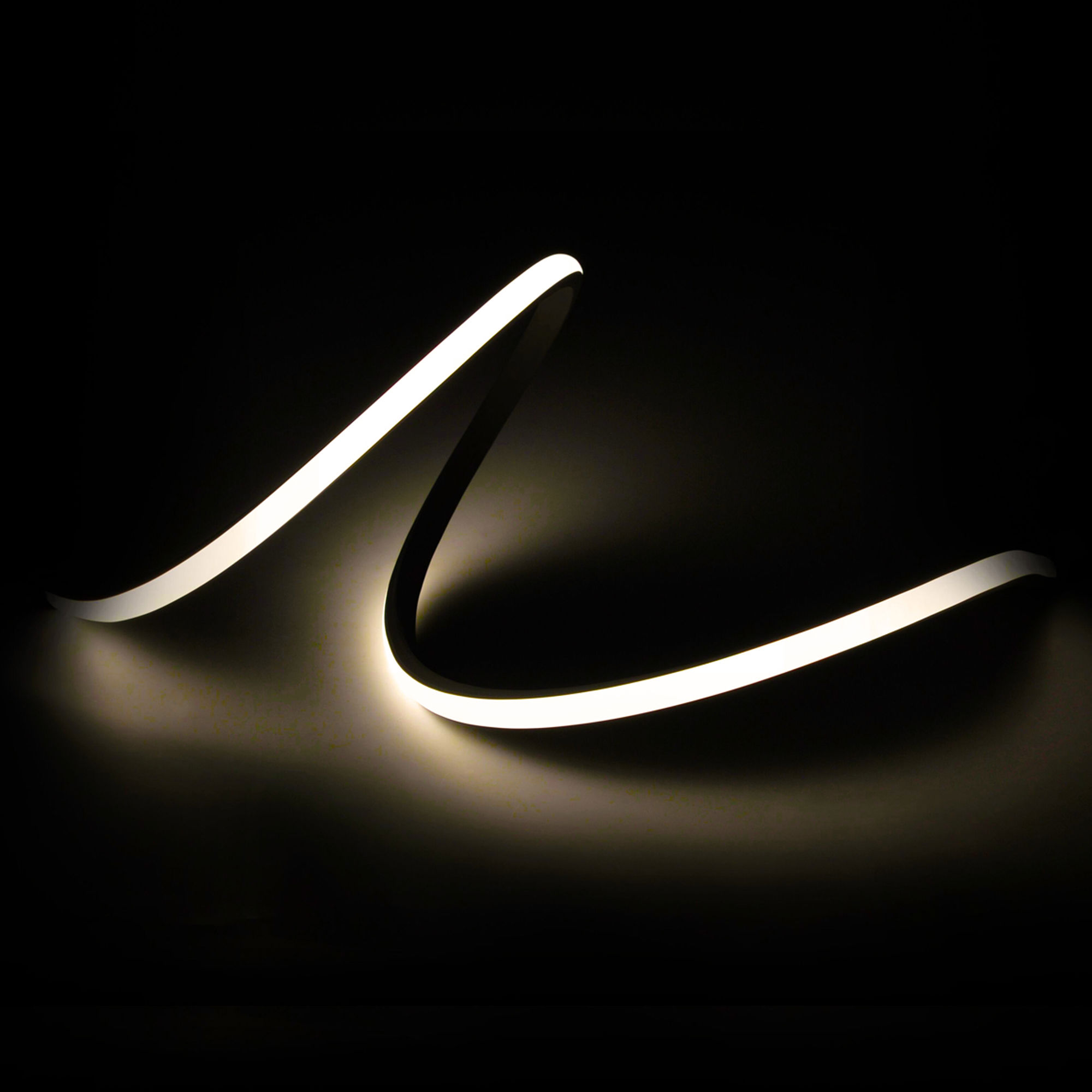

FLXible Neon 2 24V 5M - Vertical Bend (12mm)

50W (1m=10W) 3000K Warm White

Quicklink Q6082

Product Code FN2-30K-24VT

Colour Temperature

2200K Warm White 2700K Warm White 3000K Warm White 4000K Cool White

£120.00EX VAT
£144.00INC VAT
19 in Stock

Description

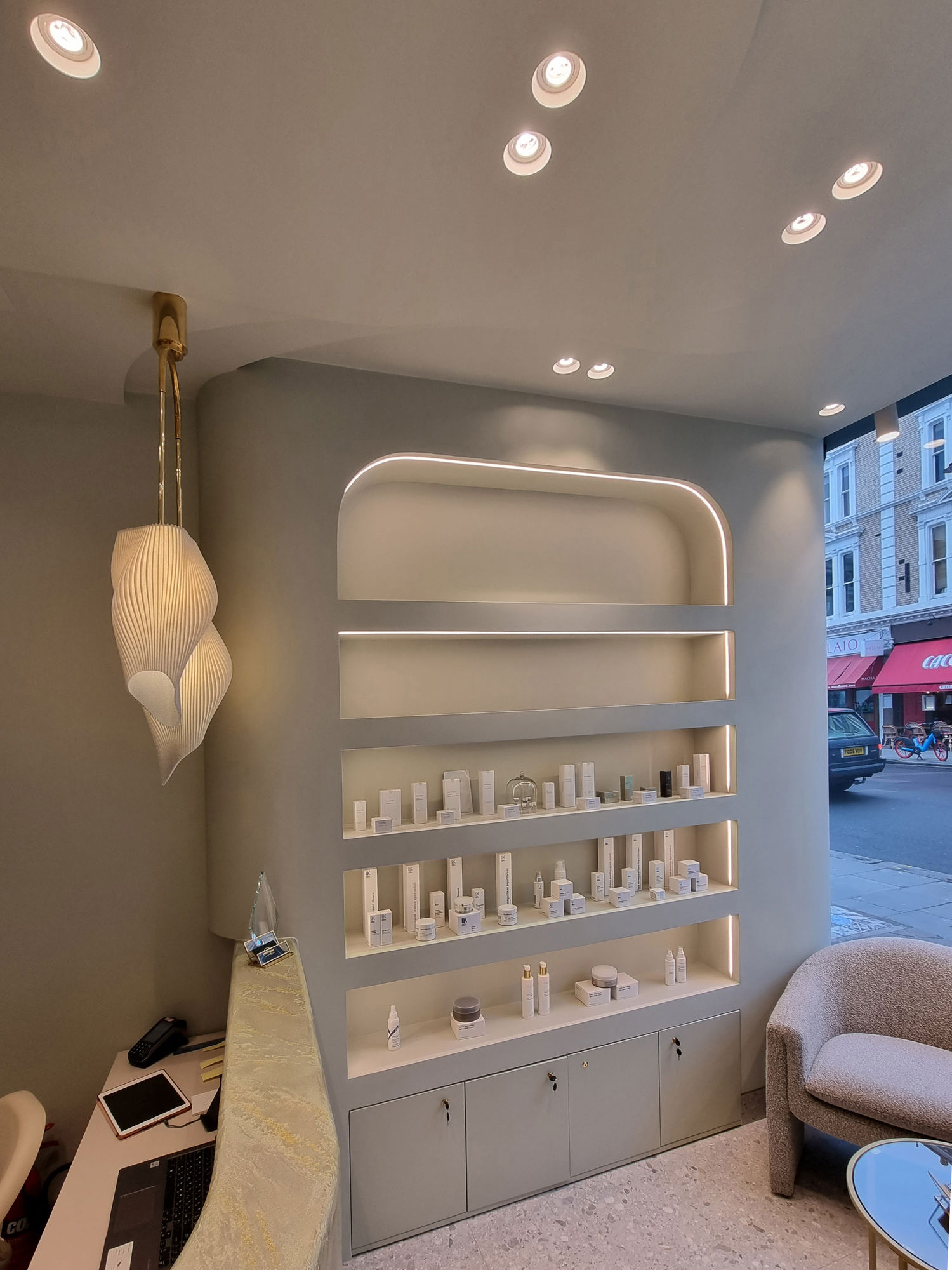

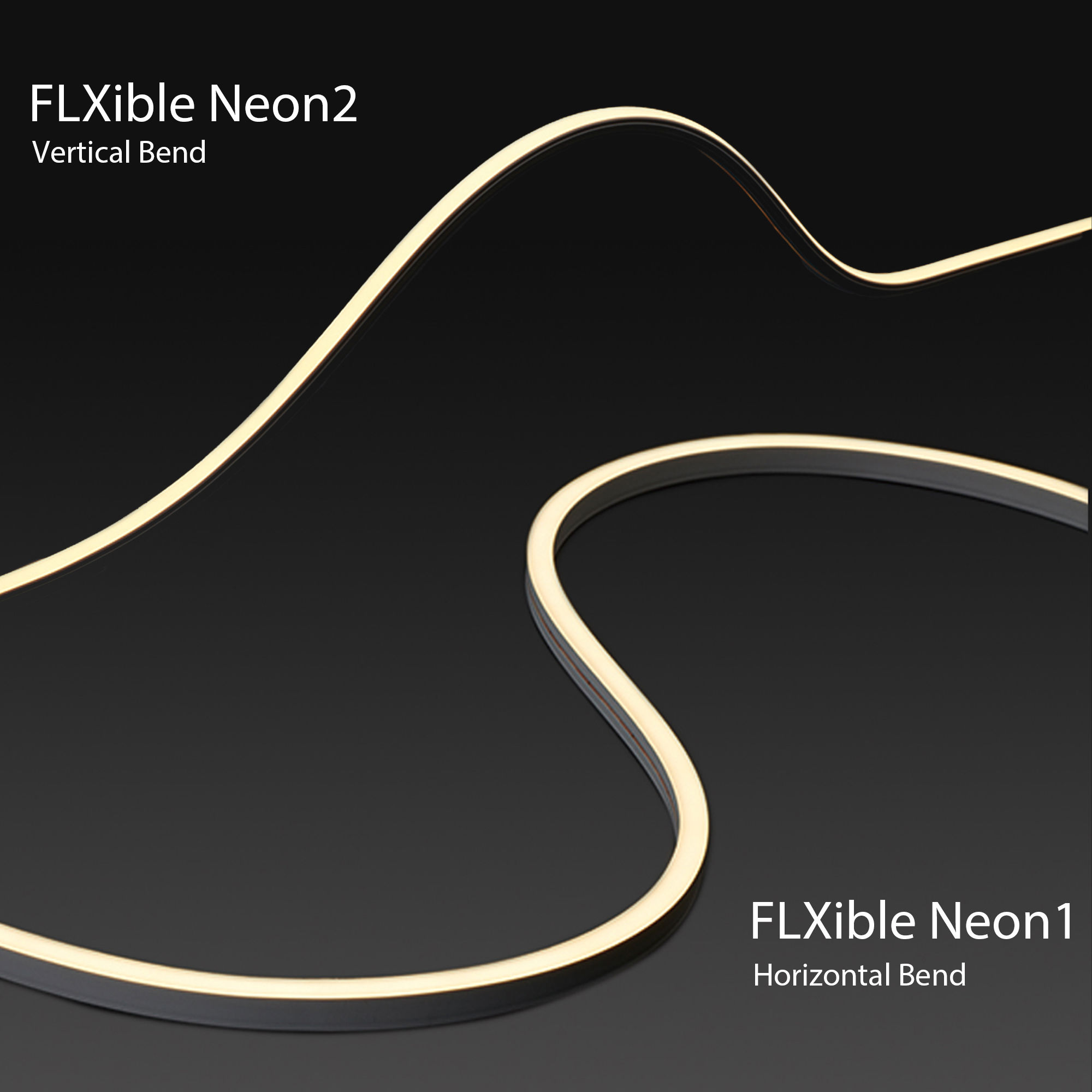

FLXible NeoN, is super slim flexible LED with spot-free output for indoor and outdoor application for displays, cabinets, furniture and coves. Neon 1 bends horizontally while Neon 2 bends vertically; both are dimmable, have 4W/ft., 24V DC and are available in customised lengths.

Bend direction vertical
Ultra slim spot free illumination
Dimmable with 0-10V, forward/reverse phase
Indoor and outdoor application
Field Cuttable (38.5mm) for customized length

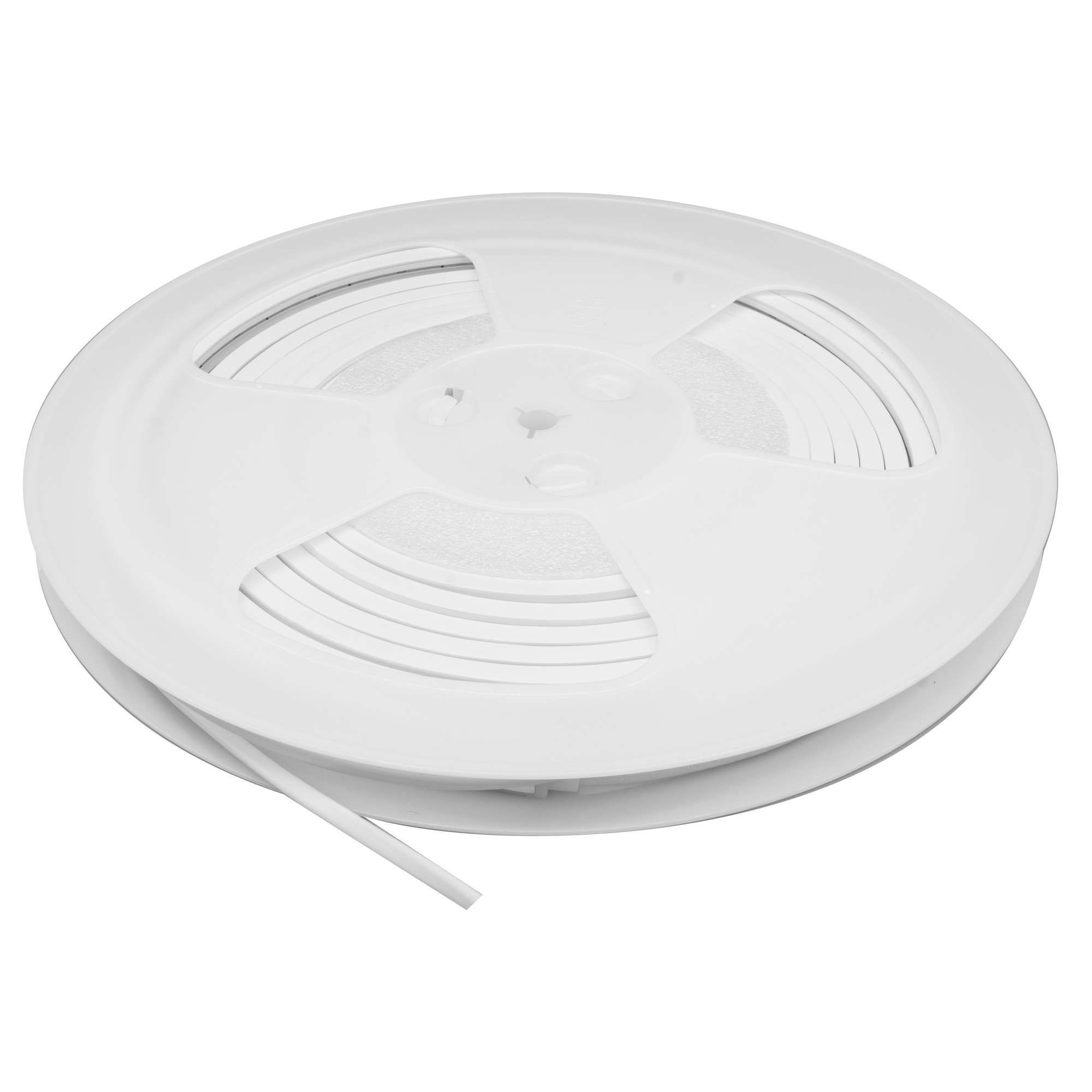

5M reels

IP Rating: IP67 with Factory Termination (the product is sealed by the manufacturer) / IP65 with Field Termination (customizing the reel length and attaching the endcap lowers the rating to IP65 - FN2-FIELD KIT required)

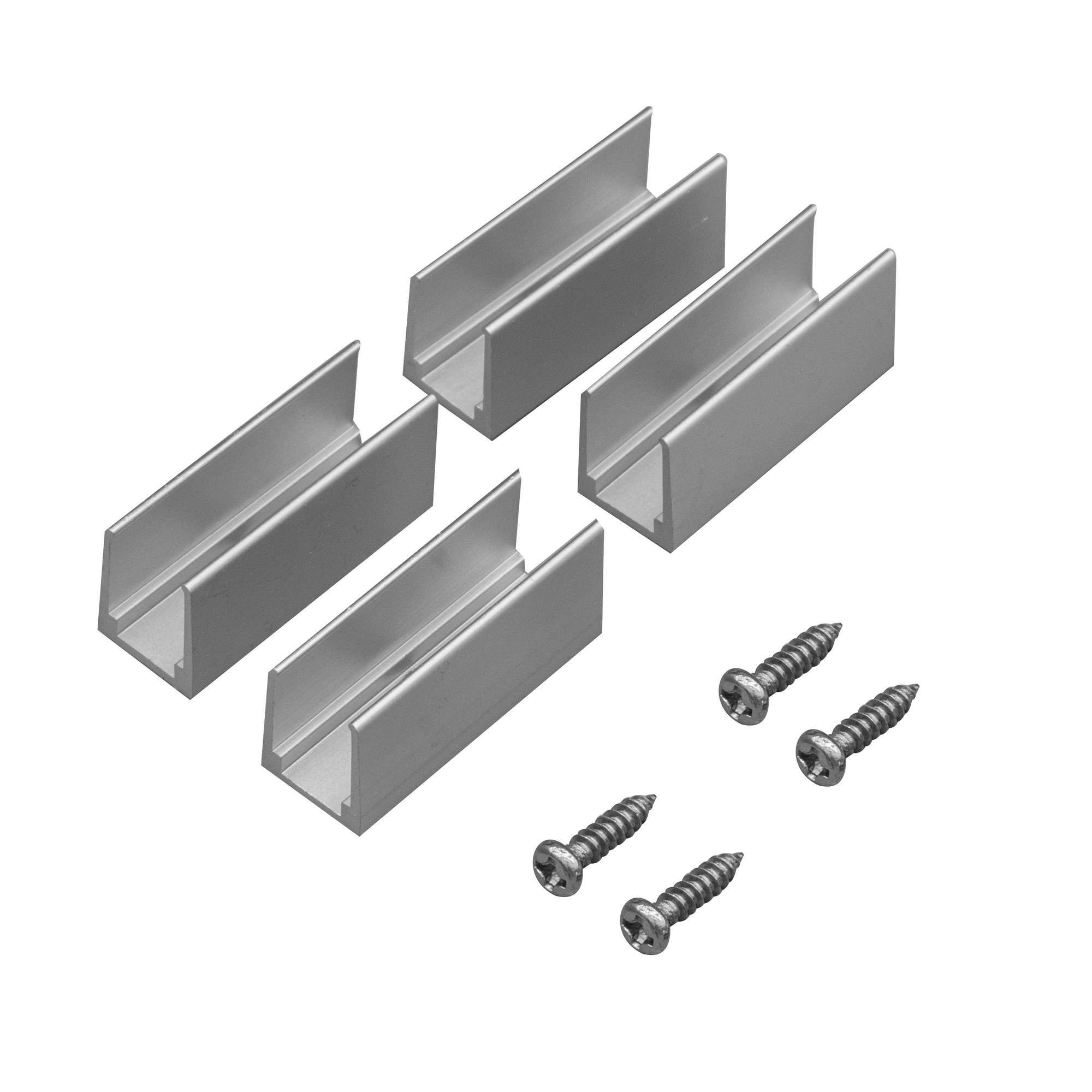

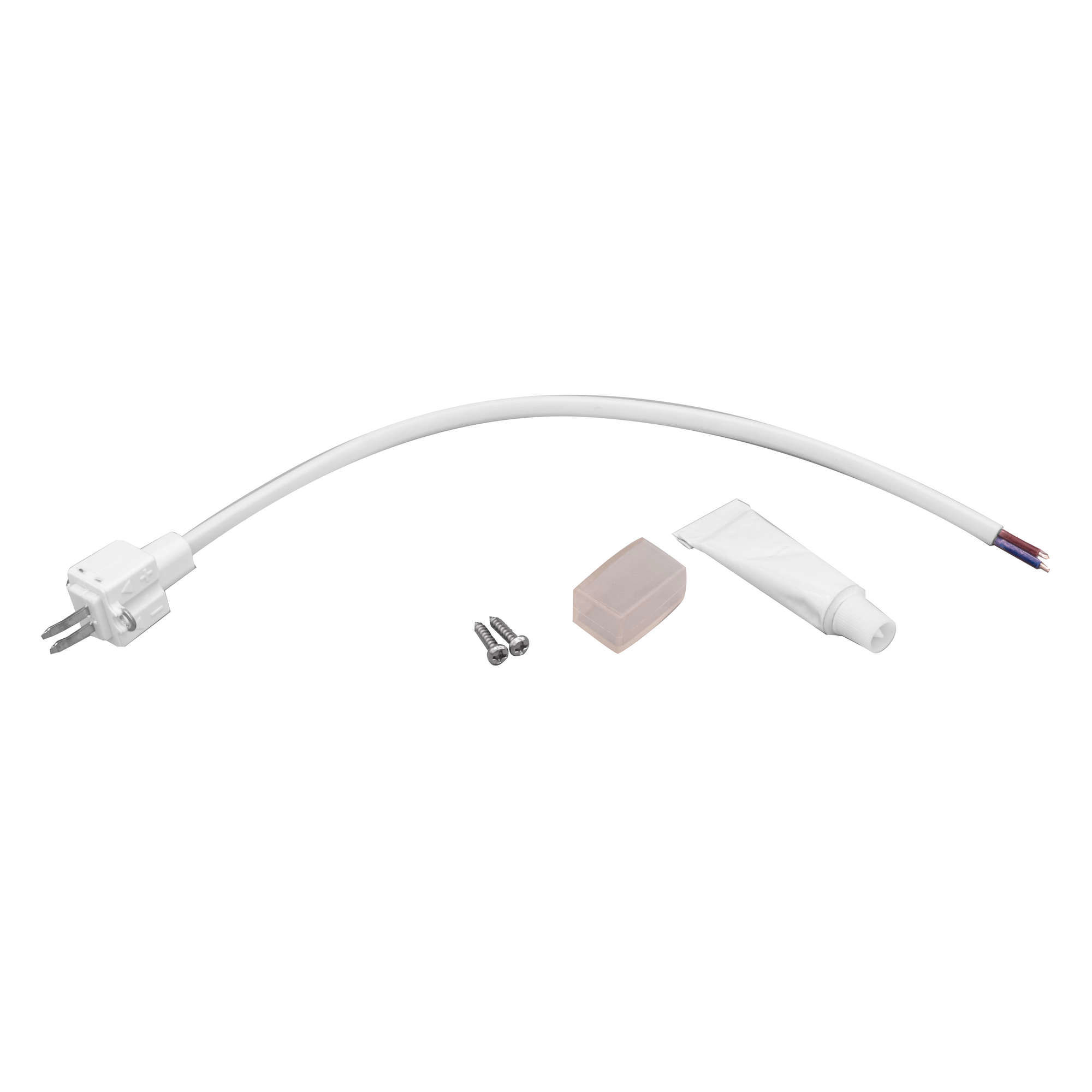

Power end, end cap and clips included.

Specification

General
Dimmable	Yes
IP Rating	IP67

Dimensions
Cut Length	38.5mm
Height	10mm
Length	5m
Width	12mm

Electrical
Maximum Wattage	50W (5 x 10W)
Voltage	24V DC

Light Characteristics
Colour Rendering Index	90
Colour Temperature	3000K Warm White
Lumens	2720 lm
Lumens Per Watt	54 lm/W

Technical Drawings

Downloads

Technical

FLXible Neon 2 Installation Instructions

Specification Sheet

FLXible Neon 2 24V 5M - Vertical Bend (12mm) 50W (1m=10W) 3000K Warm White

FLXible Neon 2 24V 5M - Vertical Bend (12mm) 50W (1m=10W) 3000K Warm White (Unbranded)

Compare with similar products

	This item FLXible Neon 2 24V 5M - Vertical Bend (12mm) 50W (1m=10W) 3000K Warm White Q6082 FN2-30K-24VT £120.00 excl. VAT £144.00 incl. VAT 19 in Stock Add	FLXible Neon 2 24V 5M - Vertical Bend (12mm) 50W (1m=10W) 4000K Cool White Q5E15 FN2-40K-24VT £120.00 excl. VAT £144.00 incl. VAT 7 due in Add	FLXible Neon 2 24V 5M - Vertical Bend Left Side Feed (12mm) 50W (1m=10W) 3000K Warm White Q6085 FN2-30K-LS-24V5M £120.00 excl. VAT £144.00 incl. VAT only 1 left Add	FLXible Neon 2 RGB 24V 5M - Vertical Bend (12mm) 69W (1m=13.8W) RGB Colour Change Q65BB FN2-RGB-24V £131.54 excl. VAT £157.85 incl. VAT available to order Add	FLXible Neon 2 Dual 24V 5M Tunable White - Vertical Bend (12mm) 5m 2200K-4000K White Q65BD FN2-SC-24V-DYN £132.00 excl. VAT £158.40 incl. VAT available to order Add	FLXible Neon 2 24V 5M - Vertical Bend (12mm) 50W (1m=10W) 2700K Warm White Q65B2 FN2-27K-24VT £120.00 excl. VAT £144.00 incl. VAT 5 due in Add	FLXible Neon 2 24V 5M - Vertical Bend (12mm) 50W (1m=10W) 2200K Warm White Q65B3 FN2-22K-24VT £120.00 excl. VAT £144.00 incl. VAT 5 due in Add
Height	10mm	10mm	10mm	12mm	10mm	10mm	10mm
Maximum Wattage	50W (5 x 10W)	50W (5 x 10W)	50W (5 x 10W)	69W (5 x 13.8W)	96W	50W (5 x 10W)	50W (5 x 10W)
Voltage	24V DC	24V	24V DC	24V	24V	24V	24V
