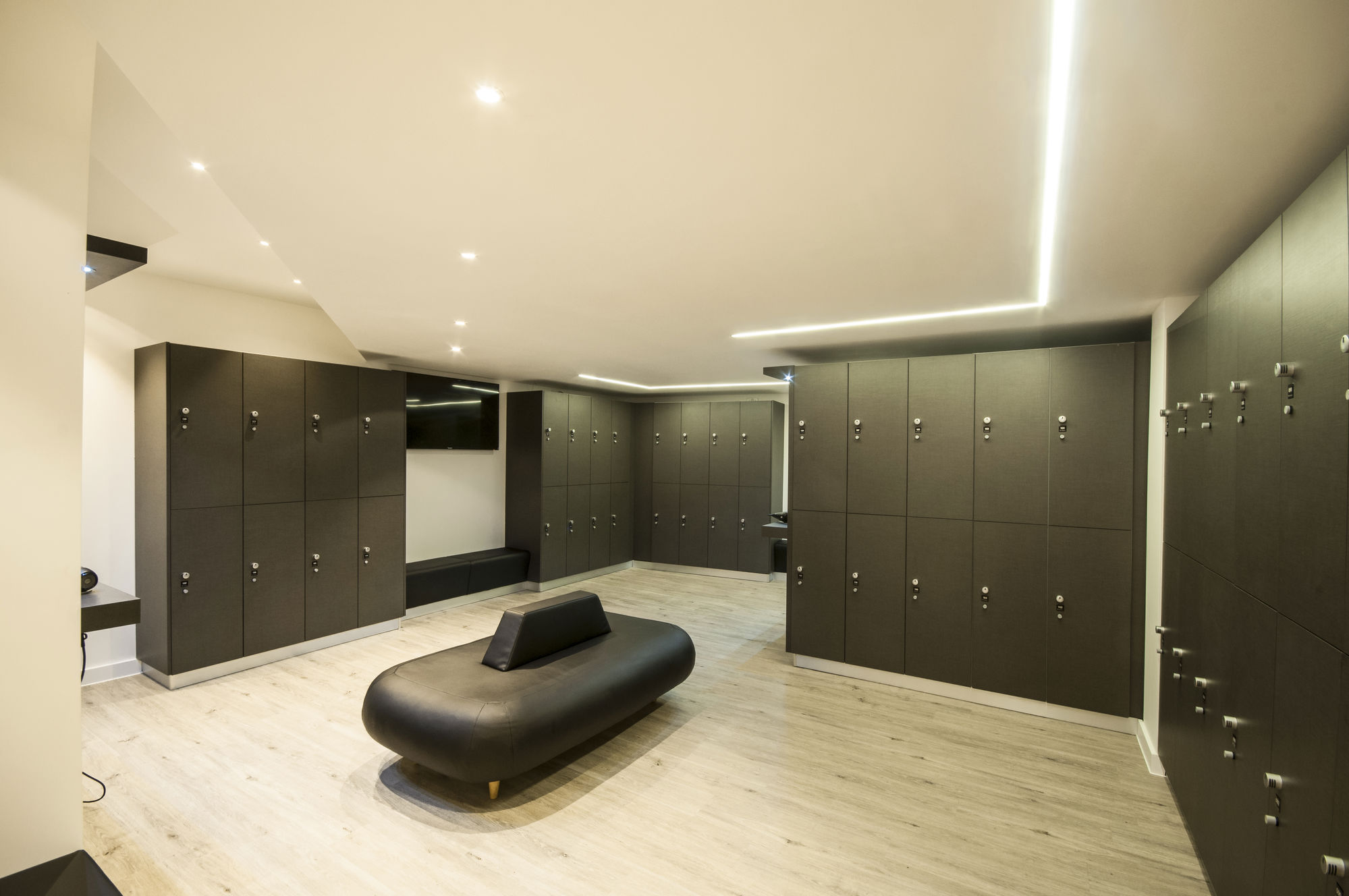

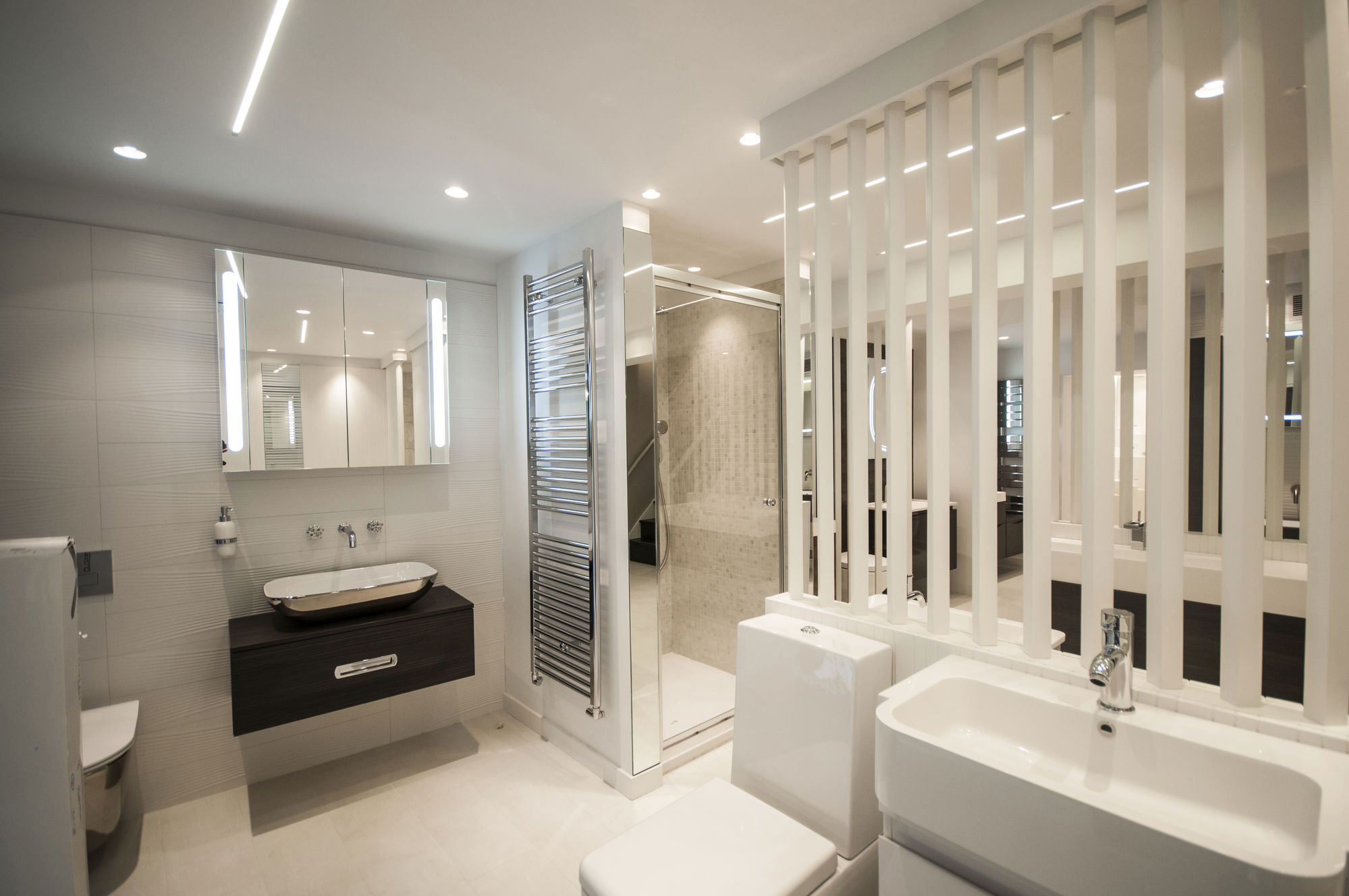

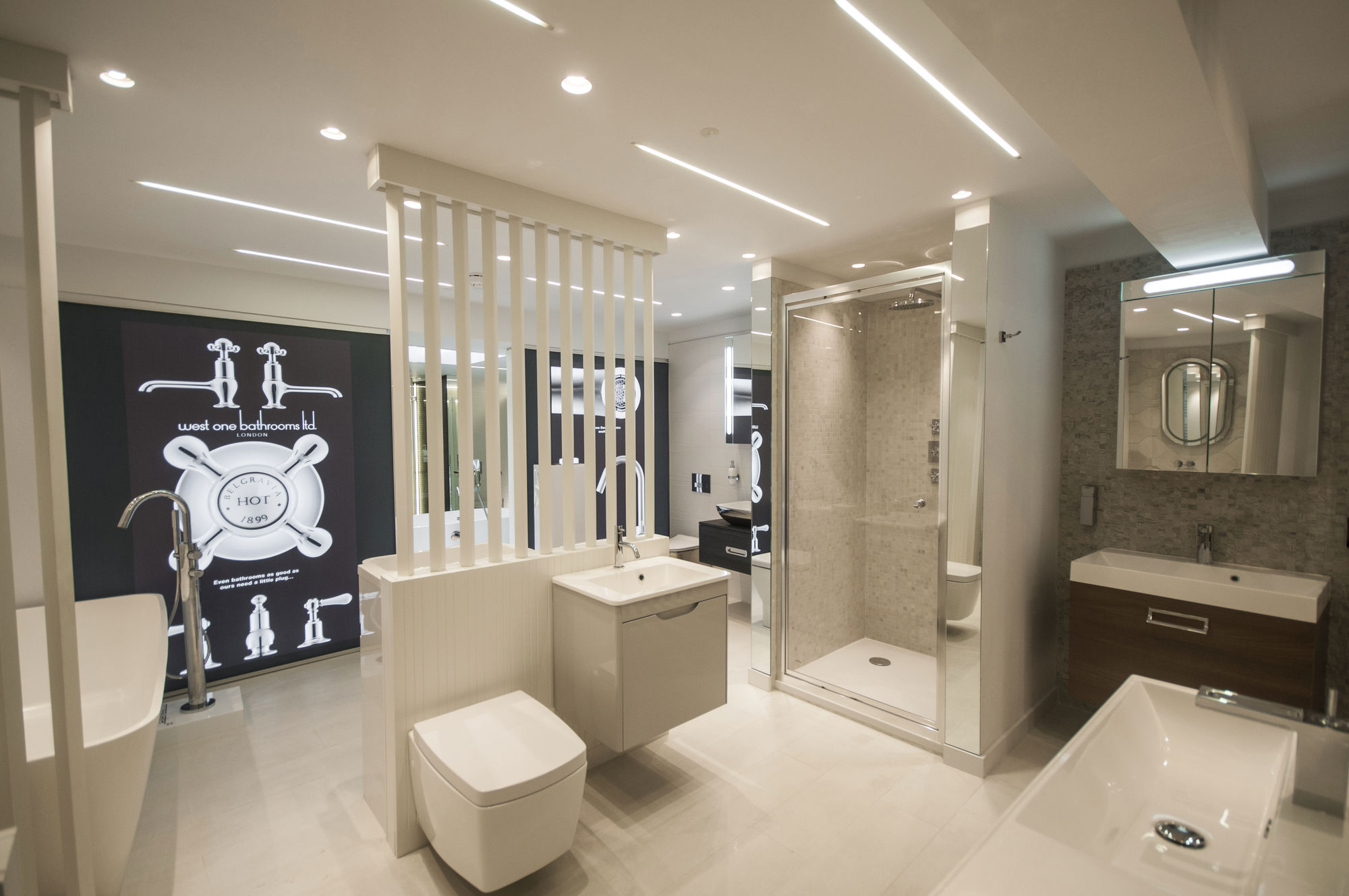

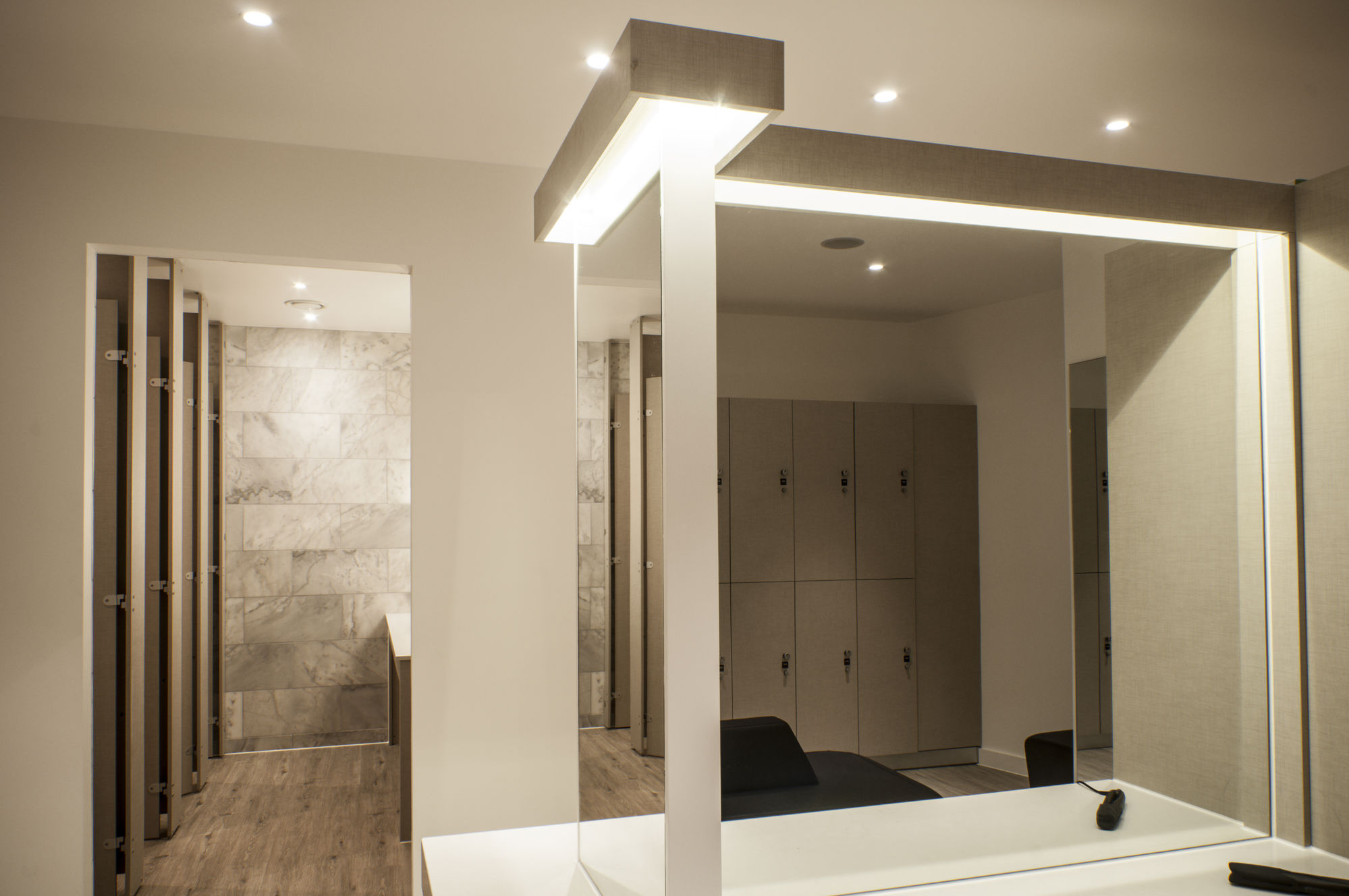

Anything from a short linear run of light for under cabinet or plinth lighting, shelving or back lighting mirrors to large scale applications such as low level lighting in corridors, dropped ceilings, cove lighting, doorways, handrails and staircases can be achieved. A wide range of extrusions and diffusers are available to suit any location and produce different effects.
The 5 meter LED tape cannot be extended any further. For lengths of more than 5 meters, you would need to put the extra tape on an additional power cord and position them one after another, wiring the power cords back to the driver in parallel. This LED tape also has a cut mark every 50mm, meaning you can achieve more precise lengths for your installation. The maximum distance between the power supply and LED tape is 5 meters. We recommend using 1.5mm² cable. The maximum total length is 20 meters for the LED tape and power supply combined.
This LED tape is dimmable and we recommend using the Triac LED Dimming Driver. Ensure the dimming driver you use exceeds the total wattage of the LED Tape.
Please Note: A power cord is included with this product.
General | |
Construction | Plastic |
IP Rating | IP68 |
LED Chip | SMD 3528 |
LED per Tape | 600 |
Dimensions | |
Cut Length | 50mm |
Height | 4mm |
Length | 5m |
Width | 10mm |
Electrical | |
Maximum Wattage | 48W (5 x 9.6W) |
Voltage | 24V DC |
Light Characteristics | |
Beam Angle | 120° |
Colour Temperature | 3000K Warm White |
Lumens | 3800 lm |
Lumens Per Metre | 760 lm/m |
Lumens Per Watt | 79 lm/W |
Watts Per Metre | 9.6 W/m |
