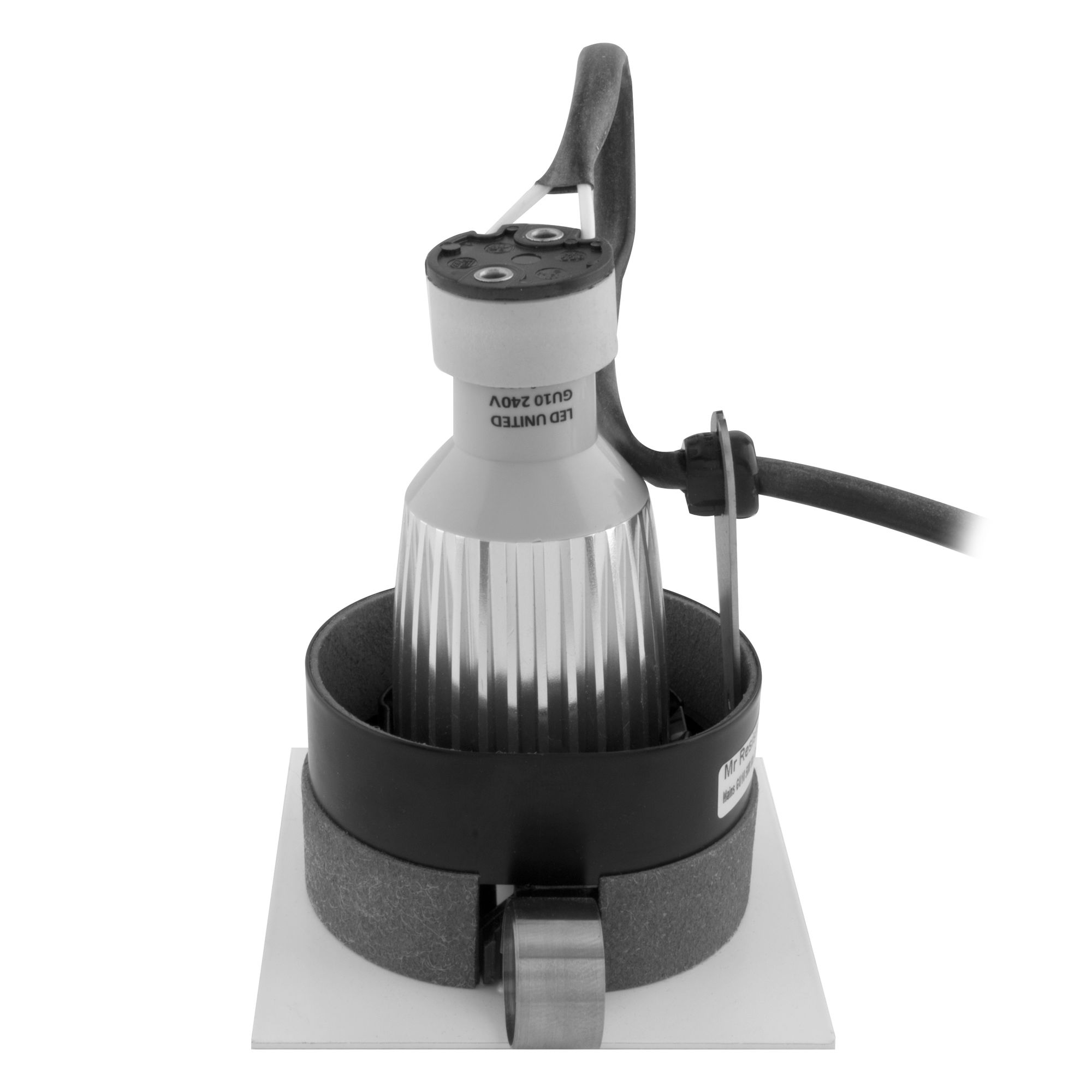

Please note: the ceiling depth for this downlight depends on the lamp choice. For a standard GU10 lamp the depth is 85mm. For an LED GU10 lamp a ceiling depth of 115mm should be allowed.
The Invisible range has been designed to be overpainted in Situ in the ceiling if necessary. The fitting is painted RAL9010 - 30% Gloss level which has a slightly matt surface, to which the emulsion or other paints will adhere to. The finish from the factory is good enough for normal use and will blend in with the most common ceiling finishes. The slightly matt finish on the product will allow it to be carefully repainted to suit any other ceiling colours.
General | |
Cap | GU10 |
Colour | White |
Construction | Die-Cast Aluminium |
Dimmable | Yes |
IP Rating | IP00 |
RAL Colour Code | RAL 9010 |
Dimensions | |
Cut Out | 76mm (Diameter) |
Length | 90mm |
Minimum Ceiling Depth | 85mm |
Width | 90mm |
Electrical | |
Maximum Wattage | 50W |
Voltage | 240V |
58 in Stock
Save up to 10% with Multi-buy54 in Stock
Save up to 10% with Multi-buy61 in Stock
Save up to 10% with Multi-buy35 in Stock
This item
Invisible Fire Rated Fixed Square Downlight GU10 240V 50W RAL 9010 Pure White
Q4A72
FIREDLPSQ3001
29 in Stock
10% Off
|
Invisible Adjustable Square IP54 Frosted Glass Downlight GU10 240V 50W RAL 9010 Pure White
Q3589
TALDLPAGSQ3001WF
11 in Stock
10% Off
|
Invisible Fire Rated Adjustable Square Downlight GU10 240V 50W RAL 9010 Pure White
Q4A71
FIREDLPASQ31
74 in Stock
10% Off
|
Invisible Fixed Square Downlight GU10 240V 50W RAL 9010 Pure White
Q46CB
TALDLPSQ3001
13 in Stock
10% Off
|
Invisible Fire Rated Adjustable Square Downlight GU10 240V 50W Black
Q5BB7
FIREDLPASQ34
only 3 left
10% Off
|
Invisible Adjustable Square IP54 Clear Glass Downlight GU10 240V 50W RAL 9010 Pure White
Q3587
TALDLPAGSQ3001WC
15 in Stock
10% Off
|
Invisible Adjustable Square Fire-Rated IP54 Clear Glass Downlight GU10 240V 50W White
Q50DB
FIREDLPAG31SQ55C
only 3 left
10% Off
|
Adjustable Pinhole Flush 12V 50W White
Q22CF
TPR/DLPASQ3001 W
100 in Stock
30% Off
|
Adjustable One Way Rectangle Double 12V 2x50W White
Q1A8A
DLPASQ23001RR WH
£51.84 excl. VAT
£62.21 incl. VAT
only 1 left
Save up to 10% with Multi-buy
|
Adjustable One Way Rectangle Mini 12V 2x35W White
Q1A97
DLPASQ22501RR WH
20 in Stock
30% Off
|
Adjustable Left to Right Rectangle Mini 12V 2x35W White
Q1A98
DLPASQ22501LR WH
23 in Stock
30% Off
|
Adjustable End to End Rectangle Double Mini 12V 2x35W White
Q1A7F
DLPASQ22501EE WH
only 4 left
30% Off
|
|
---|---|---|---|---|---|---|---|---|---|---|---|---|
Cut Out | 76mm (Diameter) | 67mm (Diameter) | 76mm (Diameter) | 67mm (Diameter) | 76mm (Diameter) | 67mm (Diameter) | 76mm (Diameter) | 93mm (Diameter) | 78mm (Diameter) | 115mm (Diameter) | 115mm (Diameter) | 115mm (Diameter) |
Minimum Ceiling Depth | 85mm | 85mm | 115mm | 115mm | 85mm | 85mm | 85mm | 105mm | 105mm | 92mm | 92mm | 95mm |
Width | 90mm | 90mm | 90mm | 90mm | 90mm | 90mm | 90mm | 93mm | 105mm | 92mm | 92mm | 92mm |
Maximum Wattage | 50W | 50W | 50W | 50W | 50W | 50W | 50W | 50W | 100W (2 x 50W) | 70W (2 x 35W) | 70W (2 x 35W) | 70W (2 x 35W) |
Voltage | 240V | 240V | 240V | 240V | 240V | 240V | 240V | 12V | 12V | 12V | 12V | 12V |
Cap | GU10 | GU10 | GU10 | GU10 | GU10 | GU10 | GU10 | GU5.3 / MR16 | GU5.3 / MR16 | GU4 / MR8 | GU4 / MR8 | GU4 / MR8 |
Colour | White | White | White | White | Black | White | White | White | White | White | White | White |
Construction | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium | Pressed Steel | Pressed Steel | Pressed Steel | Pressed Steel | Pressed Steel |
IP Rating | IP00 | IP54 | IP00 | IP00 | IP00 | IP54 | IP54 | IP20 | IP20 | IP20 | IP20 | IP20 |
