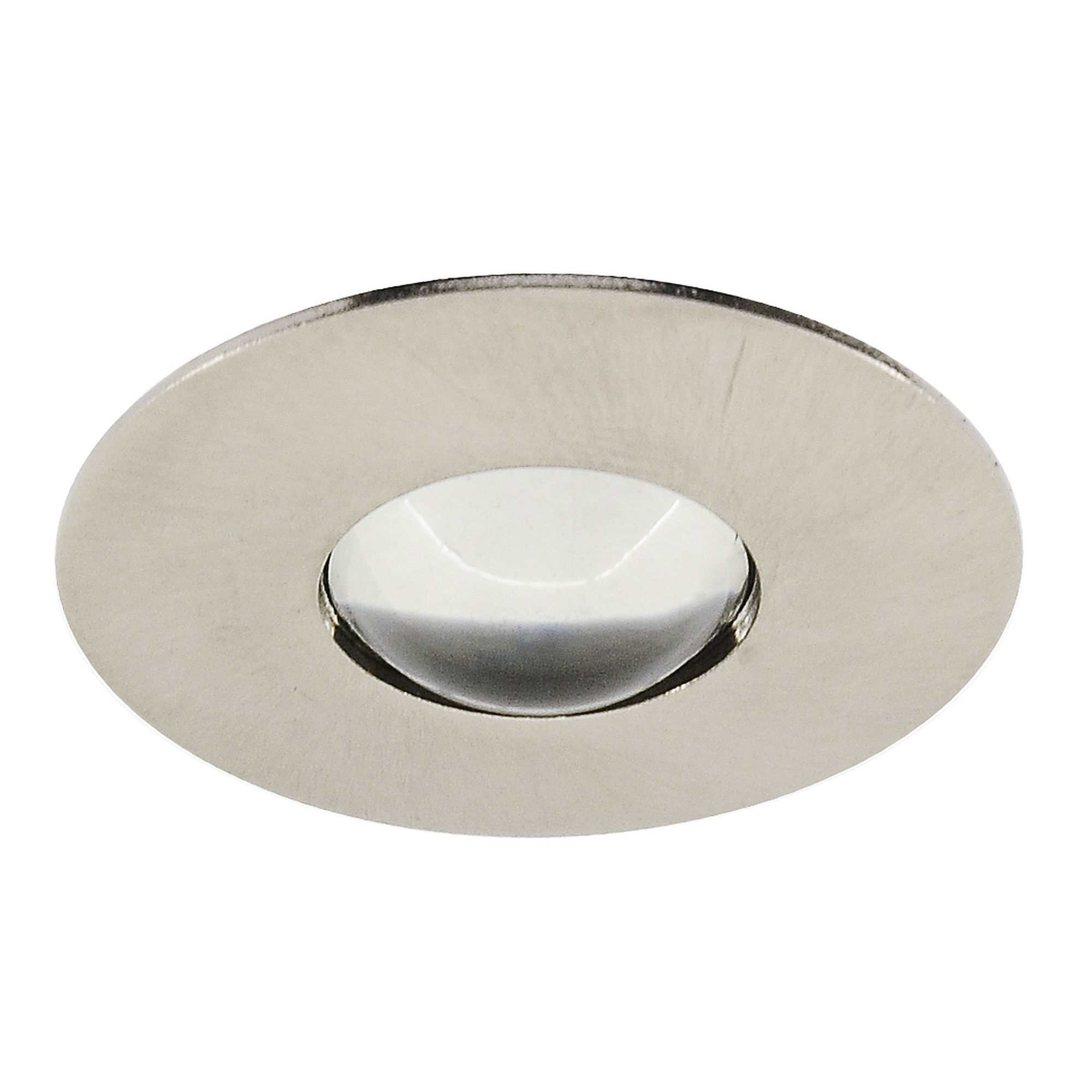

LED Bubble 2 Skirting Light 1W 350mA

Warm White 3200K Stainless Steel

Quicklink Q3C0A

Product Code LEDBUBBLE2 SS/WW

Colour (Stainless Steel)

Light Colour

£16.32EX VAT
£19.58INC VAT
120 in Stock

Description

The Bubble LED 2 is a versatile unit, ideal for lighting skirting boards, plinths, cabinets and stairs and kitchen areas.

It has a high power 1 watt LED.

The cut out is 26mm when using either of the two fixing clips. It can be glued in with a cut out of 22mm.

Two fixing clips included for 25mm or 50mm plasterboard - see installation instructions below for further information.

This fitting needs to be wired in series - see wiring diagram below.

This LED is available in a stainless steel, white metal or chrome finish bezel that has a lens that produces a 45° angle of light.

Many different LED power supplies are available that allow you to achieve more with your lighting. Simply select the correct wattage depending on how many total LED fittings it will be connected to.

Technical

LED Driver Options

Switching - Use this driver for on/off control. Cannot be used for dimming.
Dimming - Normal - Use this driver for dimming control. Some dimmers may require a resistive dummy load to meet the minimum load requirements.
Dimming - 1-10V - Use this driver with a 1-10V dimmer modules or control systems. This type of dimming does not have a minimum load.

Specification

General
Colour	Stainless Steel
Construction	Metal
Dimmable	Yes
IP Rating	IP44


Dimmable	Yes

Dimensions
Cut Out	22mm (Diameter)
Depth	14mm
Diameter	29mm

Electrical
Amperage	350mA
Maximum Wattage	1W

Light Characteristics
Beam Angle	45°
Colour Temperature	3200K Warm White

Technical Drawings

Downloads

Technical

LEDBUBBLE2 Installation Instructions

Series Wiring

Specification Sheet

LED Bubble 2 Skirting Light 1W 350mA Warm White 3200K Stainless Steel

LED Bubble 2 Skirting Light 1W 350mA Warm White 3200K Stainless Steel (Unbranded)
