Regulor Surface Narrow Beam 10°, 30°, 45°, 60°, 90° LED Tape Extrusion Profile

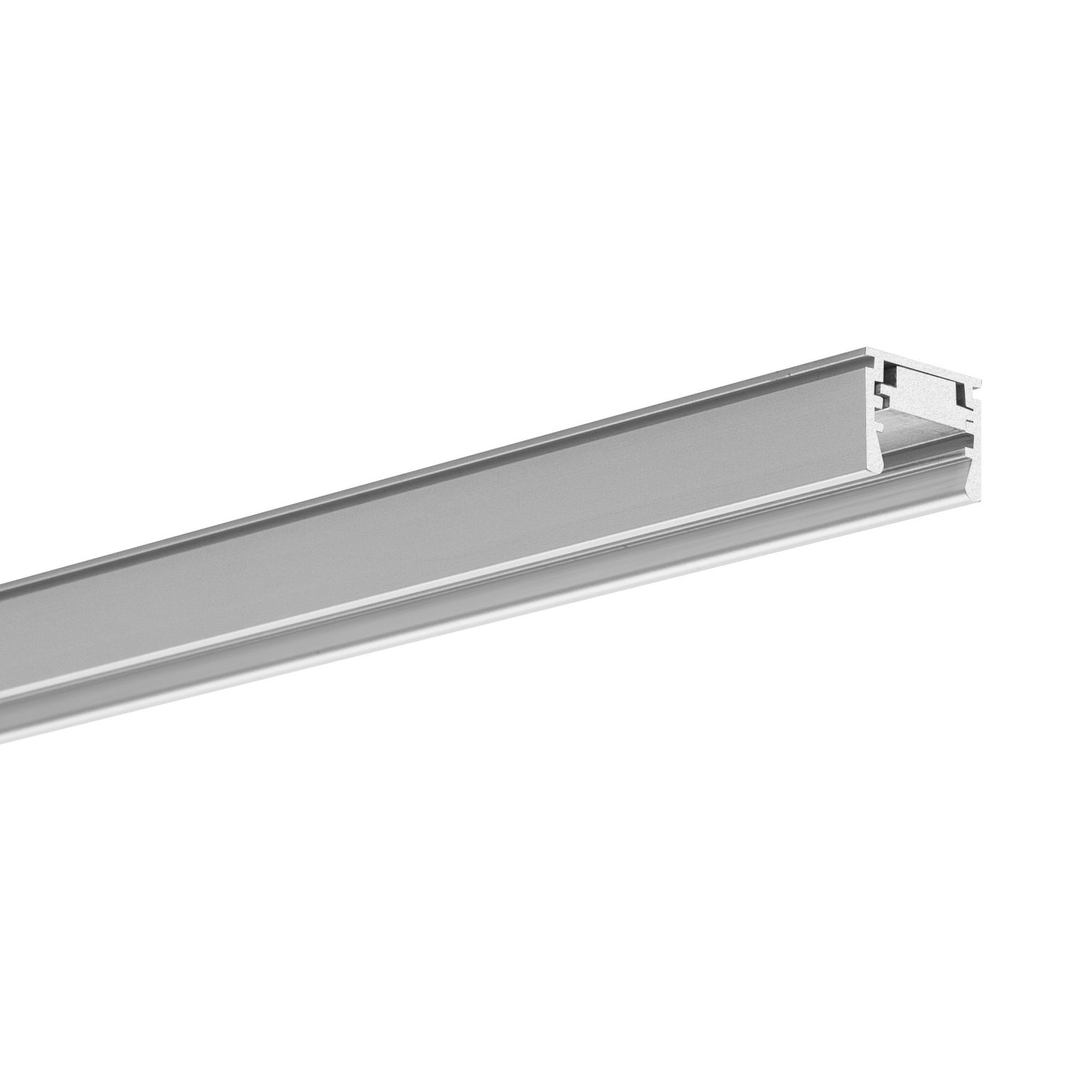

The Regulor Surface Extrusion Profile for lighting angles comes in 1m or 2m lengths and is used to house our LED tape, which keeps the tape light safe and out of the way. The LED Tape has a beam angle of 120 degrees. For a narrower beam effect, the Regulor features an adjustable insert that modifies the beam angle. Depending on the position of the included plate, you can achieve beam angles of 10° (without insert), 30°, 45°, 60°, and 90°. This makes it ideal for creating a focused LED Tape lighting effect.

Extrusions

As many lengths of extrusion can be used as is desired. Any 1m or 2m piece can be positioned end to end with each other to make an unlimited distance.

Endcap

An Endcap is required for each circuit of extrusions being used. It is positioned on the end of the very last extrusion in the circuit and is used to stop dust from and moisture from interfering with the electrical components.

Powerend

An Powerend is required for each circuit of extrusions being used. It is positioned on the very first extrusion in the circuit and serves the same purpose as the Endcap. The powerend has a hole In the centre which allows a cable to be fed through to power the strips.

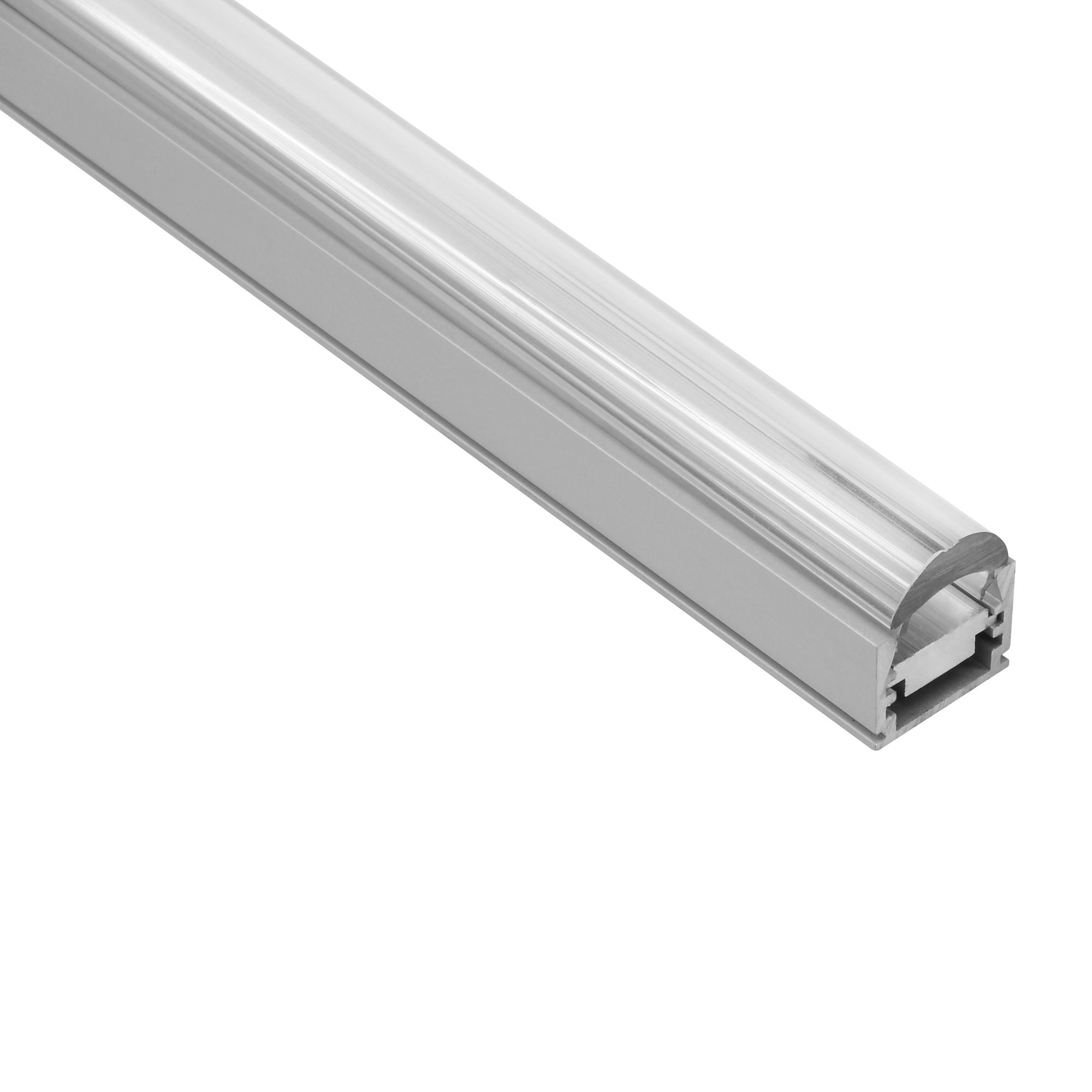

Diffuser

A diffuser is used to give the light a more even blend. Simply purchase the same amount of diffusers as you did with extrusions.

Will fit any tape with a maximum width of 10mm.

This extrusion has been anodized.

Product Installation Video
