A 50 × 60mm profile that hides its own driver and controls, closes with a frosted or UGR<19 optic, and turns a true right angle. Hang it or surface it, in any run you can draw with straight sides — and order every piece in one go.
Rather browse? Every part is listed further down this page.
Most extrusion is a channel: you buy it, you buy tape, you buy a driver, and then you find somewhere out of sight to put the driver. Inter-Plus is deeper than it needs to be for exactly that reason.
It comes in two parts — a Z rail that fixes to the surface and a U section that snaps onto it — and the U has room inside for the power supply and the controls as well as the light source. It takes up to three 12mm tape strips, or four at 10mm, so the output is a choice rather than a limit.
We stock it with a 240 × SMD3528 24V tape at 19.2 W/m — the same tape that goes into the ready-made Inter-Plus pendants further down this page.
The configurator works out how many of each, and the quantities that are easy to get wrong.
2m and 3m lengths, cut to size. Anodised, black or white.
130 × 130mm, plus 4 ZM-180 connectors to couple each one.
Frosted in 1m, 2m and 3m, or UGR<19 microprism in 3m.
One at each open end. A closed loop needs none.
2 wire sets per length, 200mm in from each end. 1.5m of adjustable wire each.
24V tape at 19.2 W/m, with a Triac-dimmable driver sized to the load.
The profile, its corners, its end caps and its suspension are chosen once, not four times.
Profile, L90 corner, end caps and wire set
Profile, L90 corner, end caps and wire set
Profile, L90 corner, end caps and wire set
Even, diffused light with the LEDs hidden. The standard choice for most interiors.
Lengths: 1000mm, 2000mm, 3000mm
Low-glare microprismatic optic for screens and workstations. Made in 3000mm only.
Lengths: 3000mm
Everything Inter-Plus is made to order — nothing sits on a shelf. But if your run is one of the standard sizes, the finished pendants are a single product code arriving complete. The configurator is for everything else.

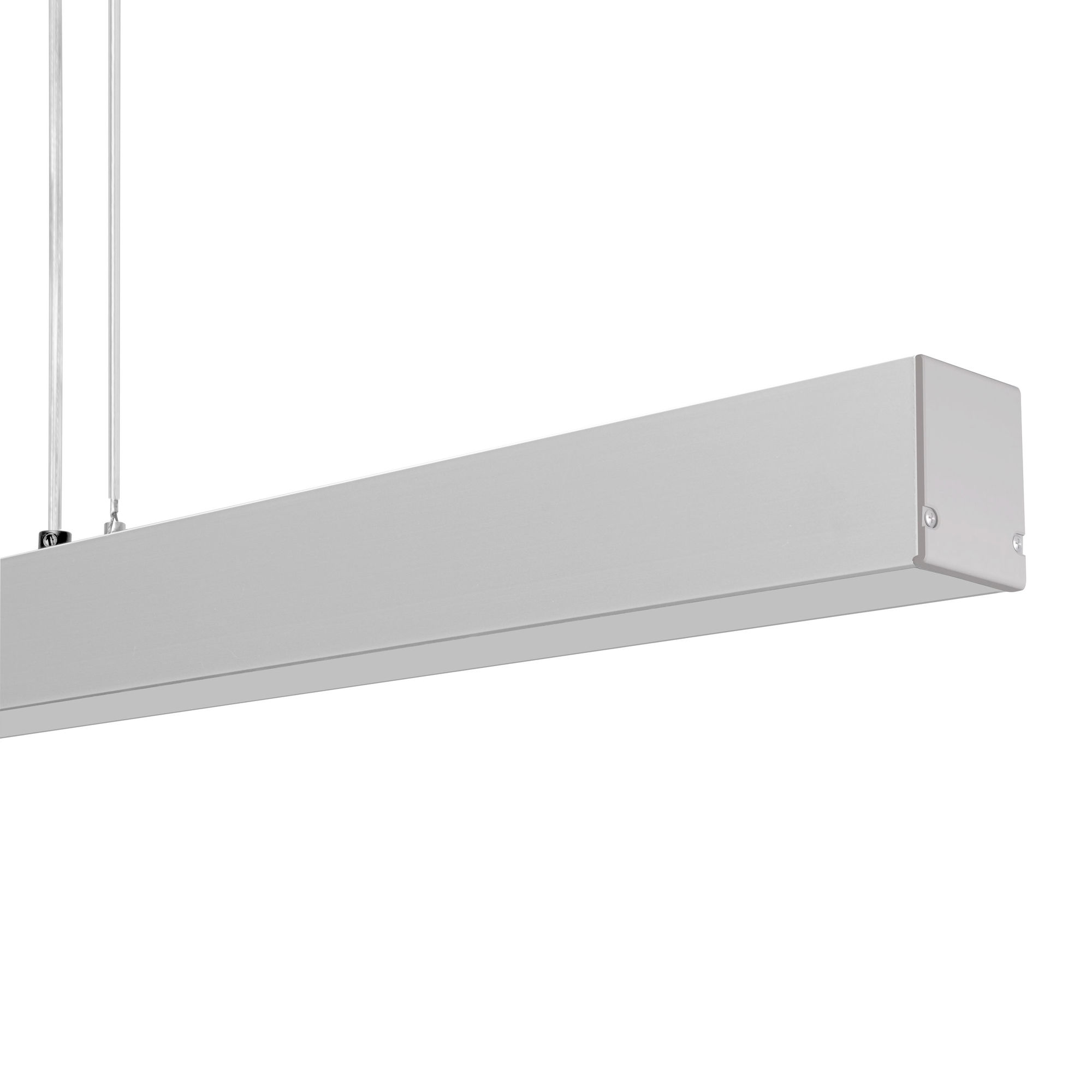

2m at 38.4W or 3m at 57.6W, all three finishes, Triac or DALI-2, 2700K / 3000K / 4000K.
See the linear pendants
2260 × 2260mm square or 3260 × 2260mm rectangle, 192W, closed loops with no visible end.
See the loop pendantsThe configurator builds whole 2m and 3m sections in the five right-angled shapes above, suspended or surface. Plenty of schemes aren't that. Send us the plan and our team will work it out and come back with a quotation.
