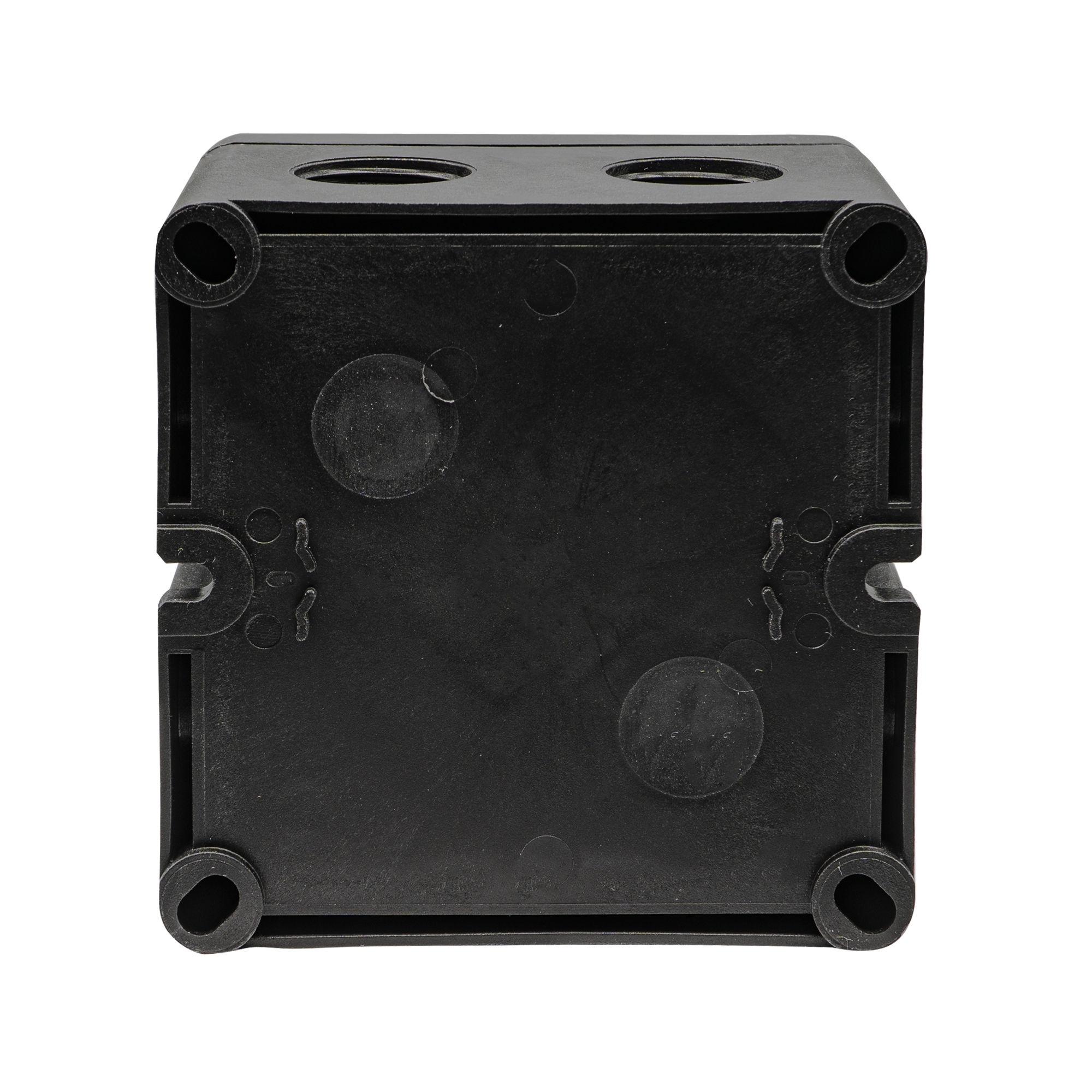

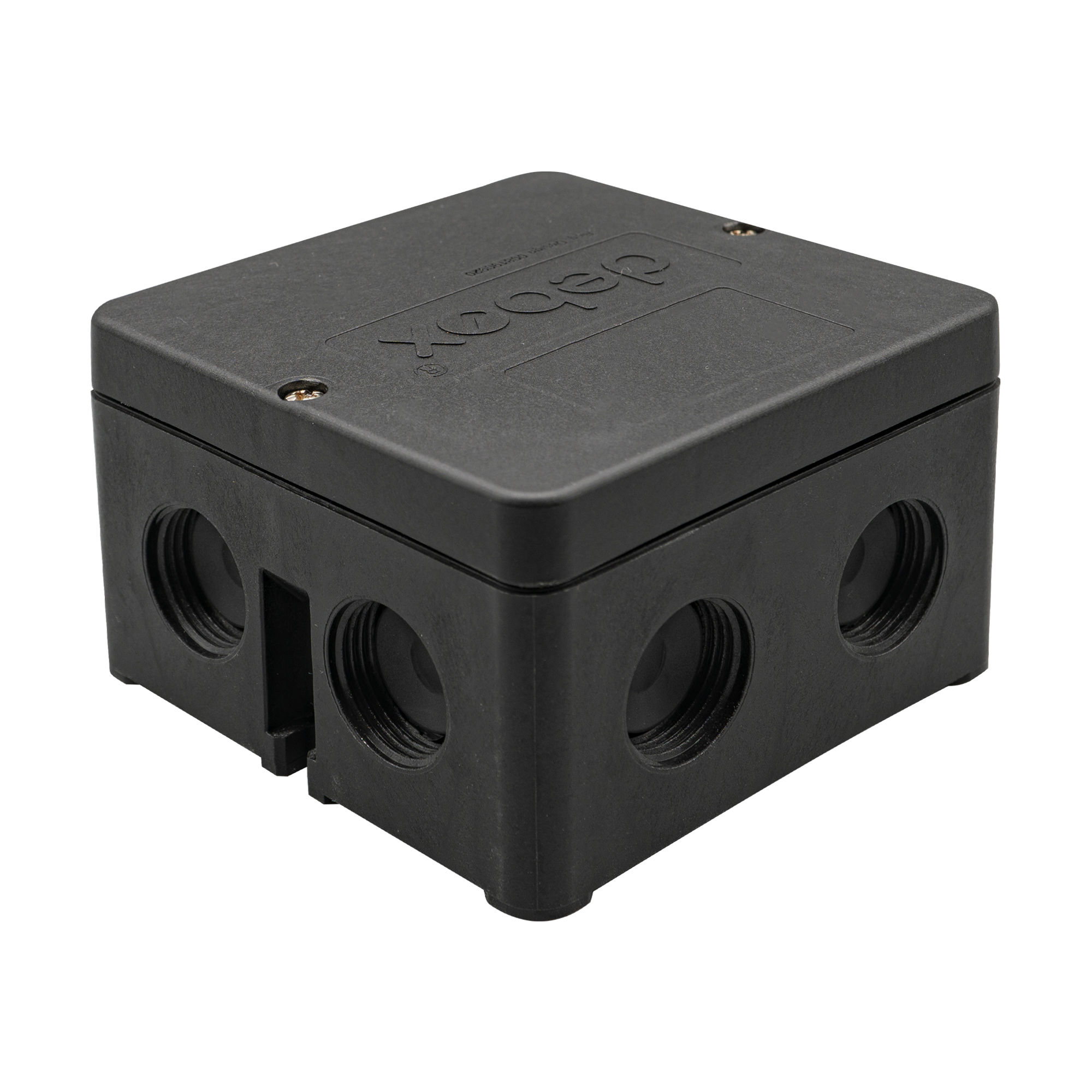

Waterproof Junction Box Debox 11 (85mm)

10 Way Black

Quicklink Q62F7

Product Code JB DEBOX11

£4.95EX VAT
£5.94INC VAT
97 in Stock

Description

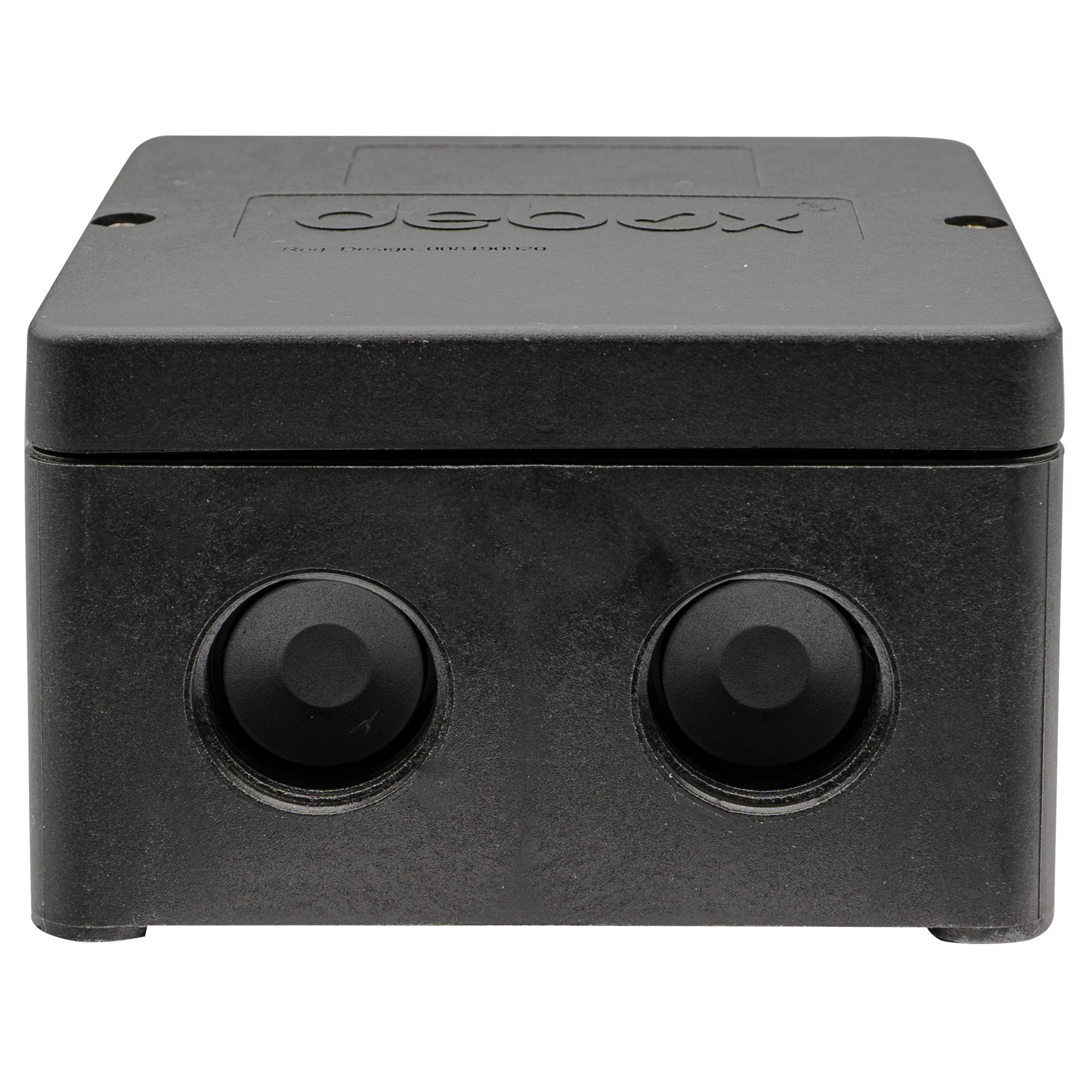

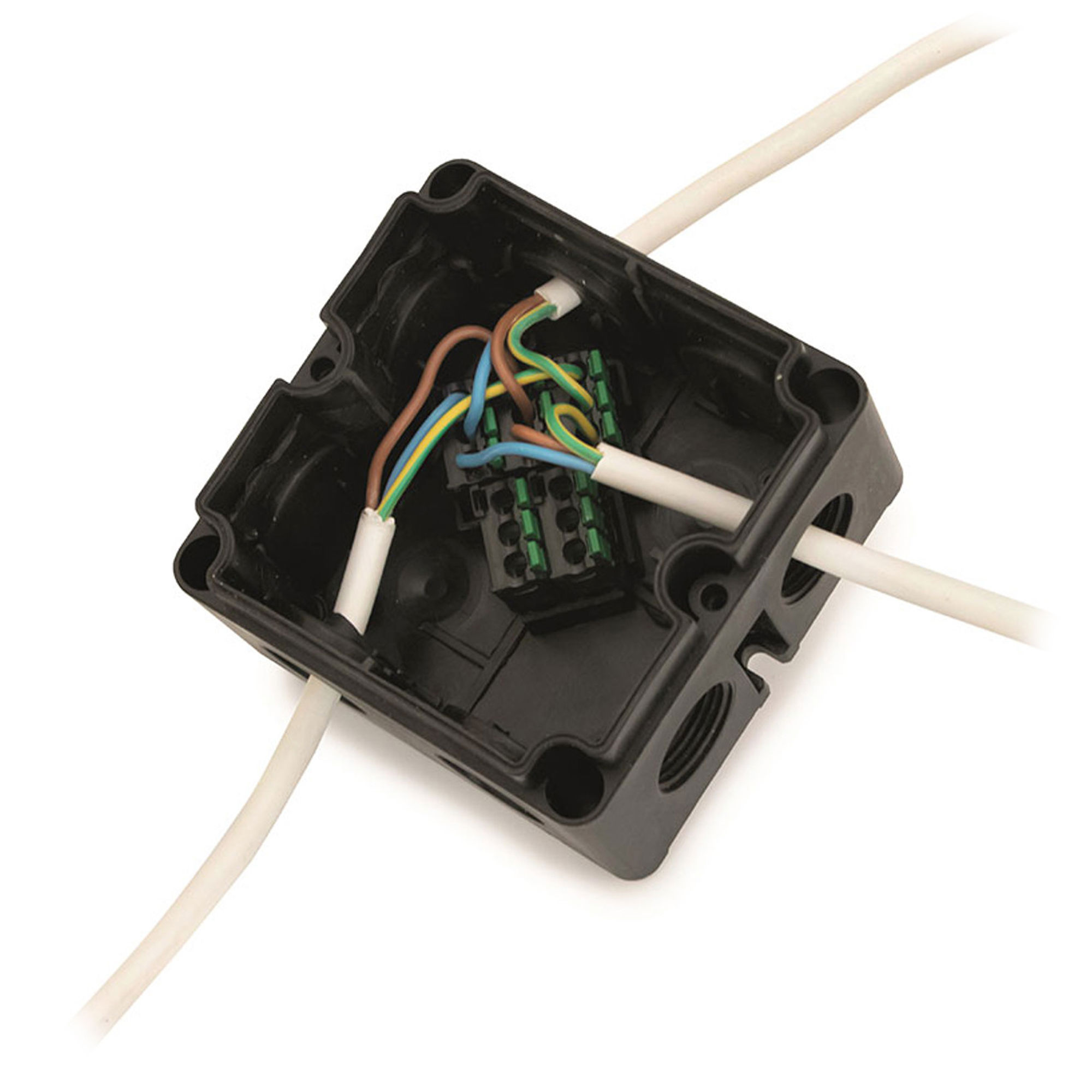

Debox 11 is a versatile surface-mounted internal and external junction box that offers reliable cable management for a range of applications. It comes with 10 soft membrane-covered cable entries, which provide quick puncture-entry and self-sealing properties that are rated to IP66.

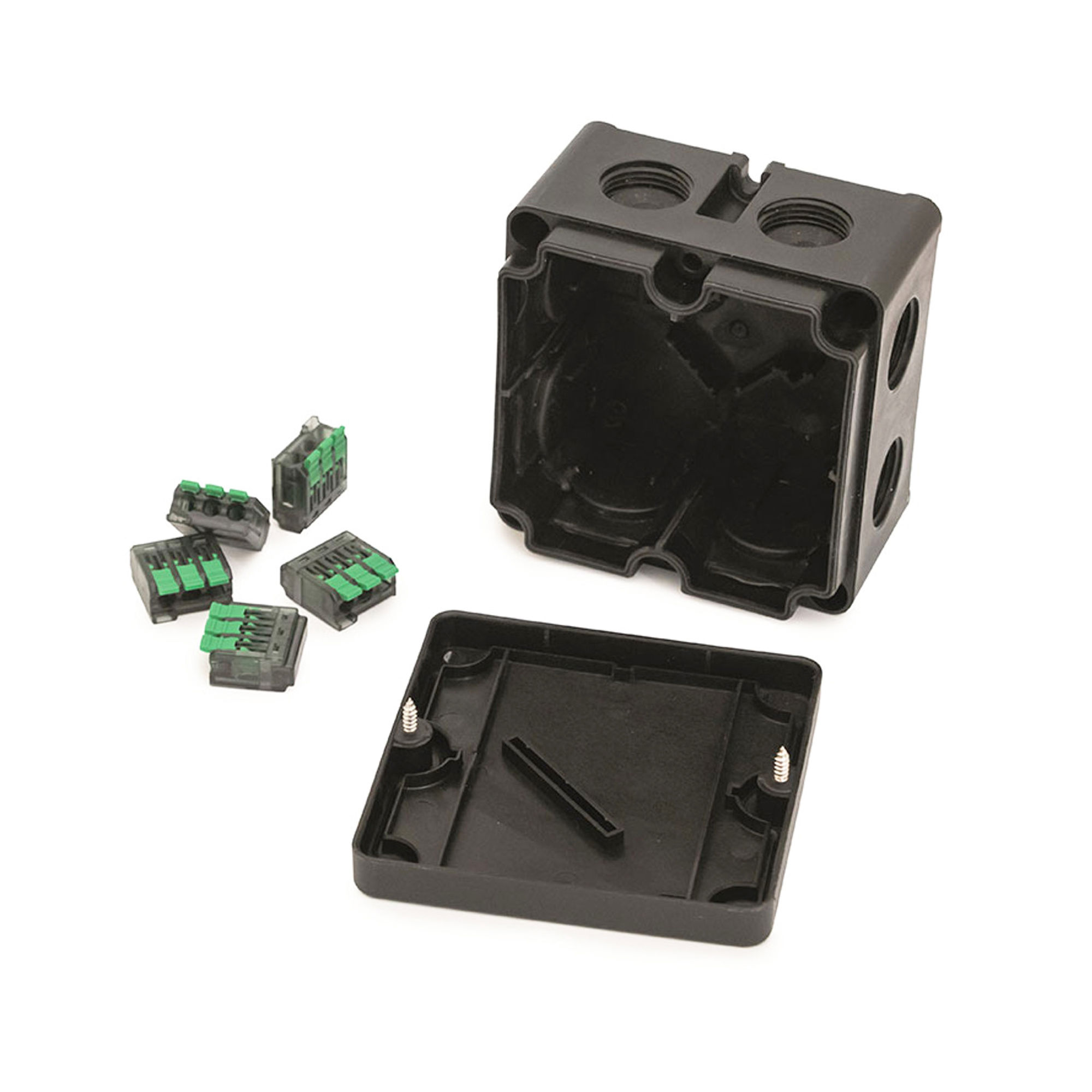

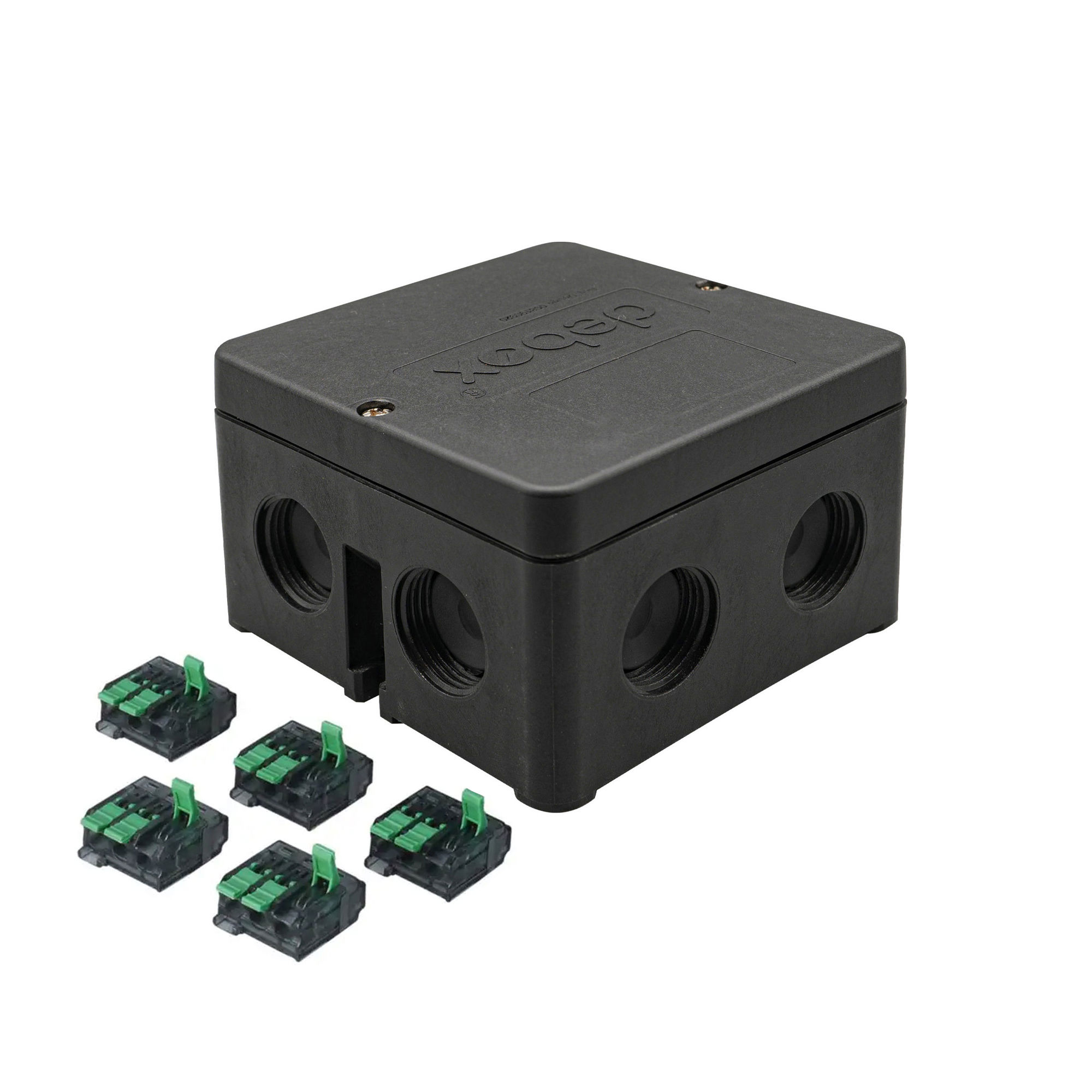

Eight of the entries are threaded M20, making them ideal for cable glands, with no need for an internal locknut. This provides a higher protection rating of IP67, ensuring that your cables are safe and secure in any environment. To further simplify installation, it comes with free five (3 x pole) screwless connectors.

It can be easily fixed into a built-in mounting fixture, making it a convenient and flexible solution for a range of applications. The housing is made with flame-retardant, impact-resistant polypropylene, ensuring that it can withstand even the harshest conditions.

Key Features

4 Mounted Screw Holes
P66 rated using membrane cable entries
IP67 rated using threaded, M20 cable gland entries
Max Current: 32A
Temperature Rating -30°C - 100°C

Specification

General
Colour	Black
Construction	Plastic
IP Rating	IP67

Dimensions
Height	53mm
Length	85mm
Width	85mm

Downloads

Specification Sheet

Waterproof Junction Box Debox 11 (85mm) 10 Way Black

Waterproof Junction Box Debox 11 (85mm) 10 Way Black (Unbranded)
