DOT LED Self Contained Emergency Downlight 400mA

    3W 120°

    Quicklink
    Product Code DOT/3E/WHT
    • £50.00EX VAT
    • £60.00INC VAT
    • available to order
    Free Delivery

    Free Delivery over £100 ex. VAT

    Description

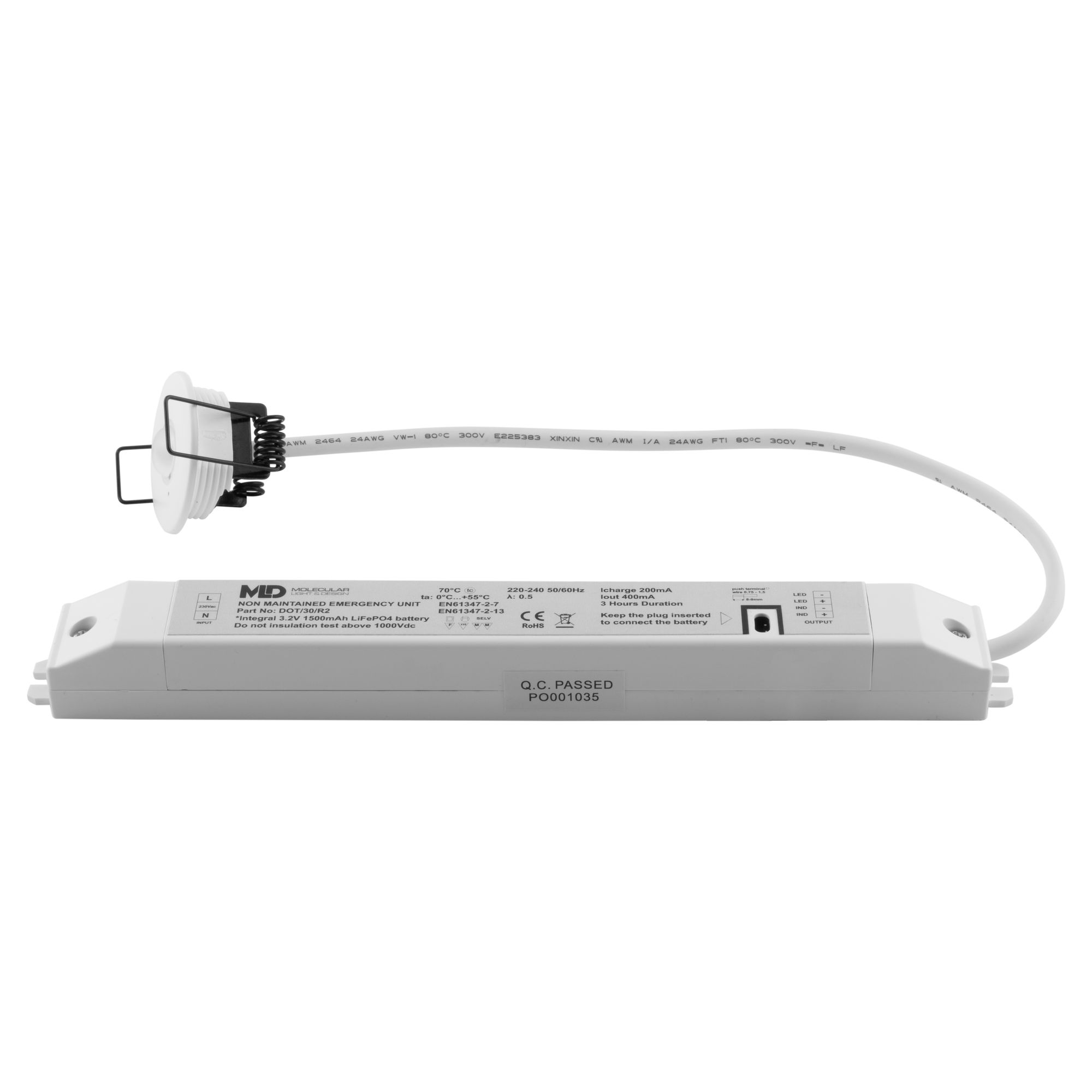

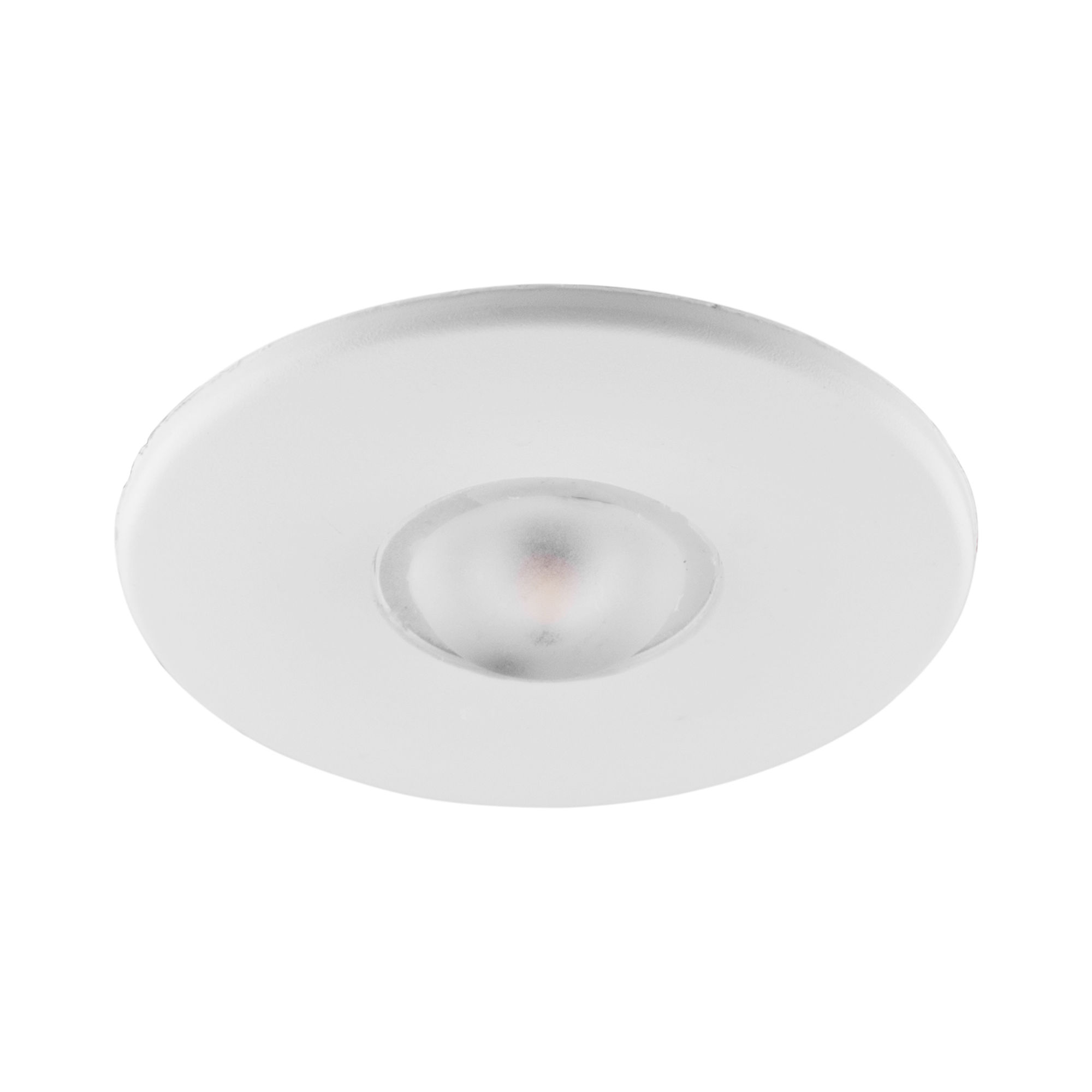

    The DOT3 LED emergency luminaire is a complete and easy solution for 3 hour emergency down lighter applications. It is designed to be small and discreet by housing the electronic control gear together with the latest LiFeP04 batteries within a small enclosure. The result is a small plug and play emergency down lighter that fits through a 32mm aperture. The green charging indicator is easily visible whilst the unit is charging, but is completely unobtrusive due to its 1mm size.

    Emergency downlights are traditionally fitted in corridors and near fire exits to allow safe evacuation of buildings in the event of a power outage.

    Product Description

    • Push and lock connector for easy installation
    • Unobtrusive green charging indicator
    • Open Area Lens & Corridor Lens versions available
    • 195 lumens output / 65 lumens p/w
    • Designed to BS EN60598-2-22
    • High Efficiency LiDeP04 batteries
    • Available in White, Black & Grey
    Specification
    General
    Colour White
    Construction Aluminium
    Dimmable No
    IP Rating IP20
    Battery 3 hrs
    Dimensions
    Cut Out 32mm (Diameter)
    Depth 26mm
    Diameter 37mm
    Minimum Ceiling Depth 26mm
    Electrical
    Amperage 400mA
    Maximum Wattage 3W
    Voltage 240V
    Light Characteristics
    Beam Angle 120°
    Colour Rendering Index 80
    Colour Temperature 6500K Daylight
    Lumens 195 lm
    Lumens Per Watt 65 lm/W
    Downloads
    Compare with similar products
    This item
    DOT LED Self Contained Emergency Downlight 400mA 3W 120°

    DOT LED Self Contained Emergency Downlight 400mA 3W 120°

    Q4415 DOT/3E/WHT
    £50.00 excl. VAT £60.00 incl. VAT

    available to order

    Add

    DOT LED Self Contained Emergency Downlight 400mA 3W 120°

    DOT LED Self Contained Emergency Downlight 400mA 3W 120°

    Q4CEA DOT/3E/BLK
    £70.00 excl. VAT £84.00 incl. VAT

    available to order

    Add

    DOT LED Emergency Non-Maintained Downlight 350mA 3W 120°

    DOT LED Emergency Non-Maintained Downlight 350mA 3W 120°

    Q4CB2 EM LDE3F WIDE WH
    £75.00 excl. VAT £90.00 incl. VAT

    only 2 left

    Add
    Cut Out 32mm (Diameter) 32mm (Diameter) 30mm (Diameter)
    Depth 26mm 26mm 25mm
    Diameter 37mm 37mm 55mm
    Amperage 400mA 400mA 350mA
    Colour White Black White
    Lumens 195 lm 195 lm 170 lm
    Lumens Per Watt 65 lm/W 65 lm/W 57 lm/W
